Medium Profiles for LED Strips
LS AY -PM02/R/18X15,5/10/2
GTIN: 4058075401686
BAG / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Robust aluminum profile
- Quick and simple installation
Areas of application
- General indoor illumination
Dimensions & Weight
| Length | 2000 mm |
| Width | 18.0 mm |
| Height | 15.5 mm |
| Product weight | 420.00 g |
Colors & materials
| Product color | Grey |
Temperatures & operating conditions
| Ambient temperature range | -15…+45 °C |
| Temperature range in operation | -15…+45 °C |
Additional product data
| Product remark | Can be combined with SUPERIOR UNPROTECTED Strips, Cannot be combined with SUPERIOR PROTECTED Strips, Can be combined with PERFORMANCE UNPROTECTED Strips, Cannot be combined with PERFORMANCE PROTECTED Strips, Can be combined with VALUE UNPROTECTED Strips, Cannot be combined with VALUE PROTECTED Strips |
LOGISTICAL DATA
| Temperature range at storage | -35…+85 °C |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075401686 | BAG 1 |
2,000 mm x 22 mm x 12 mm | 421.00 g | 0.53 dm³ |
| 4058075401693 | Bundle 5 |
2,000 mm x 22 mm x 60 mm | 2106.00 g | 2.64 dm³ |
| 4058075401709 | Shipping box 25 |
2,040 mm x 155 mm x 110 mm | 11232.00 g | 34.78 dm³ |
Declarations of conformity
LS AY PM_PF_PW_PC
LS AY PM_PF_PW_PC

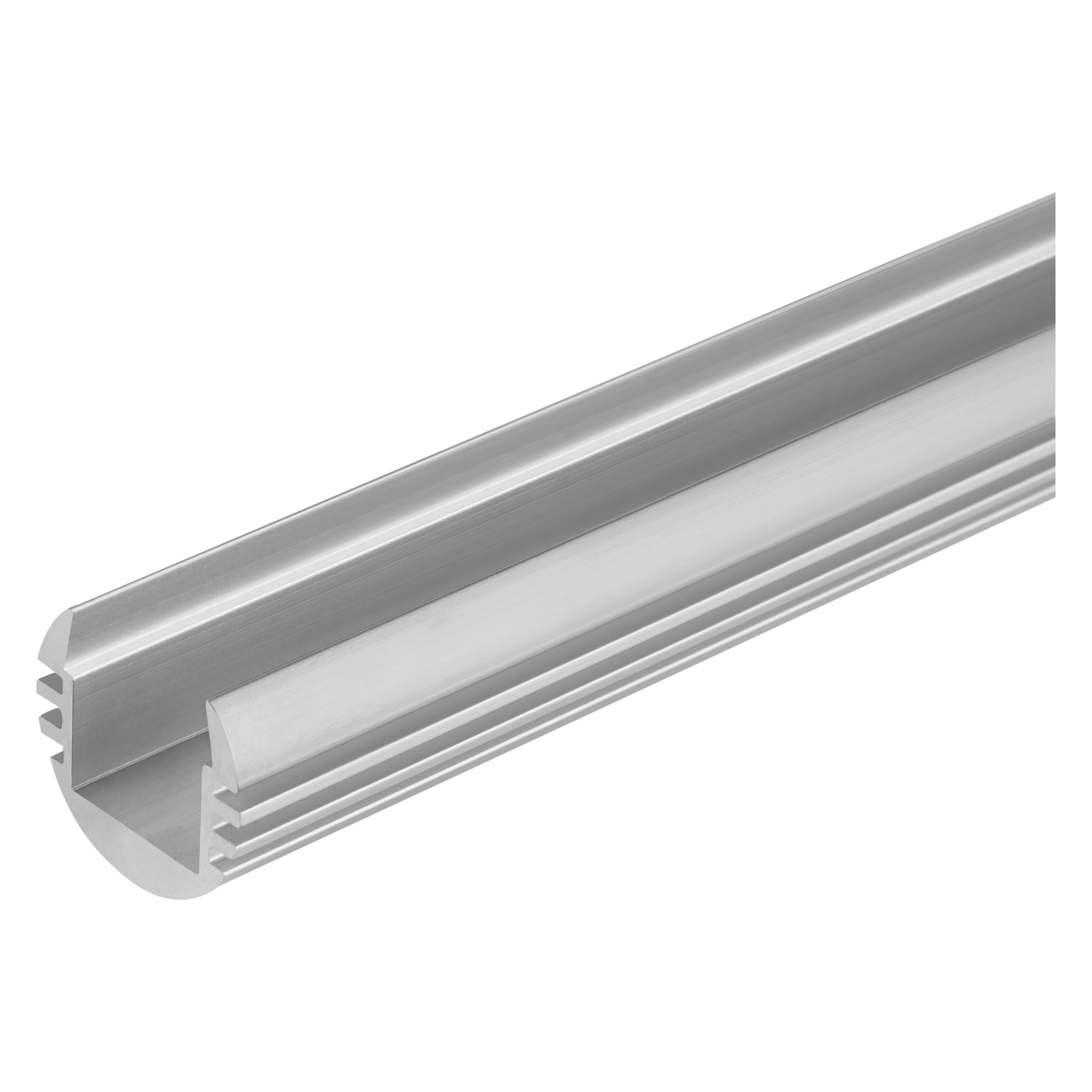

Product image: white background, diagonal
LS AY-PM02/R/18X15,5/10/1
LS AY-PM02/R/18X15,5/10/1
Product line drawing with letters
LS AY-PM02/R/18X15,5/10/1
LS AY-PM02/R/18X15,5/10/1
Product line drawing, front, no dimensions
LS AY-PM02/R/18X15,5/10/1
LS AY-PM02/R/18X15,5/10/1

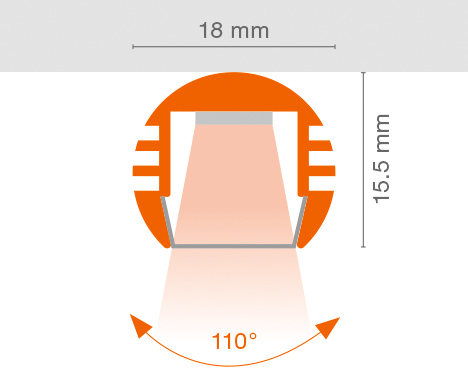

Product graphic: beam angle
Beam angle Medium Round Shape Profile
Beam angle Medium Round Shape Profile
Tender documents
Medium Profiles for LED Strips PM02R 18X15 5 10 2-EN
Medium Profiles for LED Strips PM02R 18X15 5 10 2-EN
| EAN | STK number | EFO number | ELDAS number |
|---|---|---|---|
| 4058075401686 | 4125418 | 3254385 | 941189650 |
