CV Power supplies 24 V

OT 40/220…240/24 P

GTIN: 4052899545946 Folding box / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Large range of products from 20 W to 250 W
  • Installation in very cold and hot environments
  • Very stable output power
  • High electronical reversible short-circuit, overload, overtemperature protection
  • Smart Power Supply: boosting power to turn on cold LEDs
  • Independent installation possible
Areas of application
  • Facades, public squares, cruise ships
  • Signage
  • Suitable for indoor and outdoor installations
Product features
  • DC mode functionality
  • Type of protection: IP66 and IP67
  • Surge protection: up to 4 kV (L-N) / 6 kV (L/N-PE)
  • Wide operating temperature range: -30…+55 °C
  • Lifetime: up to 50,000 h (temperature at max. tc )
Electrical data
Nominal wattage 40.00 W
Nominal output power 40 W
Nominal voltage 220…240 V
Nominal output voltage 24.2 V
Input voltage AC 198…264 V
Input voltage DC 176…250 V
Inrush current 20 A
Mains frequency 0/60 Hz
Total harmonic distortion < 15 %
Power factor λ 0.95
ECG efficiency 85 %
Device power loss 4 W
Max. ECG no. on circuit breaker 10 A (B) 36
Max. ECG no. on circuit breaker 16 A (B) 57
Max. ECG no. on circuit breaker 25 A (B) 87
Surge capability (L-N) 4 kV
Galvanic isolation SELV
Dimensions & Weight
Length 208.00 mm
Mounting hole spacing, length 199 mm
Width 43.00 mm
Height 26.00 mm
Cable cross-section, input side 1 mm²
Cable cross-section, output side 1 mm²
Wire preparation length, input side 90 mm
Wire preparation length, output side 90 mm
Product weight 416.00 g
Colors & materials
Casing material Plastic
Body material Plastic
Temperatures & operating conditions
Ambient temperature range -30…+55 °C
Maximum temperature at tc test point 90 °C
Max.housing temperature in case of fault 110 °C
Permitted rel. humidity during operation 5…85 % 1)
1) Maximum 56 days/year at 85 %
Lifespan
ECG lifetime 50000 h
Additional product data
Encapsulated Yes
Capabilities
Dimmable No
Overheating protection Yes
Overload protection Yes
Short-circuit protection Yes
No-load proof Yes
Suitable for fixtures with prot. class II
Type of connection, output side Cables
Certificates & Standards
Approval marks – approval ENEC, RCM, CCC, EAC
Standards Acc. to EN 61000-3-3, Acc. to EN 60598-1, Acc. to EN 62384
Protection class II
Type of protection IP66
LOGISTICAL DATA
Temperature range at storage -40…+85 °C
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4052899545946 Folding box
1
293 mm x 63 mm x 38 mm 449.00 g 0.70 dm³
4052899545953 Shipping box
20
334 mm x 310 mm x 194 mm 9525.00 g 20.09 dm³
User instruction / safety instructions
OPTOTRONIC® LED Power Supply
Declarations of conformity
Attestation of Conformity No. N8A 18 01 84117 055
Declarations of conformity
Attestation of Conformity No. E8A 18 01 84117 050
Declarations of conformity
EU Declaration of Conformity 3537796
Declarations of conformity
EU Declaration of Conformity OT 24V P_DIMP
Certificates
CB Test Certificate No. SG PSB-LE-00930
Certificates
ENEC Certficate No. U6 18 01 84117 051
Certificates
CCC Certificate No. 2018011002043864
PRODUCT DATASHEET
Datasheet OT 40/220-240/24 P
Product image: white background, diagonal
OT 40/220-240/24 P

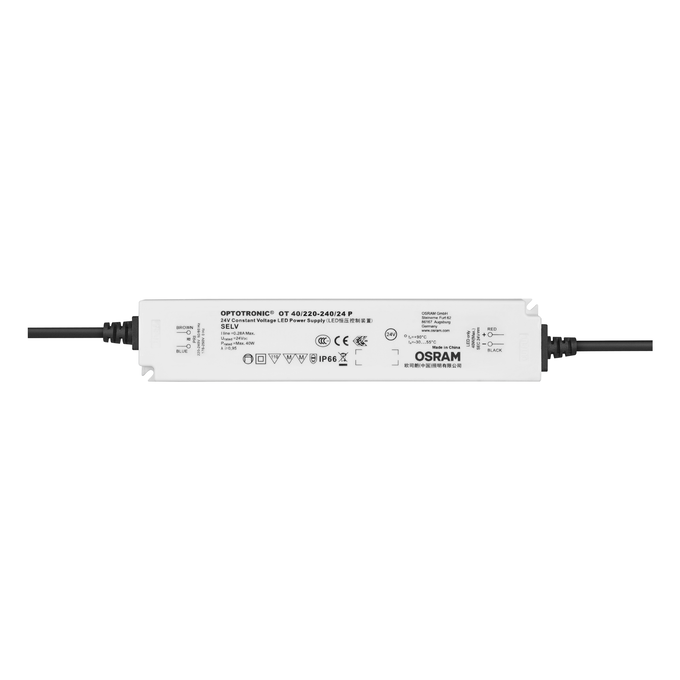

Product image: white background, horizontal
OT 40/220-240/24 P
Product line drawing with letters
OT 60/220-240/24 P
Product line drawing with numbers
OT 60/220-240/24 P
