LED DRIVER OUTDOOR PERFORMANCE
DR-PFM -100/220-240/24/P
GTIN: 4058075239937
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Perfectly matched to 24 V LED flexible strips
- 5 years guarantee
- Very stable output power
- Quick and simple installation due to prewiring
- High efficiency and reliability
- Installation in very cold and hot environments
Areas of application
- Suitable for indoor and outdoor installations
- Facade and building illumination
- Ideal for illuminating public spaces
- Bathrooms, kitchens and outdoor areas
- Offices, shopping centers, hospitals, restaurants, hotels
Product features
- Available in 30 W, 60 W, 100 W, 150 W and 250 W
- Lifetime: up to 50,000 h (at max. tc temperature)
- Type of protection: IP66
- Operating temperature range at ta: -40…50 °C
- Supply voltage: 220…240 V
- Operating frequency: 50/60 Hz
- Surge protection: up to 4 kV (L-N) for 30W/60W, 6 kV (L-N) / 6 kV (L/N-PE) for 100W/150W/250W
- Short-circuit and overlaod protection
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Disconnect mains before installation.
- Do not open enclosure-housing.
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 100.00 W |
| Nominal output power | 100 W 1) |
| Nominal voltage | 220…240 V |
| Nominal output voltage | 24 V 2) |
| Input voltage AC | 198…264 V 3) |
| U-OUT (working voltage) | 24 V |
| Type of current | DC |
| Nominal current | 525 mA |
| Nominal output current | 4170 mA 4) |
| Inrush current | 46 A |
| Output ripple current (100 Hz) | 5.21 % |
| Mains frequency | 50…60 Hz |
| Total harmonic distortion | < 20 % 5) |
| Power factor λ | 0.95 6) |
| ECG efficiency | 89 % 7) |
| Device power loss | 13 W 8) |
| Max. ECG no. on circuit breaker 10 A (B) | 13 |
| Max. ECG no. on circuit breaker 16 A (B) | 16 |
| Max. ECG no. on circuit breaker 25 A (B) | 25 |
| Surge capability (L/N-Ground) | 6 kV |
| Surge capability (L-N) | 6 kV |
| Galvanic isolation | SELV |
1) From 0 to 100 W
2) Maximum 24 V
3) Permitted voltage range
4) ±10%
5) At full load, 220…240 V, 50 Hz
6) Full load at 230 V
7) At full load and 230 V
8) At maximum LED load of 100 W
2) Maximum 24 V
3) Permitted voltage range
4) ±10%
5) At full load, 220…240 V, 50 Hz
6) Full load at 230 V
7) At full load and 230 V
8) At maximum LED load of 100 W
Dimensions & Weight
| Length | 197.00 mm |
| Mounting hole spacing, length | 188,0 mm |
| Width | 63.00 mm |
| Height | 38.00 mm |
| Cable cross-section, input side | 1 mm² |
| Cable cross-section, output side | 1 mm² |
| Prewired | Yes |
| Product weight | 840.00 g |
Colors & materials
| Product color | Aluminum |
| Casing material | Metal |
| Body material | Metal |
Temperatures & operating conditions
| Ambient temperature range | -40…+50 °C |
| Maximum temperature at tc test point | 80 °C |
| Max.housing temperature in case of fault | 110 °C |
| Temperature range in operation | -40…+50 °C |
| Permitted rel. humidity during operation | 20…95 % 1) |
1) Maximum 56 days/year at 95%
Lifespan
| ECG lifetime | 50000 h 1) |
1) At maximum Tc = 80°C / 10% failure rate
Additional product data
| Encapsulated | Yes |
Capabilities
| Dimmable | No |
| Dimming interface | Not dimmable |
| Overheating protection | Yes |
| Overload protection | No |
| Short-circuit protection | Yes |
| Max. cable length to lamp/LED module | 10 m |
| Suitable for fixtures with prot. class | I |
| Suitable for emergency lighting | No |
| Type of connection, output side | Cables |
Certificates & Standards
| Approval marks – approval | CE, TUV |
| Standards | Acc. to EN 61347-1, Acc. to EN 61347-2-13, Acc. to EN 55015, Acc. to EN 61547, Acc. to EN 61000-3-2, Acc. to EN 62384 |
| Protection class | I |
| Type of protection | IP66 |
LOGISTICAL DATA
| Temperature range at storage | -40…+80 °C |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075239937 | Folding box 1 |
256 mm x 89 mm x 47 mm | 902.00 g | 1.07 dm³ |
| 4058075239944 | Shipping box 10 |
273 mm x 196 mm x 263 mm | 9413.00 g | 14.07 dm³ |
User instruction / safety instructions
LED DRIVER OUTDOOR PFM
LED DRIVER OUTDOOR PFM
Declarations of conformity
EU Declaration of Conformity 3581723
EU Declaration of Conformity 3581723
PRODUCT DATASHEET
DR-PFM-100/220-240/24/ P
DR-PFM-100/220-240/24/ P

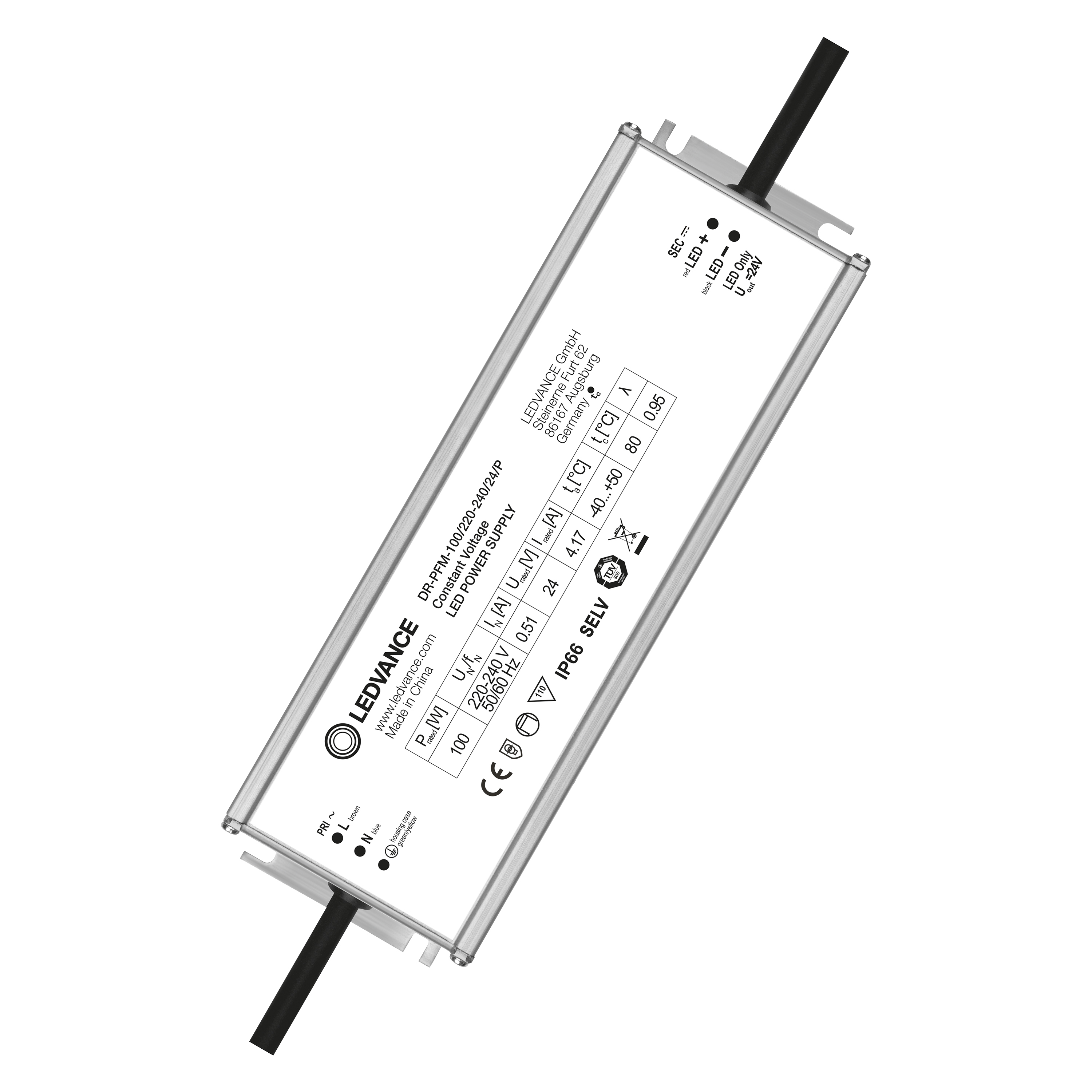

Product image: white background, diagonal
DR-PFM-100/220-240/24/ P
DR-PFM-100/220-240/24/ P

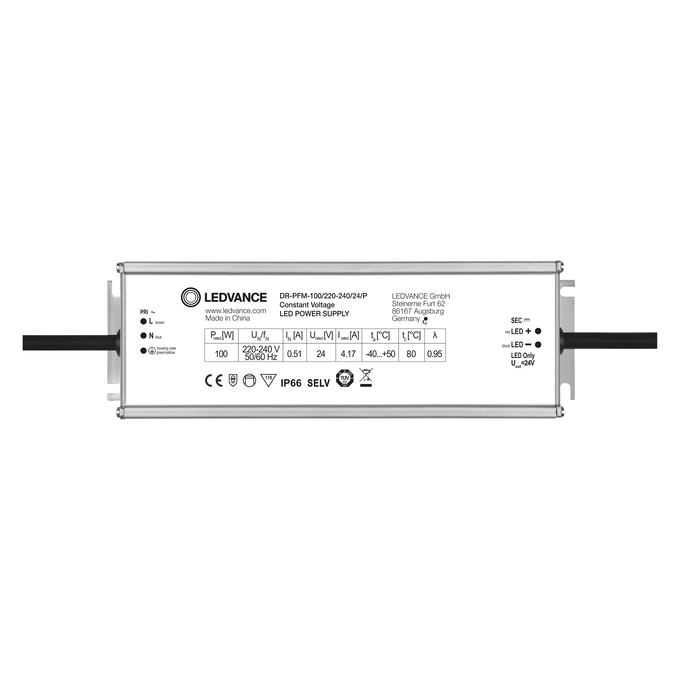

Product image: white background, horizontal
DR-PFM-100/220-240/24/ P
DR-PFM-100/220-240/24/ P
Product line drawing with letters
DR-PFM-100/220-240/24/ P
DR-PFM-100/220-240/24/ P
Product line drawing with numbers
DR-PFM-100/220-240/24/ P
DR-PFM-100/220-240/24/ P
Product line drawing, front, no dimensions
DR-PFM-100/220-240/24/ P
DR-PFM-100/220-240/24/ P
Packaging image, spacial
LED DRIVER PROTECTED PFM 100W MiCh Side
LED DRIVER PROTECTED PFM 100W MiCh Side
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4058075239937 | 7981937 | 4031408 | 6604112 | 919390230 |
