LED DRIVER OUTDOOR PERFORMANCE

DR-PFM -30/220-240/24/P

GTIN: 4058075239890 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Perfectly matched to 24 V LED flexible strips
  • 5 years guarantee
  • Very stable output power
  • Quick and simple installation due to prewiring
  • High efficiency and reliability
  • Installation in very cold and hot environments
Areas of application
  • Suitable for indoor and outdoor installations
  • Facade and building illumination
  • Ideal for illuminating public spaces
  • Bathrooms, kitchens and outdoor areas
  • Offices, shopping centers, hospitals, restaurants, hotels
Product features
  • Available in 30 W, 60 W, 100 W, 150 W and 250 W
  • Lifetime: up to 50,000 h (at max. tc temperature)
  • Type of protection: IP66
  • Operating temperature range at ta: -40…50 °C
  • Supply voltage: 220…240 V
  • Operating frequency: 50/60 Hz
  • Surge protection: up to 4 kV (L-N) for 30W/60W, 6 kV (L-N) / 6 kV (L/N-PE) for 100W/150W/250W
  • Short-circuit and overlaod protection
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Disconnect mains before installation.
  • Do not open enclosure-housing.
References / Links
Electrical data
Nominal wattage 30.00 W
Nominal output power 30 W 1)
Nominal voltage 220…240 V
Nominal output voltage 24 V 2)
Input voltage AC 198…264 V 3)
U-OUT (working voltage) 24 V
Type of current DC
Nominal current 164 mA
Nominal output current 1250 mA 4)
Inrush current 37 A
Output ripple current (100 Hz) 2.27 %
Mains frequency 50…60 Hz
Total harmonic distortion < 20 % 5)
Power factor λ 0.90 6)
ECG efficiency 87 % 7)
Device power loss 4,5 W 8)
Max. ECG no. on circuit breaker 10 A (B) 16
Max. ECG no. on circuit breaker 16 A (B) 20
Max. ECG no. on circuit breaker 25 A (B) 31
Surge capability (L/N-Ground) 6 kV
Surge capability (L-N) 4 kV
Galvanic isolation SELV
1) From 0 to 30 W
2) Maximum 24 V
3) Permitted voltage range
4) ±10%
5) At full load, 220…240 V, 50 Hz
6) Full load at 230 V
7) At full load and 230 V
8) At maximum LED load of 30 W
Dimensions & Weight
Length 148.00 mm
Mounting hole spacing, length 136,0 mm
Width 40.00 mm
Height 32.00 mm
Cable cross-section, input side 1 mm²
Cable cross-section, output side 1 mm²
Prewired Yes
Product weight 330.00 g
Colors & materials
Product color White
Casing material Plastic
Body material Plastic
Temperatures & operating conditions
Ambient temperature range -40…+50 °C
Maximum temperature at tc test point 80 °C
Temperature range in operation -40…+50 °C
Permitted rel. humidity during operation 20…95 % 1)
1) Maximum 56 days/year at 95%
Lifespan
ECG lifetime 50000 h 1)
1) At maximum Tc = 80°C / 10% failure rate
Additional product data
Encapsulated Yes
Capabilities
Dimmable No
Dimming interface Not dimmable
Overheating protection No
Overload protection No
Short-circuit protection Yes
Max. cable length to lamp/LED module 10 m
Suitable for fixtures with prot. class I, II
Suitable for emergency lighting No
Type of connection, output side Cables
Certificates & Standards
Approval marks – approval CE, TUV
Standards Acc. to EN 61347-1, Acc. to EN 61347-2-13, Acc. to EN 55015, Acc. to EN 61547, Acc. to EN 61000-3-2, Acc. to EN 62384
Protection class II
Type of protection IP66
LOGISTICAL DATA
Temperature range at storage -40…+80 °C
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075239890 Folding box
1		 209 mm x 61 mm x 41 mm 361.00 g 0.52 dm³
4058075239906 Shipping box
10		 226 mm x 140 mm x 233 mm 3857.00 g 7.37 dm³
User instruction / safety instructions
LED DRIVER OUTDOOR PFM
PDF (2.75 MB)
Declarations of conformity
EU Declaration of Conformity 3581723
PDF (4.1 MB)
PRODUCT DATASHEET
DR-PFM-30/220-240/24/P
PDF (228.98 KB)

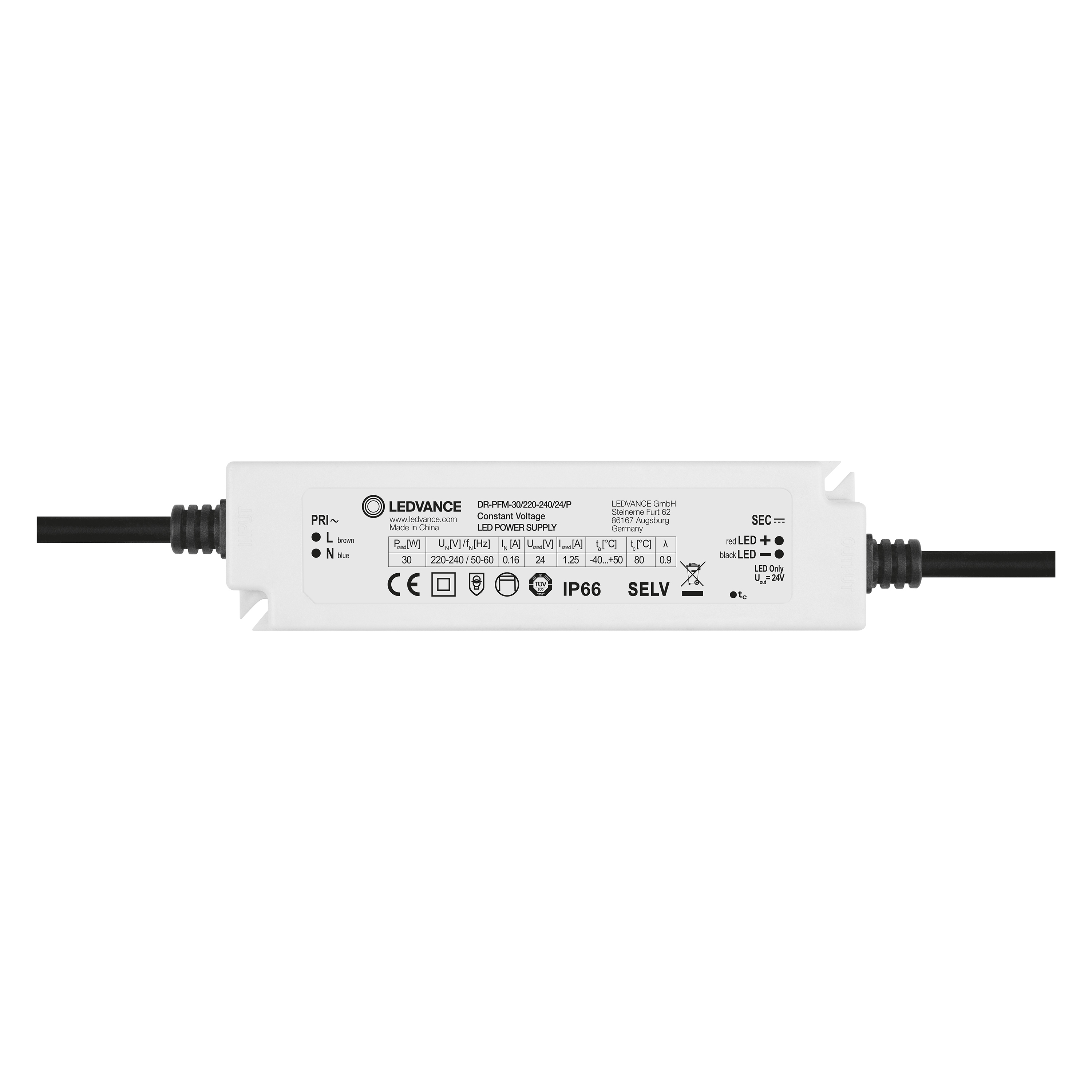

Product image: white background, diagonal
