OT 2DIM IP64
OT 100/120…277/800 2DIMLT2 P
GTIN: 4052899253414
Unpacked / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- 2DIM functionality in one device (AstroDIM, 0…10 V)
- High surge protection: up to 6 kV (in protection class I or II)
- Fast programming without mains voltage
- High efficiency
- Great flexibility due to wide operating temperature range of -40…55 °C
- Protection through double isolation between mains input and LED output
- IP rating: IP64
Areas of application
- Street and urban lighting
- Industry
- Suitable for luminaires of protection classes I and II
Product features
- Available with different wattage: 50 W, 100 W, 110 W
- Input voltage: 120…277 V
- Available with output current range: up to 1,400 mA
- Flexible current setting with one additional wire (LEDset2)
- AstroDIM for autonomous dimming with five independent levels (astro mode)
- Isolated 0…10 V interface for unidirectional telemanagement systems
- Constant Lumen Output (CLO)
- Overtemperature protection with external NTC or LEDset2 interface
Equipment / Accessories
- OT Programmer hardware for configuration of 2DIM ECGs necessary
- Programmable via Tuner4TRONIC software
Electrical data
| Nominal wattage | 100.00 W |
| Nominal output power | 100 W 1) |
| Nominal voltage | 120…277 V |
| Nominal output voltage | 50…186 V |
| Input voltage AC | 108…305 V 2) |
| U-OUT (working voltage) | 200 V |
| Nominal current | 0.49 A |
| Nominal output current | 350…800 mA |
| Inrush current | 55 A |
| Output current tolerance | ±5 % 3) |
| Output ripple current (100 Hz) | 25 % |
| Mains frequency | 50/60 Hz |
| Total harmonic distortion | 15 % 4) |
| Power factor λ | 0.95 5) |
| ECG efficiency | 90 % 6) |
| Device power loss | 14 W 7) |
| Max. ECG no. on circuit breaker 10 A (B) | 6 8) |
| Max. ECG no. on circuit breaker 16 A (B) | 10 8) |
| Max. ECG no. on circuit breaker 25 A (B) | 16 8) |
| Surge capability (L/N-Ground) | 6 kV 9) |
| Surge capability (L-N) | 6 kV 10) |
| Galvanic isolation | double/reinforced |
1) Partial Load 45…100 W / Not dimmed
2) Permitted voltage range
3) Within nominal output current range
4) Max. output power at 230 VAC
5) Minimum/Full load at 230 V/Half load at 230 V
6) At full load, default current and 230 V
7) Maximum
8) Type B
9) EQUI @ 12 Ohm acc. to EN 61547
10) @ 2 Ohm, acc. to EN61547
2) Permitted voltage range
3) Within nominal output current range
4) Max. output power at 230 VAC
5) Minimum/Full load at 230 V/Half load at 230 V
6) At full load, default current and 230 V
7) Maximum
8) Type B
9) EQUI @ 12 Ohm acc. to EN 61547
10) @ 2 Ohm, acc. to EN61547
Dimensions & Weight
| Length | 168.00 mm |
| Mounting hole spacing, length | 152,0 mm |
| Width | 68.00 mm |
| Height | 38.00 mm |
| Product weight | 740.00 g |
Colors & materials
| Casing material | Metal |
| Body material | Metal |
Temperatures & operating conditions
| Ambient temperature range | -40…+55 °C |
| Maximum temperature at tc test point | 85 °C 1) |
| Max.housing temperature in case of fault | 120 °C |
| Permitted rel. humidity during operation | 5…85 % 2) |
1) Maximum at the Tc-point
2) Non condensing, absolute humidity: 36g/m³
2) Non condensing, absolute humidity: 36g/m³
Lifespan
| ECG lifetime | 80000 h 1) |
1) At Tcase = 75°C at Tc point / 10% failure rate
Additional product data
| Product remark | No on/off switching of lamps possible via 0...10 V interface |
Capabilities
| Dimmable | Yes |
| Dimming interface | 2DIM, 1…10 V, AstroDIM |
| Dimming range | 30…100 % |
| Overheating protection | Yes |
| Overload protection | Automatic reversible |
| Short-circuit protection | Yes |
| No-load proof | Yes |
| Max. cable length to lamp/LED module | 10 m |
| Suitable for fixtures with prot. class | I, II |
Certificates & Standards
| Approval marks – approval | CE, ENEC 15, UR, CQC |
| Standards | Acc. to EN 61347, Acc. to EN 61347-2-13, Acc. to EN 62384, Acc. to EN 55015:2006 + A1:2007 + A2:2009, Acc. to EN 61547, Acc. to FCC 47 part 15 class A, Acc. to IEC 61000-3-2, Acc. to IEC 61000-3-3, UL-8750 |
| Protection class | II |
| Type of protection | IP64 |
LOGISTICAL DATA
| Temperature range at storage | -25…80 °C |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4052899253414 | Unpacked 1 |
740.00 g | ||
| 4052899253421 | Shipping box 20 |
358 mm x 188 mm x 220 mm | 15346.00 g | 14.81 dm³ |
User instruction / safety instructions
615707_Instruction sheet OT 100 800 2DIMLT2 P
615707_Instruction sheet OT 100 800 2DIMLT2 P
Declarations of conformity
647100_ENEC Certificate OT 100 2DIMLT2 P
647100_ENEC Certificate OT 100 2DIMLT2 P
Declarations of conformity
646953_CB ENEC Information
646953_CB ENEC Information
Declarations of conformity
651655_UL Conformity OT 100_110/120_277/xxx 2DIMLT2 P
651655_UL Conformity OT 100_110/120_277/xxx 2DIMLT2 P
Declarations of conformity
725871_Certificate of analysis OT100
725871_Certificate of analysis OT100
Declarations of conformity
545682_EC-Conformity OT 50/120-277/xxx 2DIMLT2 P
545682_EC-Conformity OT 50/120-277/xxx 2DIMLT2 P
Certificates
617033_CCC Certificate OT 100/120-277/800 2DIMLT2 P
617033_CCC Certificate OT 100/120-277/800 2DIMLT2 P
Certificates
664162_CB Zertifikat OT 100 800 2DIMLT2 P
664162_CB Zertifikat OT 100 800 2DIMLT2 P
Product image: white background, diagonal
607277_OT 100/120-277/800 2DIMLT2 P
607277_OT 100/120-277/800 2DIMLT2 P

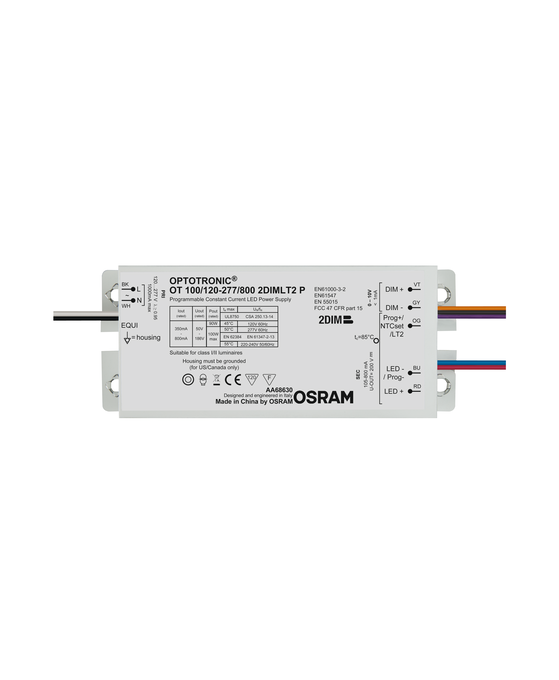

Product image: white background, horizontal
