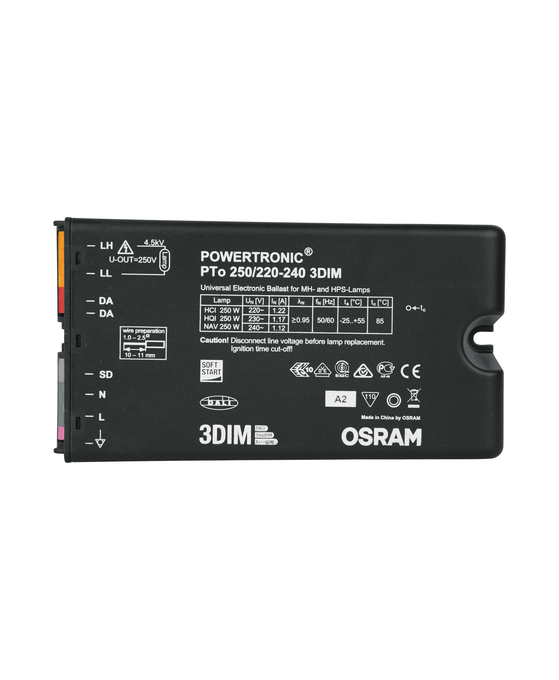

PTo 250/220…240 3DIM

GTIN: 4008321863669 Unpacked / 1 Show all packages

Contact sales

Energy savings up to 30 % (compared to CCG operation) thanks to 3DIM (except PTo 35)
High surge protection: up to 3 kV (L-N) / 4 kV (L/N-PE)
Automatic safety shutdown of lamps in the event of a defect or at end of life (EoL)
Excellent thermal behavior for very high limit temperatures t_c and t_a

Thermal characteristics Ballast losses and lamp heat radiation can lead to heat accumulation in a completely closed case. Therefore it is necessary to ensure that the temperature at the measuring point t_c of the ECG does not exceed the maximum value.
Attention! For safety reasons disconnect the device before replacing the lamp!

Nominal wattage	270.00 W
Nominal voltage	220…240 V
Nominal output voltage	250 V
Input voltage AC	198…264 V
U-OUT (working voltage)	250 V
Type of current	AC
Inrush current	4 A ¹⁾
Mains frequency	50/60 Hz
Power factor λ	0.95 ²⁾
ECG efficiency	93 %
Max. ECG no. on circuit breaker 10 A (B)	7 ³⁾
Max. ECG no. on circuit breaker 16 A (B)	11 ³⁾
Surge capability (L/N-Ground)	4 kV
Surge capability (L-N)	3 kV
Operating frequency	0.200…0.240 kHz
Power loss in stand-by mode	< 0.5 W

¹⁾ t_width = 6 ms (measured at 50 % I_peak)
²⁾ Minimum
³⁾ Type C

Length	170.00 mm
Mounting hole spacing, length	160,0 mm
Width	90.00 mm
Height	60.00 mm
Cable cross-section, input side	1,0…2,5 mm²
Cable cross-section, output side	1,0…2,5 mm²
Wire preparation length, input side	10…11 mm
Wire preparation length, output side	10…11 mm
Product weight	1375.00 g

Ambient temperature range	-25…+55 °C
Maximum temperature at tc test point	85 °C
Max.housing temperature in case of fault	110 °C
Permitted rel. humidity during operation	5…85 % ¹⁾

¹⁾ Maximum 56 days/year at 85 %

ECG lifetime

60000 h ¹⁾

¹⁾ At T_case = 80°C at T_c point / 10% failure rate

Encapsulated

Yes ¹⁾

¹⁾ PCB fully encapsulated + dust proof plastic housing

Dimmable	Yes
Dimming interface	DALI, StepDIM, AstroDIM
Dimming range	60…100 %
Overheating protection	Power reduction and switch off at T > 85 °C at the tc point
Max. cable length to lamp/LED module	1,5 m
Suitable for fixtures with prot. class	I, II
Suitable for emergency lighting	No

Approval marks – approval	ENEC 10, VDE, VDE-EMC, EAC, C-Tick
Standards	Acc. to EN 61347-2-12, Acc. to EN 55015, Acc. to EN 61000-3-2, Acc. to EN 61547, Acc. to EN 62386-101, Acc. to EN 62386-102, Acc. to EN 62386-103
Protection class	I
Type of protection	IP20
Energy efficiency class	A2
EEI – Energy Label	A2

Temperature range at storage

-40…+85 °C

Networked standby power for CLS

< 0.50 W

Quantity of precious metals	0 mg
Quantity of rare earths	0 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1)
