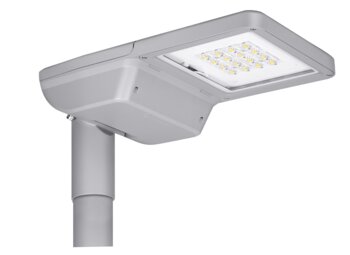

THE NEW STREETLIGHT FLEX PRODUCT HIGHLIGHT

Efficient, durable and flexible.

The new streetlights offer premium material quality, extreme robustness (IK08 and IP 66), very good temperature resistance (from -40 to +50° C) and a life of up to 100,000 hours (L90/B10 at 25 °C). And with their energy efficiency of up to 155 lm/W, they are perfect, energy-efficient and cost-effective replacements for conventional high-pressure lights.

A complete package for road lighting and parking

QUALITY IP66, IK08 – 40 to +50 °C 100 000 hrs L90 @25 °C 5-year guarantee ENEC certified   PHOTOMETRIC 1 650 to 24 450 lm Up to 155 lm/W efficiency 2 700 K, 3 000 K, 4 000 K OSRAM LED chip Low flicker

ELECTRIC 220 – 240 Vac, class II Programmable OSRAM driver Up to 10 kV surge protection (L/N-GND)     MATERIAL Aluminum housing Color: White Aluminum (similar to RAL 9006) Tempered glass cover and UV stable PMMA lens

It's all about light distribution

Available with two beam angles, three light colors and seven LED configurations, the Streetlight Flex range offers a matching solution across a wide variety of applications, such as M, C and P class roads according (DIN) EN 13201 and parking areas.

RV25ST light distribution

  • For normal roads with a typical width equal to or greater than the road height (width approx. 1 to 1.25 × pole height)
  • For rectangular-shaped parking areas in front of the pole
RW35ST light distribution

  • For very wide roads with road width greater than the pole height
  • For square-shaped parking and area lighting in front of the pole

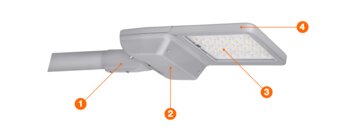

Very simple and flexible installation

Whatever is required, the Streetlight Flex range is prepared for it. For example, when it comes to mounting the luminaires in either a side-entry or post-top positioning. Or the option of adjusting the luminaire head’s angle by +/– 15°. In any case, installation is always extremely easy.

Pole adapter for 60 mm pole diameter is included as standard with all Streetlight Flex luminaires
The flexible design allows for either side-entry or post-top installation of the luminaire

+/– 15° tilt angle adjustment possible without needing to open the housing

Additional accesories for increased mounting versatility:
(Separately available to order)
Adapter for 76 mm poles

Reduction adapter for 42 mm cantilever arm masts

Wiring is tool-free, fast and convenient

Product catalog: STREETLIGHT FLEX

QUICK FACTS

Benefit Highlights

  • Durable IP66 & IK08 design and highest quality component selection for long lasting performance
  • Easy installation due to tool-free housing opening and push button wiring terminal
  • High light uniformity
  • No upper light output ratio (ULOR 0 %) when mounted at 0° tilt
  • 5 years guarantee



Recommended Applications

  • Outdoor use (IP66)
  • M-, C- and P-class roads acc. to EN 13201
  • Parking
  • Public areas
  • Industry
