LED Spots

LED SPOTLIGHT RANGE ADVANCED PROPERTIES FOR SPECIAL APPLICATIONS

The range of LEDVANCE SPOTS SMALL (68 mm) is more convincing than ever – and comes with rigid or adjustable types, as standard versions or with additional application-specific functionality. A new addition is the SPOT AIR. Its profile enables installation in particularly low ceiling cavities. It can be covered with different insulation materials and ensures limited heat loss thanks to its airtight design – the ideal solution for low-energy ceilings.

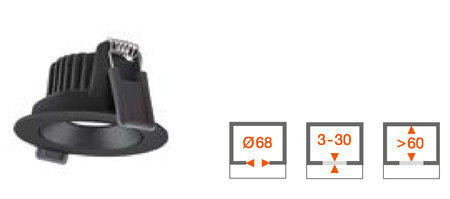

VERSATILE SPOTLIGHT FAMILY

FROM STANDARD APPLICATION TO MORE CHALLENGING CEILING TYPE

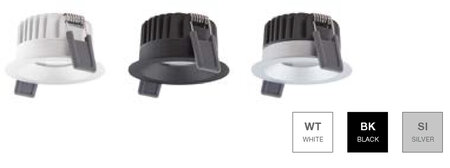

GREAT QUALITY
- Full metal aluminum housing
- LEDVANCE SCALE Design
- In 3 different colors available

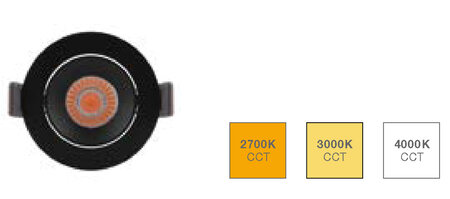

great light
- Facetted PMMA lens with perfectly shaped 38° beam angle
- Latest LED COB generation, CRI 90 and SDCM 3
- In 3 different color temperatures available
versatile
- FIX or ADJUSTABLE + 25°
- Convenient mounting (standard-cut of 68 mm, toolless, through-wiring, soft silicon pad, strong clips, refurbishment rings)
- Specialists for special ceiling-types (low profile, low built-in height, high IP)
- Water resistant versions with IP44 or IP65 protection class from roomside

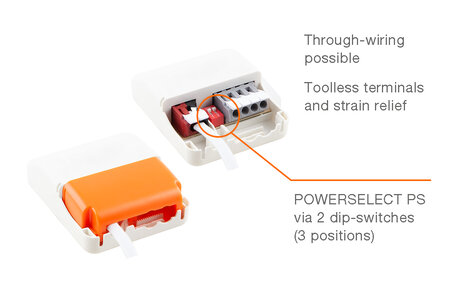

SIMPLE, CONVENIENT, VERSATILE SPOT DRIVER PS 4/6/8 W DIM

A perfect team: Each LEDVANCE SPOT comes with an LED driver. It is perfectly matched to the luminaire’s power values and boasts high functionality. Thanks to the piano key terminals, it can be connected without any tools. It can even be wired through to the next luminaire. POWERSELECT PS: A dip switch can be used to set the SPOT’s maximum brightness in three levels. The driver is also steplessly controllable on standard LED universal or leading-edge/trailing-edge phase dimmers.

Check out the Spotlight range here

ADVANCED PROPERTIES FOR SPECIAL APPLICATIONS: THE EXPERTS AMONG LEDVANCE SPOTLIGHTS CAN DO MORE

SPOT DARKLIGHT THE LIGHTING COMFORT SPECIALIST

The first choice for hotels and homes. The light output of the SPOT DARKLIGHT, which is lowered deep into the housing, provides a wide upper shielding angle and therefore excellent glare control – especially in the black housing version with a warm white light color. Together with the luminaire’s easy dimmability, this creates a high level of lighting comfort.

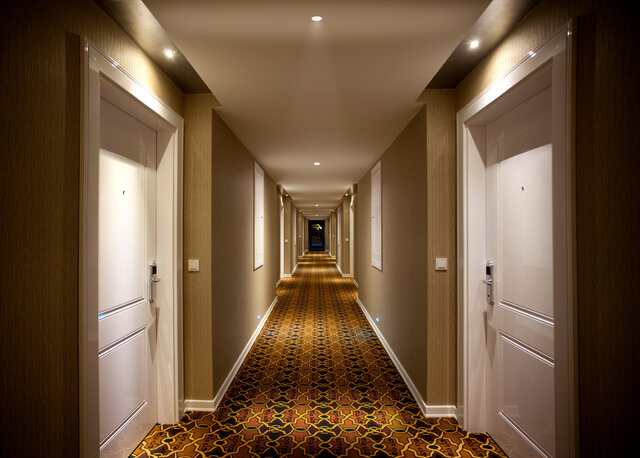

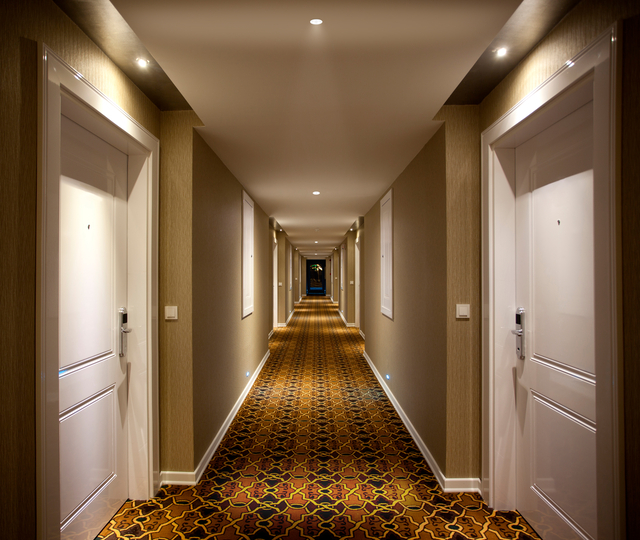

SPOT FIRE RATED THE FIRE PROTECTION SPECIALIST

To meet stringent fire protection requirements, ceilings in certain building types and parts must have a special fire-retardant structure. The SPOT FIRE RATED from LEDVANCE ensures that the functionality of the fire ceiling is maintained after installation for certain ceiling systems and fires*.

SPOT AIR FIX & AIR ADJUST THE ENERGY-SAVING SPECIALISTS

The German Buildings Energy Act (GEG) prescribes an airtight building envelope and uniformly thick thermal insulation throughout to prevent energy losses – especially for top floors. The LEDVANCE SPOT AIR uses a lamellar seal to create an airtight connection to the ceiling. It can also be covered directly with suitable rollable or blow-in insulating materials. If there is a vapor barrier, the SPOT HOLDER is used as a spacer.

COMPATIBLE SPOT ACCESSOIRES

Whether it’s the SPOT RING to reduce an existing ceiling cut-out, the SPOT HOLDER to increase the distance between the spotlight and the insulation material or the CONNECTOR BOX for tool-free connection – the LEDVANCE SPOT accessories meet the needs for a wide variety of project applications.

Check out the range here

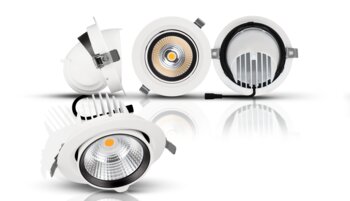

LED SPOT VARIO HIGHLIGHT PRODUCT

Product benefits

Versatile spotlight: 0°–35° tilt/0°–350° swivel
Very high efficiency (up to 100 lm/W)
Greater flexibility thanks to external driver (included)
Twist & lock connection for quick and easy installation

Product catalog: SPOT VARIO

CARDAN JOINT FOR ALL-ROUND FLEXIBILITY

The movable heads of the LEDVANCE Spot Vario and LEDVANCE Spot Multi are suspended on cardan joints so they can adjusted to provide ideal lighting for room or furniture layout. The Spot Vario can therefore be used as a classic downlight (with the luminaire head fully recessed) or as a wallwasher (with the luminaire head extended). The Spot Multi is extremely flexible as well for providing background and accent lighting. Thanks to its closed housing it remains fully mobile even if installed in suspended ceilings.

LED SPOTS. APPEALING. DISTINCT. FUNCTIONAL.

Benefits for your projects

The LEDVANCE LED Spots are excellent energy-saving replacements for halogen spots (35W, 50W, 75W) with savings up to 90 %. There are different versions available including an adjustable version, IP44 and IP65 variants, a dimmable version and white and brushed silver designs. The LED spots are suitable for cutouts with a diameter of 63, 68 or 83 mm and a ceiling thickness from 3 to 20 mm.

They have an aluminum housing, a high-quality PMMA lens and were created in a common family design with LEDVANCE LED Downlights. You will benefit from an advanced flexibility due to an included external driver and the Easy-and-Quick installation. The LED spotlights come with a three-year guarantee.

Product catalog: All LED Spots at a glance

Quick facts

Benefit highlights

Direct replacement for halogen spots (35 W, 50 W, 75 W)
Energy savings up to 90%
Easy and quick installation with advanced flexibility due to external driver (included)
Versions for special applications available (e.g. fire-rated or recessed light source

Recommended applications

Hotel rooms and bathrooms
Bars and restaurants
Residential interiors
Galleries and Museums

SAVINGS IN ENERGY AND COSTS OVER THE ENTIRE LIFETIME*

Comparison	Energy consumption	Costs
Traditional equivalent e. g. 50W HAL, DECOSTAR 51 50W 12V 36° GU5.3	1,500 kWh	273.40 €
LEDVANCE Spot e. g. Spot LED adjust 6.5W/3000K 230V IP20	195 kWh	43.80 €
Savings	–87.00 %	–229.60 €
* Savings calculated based on lifetime of LEDVANCE LED luminaires including purchase price, maintenance and installation costs as well as energy costs of 0.12 EUR/kWh. Calculation of CO₂ savings based on European electricity mix and 400 g CO₂/kWh. Payback period assumes 7 hours of operation per day and 260 days per year.
