Smart+ Swing Round Pathway Tunable White
SMART+ Wifi Swing Round 70cm TW
GTIN: 4058075763821
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Easy and quick installation
- Garden lighting with smart and intelligent control options
- High-quality materials
- Combines the functionality of general lighting and mood lighting
Areas of application
- General illumination
- Outdoor use (IP44)
- Gardens
- Patios, balconies
Product features
- Controllable via LEDVANCE SMART+ App (with minimum Android 8.0 or iOS 14.0)
- Controllable via voice control available: Google Assistant or Amazon Alexa
- Adjustable color temperature via Tunable White: 3,000…6,500 K
- Dimmable
- Color temperature: 3,000 K (Warm White)
- Network protocol: WiFi
- Type of protection: IP44
Equipment / Accessories
- For control via LEDVANCE SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
- Control via app or voice control requires compatible Smart home system
- Mounting screws and dowels included
- Power supply included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
References / Links
- Further information and frequently asked questions (FAQs) at www.ledvance.com/en-int/home-lighting/services/faq
Electrical data
| Nominal wattage | 6.70 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 50.000 mA |
| Max. number of luminaires per miniature circuit breaker B16 | 65 |
| Power factor λ | > 0.5 |
| Protection class | II |
Photometrical data
| Luminous flux | 350 lm |
| Total luminous flux of contained light sources | 420 lm |
| Luminous efficacy | 52 lm/W |
| Color temperature | 3000…6500 K |
| Reference control setting of contained light source (Kelvin) | 3000 K 1) |
| Light color (designation) | Tunable White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | ≤6 sdcm |
| Flickering metric (Pst LM) | - |
| Stroboscope effect metric (SVM) | - |
1) Performing a reset will restore the default values set by the manufacturer
Dimensions & Weight
| Length | 170.00 mm |
| Height | 700.00 mm |
| Width | 65.00 mm |
| Product weight | 1956.00 g |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Aluminum |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Type of connection | Terminal, 2-Pole (L, N) |
| Type of protection | IP44 |
| Dimmable | Yes |
| Type of dimming | WiFi |
| Mounting type | Standing |
| Application environment | Outdoor |
| Adjustable | Yes |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 25000 h |
| Number of switching cycles | 12500 |
Certificates & Standards
| Standards | CE, UKCA |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Product remark | Reset settings to default by switching the product on for three seconds and off for three seconds and repeating this five times. |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075763821 | Folding box 1 |
77 mm x 177 mm x 712 mm | 2174.00 g | 9.70 dm³ |
| 4058075763838 | Shipping box 4 |
325 mm x 195 mm x 740 mm | 9462.00 g | 46.90 dm³ |
User instruction / safety instructions
SMART+ SWING ROUND
SMART+ SWING ROUND
Declarations of conformity
SMART OUTD WIFI SWING ROUND
SMART OUTD WIFI SWING ROUND
EU Data Act
SMART WiFi Lamps and Luminaires
SMART WiFi Lamps and Luminaires

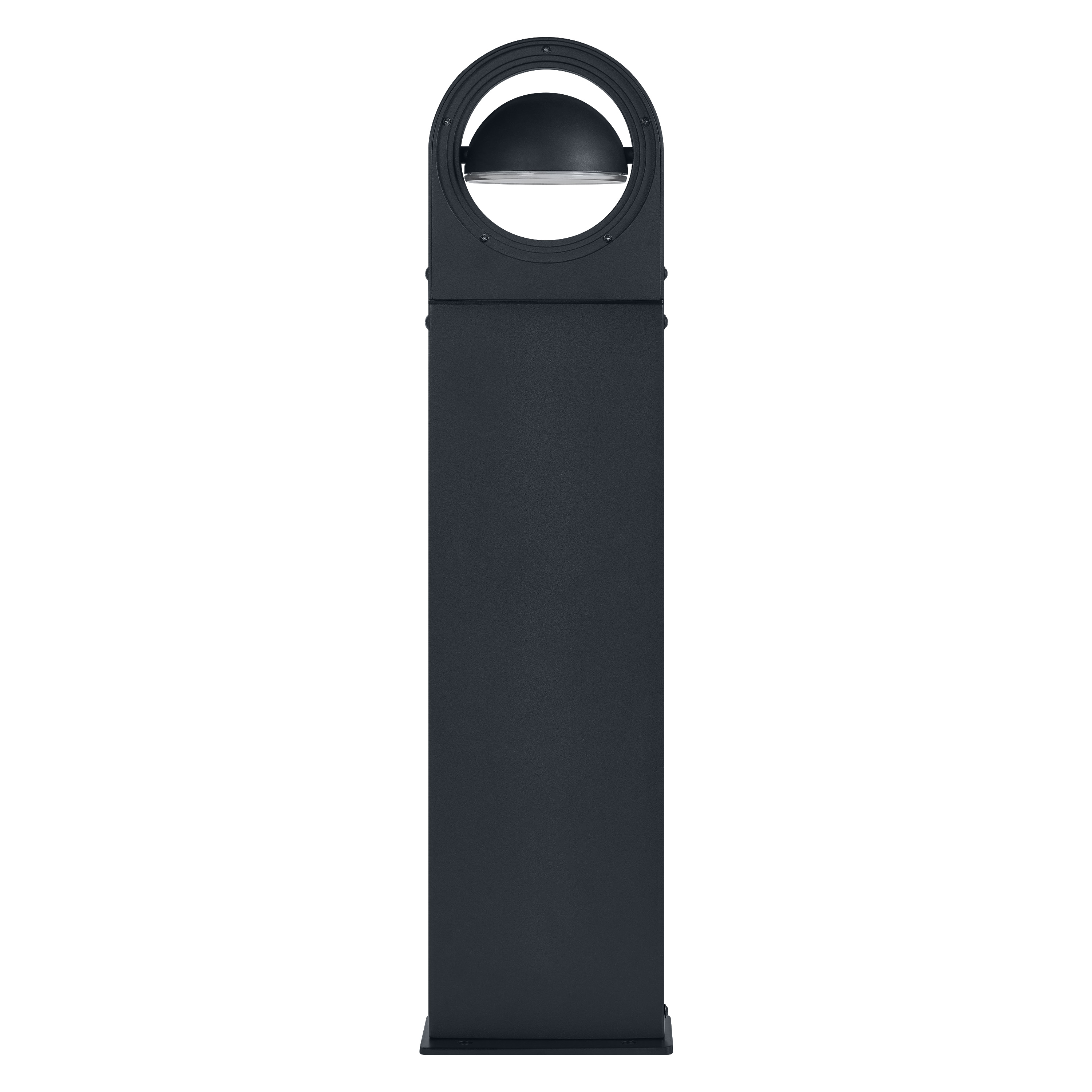

Product image: white background, upright
SMART OUTD WIFI SWING ROUND 70CM TW
SMART OUTD WIFI SWING ROUND 70CM TW

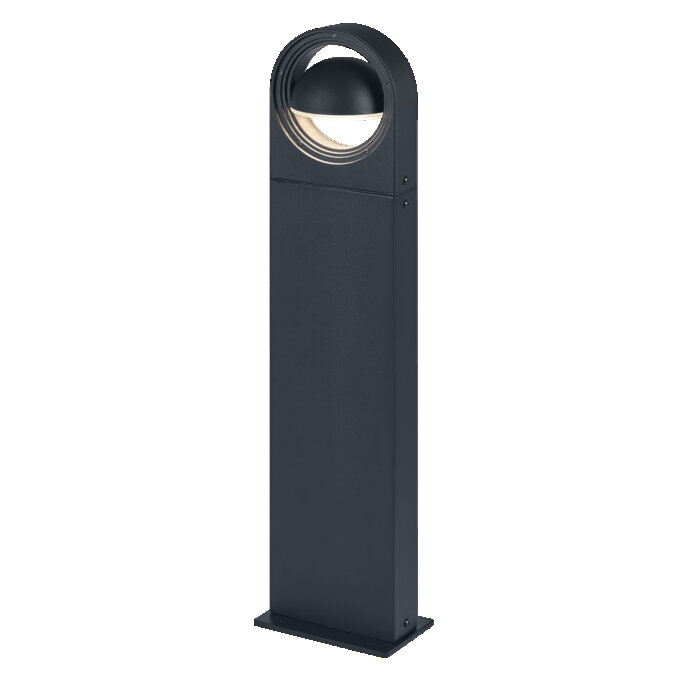

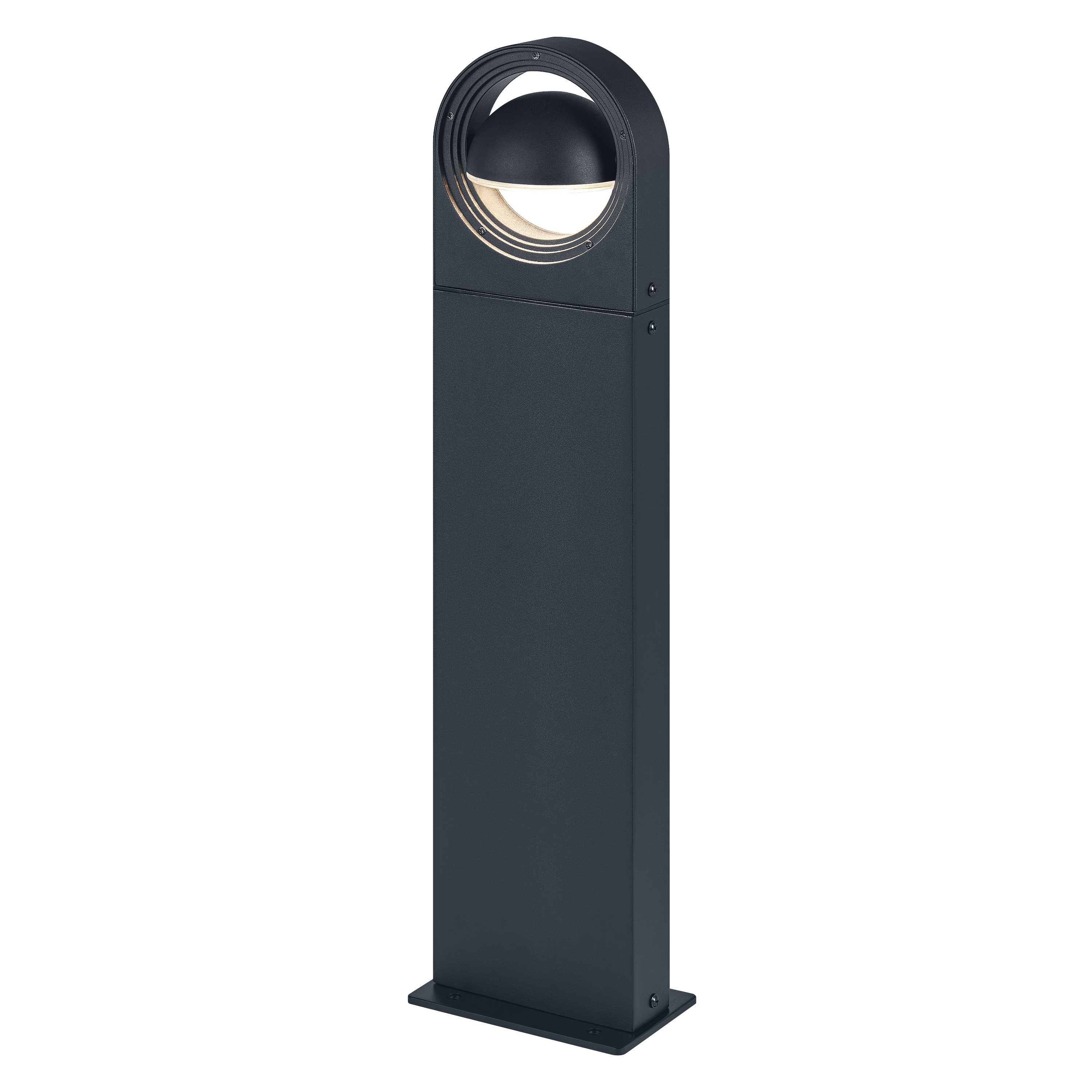

Product image: white background, upright, alternative image
SMART OUTD WIFI SWING ROUND 70CM TW
SMART OUTD WIFI SWING ROUND 70CM TW
Product image: white background, upright, switched on
SMART OUTD WIFI SWING ROUND 70CM TW
SMART OUTD WIFI SWING ROUND 70CM TW
Product infographic (application image with text and graphic)
SmartPlus assortment E-Com-Grafik V3 1200x1200 2023 EN
SmartPlus assortment E-Com-Grafik V3 1200x1200 2023 EN
Product infographic (application image with text and graphic)
Solar assortment E-Com-Grafik V2 1200x1200 2023 EN
Solar assortment E-Com-Grafik V2 1200x1200 2023 EN
Product line drawing with letters
SMART OUTD WIFI SWING ROUND 70CM TW
SMART OUTD WIFI SWING ROUND 70CM TW
Product line drawing with numbers
SMART OUTD WIFI SWING ROUND 70CM TW
SMART OUTD WIFI SWING ROUND 70CM TW
Product line drawing, front, no dimensions
SMART OUTD WIFI SWING ROUND 70CM TW
SMART OUTD WIFI SWING ROUND 70CM TW

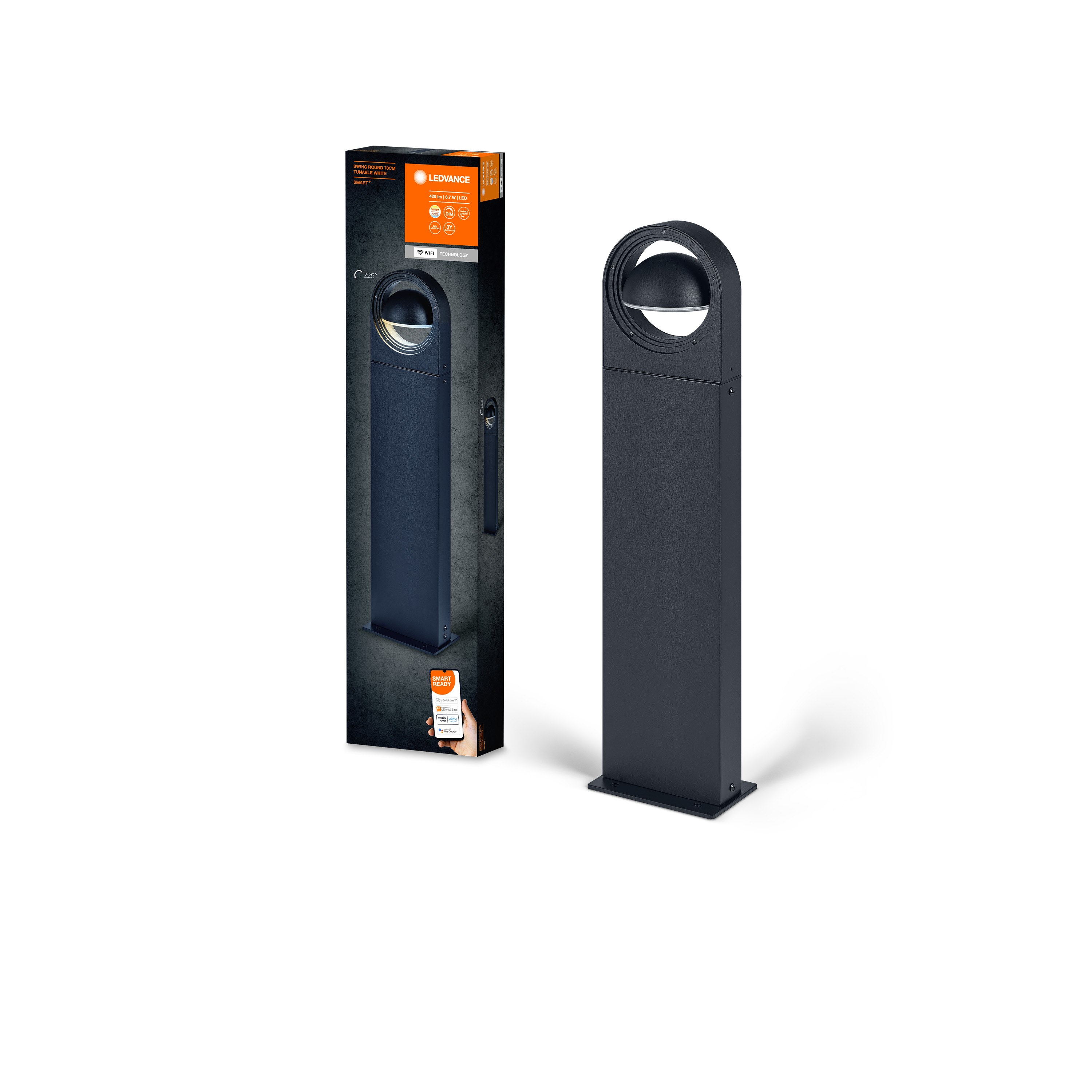

Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI SWING ROUND 70CM TW MiPRC
SH FC WIFI SWING ROUND 70CM TW MiPRC
Packaging image, frontal
SH FC WIFI SWING ROUND 70CM TW MiPRC
SH FC WIFI SWING ROUND 70CM TW MiPRC

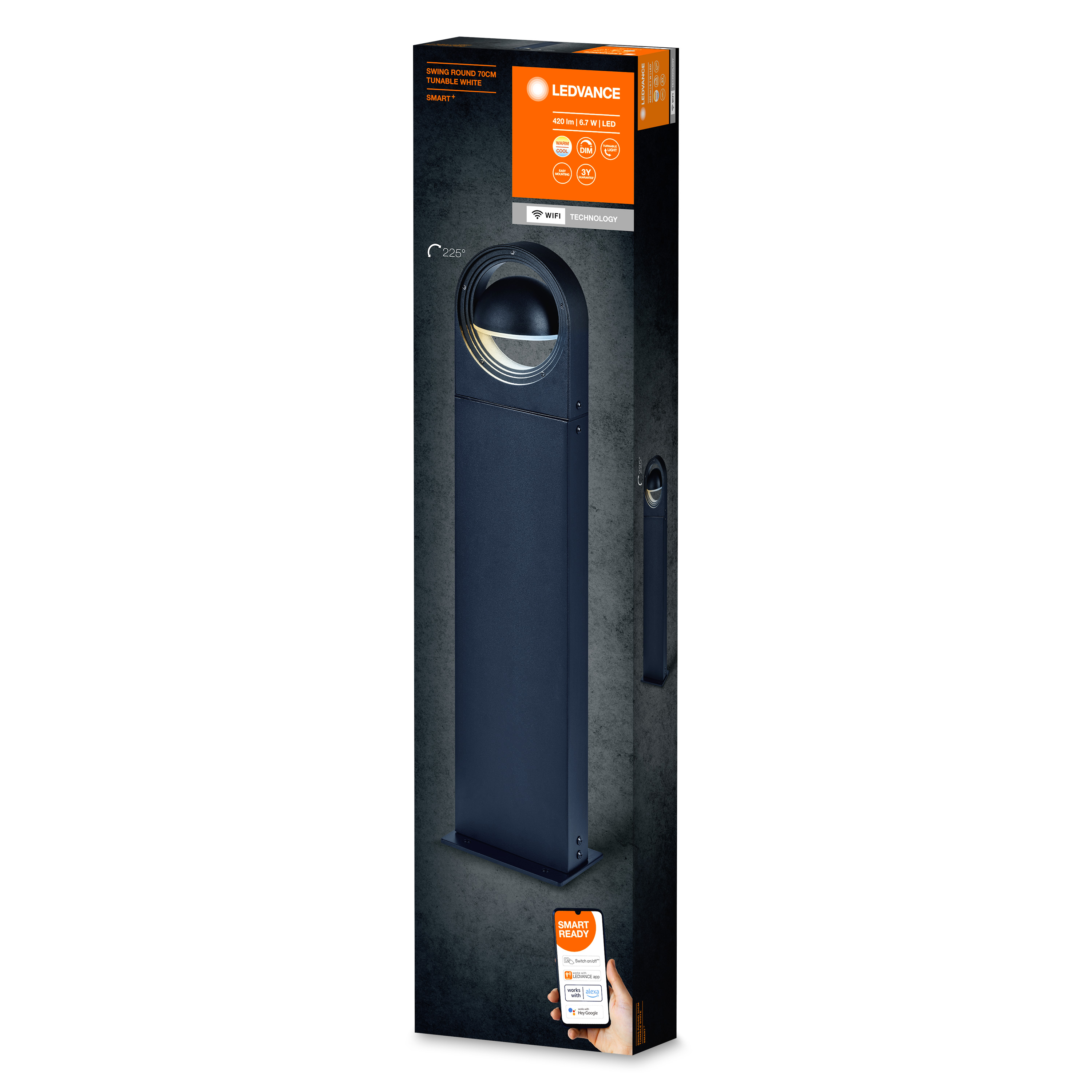

Packaging image, spacial
SH FC WIFI SWING ROUND 70CM TW MiPRC
SH FC WIFI SWING ROUND 70CM TW MiPRC

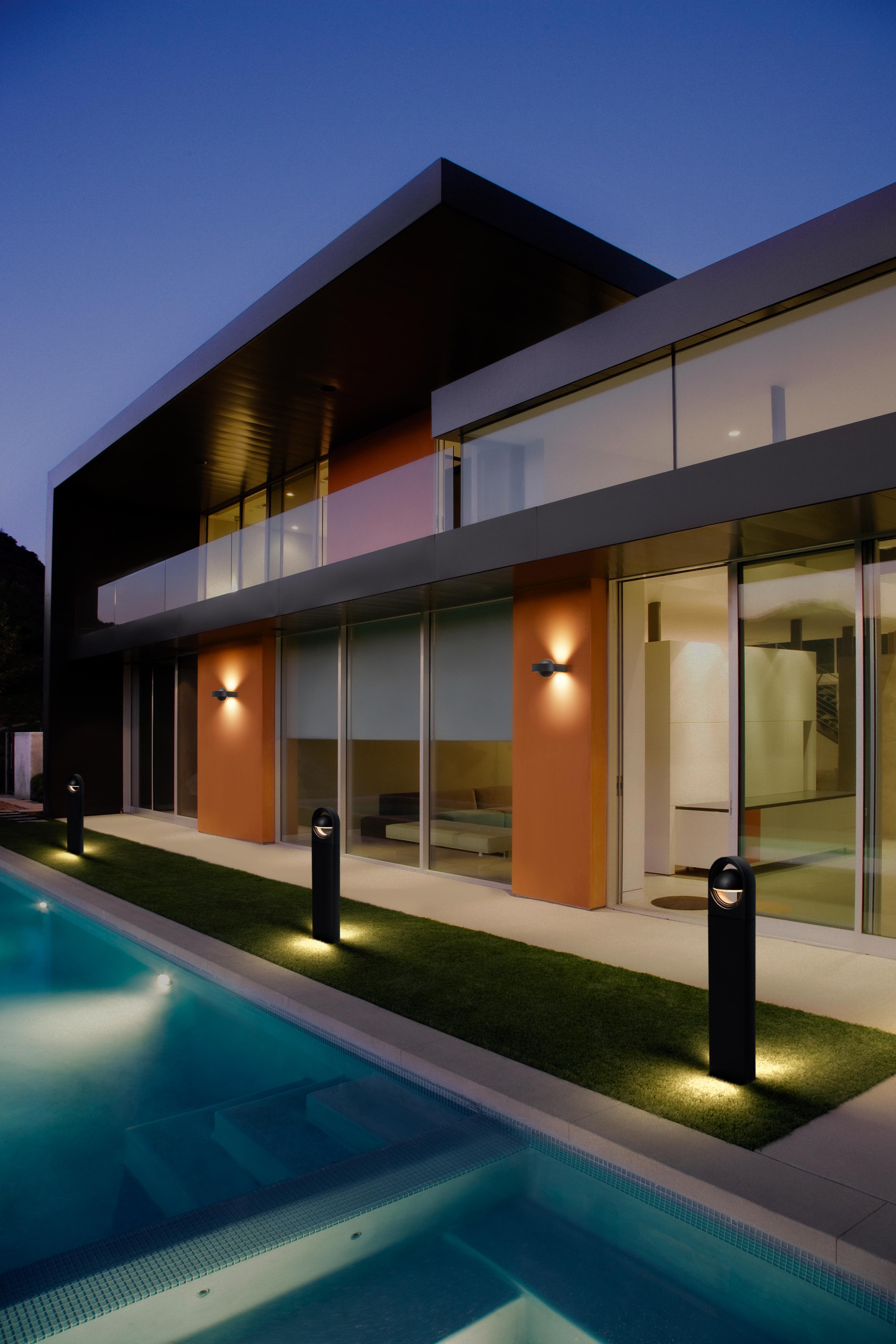

Application pictures Getty
SMART+ WIFI SWING ROUND
SMART+ WIFI SWING ROUND
| EAN | ELDAS number |
|---|---|
| 4058075763821 | 941005230 |
