Smart+ Solar Spot&Bollard Multicolor

SMART+ BOLLARD Spot Panel Solar RGB + W

GTIN: 4058075763708 Folding box / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Easy and quick installation
  • Colorful garden lighting with smart and intelligent control options
  • High-quality materials
  • Flexible mounting, also without use of ground spikes
  • Demand based lighting and energy saving thanks to daylight sensor
Areas of application
  • Outdoor use (IP44)
  • Garages
  • Gardens
Product features
  • Controllable via LEDVANCE SMART+ App (with minimum Android 8.0 or iOS 14.0)
  • Solar powered outdoor LED luminaire
  • RGB color control, approx. 16 million color options adjustable
  • Dimmable
  • Battery charging via solar panel
  • Network protocol: Bluetooth
  • Type of protection: IP44
  • Adjustable heads
Equipment / Accessories
  • For control via LEDVANCE SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
  • To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
  • If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
  • Please avoid: Maximal ambient temperature: +35 °C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Altitude during operation: 2000 m. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
References / Links
  • Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
Nominal wattage 2x1 W
Nominal voltage 3,7 V
Nominal current 476.000 mA
Power factor λ > 0.5
Protection class III
Photometrical data
Luminous flux 90 lm
Total luminous flux of contained light sources 200 lm
Luminous efficacy 45 lm/W
Color temperature 3000 K
Light color (designation) Warm White, RGB
Color rendering index Ra > 80
Standard deviation of color matching ≤6 sdcm
Flickering metric (Pst LM) -
Stroboscope effect metric (SVM) -
Dimensions & Weight
Diameter 48.00 mm
Height 455.00 mm
Product weight 1025.00 g
Materials & Colors
Product color Black
Housing color Black
Body material Acrylonitrile butadiene styrene (ABS)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Type of protection IP44
Dimmable Yes
Type of dimming Bluetooth
Mounting type Ground spike
Application environment Outdoor
Adjustable Yes
With light source Yes
Lifespan
Lifespan L70/B50 at 25 °C 25000 h
Number of switching cycles 12500
Sensor
Type of sensor Light
BATTERY
Type of Battery Lithium ion
Battery size [GMS] 18650
Number of included batteries 1
Nominal voltage of battery 3.7 V
Nominal capacity of battery 2200 mAh
Battery charging time 8 h
Certificates & Standards
Standards CE, UKCA
Ball shot safe No
Replaceable light source (EPREL) Not replaceable
Additional product data
Product remark Reset settings to default by switching the product on for three seconds and off for three seconds and repeating this five times.
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075763708 Folding box
1
167 mm x 317 mm x 102 mm 1241.00 g 5.40 dm³
4058075763715 Shipping box
4
350 mm x 335 mm x 232 mm 5558.00 g 27.20 dm³
User instruction / safety instructions
SMART+ BOLLARD SPOT PANEL SOLAR
Legal information
Legal insert SMART OUTD ENDURA SOLAR WORKLIGHT BAT
Declarations of conformity
SMART OUTD BT

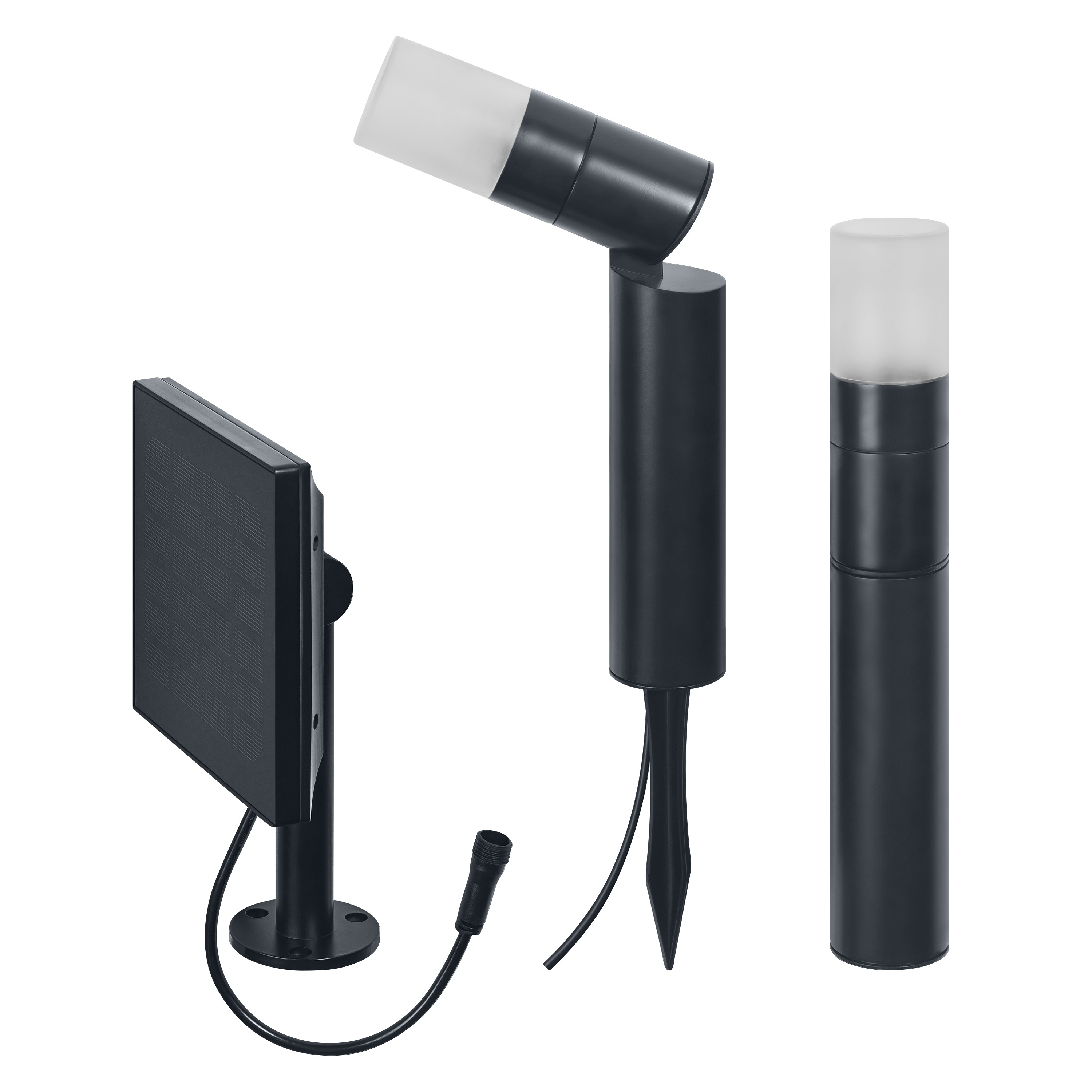

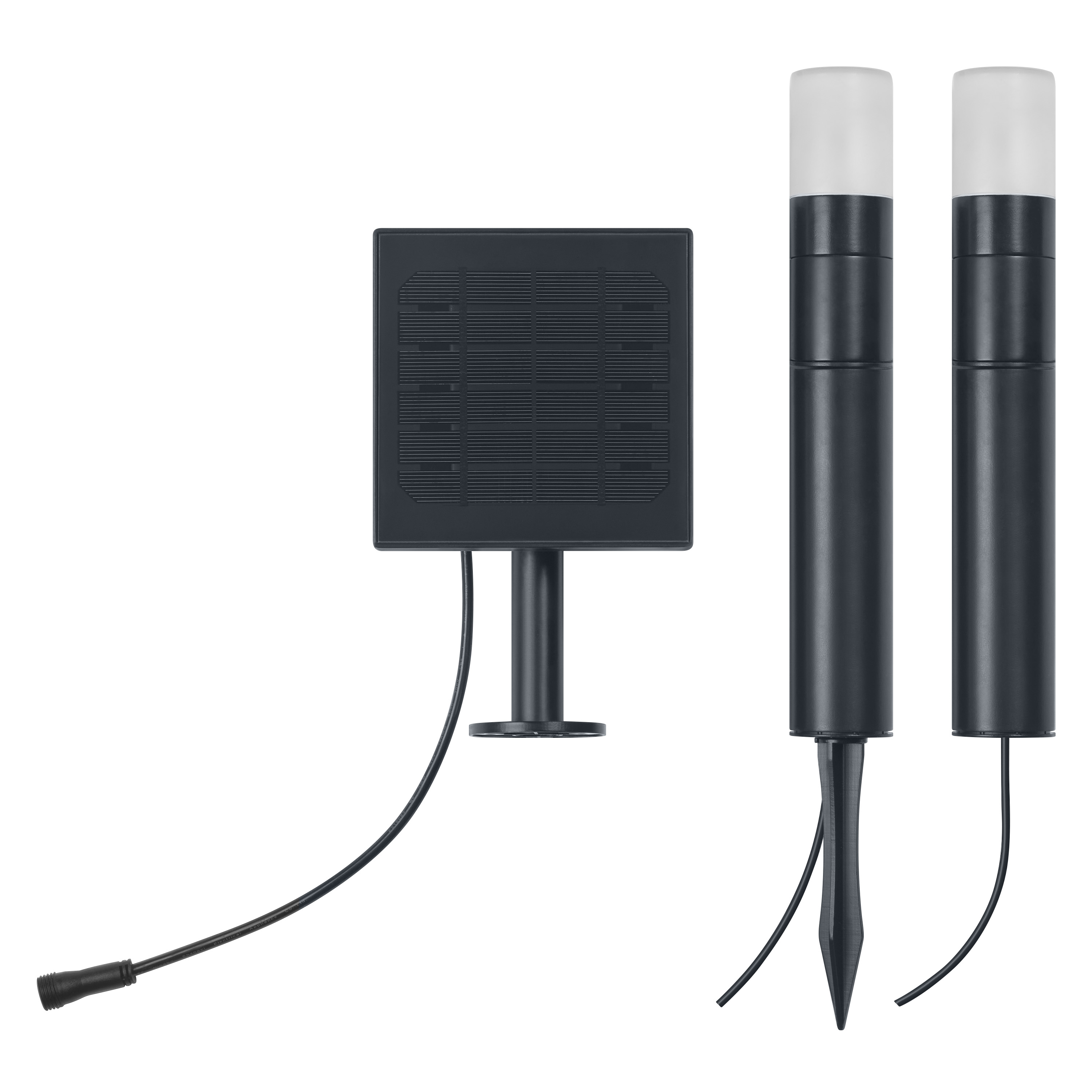

Product image: white background, upright
SMART OUTD BT SOL 3BOLLARD SPOT PANEL
Product image: white background, upright, alternative image
SMART OUTD BT SOL 3BOLLARD SPOT PANEL

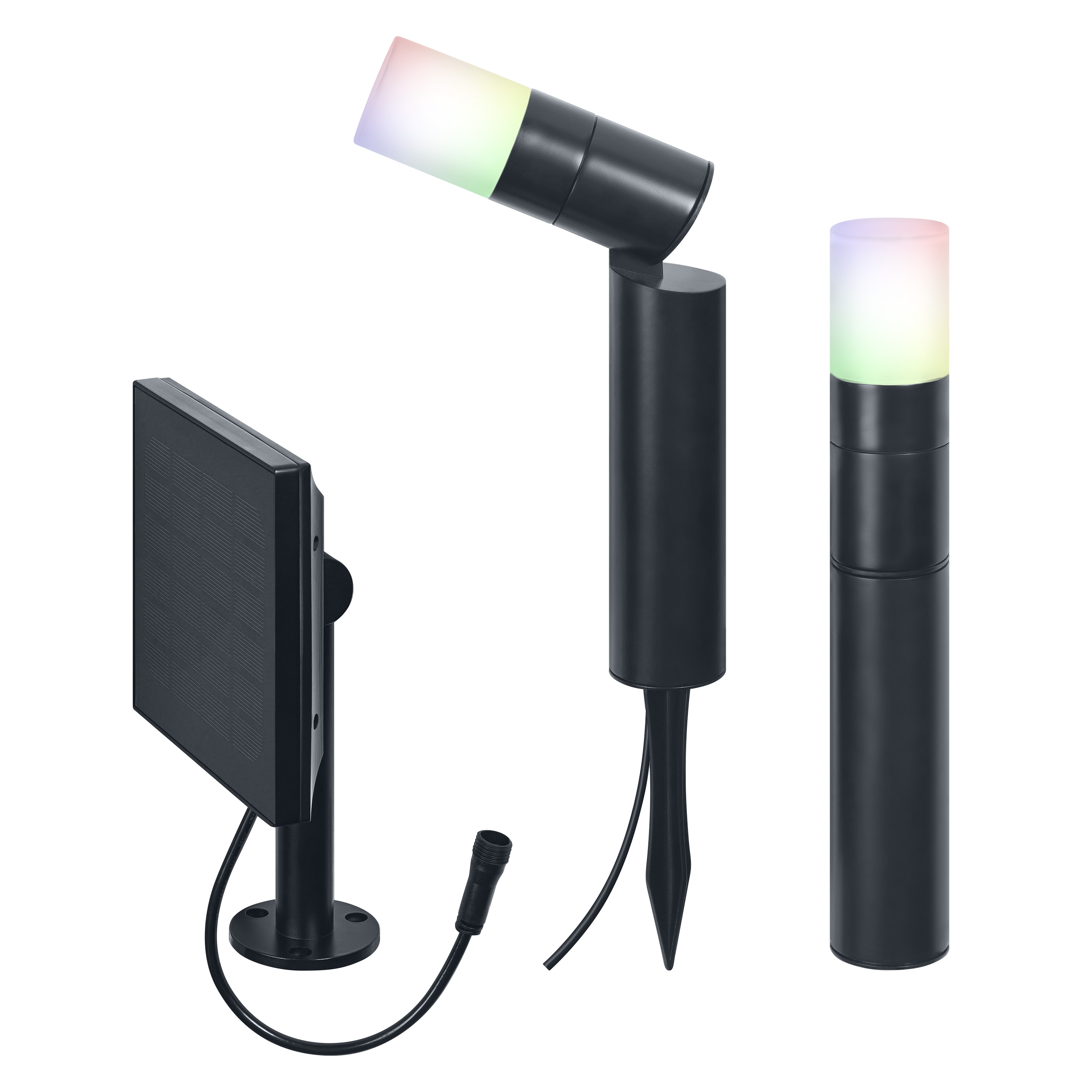

Product image: white background, upright, switched on
SMART OUTD BT SOL 3BOLLARD SPOT PANEL
Product infographic (application image with text and graphic)
SmartPlus assortment E-Com-Grafik V3 1200x1200 2023 EN
Product infographic (application image with text and graphic)
Solar assortment E-Com-Grafik V2 1200x1200 2023 EN
Product line drawing with letters
SMART OUTD BT SOL 3BOLLARD SPOT PANEL
Product line drawing with numbers
SMART OUTD BT SOL 3BOLLARD SPOT PANEL
Product line drawing, front, no dimensions
SMART OUTD BT SOL 3BOLLARD SPOT PANEL
Combo Shot = Product Beauty Shot + Packaging Image
SH FC BT BOLLARD SPOT SOLPANEL MiPRC
Packaging image, frontal
SH FC BT BOLLARD SPOT SOLPANEL MiPRC
Packaging image, spacial
SH FC BT BOLLARD SPOT SOLPANEL MiPRC

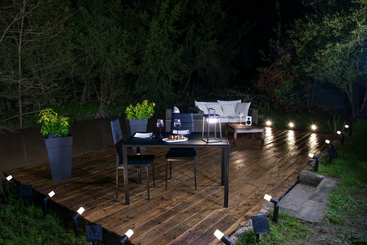

Application pictures
Solar Spot and Bollard terrace ambience ww 01

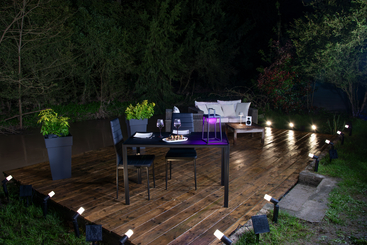

Application pictures
Solar Spot and Bollard terrace ambience ww 02

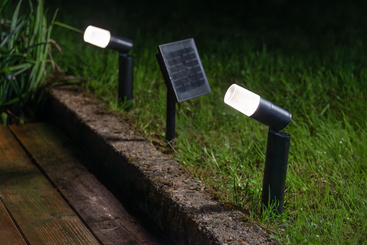

Application pictures
Solar Spot and Bollard terrace ambience ww 03

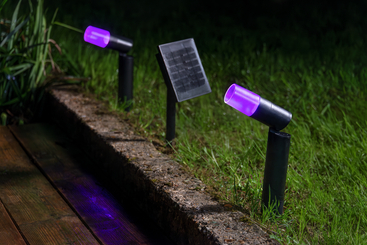

Application pictures
Solar Spot and Bollard terrace ambience RGB 04
Application pictures Getty
SMART WIFI SOLAR SPOT BOLLARD PANEL RGB

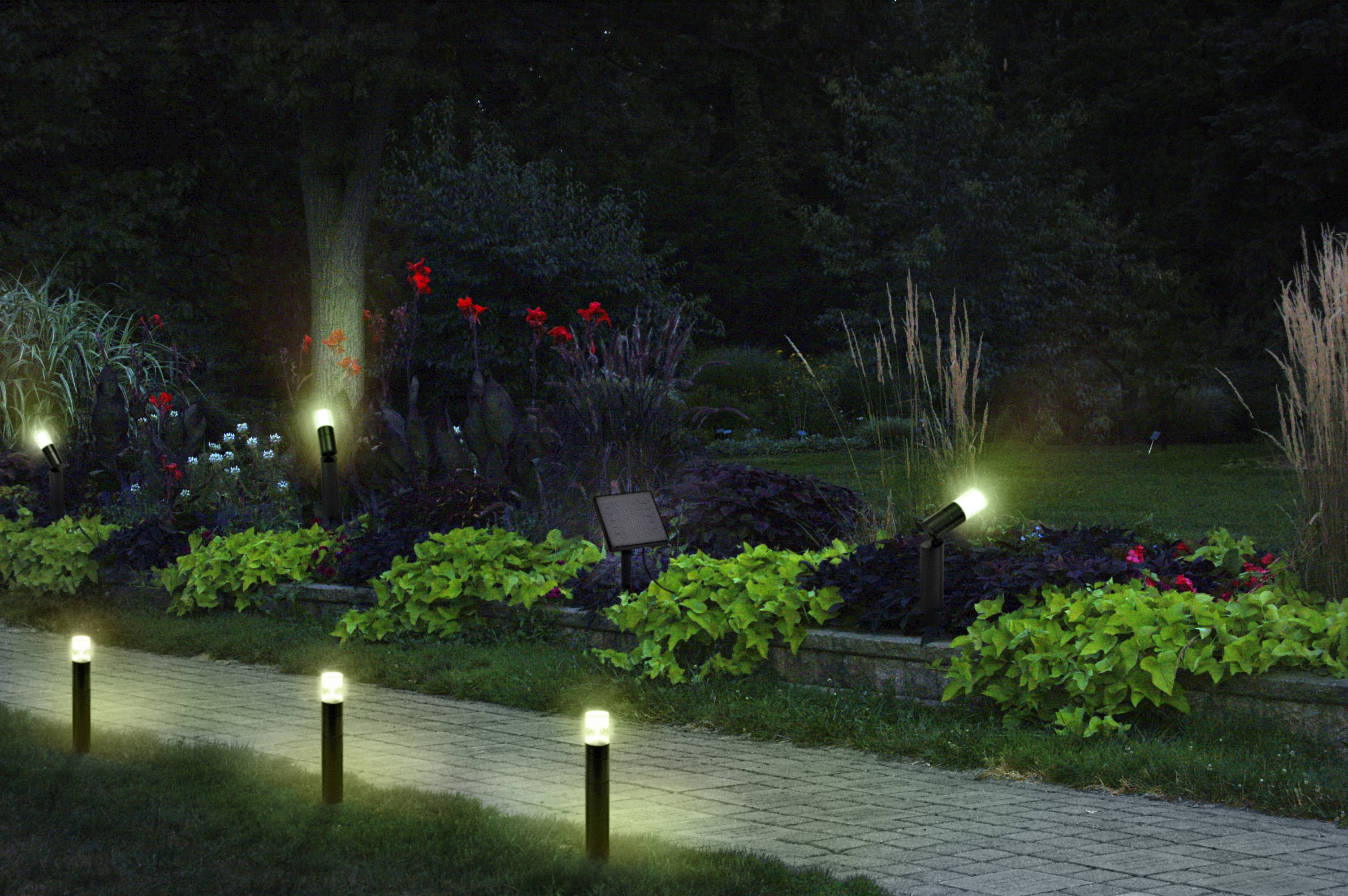

Application pictures Getty
