Smart+ Camera Entrance Number

SMART+ Wifi Camera Entrance Number

GTIN: 4058075763524 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Easy and quick installation
  • Increased perception of safety thanks to high brightness
  • The recorded data is saved on the unit's memory card or cloud storage
  • High-quality materials
Areas of application
  • Outdoor use (IP44)
  • Garages
  • Entrance areas
Product features
  • Controllable via LEDVANCE SMART+ App (with minimum Android 8.0 or iOS 14.0)
  • Controllable via voice control available: Google Assistant or Amazon Alexa
  • Built in speaker and alarm siren
  • Dimmable
  • Color temperature: 3,000 K (Warm White)
  • Network protocol: WiFi
  • Type of protection: IP44
  • HD Live view camera
Equipment / Accessories
  • For control via LEDVANCE SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
  • Mounting screws and dowels included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
References / Links
  • Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
Nominal wattage 22.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 102.000 mA
Power factor λ > 0.5
Total harmonic distortion ≤ 20 %
Protection class II
Photometrical data
Luminous flux 1500 lm
Total luminous flux of contained light sources 2550 lm
Luminous efficacy 68 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra > 80
Standard deviation of color matching ≤6 sdcm
Flickering metric (Pst LM) -
Stroboscope effect metric (SVM) -
Photobiological safety group acc. to EN62778 RG0
Beam angle 117 °
UGR < 25
Dimensions & Weight
Length 180.00 mm
Height 280.00 mm
Width 73.00 mm
Product weight 1075.00 g
Materials & Colors
Product color Dark gray
Housing color Dark gray
Body material Acrylonitrile butadiene styrene (ABS)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Type of connection Terminal, 2-Pole (L, N)
Type of protection IP44
Protection class IK (shock resistance) IK05
Dimmable Yes
Type of dimming WiFi
Mounting type Surface
Application environment Outdoor
With light source Yes
Lifespan
Lifespan L70/B50 at 25 °C 30000 h
Number of switching cycles 100000
Sensor
Type of sensor Motion, Daylight
Sensor detection angle 90 °
Sensor controlled switching time 5 s…6 min
Detection range of motion sensor 5…10 m
Detection threshold of daylight sensor 10…500 lx
Certificates & Standards
Standards CE, UKCA
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) Not replaceable
Additional product data
Product remark Reset settings to default by switching the product on for three seconds and off for three seconds and repeating this five times.
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075763524 Folding box
1		 92 mm x 202 mm x 297 mm 1246.00 g 5.52 dm³
4058075763531 Shipping box
4		 385 mm x 210 mm x 320 mm 5491.00 g 25.87 dm³
User instruction / safety instructions
SMART+ OUTD WIFI ENTRANCE NUMBERCAM
PDF (1.2 MB)
Declarations of conformity
SMART OUTD WIFI
PDF (301.35 KB)

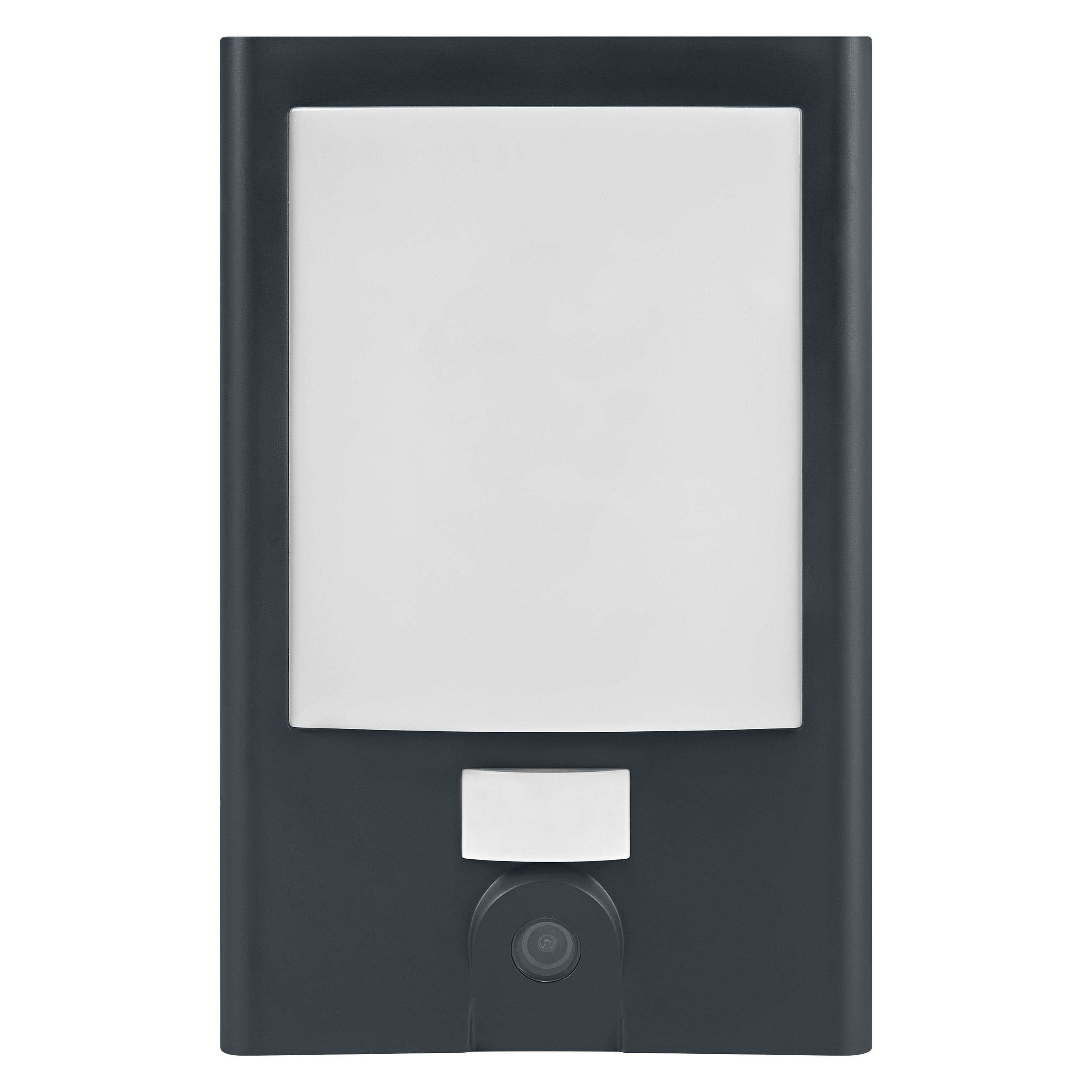

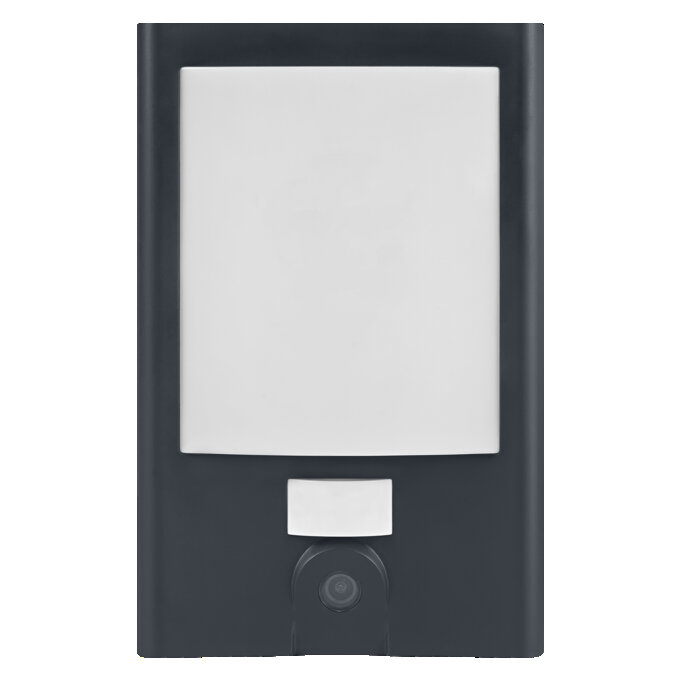

Product image: white background, upright
SMART OUTD WIFI ENTRANCE NUMBER CAM
JPG (615.63 KB)

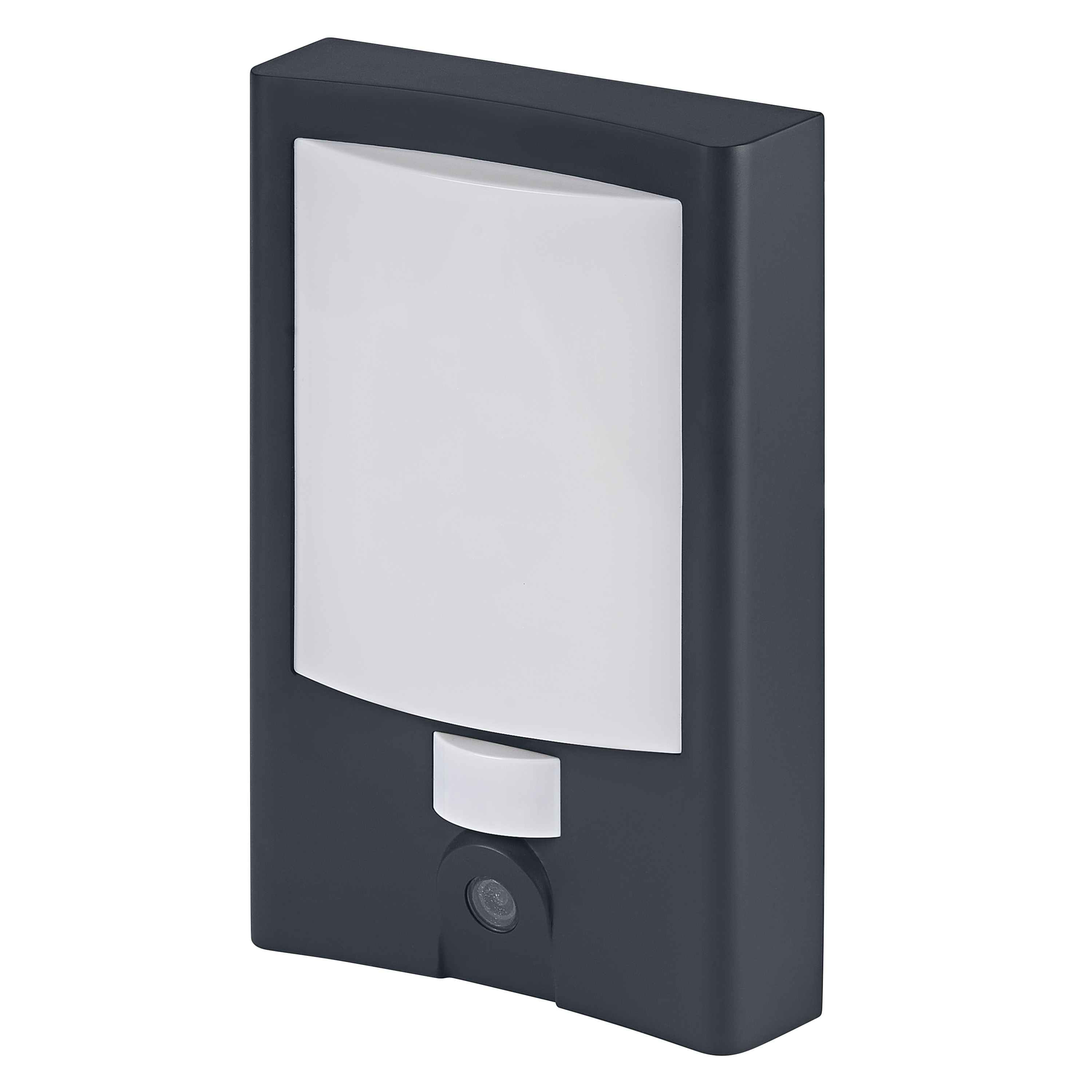

Product image: white background, upright, alternative image
SMART OUTD WIFI ENTRANCE NUMBER CAM
JPG (684.99 KB)

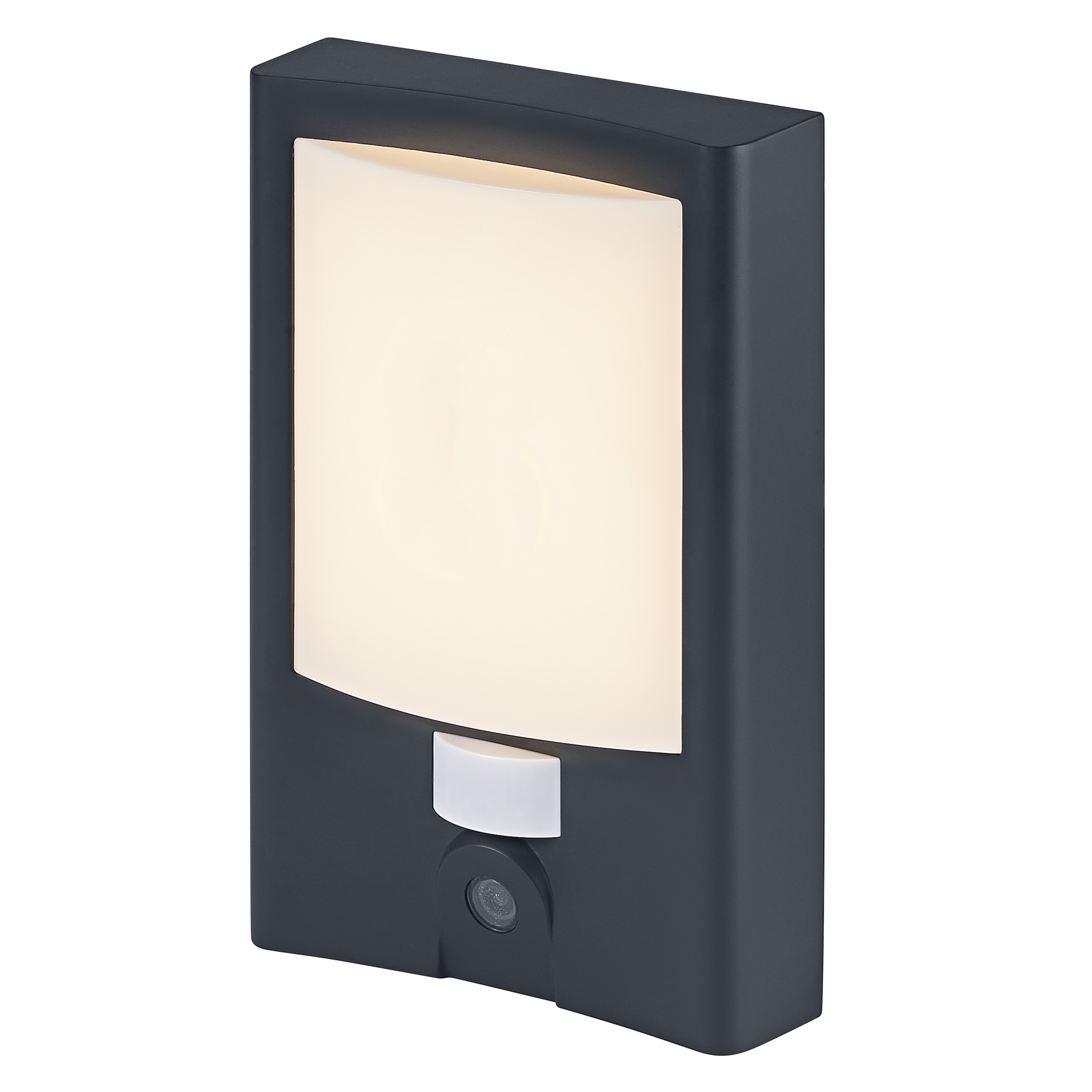

Product image: white background, upright, switched on
SMART OUTD WIFI ENTRANCE NUMBER CAM
JPG (602.3 KB)
Product infographic (application image with text and graphic)
SmartPlus Kameraleuchten assortment E-Com-Grafik 1200x1200 2023 EN
JPG (707.44 KB)
Product infographic (application image with text and graphic)
SmartPlus assortment E-Com-Grafik V3 1200x1200 2023 EN
JPG (955.41 KB)
Product infographic (application image with text and graphic)
Solar assortment E-Com-Grafik V2 1200x1200 2023 EN
JPG (822.84 KB)
Product line drawing with letters
SMART OUTD WIFI ENTRANCE NUMBER CAM
SVG (33.07 KB)

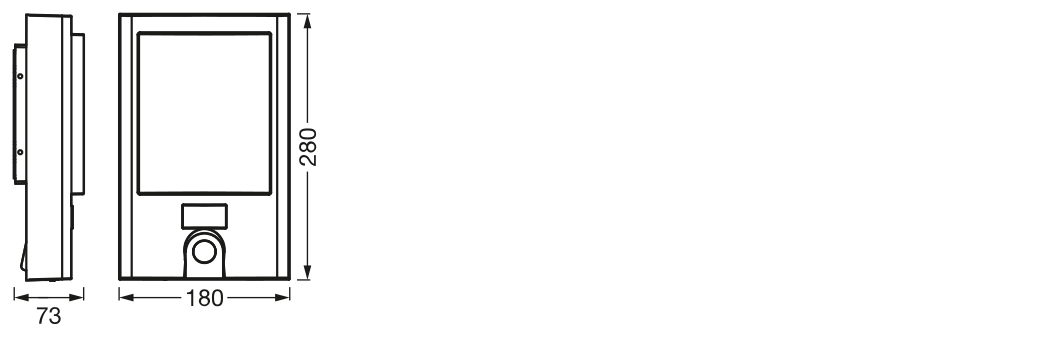

Product line drawing with numbers
SMART OUTD WIFI ENTRANCE NUMBER CAM
PNG (14.6 KB)
Product line drawing, front, no dimensions
SMART OUTD WIFI ENTRANCE NUMBER CAM
SVG (31.2 KB)

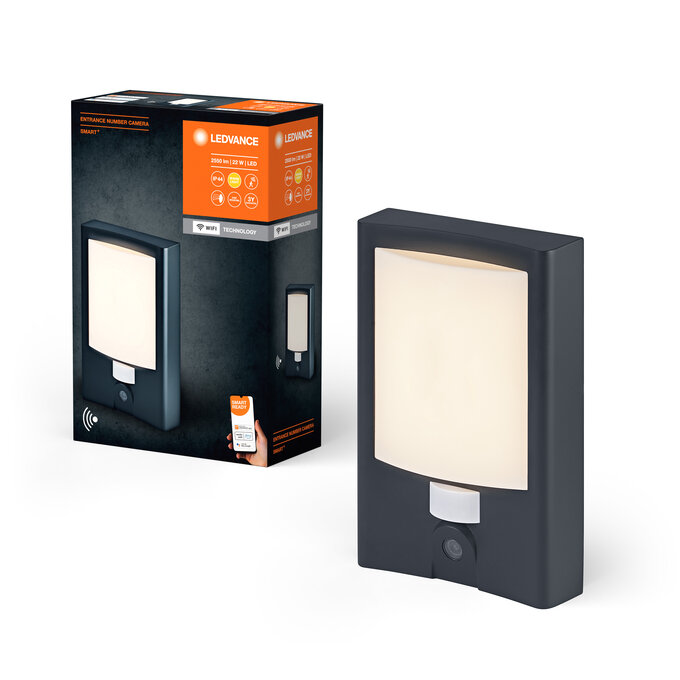

Combo Shot = Product Beauty Shot + Packaging Image
Entrance Number Camera
JPG (1.25 MB)
Packaging image, frontal
SH FC OD WF ENTRANCENUMBER CAM MiPRC
TIF (672.67 KB)

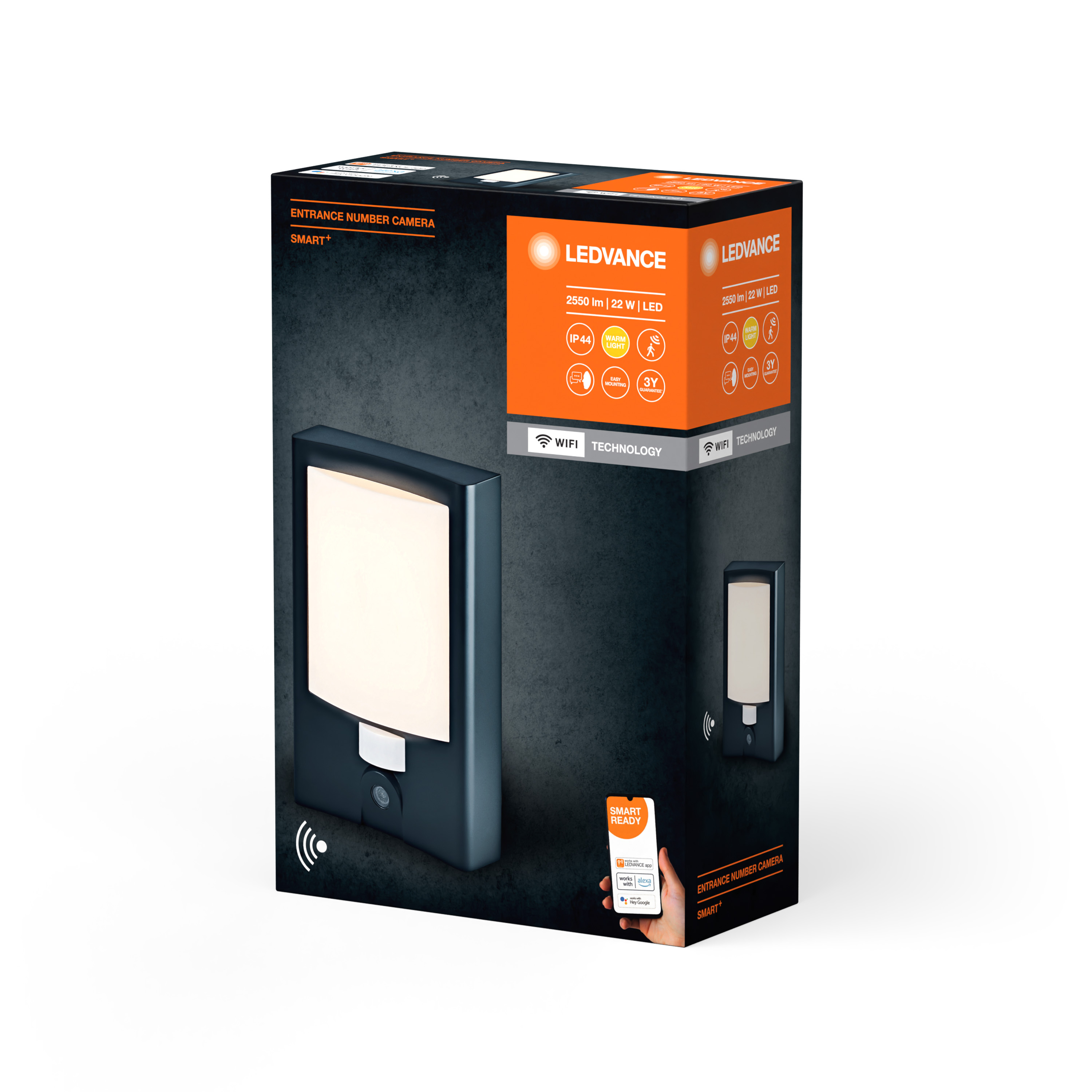

Packaging image, spacial
SH FC OD WF ENTRANCENUMBER CAM MiPRC
JPG (753.61 KB)

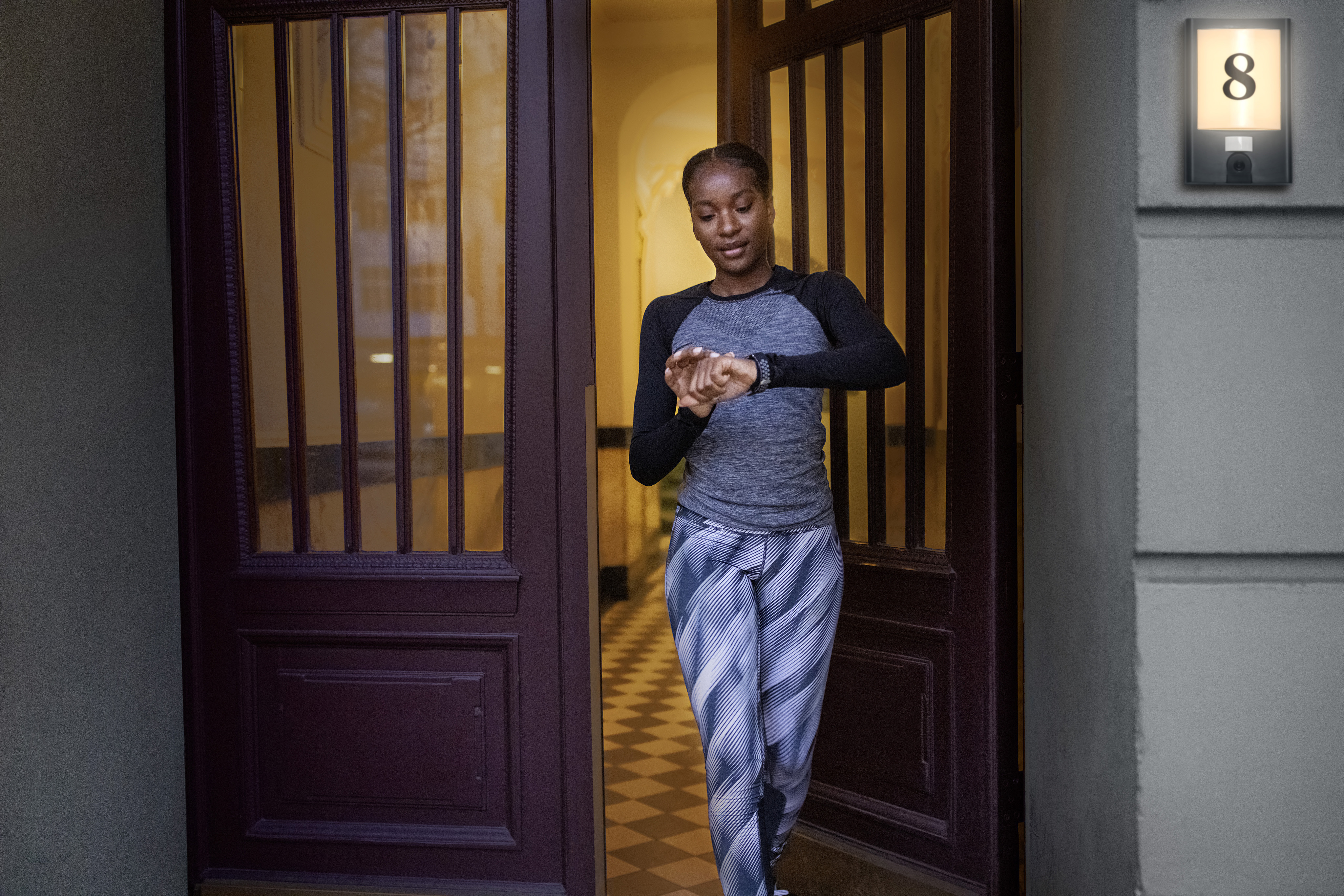

Application pictures Getty
