Smart+ Garden Pole Multicolor
SMART+ ZB GardenPole 3P RGB + W Extension
GTIN: 4099854043932
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Easy to install and use
- Colorful garden lighting with smart and intelligent control options
- Uses multi color and cold or warm white light for most flexible lighting scenes
- Combines the functionality of general lighting and mood lighting
Areas of application
- Gardens, balconies and other outdoor areas
Product features
- Garlands of lights with integrated wireless smart lighting function
- RGB color control, approx. 16 million color options adjustable
- Adjustable color temperature via Tunable White: 2,000…6,500 K
- Dimmable
- Protection class (pole): IP65
- Protection class (power supply): IP44
- Network protocol: ZigBee
- Lifetime: up to 20,000 h
- Controllable via compatible smart home system (gateway and app) or SMART+ Switch
- For full functionality, connection to a compatible smart home System (gateway and app) required
Equipment / Accessories
- Power supply included only in basic set
- Control via app requires LIGHTIFY system (app and gateway) or other compatible Smart home system
Safety advice
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
Electrical data
| Nominal wattage | 3.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 150.000 mA |
| Power factor λ | > 0.5 |
| Protection class | II |
| Operating mode | External LED driver |
Photometrical data
| Luminous flux | 420 lm |
| Total luminous flux of contained light sources | 252 lm |
| Luminous efficacy | 84 lm/W |
| Color temperature | 2000 … 6500 K |
| Light color (designation) | Tunable White, RGB |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | 6 sdcm |
| Flickering metric (Pst LM) | <1 % |
| Stroboscope effect metric (SVM) | <0.4 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 160 ° |
Dimensions & Weight
| Diameter | 60.00 mm |
| Length | 6000.00 mm |
| Height | 367.00 mm |
| Width | 60.00 mm |
| Product weight | 540.00 g |
Materials & Colors
| Product color | Grey |
| Housing color | Gray |
| Body material | Aluminum |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Type of connection | Plug type C (EU) |
| Type of protection | IP65 |
| Dimmable | Yes |
| Mounting type | Ground spike |
| Mounting location | Ground |
| Application environment | Outdoor |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 20000 h |
| Number of switching cycles | 10000 |
Certificates & Standards
| Standards | CE |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Product remark | Reset settings to default by switching the product on for five seconds and off for five seconds and repeating this five times. |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854043932 | Folding box 1 |
67 mm x 304 mm x 173 mm | 836.00 g | 3.52 dm³ |
| 4099854043949 | Shipping box 2 |
315 mm x 184 mm x 151 mm | 1671.00 g | 8.75 dm³ |
User instruction / safety instructions
SMART ZB GARDENPOLE RGBW
SMART ZB GARDENPOLE RGBW
User instruction / safety instructions
SMART+ GARDENPOLE
SMART+ GARDENPOLE
Declarations of conformity
CE Declaration SMART ZB GARDENPOLE RGBW
CE Declaration SMART ZB GARDENPOLE RGBW
Product image: white background, upright
Smart GARDEN POLE Extension alternative
Smart GARDEN POLE Extension alternative
Product line drawing with letters
SMART+ Gardenpole
SMART+ Gardenpole

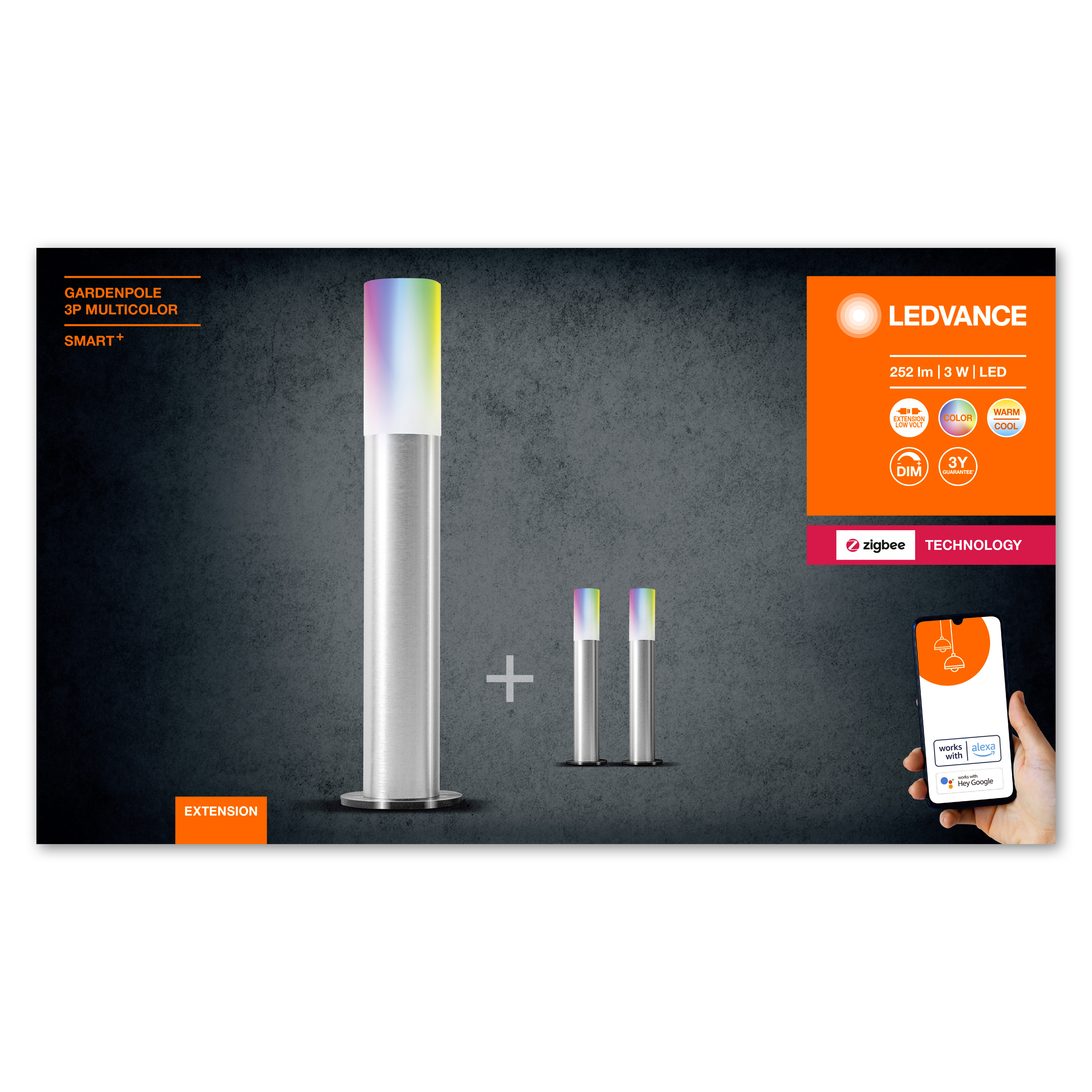

Combo Shot = Product Beauty Shot + Packaging Image
SH FC ZB POLE RGBW EXT EU MiPRC
SH FC ZB POLE RGBW EXT EU MiPRC

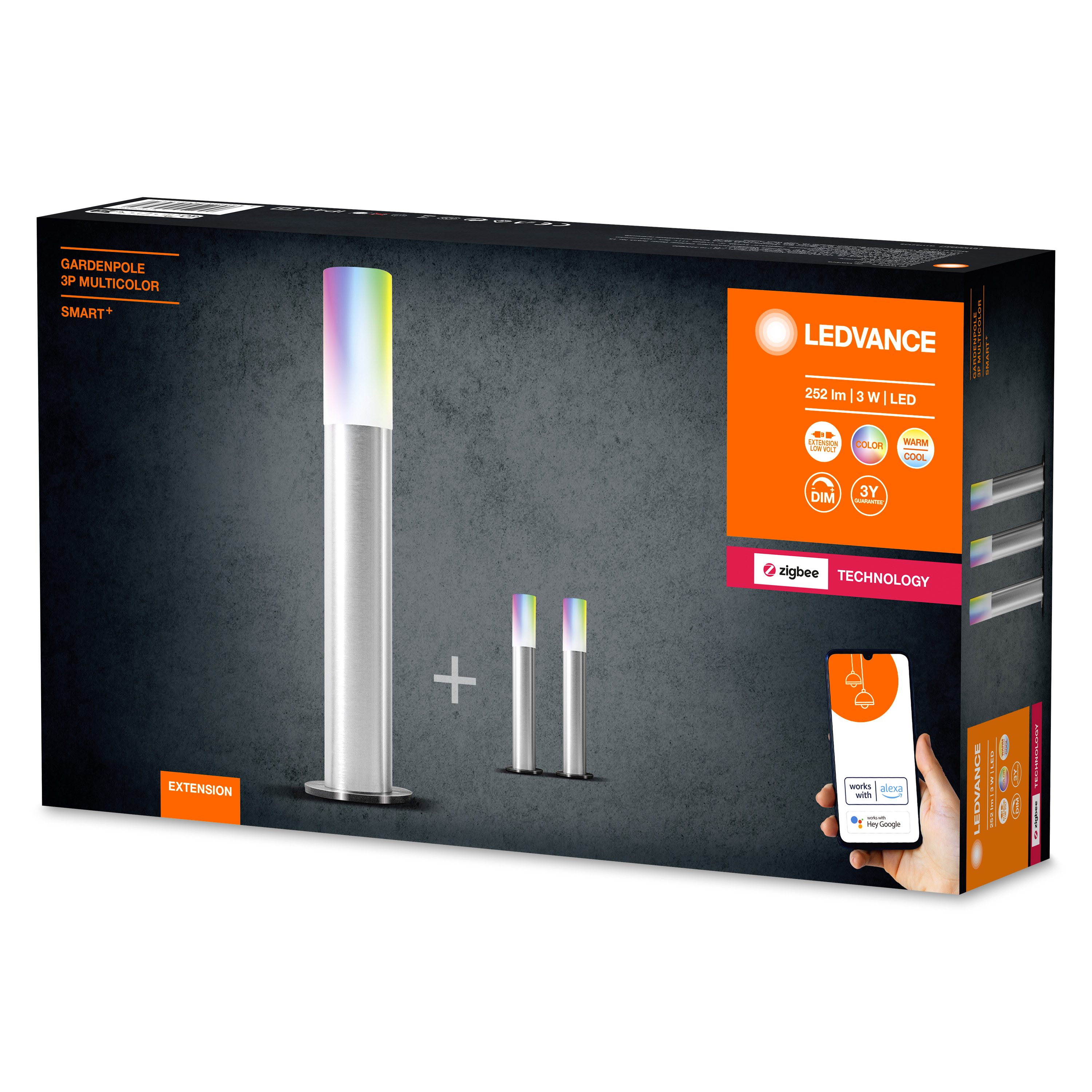

Packaging image, frontal
SH FC ZB POLE RGBW EXT EU MiPRC
SH FC ZB POLE RGBW EXT EU MiPRC

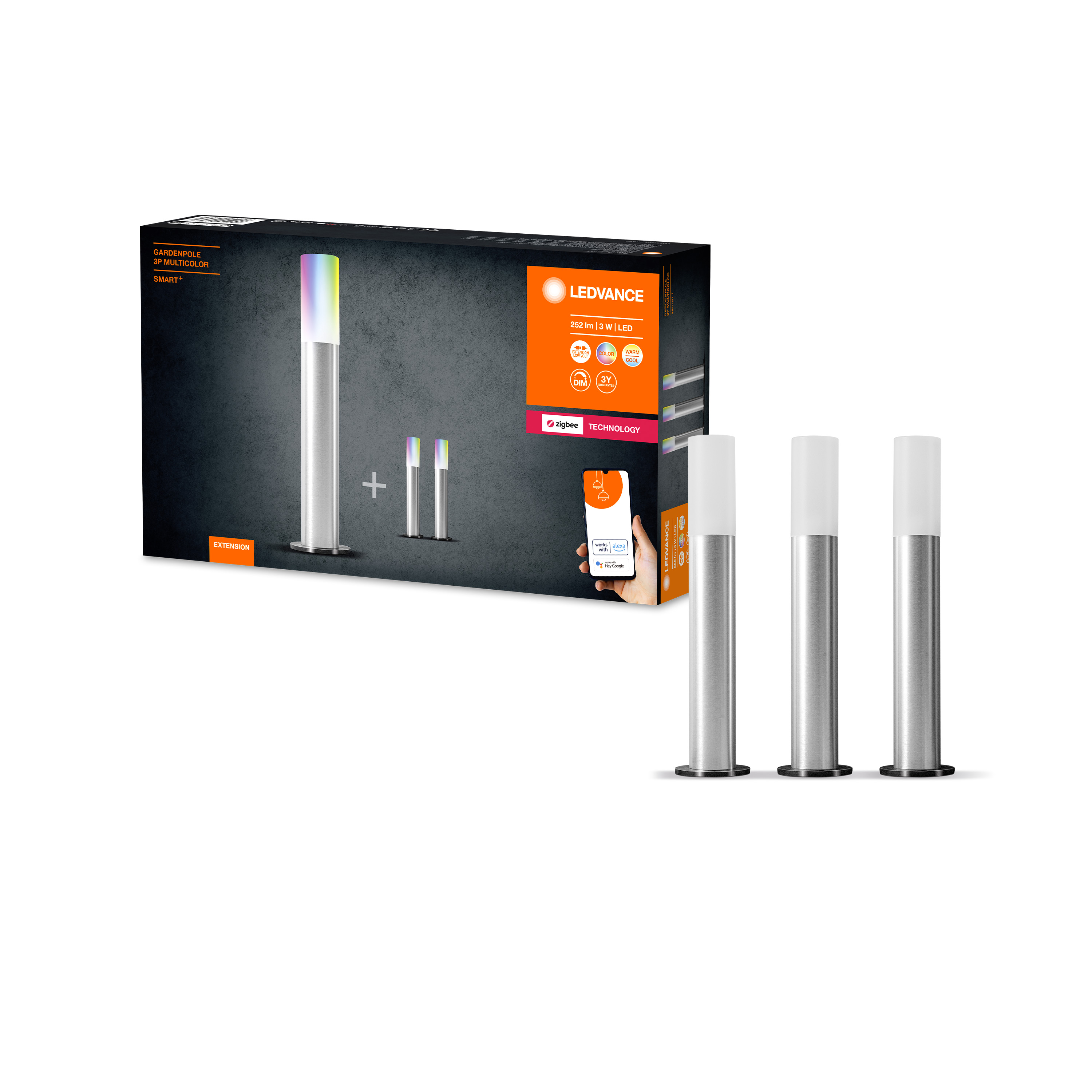

Packaging image, spacial
