Gavin
SMART+ Wifi Orbis Gavin 500mm TW
GTIN: 4058075573512
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Easy and quick installation
Areas of application
- Indoor applications
- Kitchens, living rooms, children's rooms or home offices
Product features
- Controllable via LEDVANCE SMART+ App (with minimum Android 8.0 or iOS 14.0)
- Controllable via voice control available: Google Assistant or Amazon Alexa
- Adjustable color temperature via Tunable White: 2,700…6,500 K
- Dimmable
- Network protocol: WiFi
Equipment / Accessories
- Mounting bracket included
- Mounting screws and dowels included
- Control via app or voice control requires compatible Smart home system
- For control via LEDVANCE SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
- Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
| Nominal wattage | 30.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 154.000 mA |
| Inrush current | 40 A |
| Power factor λ | > 0.5 |
| Total harmonic distortion | < 20 % |
| Protection class | II |
| Operating mode | External LED driver |
Photometrical data
| Luminous flux | 1850 lm |
| Total luminous flux of contained light sources | 3300 lm |
| Luminous efficacy | 110 lm/W |
| Color temperature | 2700…6500 K |
| Light color (designation) | Tunable White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | < 6 sdcm |
| Photobiological safety group acc. to EN62778 | RG1 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 120 ° |
Dimensions & Weight
| Diameter | 484.00 mm |
| Height | 85.00 mm |
| Product weight | 1270.00 g |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Steel |
| Cover material | Polycarbonate (PC) |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Screw terminal |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | Yes |
| Type of dimming | WiFi |
| Mounting type | Surface |
| Mounting location | Ceiling |
| Application environment | Indoor |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 15000 h |
| Number of switching cycles | 15000 |
Emergency lighting
| Type of emergency operation test | None |
| Integrated test switch | No |
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075573512 | Folding box 1 |
528 mm x 103 mm x 533 mm | 1858.00 g | 28.99 dm³ |
| 4058075573529 | Shipping box 5 |
546 mm x 531 mm x 562 mm | 10759.00 g | 162.94 dm³ |
User instruction / safety instructions
SMART WIFI ORBIS SPARKLE GAVIN LISA JARDEN
SMART WIFI ORBIS SPARKLE GAVIN LISA JARDEN
Legal information
Legal insert Residential luminaires
Legal insert Residential luminaires
Declarations of conformity
EC_SMART WIFI ORBIS
EC_SMART WIFI ORBIS

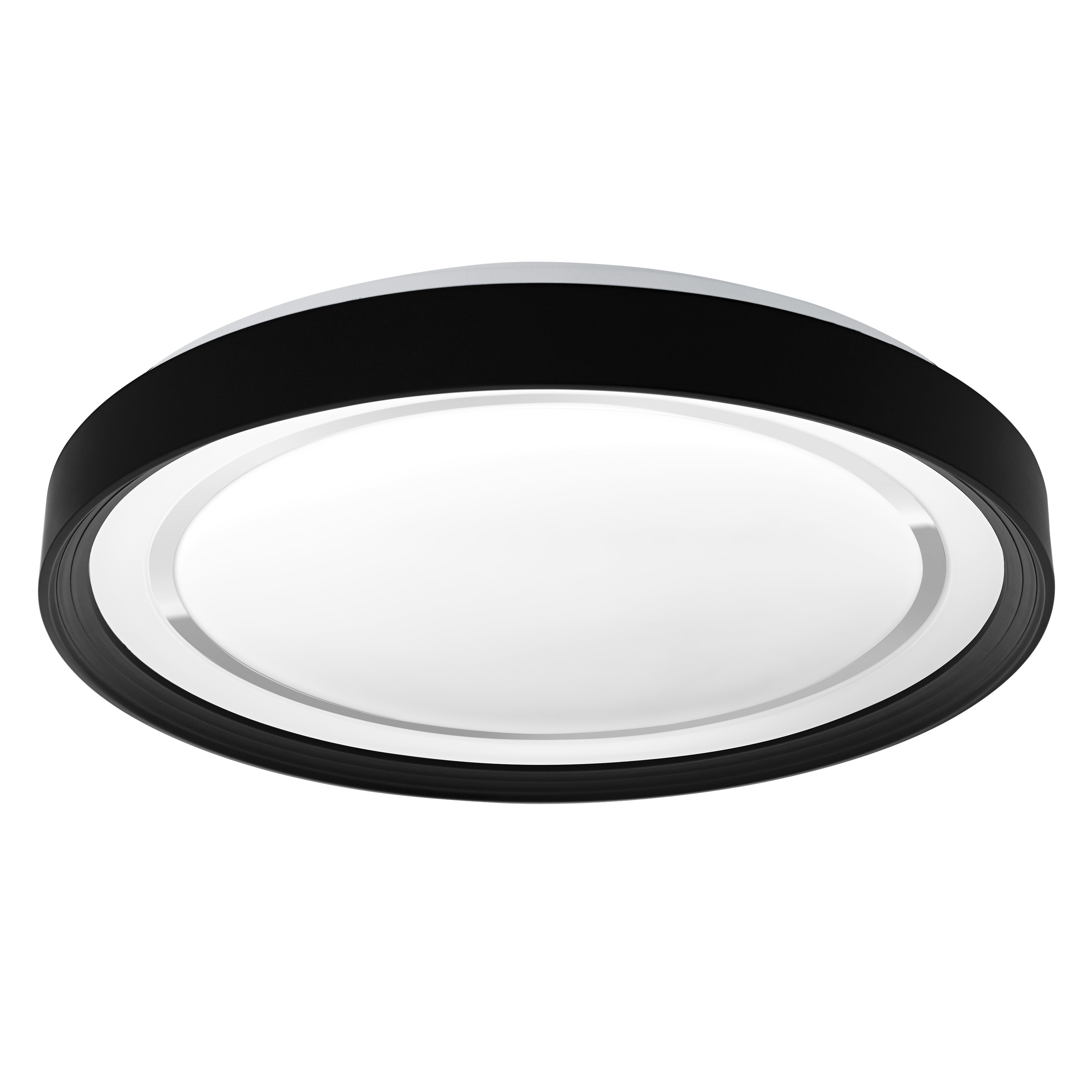

Product image: white background, upright
SMART WIFI ORBIS GAVIN
SMART WIFI ORBIS GAVIN

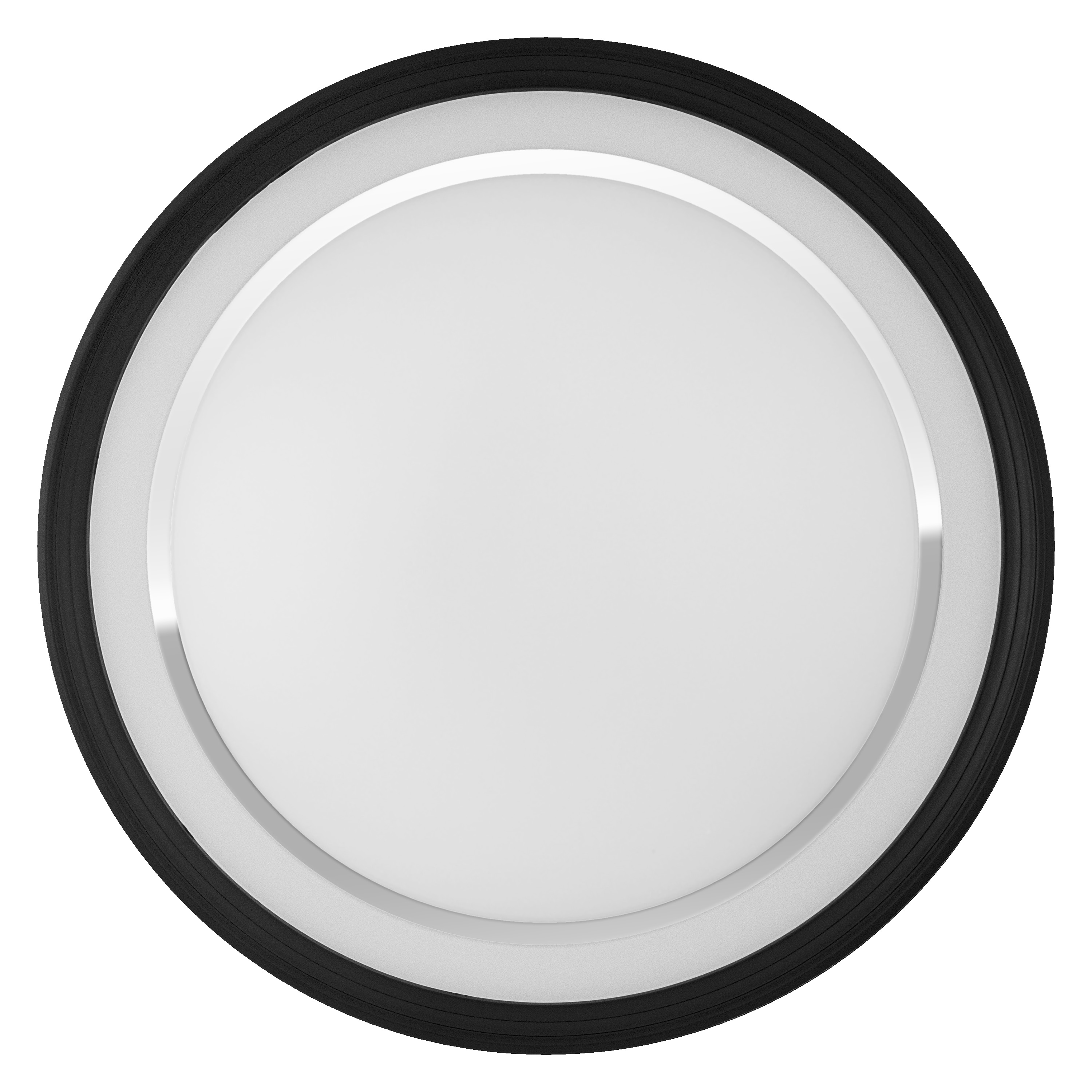

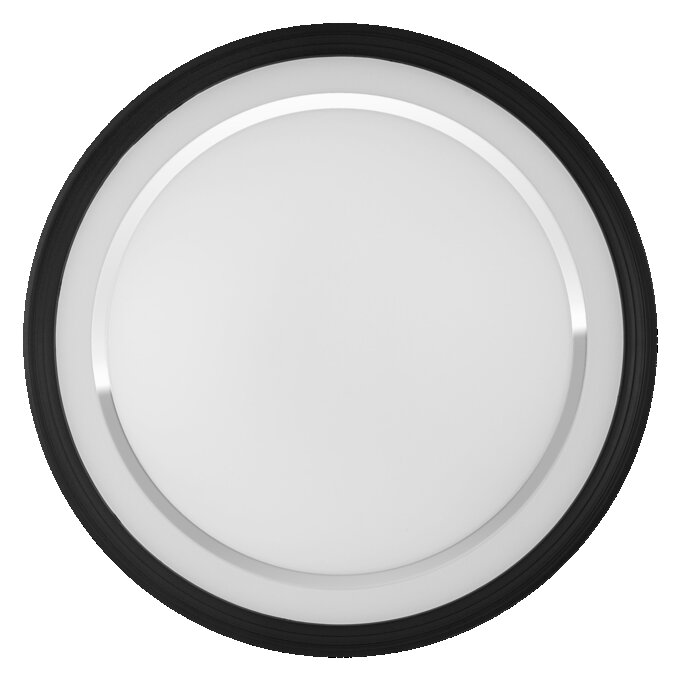

Product image: white background, upright, alternative image
SMART WIFI ORBIS GAVIN
SMART WIFI ORBIS GAVIN
Product image: white background, upright, switched on
SMART WIFI ORBIS GAVIN
SMART WIFI ORBIS GAVIN
Product infographic (application image with text and graphic)
Wand-Deckenleuchten E-Com Grafik 1200x1200px 2023 EN
Wand-Deckenleuchten E-Com Grafik 1200x1200px 2023 EN
Product line drawing with letters
SMART WIFI ORBIS GAVIN
SMART WIFI ORBIS GAVIN
Product line drawing with numbers
SMART WIFI ORBIS GAVIN
SMART WIFI ORBIS GAVIN
Product line drawing, front, no dimensions
SMART WIFI ORBIS GAVIN
SMART WIFI ORBIS GAVIN
Combo Shot = Product Beauty Shot + Packaging Image
SH FC WF ORBI GAV RD 500 TW BK MiPRC
SH FC WF ORBI GAV RD 500 TW BK MiPRC
Combo Shot = Product Beauty Shot + Packaging Image
SH FC WF ORBI GAV RD 500 TW BK
SH FC WF ORBI GAV RD 500 TW BK
Packaging image, frontal
SH FC WIFI GAVIN 500RD TW BK MiPRC
SH FC WIFI GAVIN 500RD TW BK MiPRC
Packaging image, spacial
SH FC WIFI GAVIN 500RD TW BK MiPRC
SH FC WIFI GAVIN 500RD TW BK MiPRC
Application pictures
SMART INDOOR WIFI ORBIS GAVIN COOL LIGHT
SMART INDOOR WIFI ORBIS GAVIN COOL LIGHT

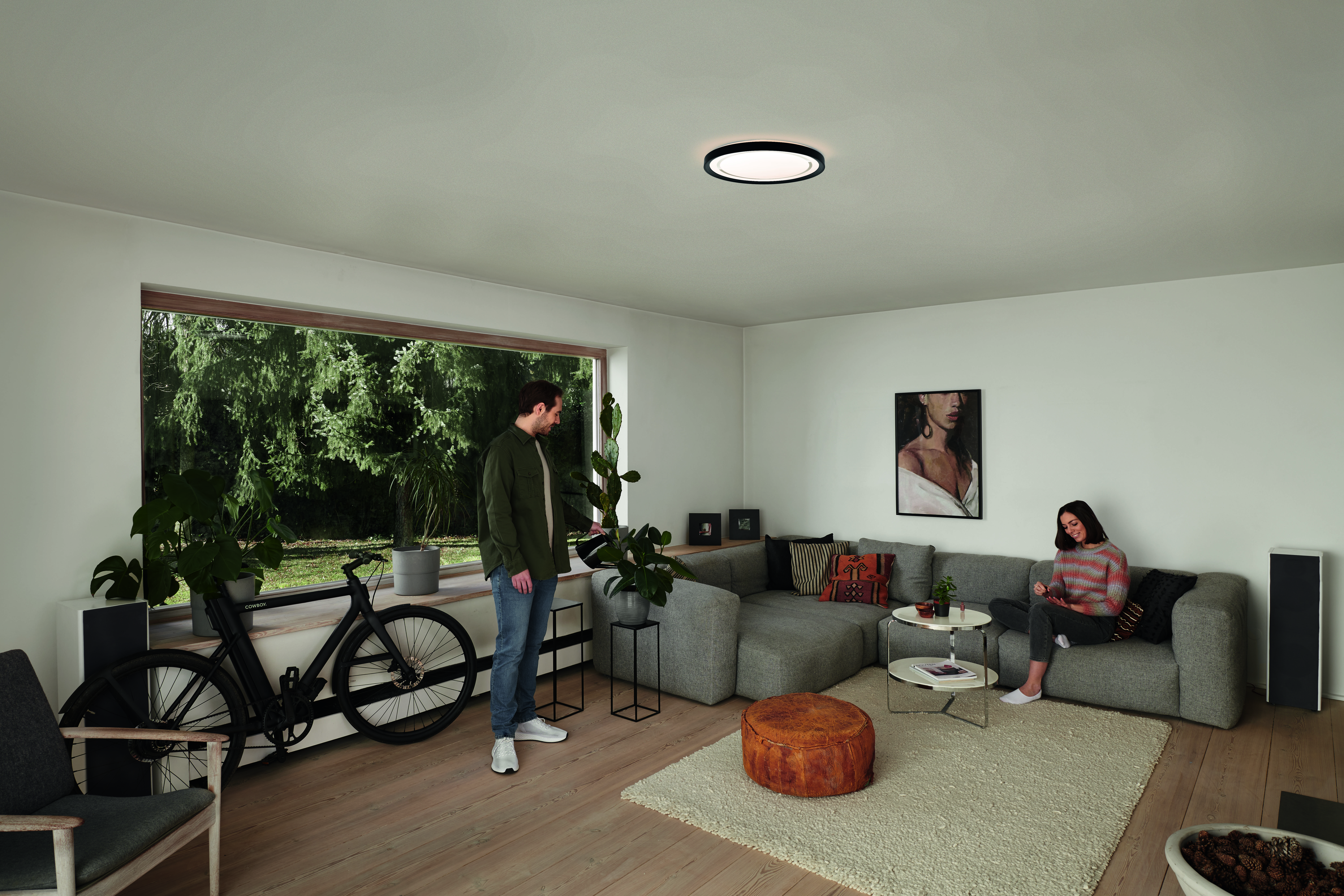

Application pictures
SMART INDOOR WIFI ORBIS GAVIN WARM LIGHT
SMART INDOOR WIFI ORBIS GAVIN WARM LIGHT

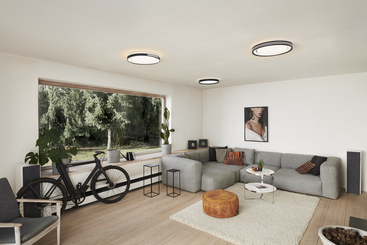

Application pictures
