SENSOR WALL 360DEG
SENSOR WALL 360DEG IP55 DG
GTIN: 4058075244832
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Sensor for optimized energy savings
Areas of application
- Outdoor
- Corridors, entrance areas
- Garages
- Basement
- Arcade passage
- Various mounting options
Product features
- 3 operating modes selectable (light continous on, switch-on by movement or dusk)
- Zero crossing circuit optimized for LED luminaire operation
- Type of protection: IP55
- Protection class: II
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Protection class | II |
Dimensions & Weight
| Length | 76.00 mm |
| Height | 111.00 mm |
| Width | 95.00 mm |
| Product weight | 214.00 g |
Materials & Colors
| Product color | Dark grey |
| Body material | Polycarbonate (PC) |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -25…+70 °C |
| Type of connection | Screw terminal, 3-Pole |
| Type of protection | IP55 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Wall |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Sensor
| Type of sensor | Light, Motion |
| Sensor technology | Passive infrared (PIR) |
| Sensor detection angle | 360 ° |
| Sensor controlled switching time | 2 s…15 min |
| Detection range of motion sensor | 10 m |
| Detection threshold of daylight sensor | 1…1000 lx |
Certificates & Standards
| Standards | CE, EAC, UKCA |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075244832 | Folding box 1 |
82 mm x 118 mm x 116 mm | 249.00 g | 1.12 dm³ |
| 4058075244849 | Shipping box 8 |
250 mm x 178 mm x 248 mm | 2203.00 g | 11.04 dm³ |
User instruction / safety instructions
SENSOR WALL 360DEG
SENSOR WALL 360DEG
Declarations of conformity
SENSOR WALL 360DEG
SENSOR WALL 360DEG

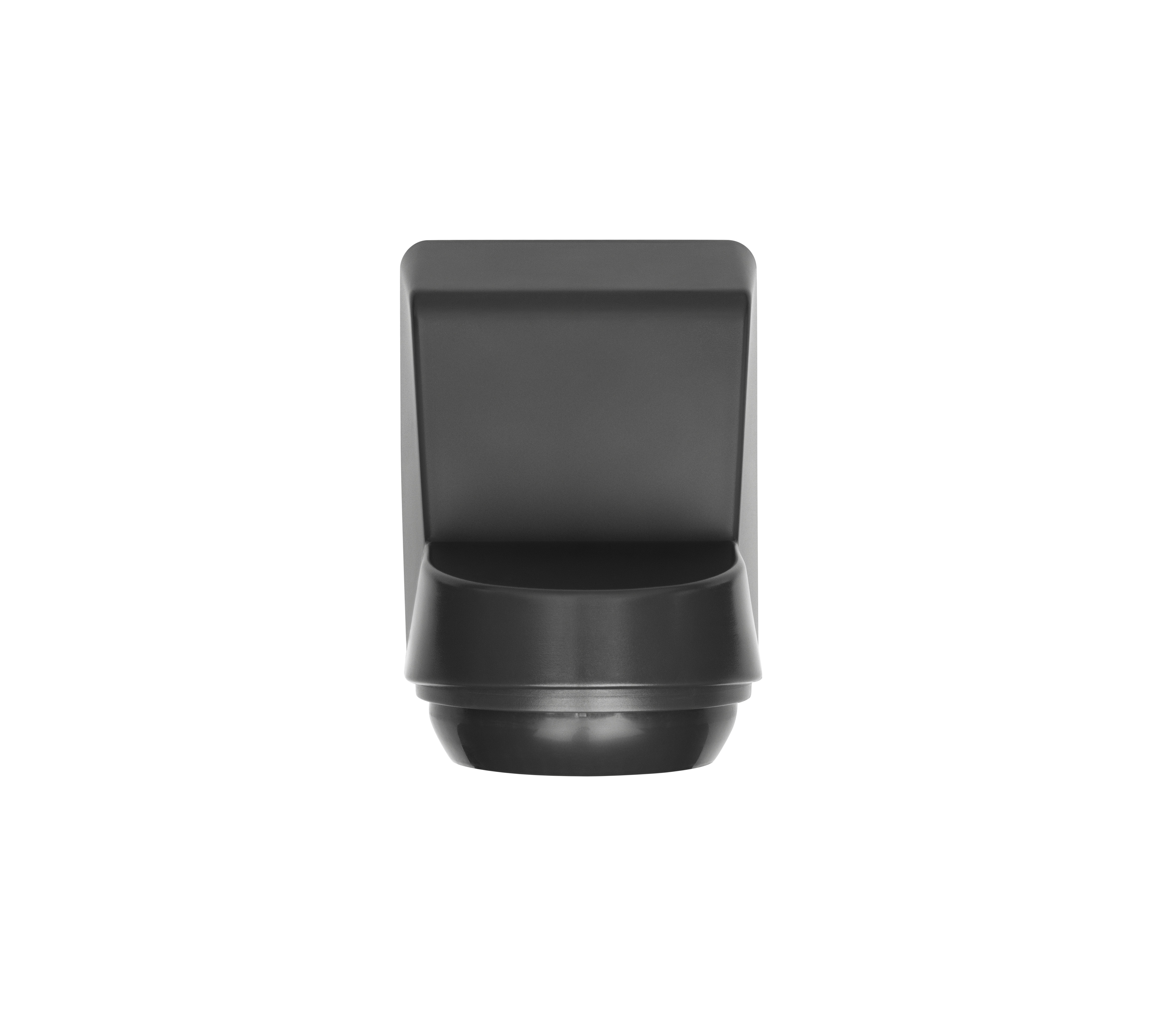

Product image: white background, upright
E PRO SENSOR W 360DEG IP55 DG
E PRO SENSOR W 360DEG IP55 DG
Product image: white background, upright, alternative image
E PRO SENSOR W 360DEG IP55 DG
E PRO SENSOR W 360DEG IP55 DG
Product line drawing with letters
E PRO SENSOR W 360DEG IP55
E PRO SENSOR W 360DEG IP55
Product line drawing with numbers
E PRO SENSOR W 360DEG IP55
E PRO SENSOR W 360DEG IP55
Product line drawing, front, no dimensions
E PRO SENSOR W 360DEG IP55
E PRO SENSOR W 360DEG IP55

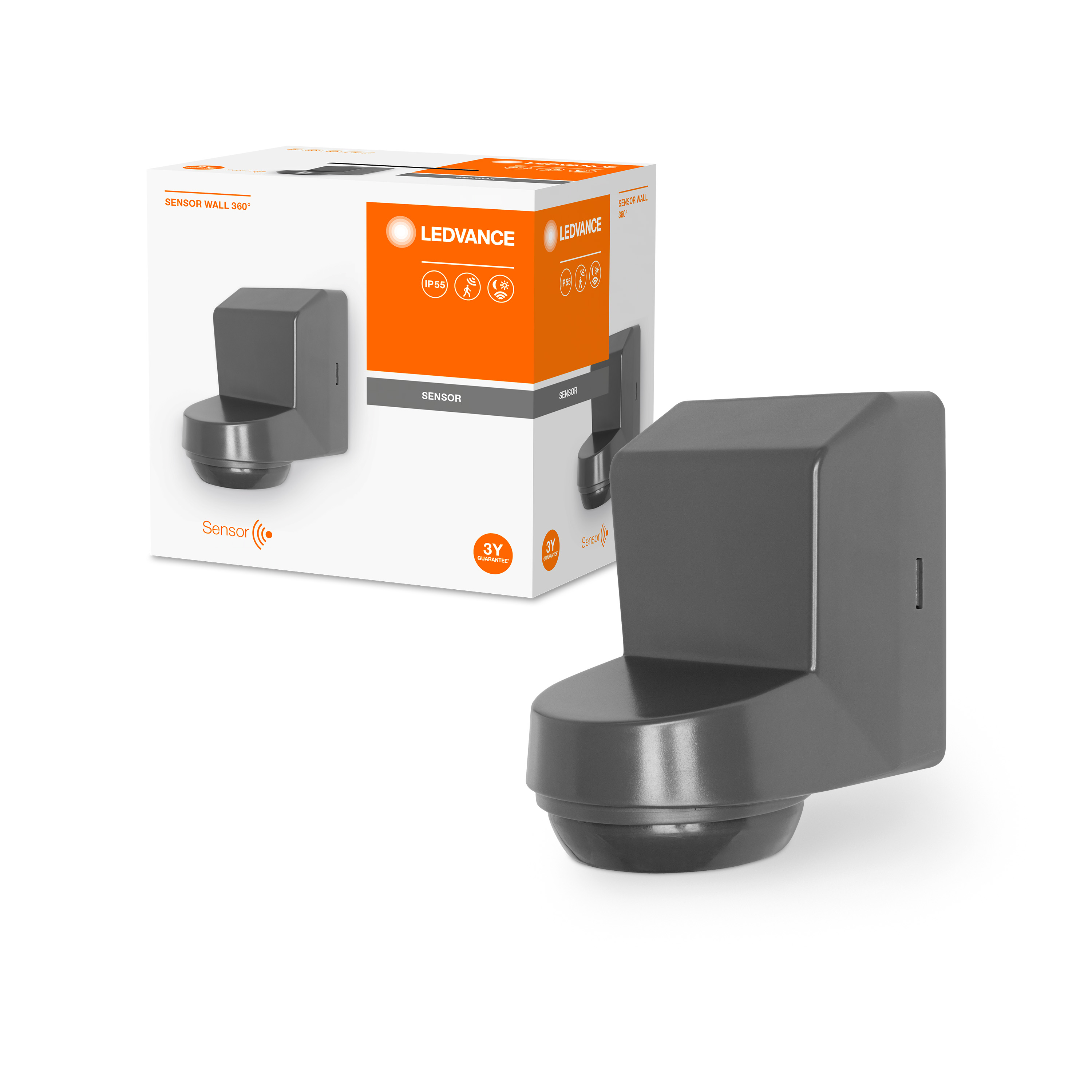

Combo Shot = Product Beauty Shot + Packaging Image
