SENSOR CEILING IP44

SENSOR CEILING 360DEG IP44 WT

GTIN: 4058075244719 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Sensor for optimized energy savings
  • Compact design
Areas of application
  • Indoor
  • Stairways
  • Basement
  • Restrooms
Product features
  • 2 operating modes selectable (light 6h continous on, switch-on by movement)
  • Type of protection: IP44
  • Protection class: II
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Protection class II
Dimensions & Weight
Diameter 92,0 mm
Height 50.00 mm
Product weight 117.00 g
Materials & Colors
Product color White
Body material Polycarbonate (PC)
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Temperature range at storage -25…+70 °C
Type of connection Screw terminal, 3-Pole
Type of protection IP44
Dimmable No
Mounting type Surface
Mounting location Ceiling
Replaceable light source No
Lifespan
Lifespan L70/B50 at 25 °C 50000 h 1)
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Sensor
Type of sensor Light, Motion
Sensor technology Passive infrared (PIR)
Sensor detection angle 360 °
Sensor controlled switching time 2 s…15 min
Detection range of motion sensor 6 m
Detection threshold of daylight sensor 1…1000 lx
Certificates & Standards
Standards CE, EAC, UKCA
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075244719 Folding box
1		 100 mm x 100 mm x 74 mm 148.00 g 0.74 dm³
4058075244726 Shipping box
8		 210 mm x 210 mm x 164 mm 1231.00 g 7.23 dm³
User instruction / safety instructions
ENSOR CEILING 360DEG IP44 WT
PDF (1.76 MB)
Declarations of conformity
SENSOR CEILING WALL
PDF (4.24 MB)
Product image: white background, diagonal
SENSOR C 360DEG IP44 WT
JPG (1.99 MB)

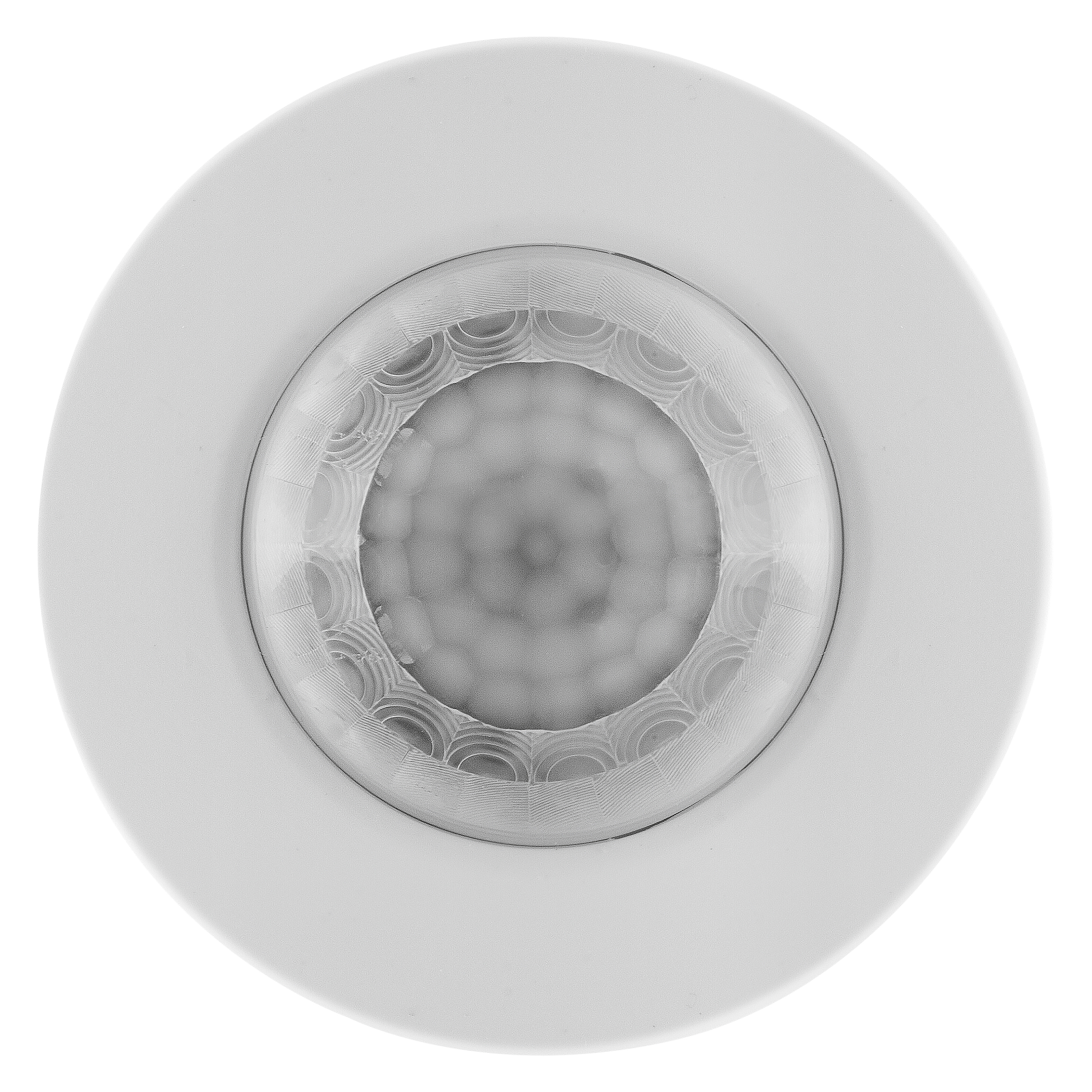

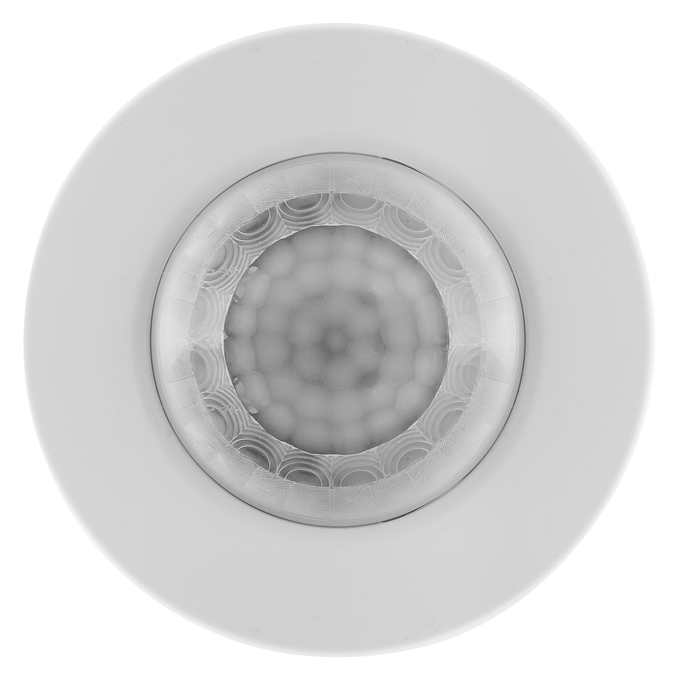

Product image: white background, upright
SENSOR C 360DEG IP44 WT
JPG (2.67 MB)
Product line drawing with letters
SENSOR C 360DEG IP44 WT
SVG (7.86 KB)
Product line drawing with numbers
SENSOR C 360DEG IP44 WT
SVG (10.06 KB)

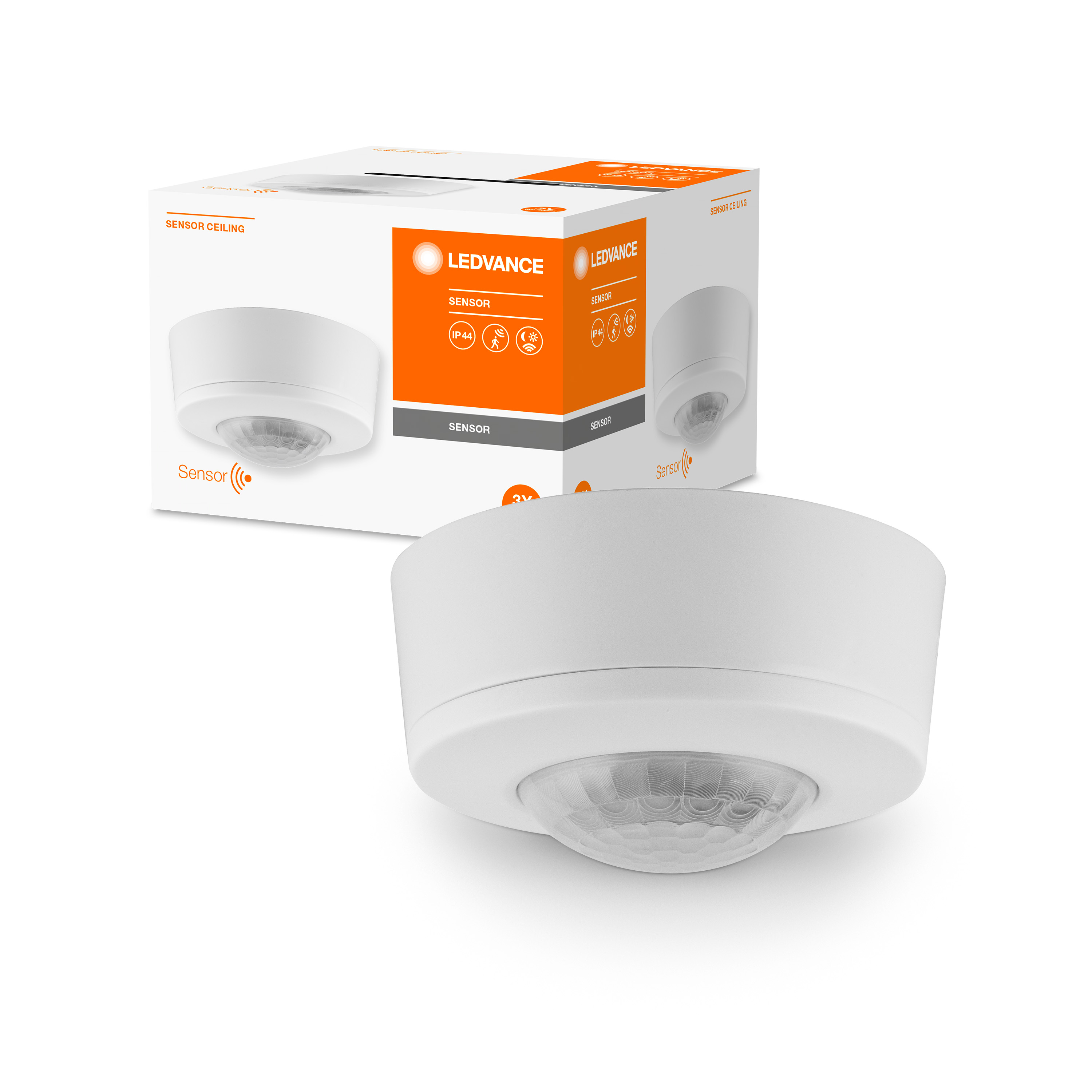

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC SEN CEIL 360DEG IP44 WT MiPRC
JPG (669.38 KB)
Packaging image, frontal
LUM FC SEN CEIL 360DEG IP44 WT MiPRC
JPG (554.52 KB)
Packaging image, spacial
SENSOR CEILING 360DEG IP44 WT MiPRC Side
TIF (623.15 KB)
Application pictures

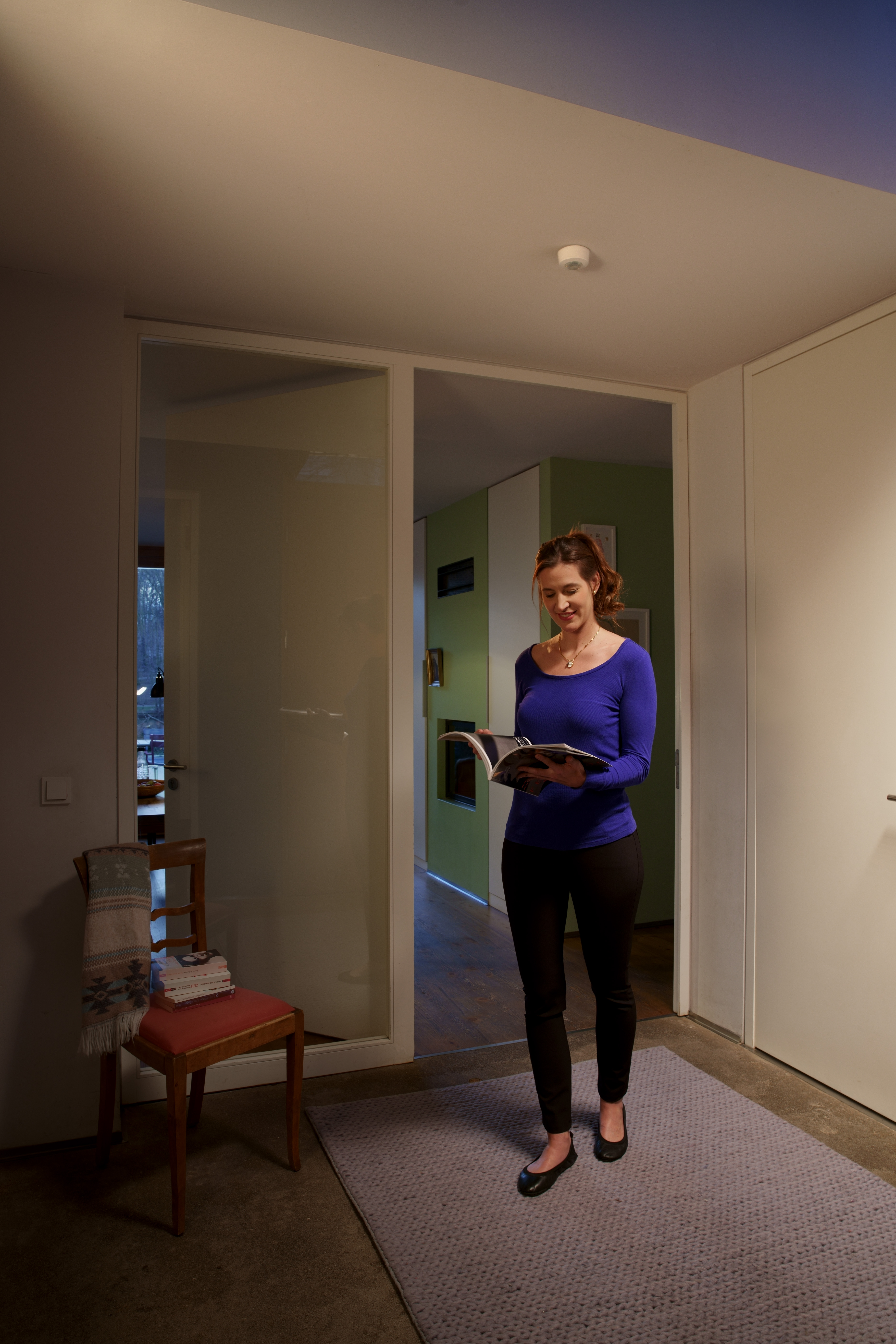

Endura Pro Sensor Ceiling 360DEG application night with sensor luminaire and person
JPG (4.44 MB)
Application pictures

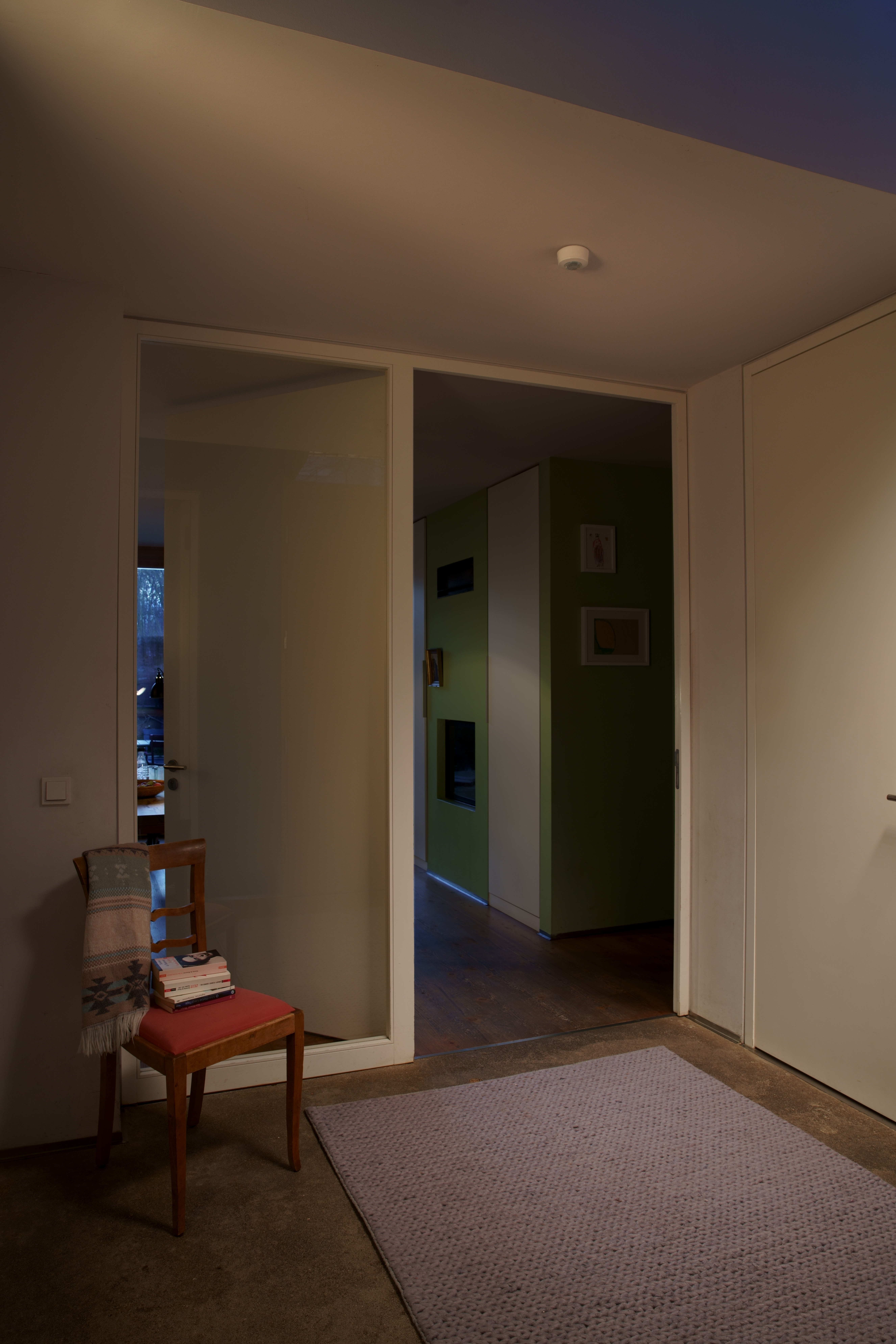

Endura Pro Sensor Ceiling 360DEG application night
