WORKLIGHTS VALUE R-STAND
LED WORKLIGHT VALUE R-STAND 10W 865
GTIN: 4058075831193
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Portable worklight for flexible applications
Areas of application
- Renovation
- Garages
- Workshops
- Basement
Product features
- Worklight with swiveling head
- Type of protection, luminaire head and housing: IP65/IP54, Type of protection, plug: IP44
- Compact ground stand
Equipment / Accessories
- 1,5m power cable for flexible installation
Safety advice
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
Electrical data
| Nominal wattage | 10.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 60.000 mA |
| Inrush current | 5.00 A |
| Inrush current time Th50 | 1 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 150 |
| Max. number of luminaires per miniature circuit breaker C16 | 192 |
| Power factor λ | ≥ 0.7 |
| Protection class | I |
| Operating mode | Integrated LED driver |
Photometrical data
| Luminous flux | 1000 lm |
| Total luminous flux of contained light sources | 1200 lm |
| Luminous efficacy | 100 lm/W |
| Color temperature | 6500 K |
| Light color (designation) | Cool Daylight |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | < 6 sdcm |
| Luminous intensity | 400 cd |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | <0.9 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 110 ° |

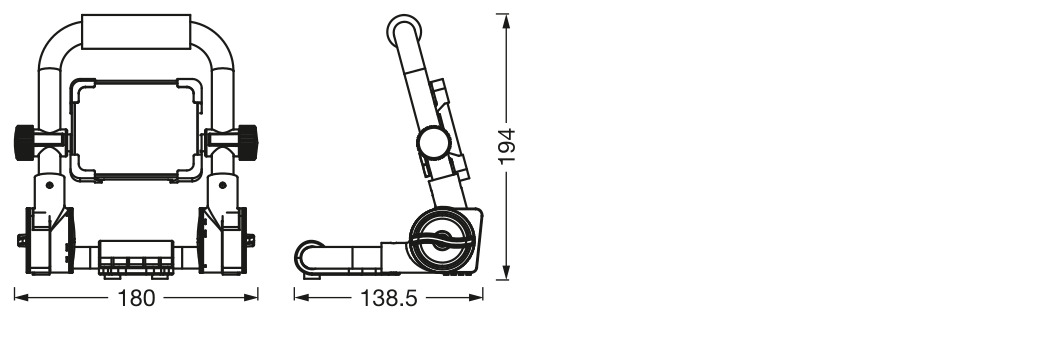

Dimensions & Weight
| Length | 180.00 mm |
| Height | 194.00 mm |
| Width | 138.50 mm |
| Product weight | 700.00 g |
| Cable length | 1500 mm |
Materials & Colors
| Product color | Black/Gray |
| Housing color | Black/Gray |
| Body material | Aluminum |
| Cover material | Glass |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Plug type F |
| Type of protection | IP65 |
| Protection class IK (shock resistance) | IK06 |
| Dimmable | No |
| Mounting type | Standing |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 15000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075831193 | Folding box 1 |
90 mm x 185 mm x 210 mm | 816.00 g | 3.50 dm³ |
| 4058075831209 | Shipping box 8 |
385 mm x 385 mm x 235 mm | 7278.00 g | 34.83 dm³ |
User instruction / safety instructions
LED WORKLIGHT VAL R-STAND
LED WORKLIGHT VAL R-STAND
Legal information
Legal insert LED WORKLIGHT VAL
Legal insert LED WORKLIGHT VAL
Declarations of conformity
LED WORKLIGHT VAL
LED WORKLIGHT VAL

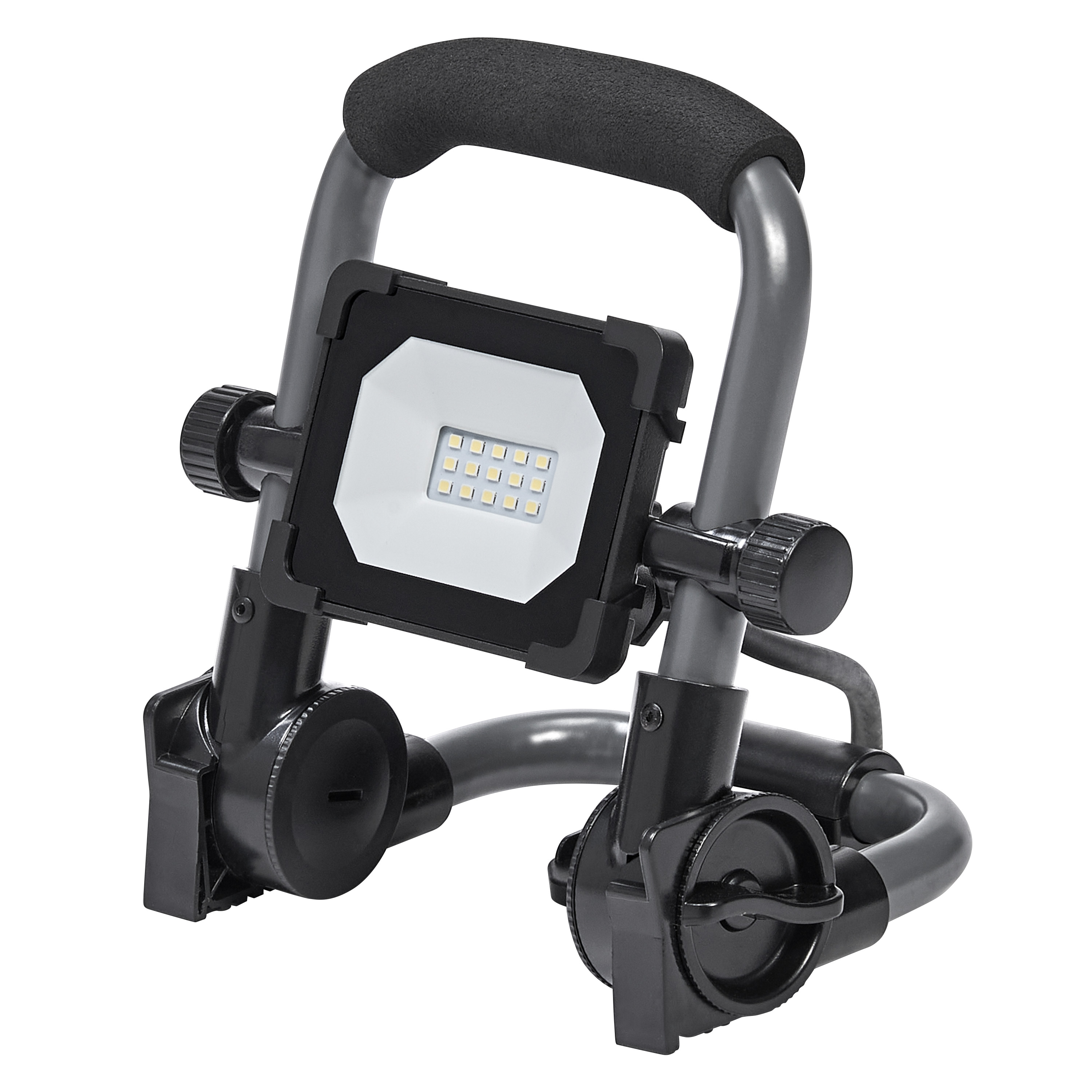

Product image: white background, upright
LED WORKLIGHT VAL 10W 865 R-STAND
LED WORKLIGHT VAL 10W 865 R-STAND

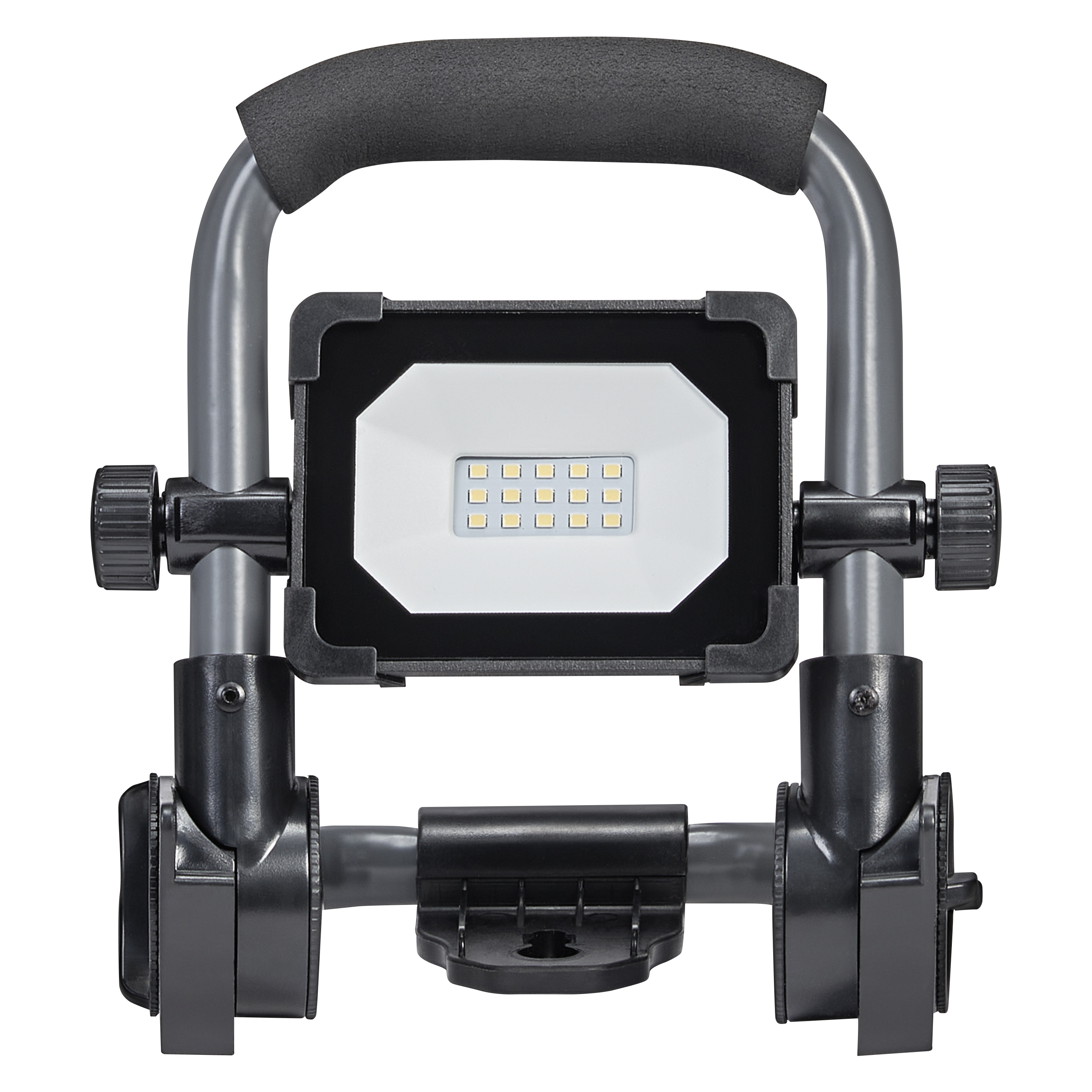

Product image: white background, upright, alternative image
LED WORKLIGHT VAL 10W 865 R-STAND
LED WORKLIGHT VAL 10W 865 R-STAND

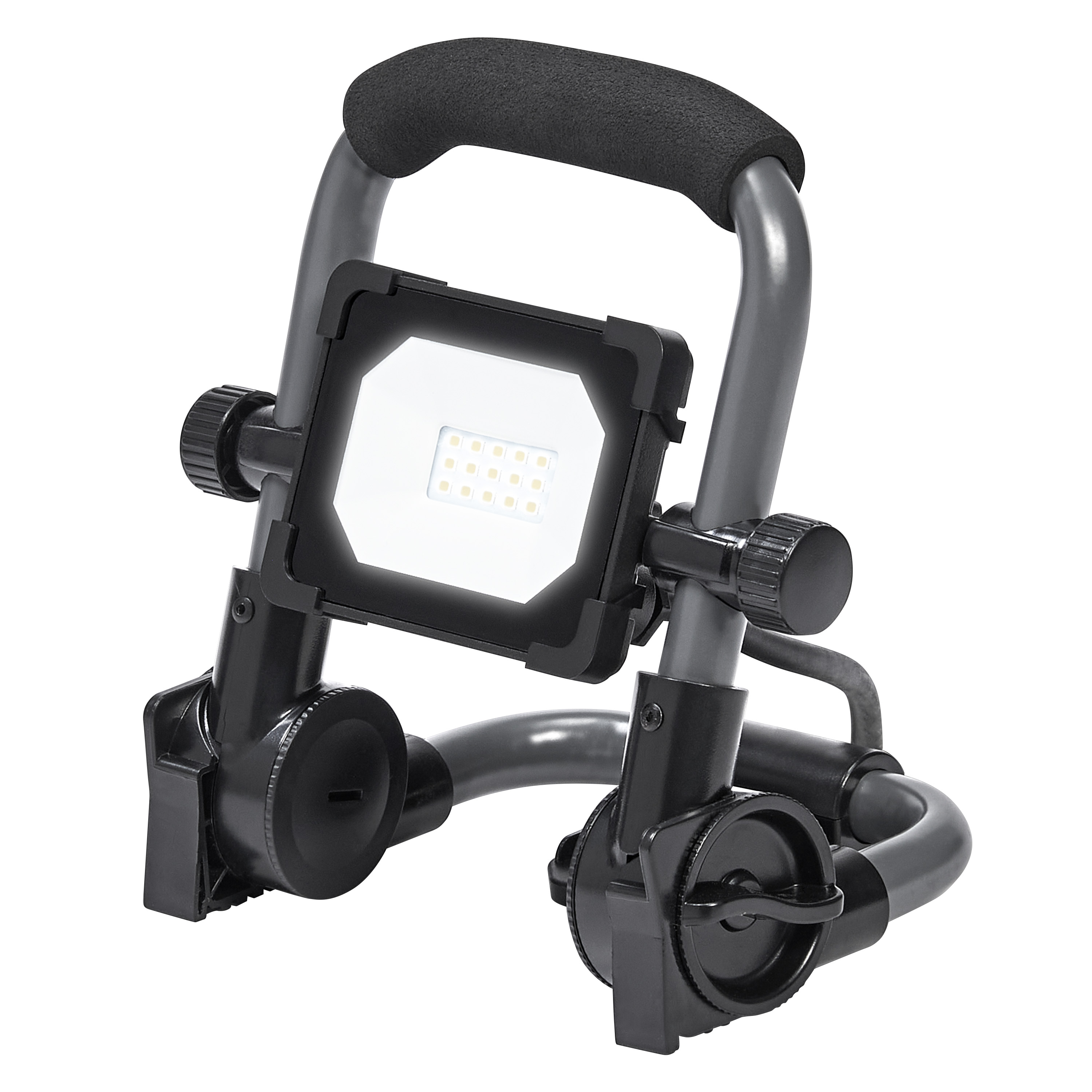

Product image: white background, upright, switched on
LED WORKLIGHT VAL 10W 865 R-STAND
LED WORKLIGHT VAL 10W 865 R-STAND
Product infographic (application image with text and graphic)
Worklight e-Com graphic 1200x1200px 2025 EN
Worklight e-Com graphic 1200x1200px 2025 EN
Product line drawing with letters
LED WORKLIGHT VAL 10W 865 R-STAND
LED WORKLIGHT VAL 10W 865 R-STAND
Product line drawing with numbers
LED WORKLIGHT VAL 10W 865 R-STAND
LED WORKLIGHT VAL 10W 865 R-STAND
Product line drawing, front, no dimensions
LED WORKLIGHT VAL 10W 865 R-STAND
LED WORKLIGHT VAL 10W 865 R-STAND

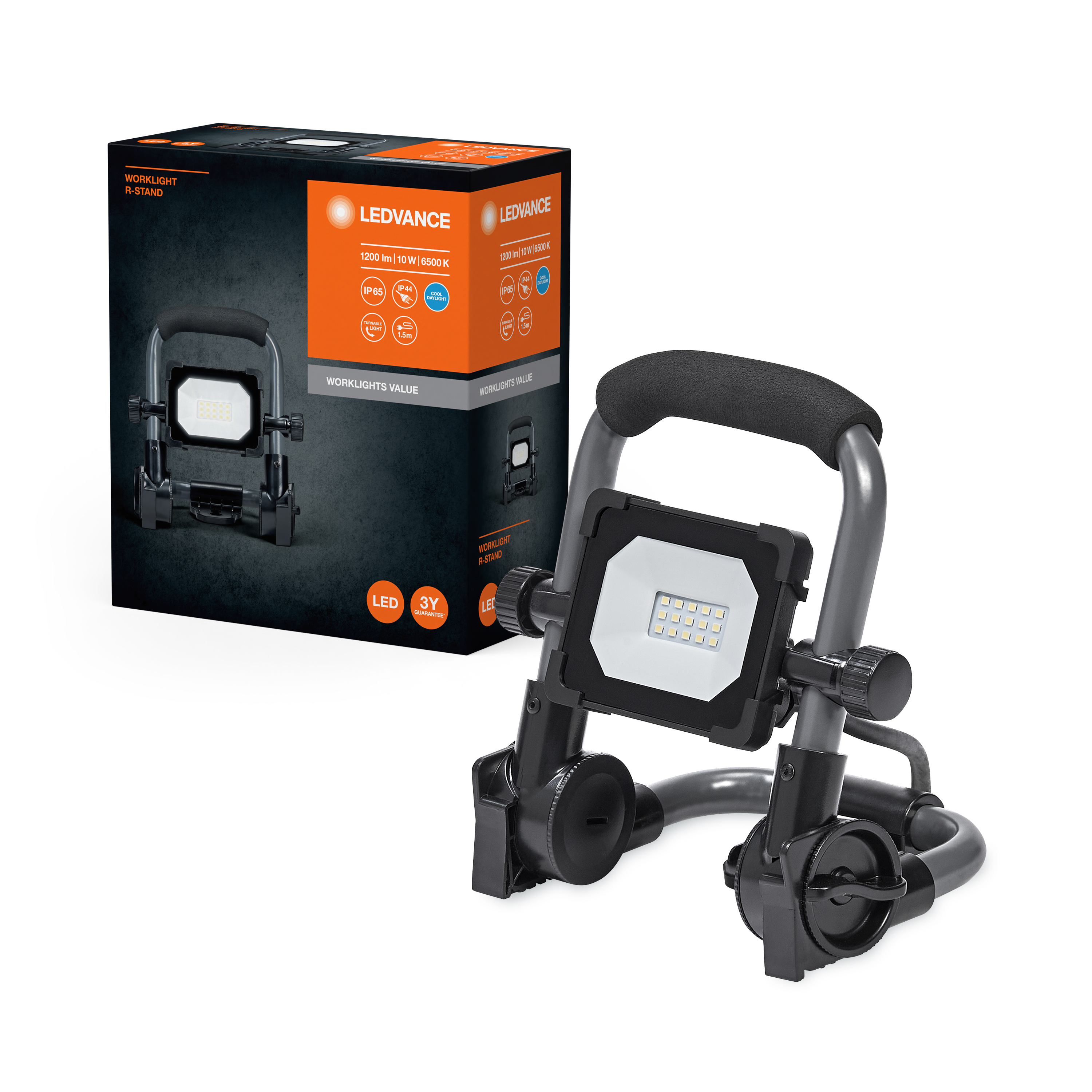

Combo Shot = Product Beauty Shot + Packaging Image
