ESSENTIALS WORKLIGHT BATTERY

Worklight Essential Battery Panel 10W 865 Black

GTIN: 4058075845466 Folding box / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Independent of power supply due to battery technology
Areas of application
  • Renovation
  • Garages
  • Basement
  • Workshops
Product features
  • Housing and diffuser material: polycarbonate (PC)
  • Type of protection: IP54
  • Battery rechargeable via USB-C cable
  • Dimmable in three steps by repeated switching
  • Battery discharge time: up to 5h at 50% light, 3h at 100% light
Equipment / Accessories
  • 30cm 5V 1A USB-C cable
Safety advice
  • To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
  • If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
  • Please avoid: Maximal ambient temperature: +35 °C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Altitude during operation: 2000 m. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
Electrical data
Nominal wattage 10.00 W
Nominal voltage 5 V
Nominal current 1000.000 mA
Protection class III
Operating mode Battery
Photometrical data
Luminous flux 700 lm
Color temperature 6500 K
Light color (designation) Cool Daylight
Color rendering index Ra > 80
Standard deviation of color matching < 6 sdcm
Photobiological safety group acc. to EN62778 RG0
Beam angle 120 °
Dimensions & Weight
Length 159.00 mm
Height 134.00 mm
Width 43.00 mm
Product weight 420.00 g
Cable length 300 mm
Materials & Colors
Product color Black
Housing color Black
Body material Polyamide
Cover material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -10…+40 °C
Temperature range at storage -20…+45 °C
Type of connection USB
Type of protection IP54
Protection class IK (shock resistance) IK06
Dimmable Yes
Type of dimming 2DIM
Mounting type Standing
With light source Yes
Replaceable light source No
Lifespan
Lifespan L70/B50 at 25 °C 20000 h 1)
Number of switching cycles 25000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
BATTERY
Battery size [GMS] Others
Certificates & Standards
Standards CE, UKCA
Luminaire with limited surface temperature, "D sign" No
Replaceable light source (EPREL) Not replaceable
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075845466 Folding box
1
50 mm x 167 mm x 158 mm 465.00 g 1.32 dm³
4058075845473 Shipping box
10
357 mm x 267 mm x 184 mm 4970.00 g 17.54 dm³
User instruction / safety instructions
WORKLIGHT BATTERY ESSENTIAL PANEL
Legal information
Legal insert SMART OUTD ENDURA SOLAR WORKLIGHT BAT
Declarations of conformity
WORKLIGHT ESSENTIAL BAT PANEL 10W 865

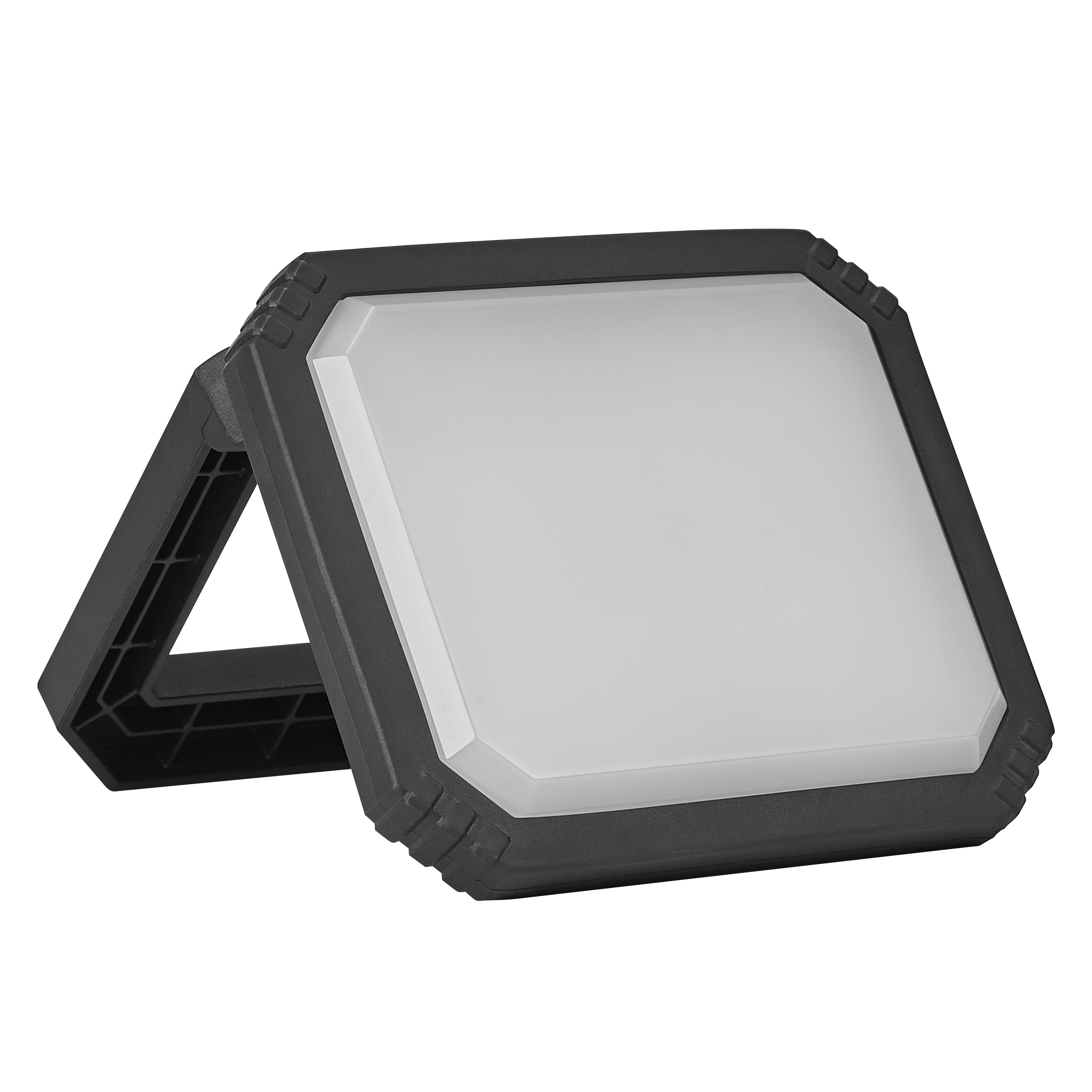

Product image: white background, upright
WORKLIGHT ESSENTIAL BAT PANEL 10W865
Product image: white background, upright, alternative image
WORKLIGHT ESSENTIAL BAT PANEL 10W865

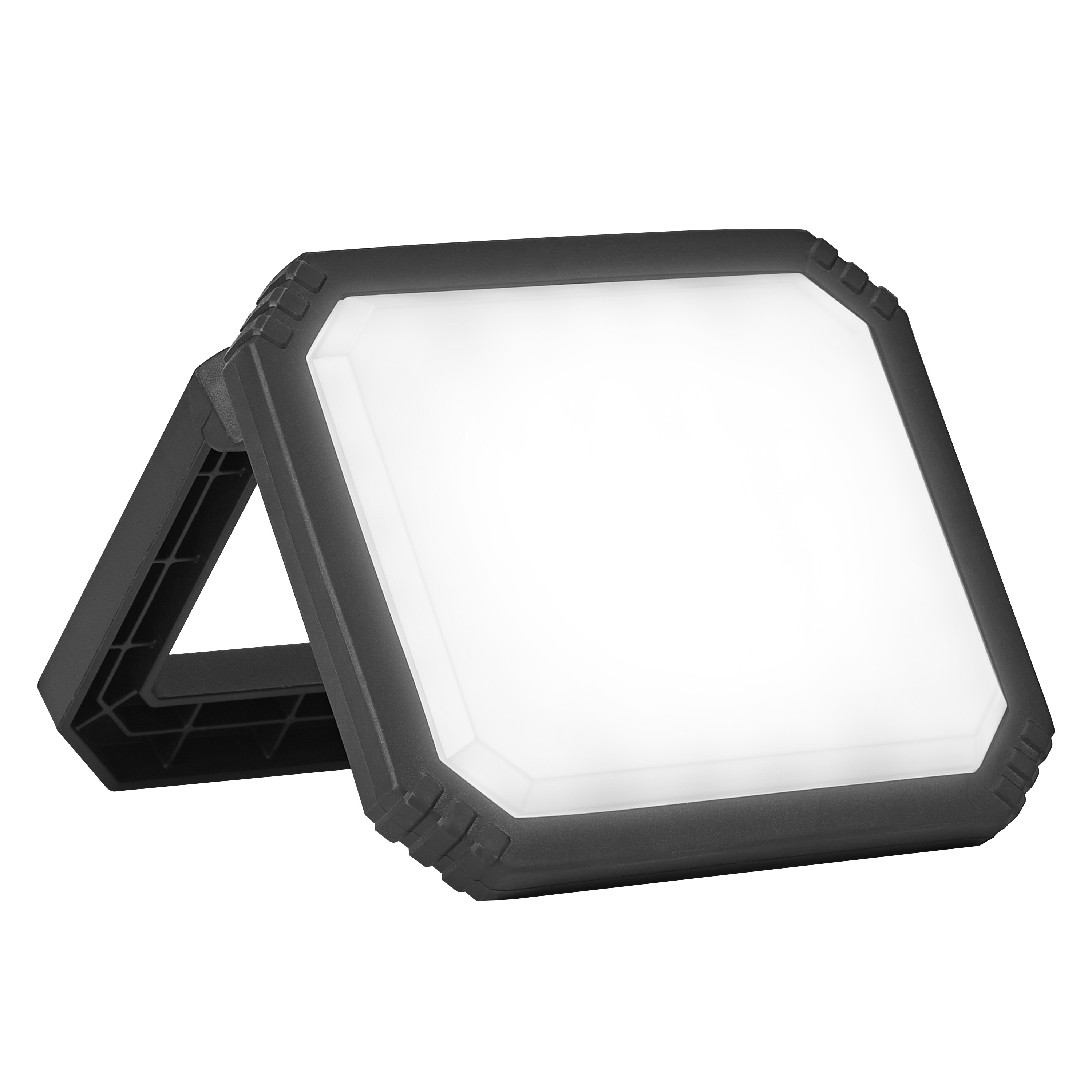

Product image: white background, upright, switched on
WORKLIGHT ESSENTIAL BAT PANEL 10W865
Product line drawing with letters
WORKLIGHT ESSENTIAL BAT PANEL 10W865
Product line drawing with numbers
WORKLIGHT ESSENTIAL BAT PANEL 10W865
Product line drawing, front, no dimensions
WORKLIGHT ESSENTIAL BAT PANEL 10W865

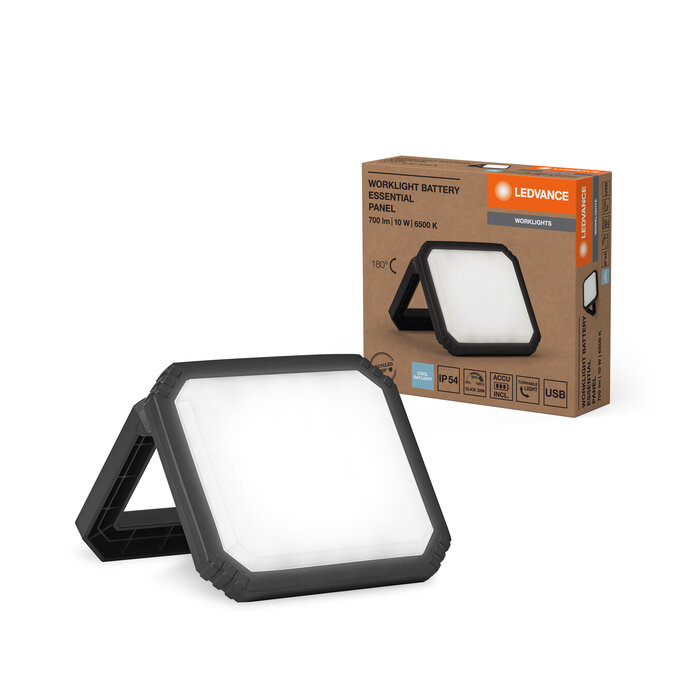

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC ESS WL BAT PANEL 10W 865
Packaging image, frontal
LUM FC ESS WL BAT PANEL 10W 865
Packaging image, spacial
LUM FC ESS WL BAT PANEL 10W 865

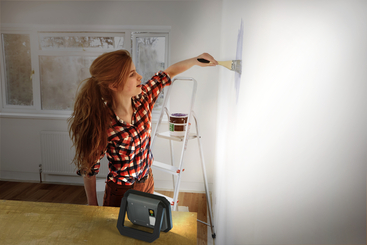

Application pictures
