ENDURA CLASSIC FRAME
ENDURA Classic Frame Wall E27
GTIN: 4058075554399
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- High flexibility in the choice of the light source thanks to E27 socket
- Easy and quick installation
- Option with PIR motion detection and daylight sensor, matching with housing color available
- Long-term energy and cost savings (sensor version)
Areas of application
- Building facades
- Entrance lighting
- Patios, balconies
- Pathway lighting
- Driveways
Product features
- Suitable for smart applications thanks to compatibility with SMART+ lamps
- Lower light smog, on-demand lighting (sensor version)
- Direct illumination
- Light cover material: glass
- Light cover appearance: clear
- Housing material: aluminum
- Housing color: RAL 7016
- Type of protection: IP44
Equipment / Accessories
- Complete mounting and connecting accessories included
- No light sources included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
Electrical data
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Protection class | I |
| Operating mode | Mains voltage |
Photometrical data
| Photobiological safety group acc. to EN62778 | RG1 |
| Photobiological safety group acc. to EN62471 | RG0 |
Dimensions & Weight
| Length | 140.00 mm |
| Height | 245.00 mm |
| Width | 110.00 mm |
| Product weight | 1305.00 g |
Materials & Colors
| Product color | Dark gray |
| Housing color | Dark gray |
| Body material | Aluminum |
| Cover material | Glass |
| Mercury content | 0.0 mg |
Application & Mounting
| Type of connection | Terminal, 3-Pole (L, N, PE) |
| Type of protection | IP44 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Wall |
| Application environment | Outdoor |
| With light source | No |
| Replaceable light source | No |
| Holder designation | E27 |
Emergency lighting
| Type of emergency light operation | Non-maintained |
| Luminous flux in maintained operation mode | - |
| Luminous flux in emergency operation mode | - |
Certificates & Standards
| Standards | CE, EAC, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
Additional product data
| Product remark | Maximum bulb wattage: 60 W |
| Number of illuminants | 1 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075554399 | Folding box 1 |
114 mm x 145 mm x 250 mm | 1397.00 g | 4.13 dm³ |
| 4058075554405 | Shipping box 4 |
315 mm x 250 mm x 275 mm | 6072.00 g | 21.66 dm³ |
User instruction / safety instructions
ENDURA CLASSIC
ENDURA CLASSIC
Legal information
Legal insert I-Outdoor
Legal insert I-Outdoor
Declarations of conformity

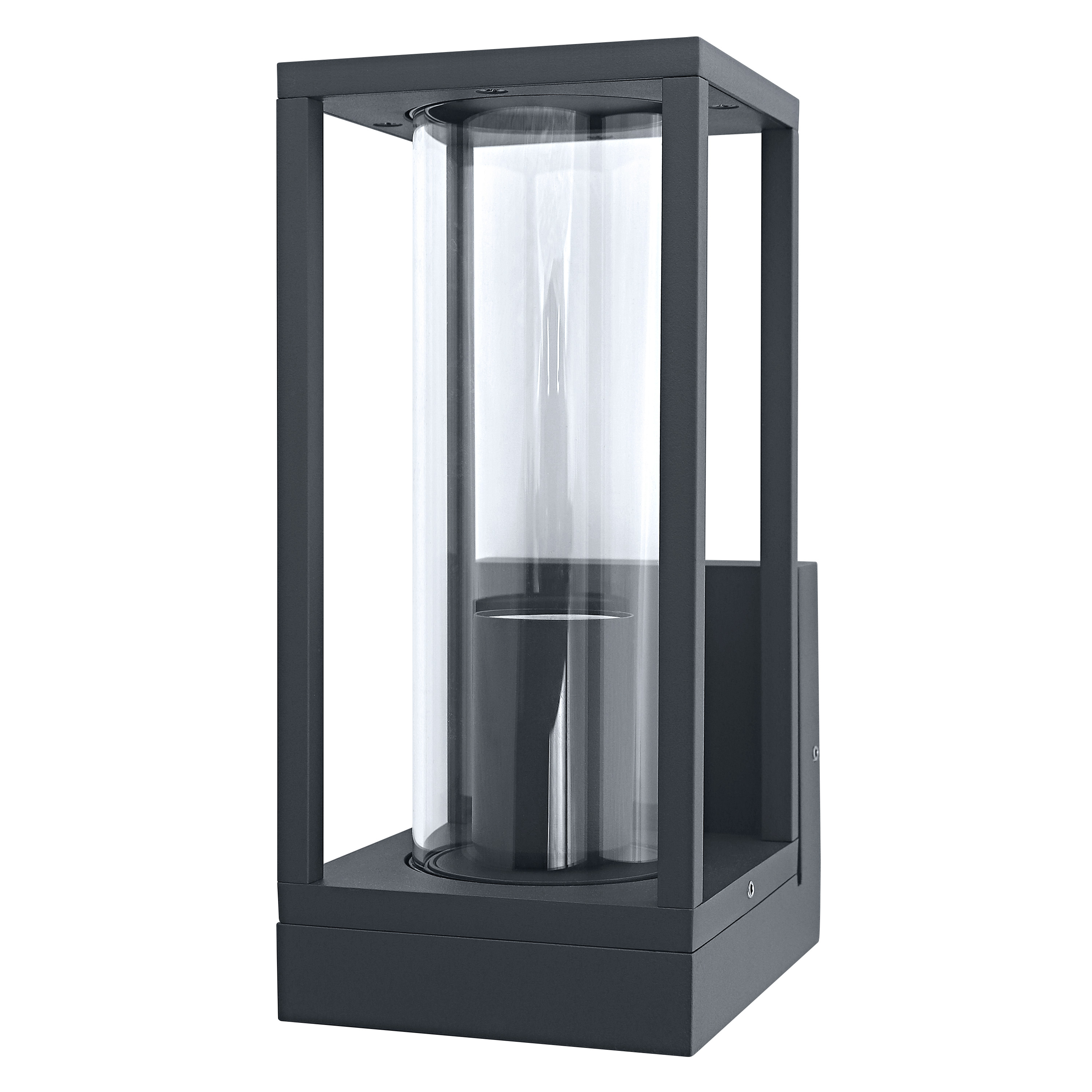

Product image: white background, upright
ENDURA CLASSIC FRAME WALL E27 DG
ENDURA CLASSIC FRAME WALL E27 DG
Product image: white background, upright, alternative image
ENDURA CLASSIC FRAME WALL E27 DG
ENDURA CLASSIC FRAME WALL E27 DG

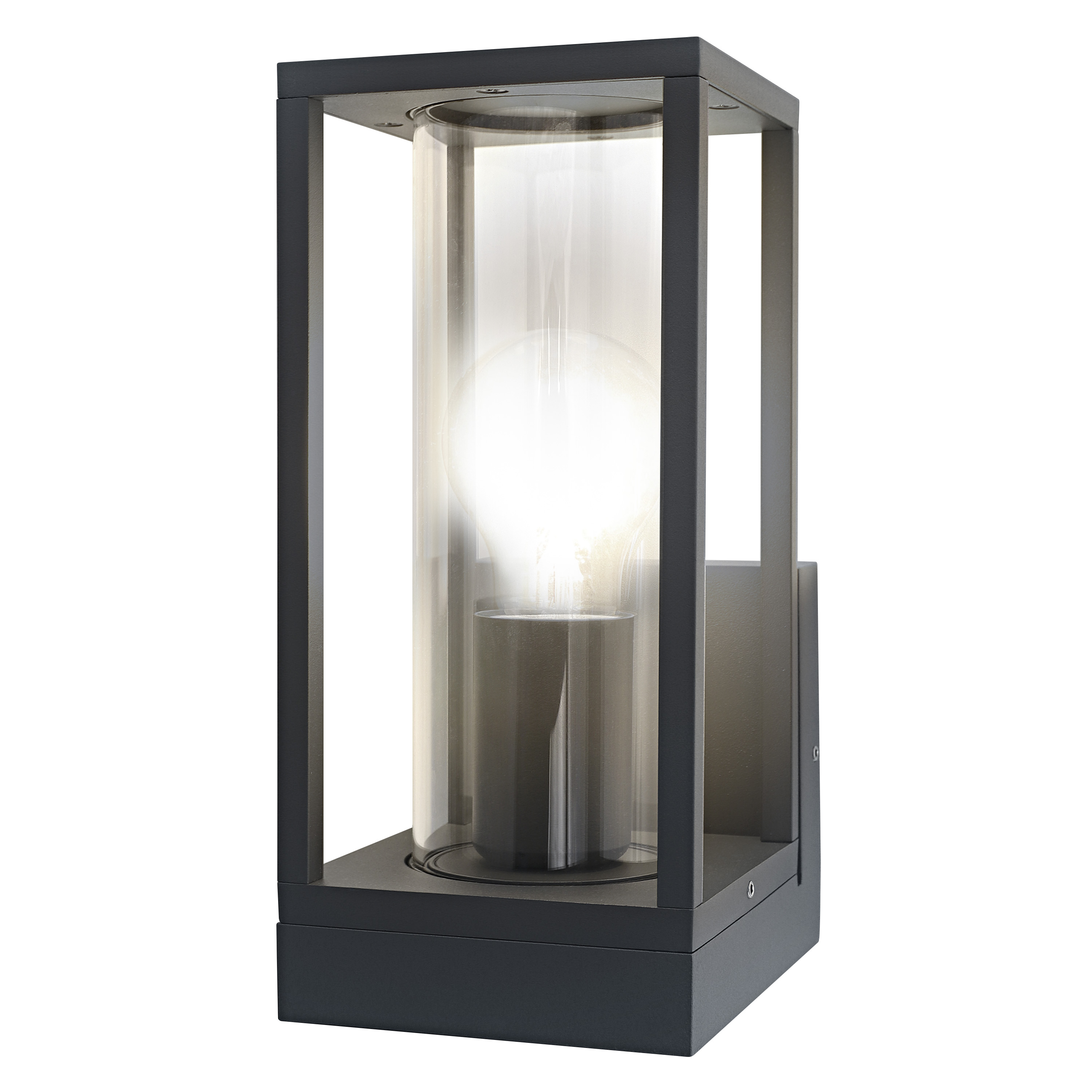

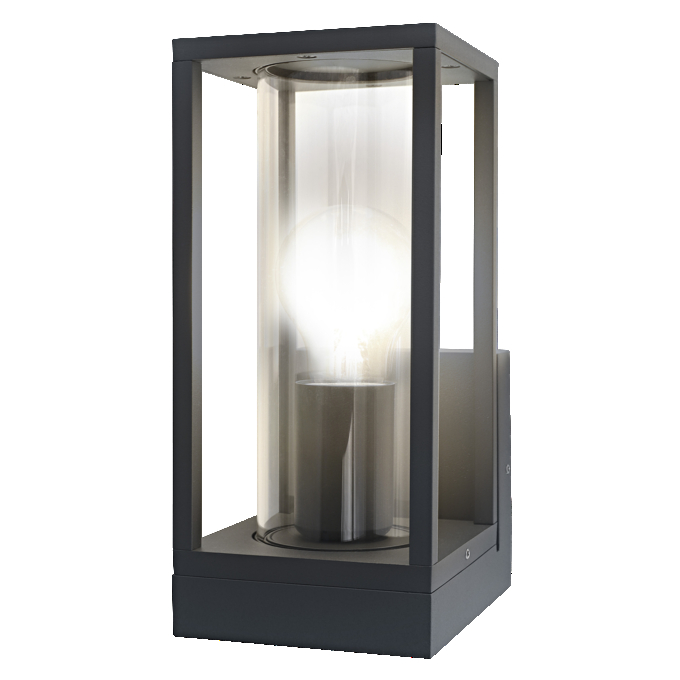

Product image: white background, upright, switched on
ENDURA CLASSIC FRAME WALL E27 DG
ENDURA CLASSIC FRAME WALL E27 DG
Product line drawing with letters
ENDURA CLASSIC FRAME WALL E27 DG
ENDURA CLASSIC FRAME WALL E27 DG
Product line drawing with numbers
ENDURA CLASSIC FRAME WALL E27 DG
ENDURA CLASSIC FRAME WALL E27 DG

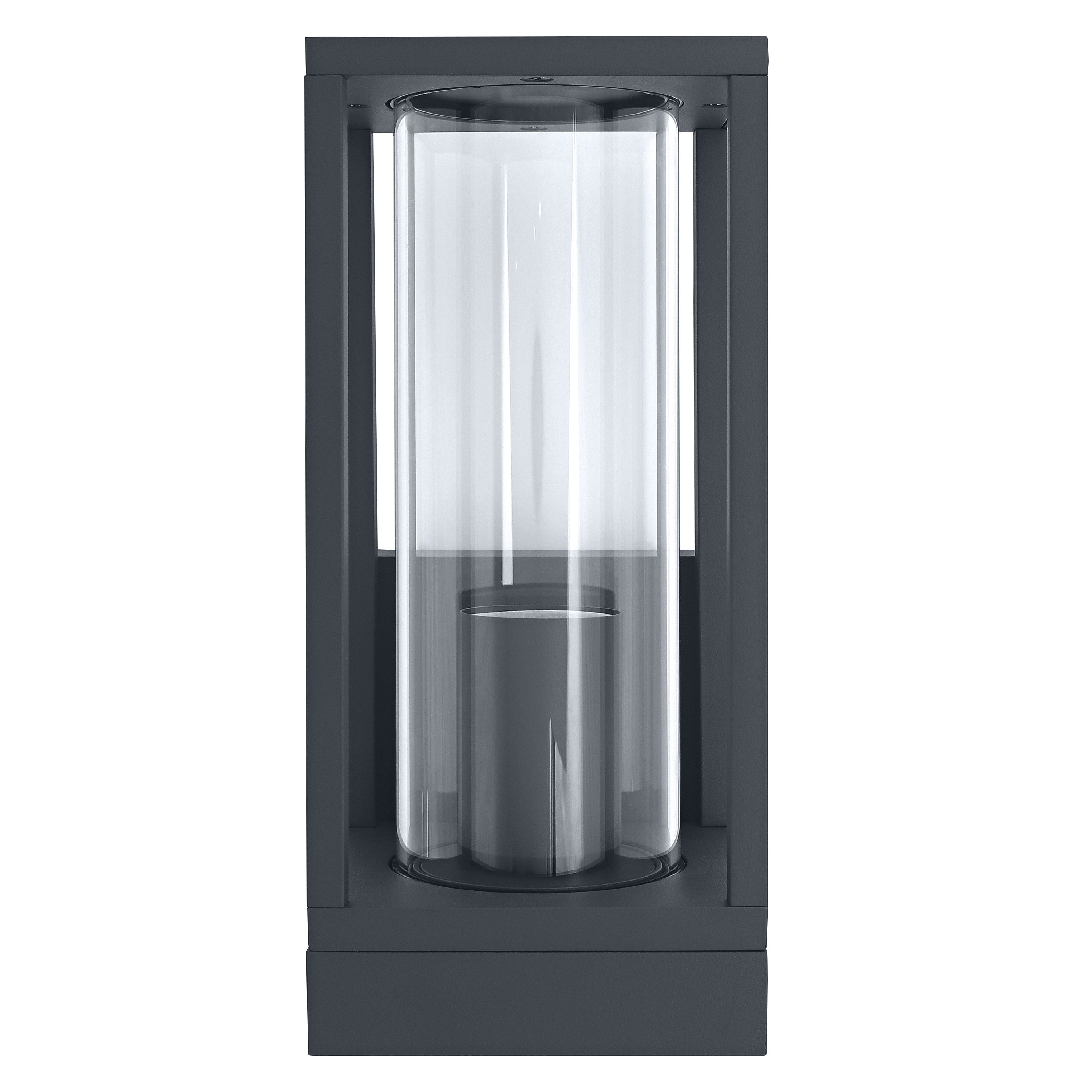

Product line drawing, front, no dimensions
ENDURA CLASSIC FRAME WALL E27 DG
ENDURA CLASSIC FRAME WALL E27 DG

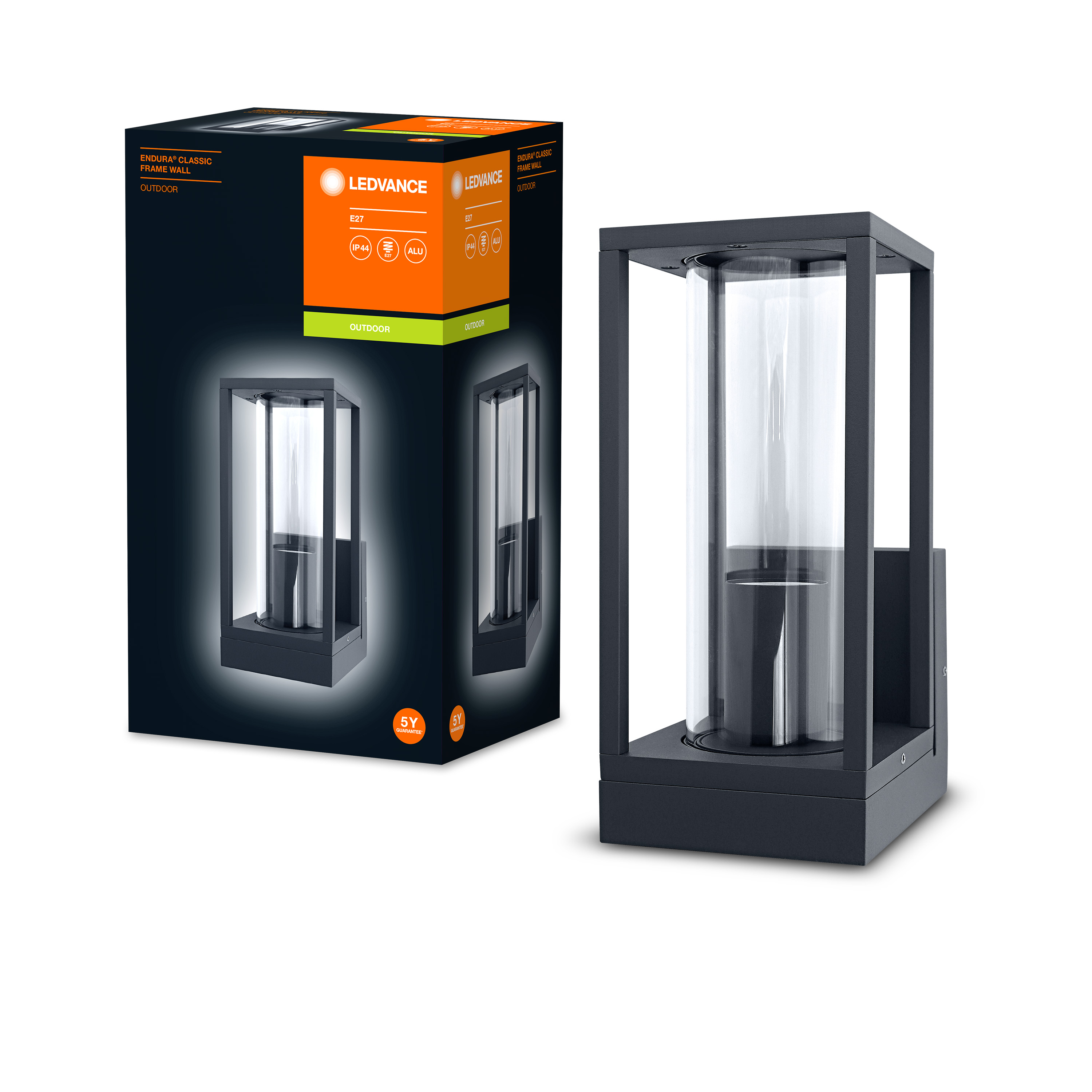

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC EC FRAME WALL E27 DG MiPRC
LUM FC EC FRAME WALL E27 DG MiPRC

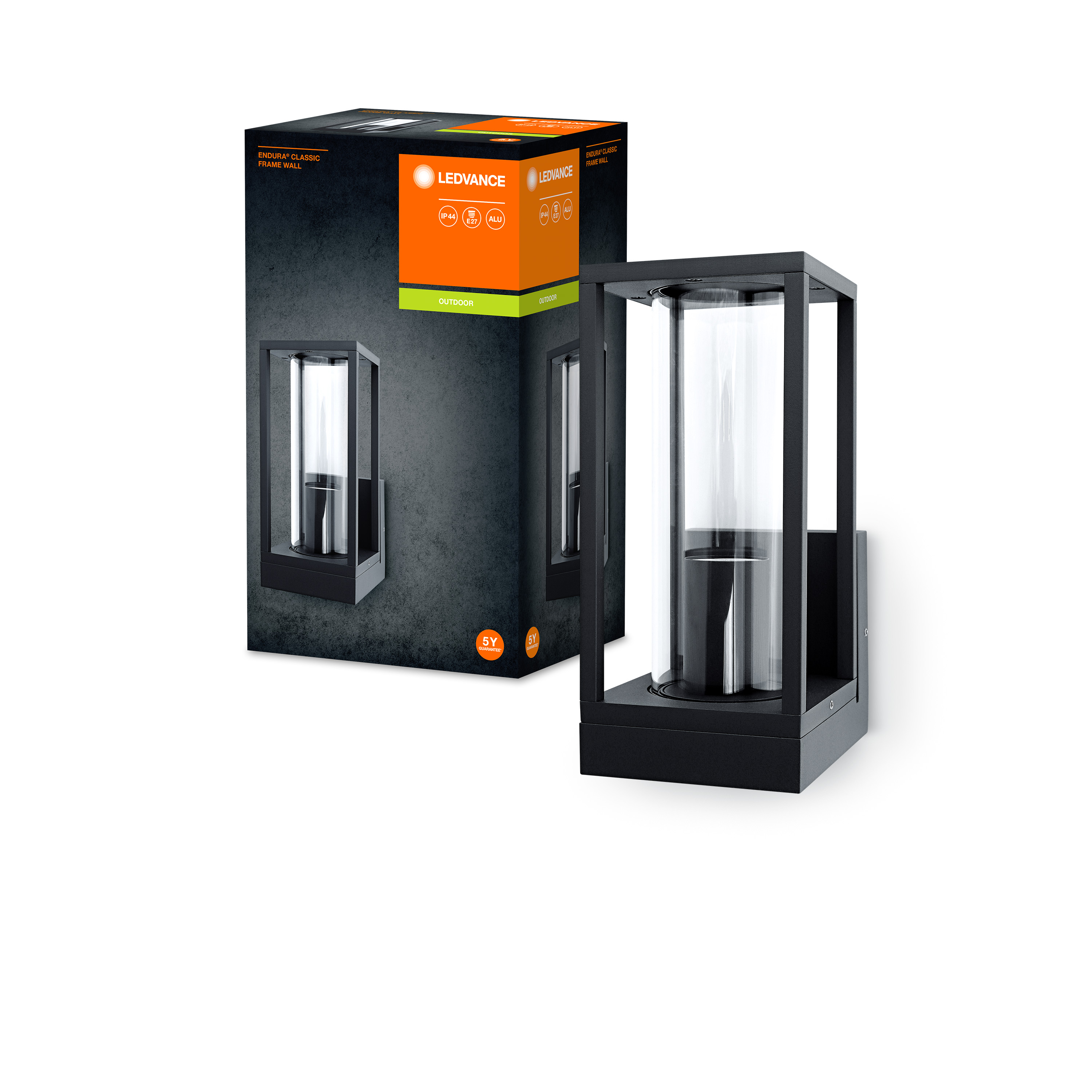

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC EC FRAME WALL E27 DG MiPRC
LUM FC EC FRAME WALL E27 DG MiPRC

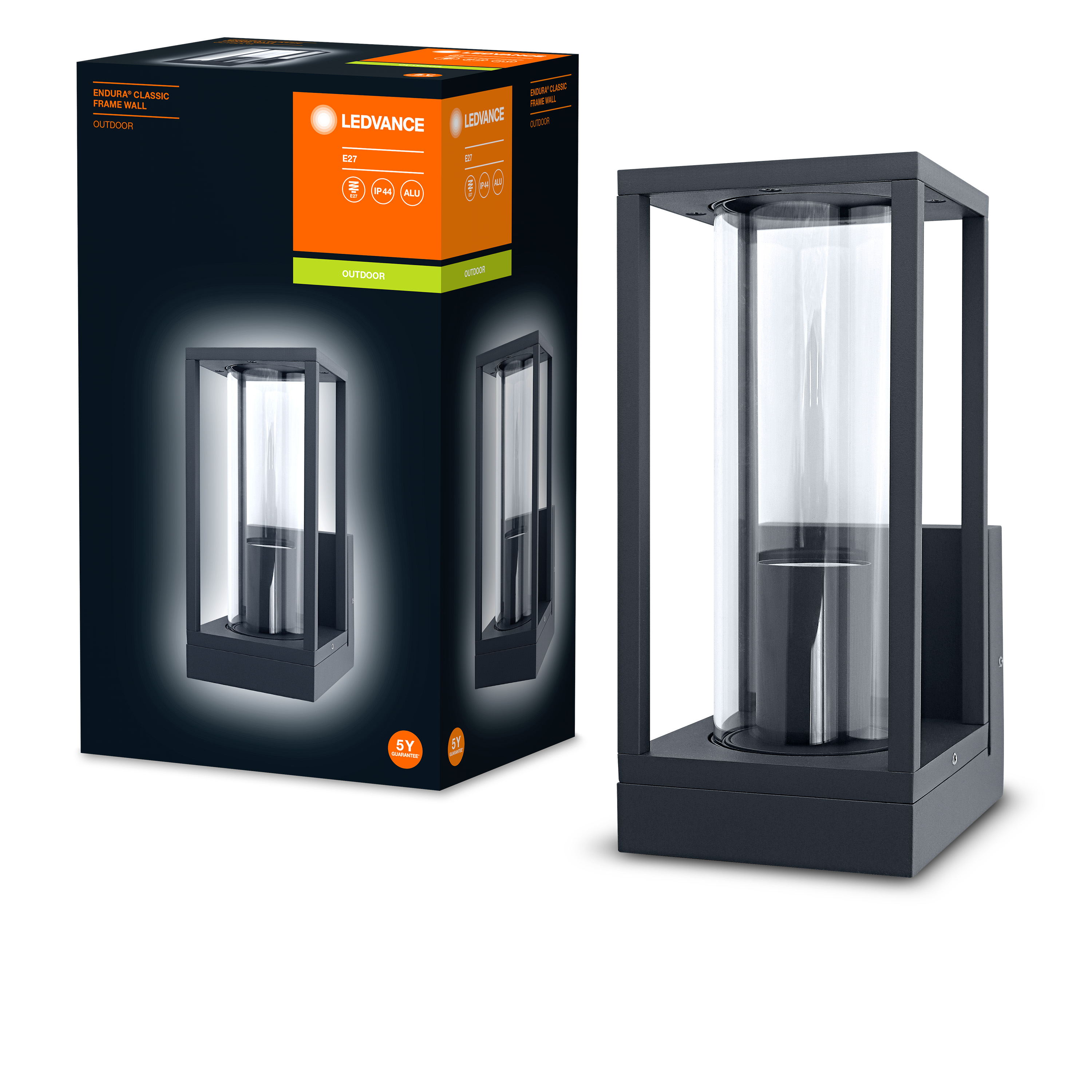

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC EC FRAME WALL E27 DG MiPRC
LUM FC EC FRAME WALL E27 DG MiPRC
Packaging image, frontal
LUM FC EC FRAME WALL E27 DG MiPRC
LUM FC EC FRAME WALL E27 DG MiPRC
Packaging image, spacial
LUM FC EC FRAME WALL E27 DG MiPRC
LUM FC EC FRAME WALL E27 DG MiPRC

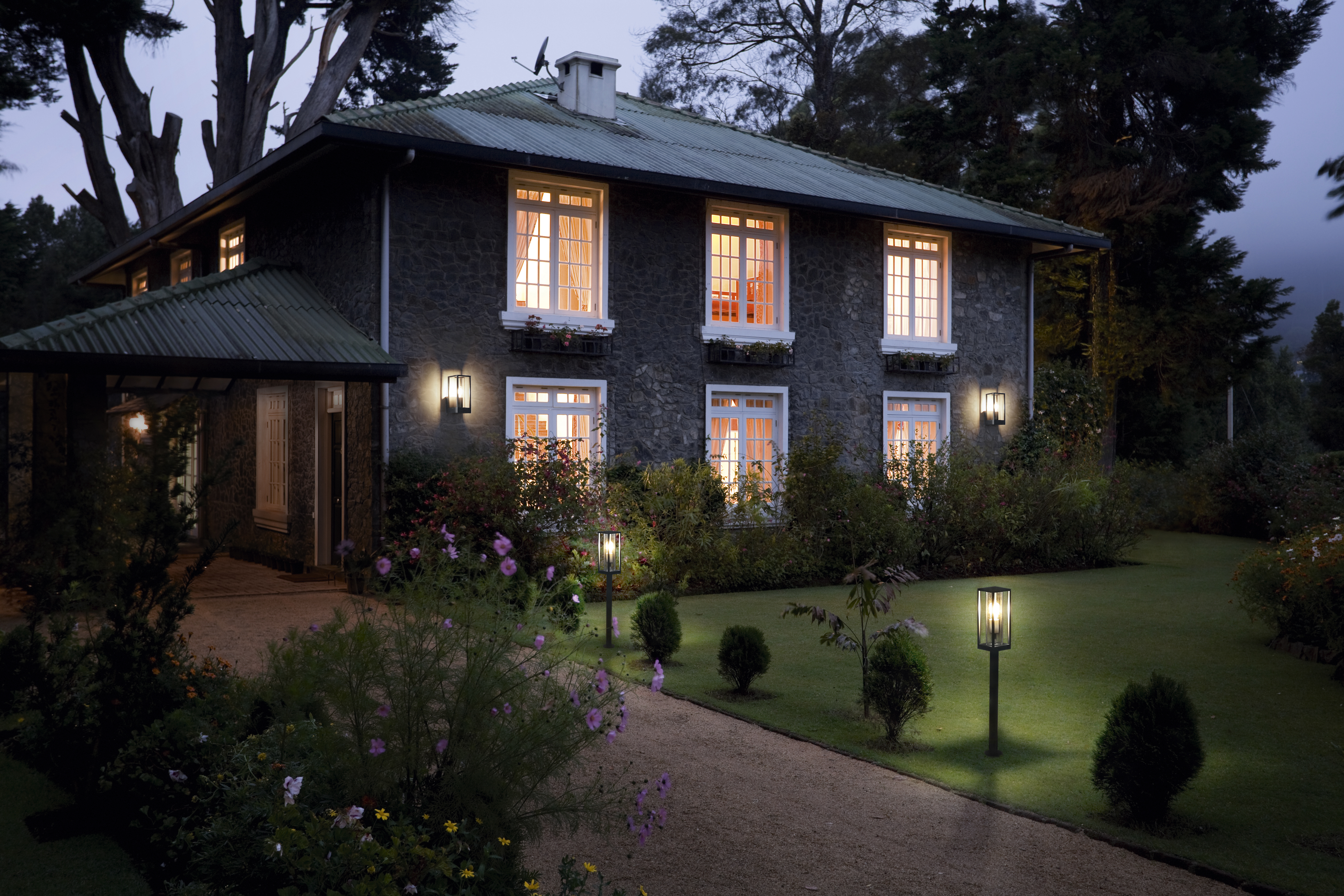

Application pictures
OUTDOOR ENDURA CLASSIC FRAME E27 DG
OUTDOOR ENDURA CLASSIC FRAME E27 DG
| EAN | STK number | EFO number | ELDAS number |
|---|---|---|---|
| 4058075554399 | 4529809 | 3109350 | 941259390 |
