ENDURA STYLE CYLINDER
ENDURA Style Cylinder Wall Sensor 6W
GTIN: 4058075205352
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Energy-efficient thanks to LED technology
- Easy and quick installation
- Long-term energy and cost savings (sensor version)
Areas of application
- Outdoor use (IP44)
- Building facades
- Gardens, balconies and other outdoor areas
- Pathway lighting
- Driveways
Product features
- Bright and functional outdoor LED luminaires
- Housing made of Polycarbonate covered with stainless steel
- Available as wall, ceiling and bollard luminares
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Electrical data
| Nominal wattage | 6.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 40.000 mA |
| Max. number of luminaires per miniature circuit breaker B16 | 320 |
| Max. number of luminaires per miniature circuit breaker C16 | 320 |
| Power factor λ | > 0.5 |
| Total harmonic distortion | < 120 % |
| Protection class | II |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 360 lm |
| Total luminous flux of contained light sources | 660 lm |
| Luminous efficacy | 60 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | < 6 sdcm |
| Flickering metric (Pst LM) | - |
| Stroboscope effect metric (SVM) | - |
| Photobiological safety group acc. to EN62778 | RG0 |
| UGR | < 25 |
Dimensions & Weight
| Diameter | 102,0 mm |
| Length | 150.00 mm |
| Height | 137.00 mm |
| Width | 101.00 mm |
| Product weight | 480.00 g |
Materials & Colors
| Product color | Steel |
| Housing color | Steel |
| Body material | Stainless steel |
| Cover material | Polycarbonate (PC) |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+85 °C |
| Type of connection | Screw terminal |
| Type of protection | IP44 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Wall |
| Application environment | Outdoor |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 40000 h 1) |
| Number of switching cycles | 15000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Sensor
| Type of sensor | Motion, Light |
| Sensor controlled switching time | 2 s…6 min |
| Detection range of motion sensor | 9 m |
| Detection threshold of daylight sensor | 50…2000 lx |
Certificates & Standards
| Standards | CE, EAC, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Number of illuminants | empty |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Additional info can be provided per individual request |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075205352 | Folding box 1 |
124 mm x 154 mm x 166 mm | 520.00 g | 3.17 dm³ |
| 4058075205369 | Shipping box 6 |
380 mm x 175 mm x 320 mm | 3351.00 g | 21.28 dm³ |
User instruction / safety instructions
ENDURA STYLE CYLINDER
ENDURA STYLE CYLINDER
Legal information
Legal insert
Legal insert
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Declarations of conformity
CE Declaration Endura Style Cylinder
CE Declaration Endura Style Cylinder
Product datasheet -> old version of product
4058075205352 ENDURA STYLE Cylinder Wall Sensor 6 W ST en old
4058075205352 ENDURA STYLE Cylinder Wall Sensor 6 W ST en old
Product image: white background, upright
ENDURA STYLE Cylinder Wall Sensor 6W ST
ENDURA STYLE Cylinder Wall Sensor 6W ST

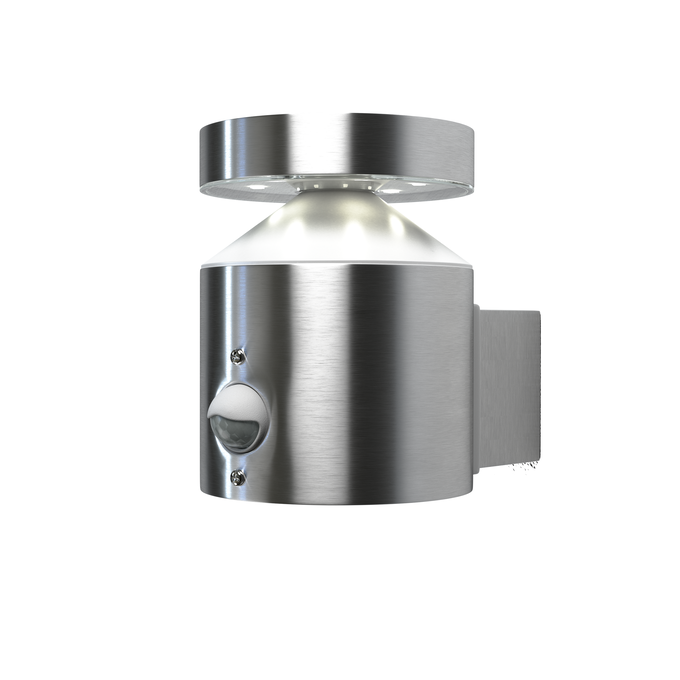

Product image: white background, upright, switched on
ENDURA STYLE Cylinder Wall Sensor 6W ST (2)
ENDURA STYLE Cylinder Wall Sensor 6W ST (2)
Product infographic (application image with text and graphic)
Outdoor light e-Com graphic 1200x1200px 2024 EN
Outdoor light e-Com graphic 1200x1200px 2024 EN
Product line drawing with letters
PG ENDURA STYLE Cylinder Wall Sensor MIPRC
PG ENDURA STYLE Cylinder Wall Sensor MIPRC
Product line drawing with numbers
PG ENDURA STYLE Cylinder Wall Sensor MiPRC
PG ENDURA STYLE Cylinder Wall Sensor MiPRC
Product line drawing, front, no dimensions
PG ENDURA STYLE Cylinder Wall Sensor MIPRC
PG ENDURA STYLE Cylinder Wall Sensor MIPRC

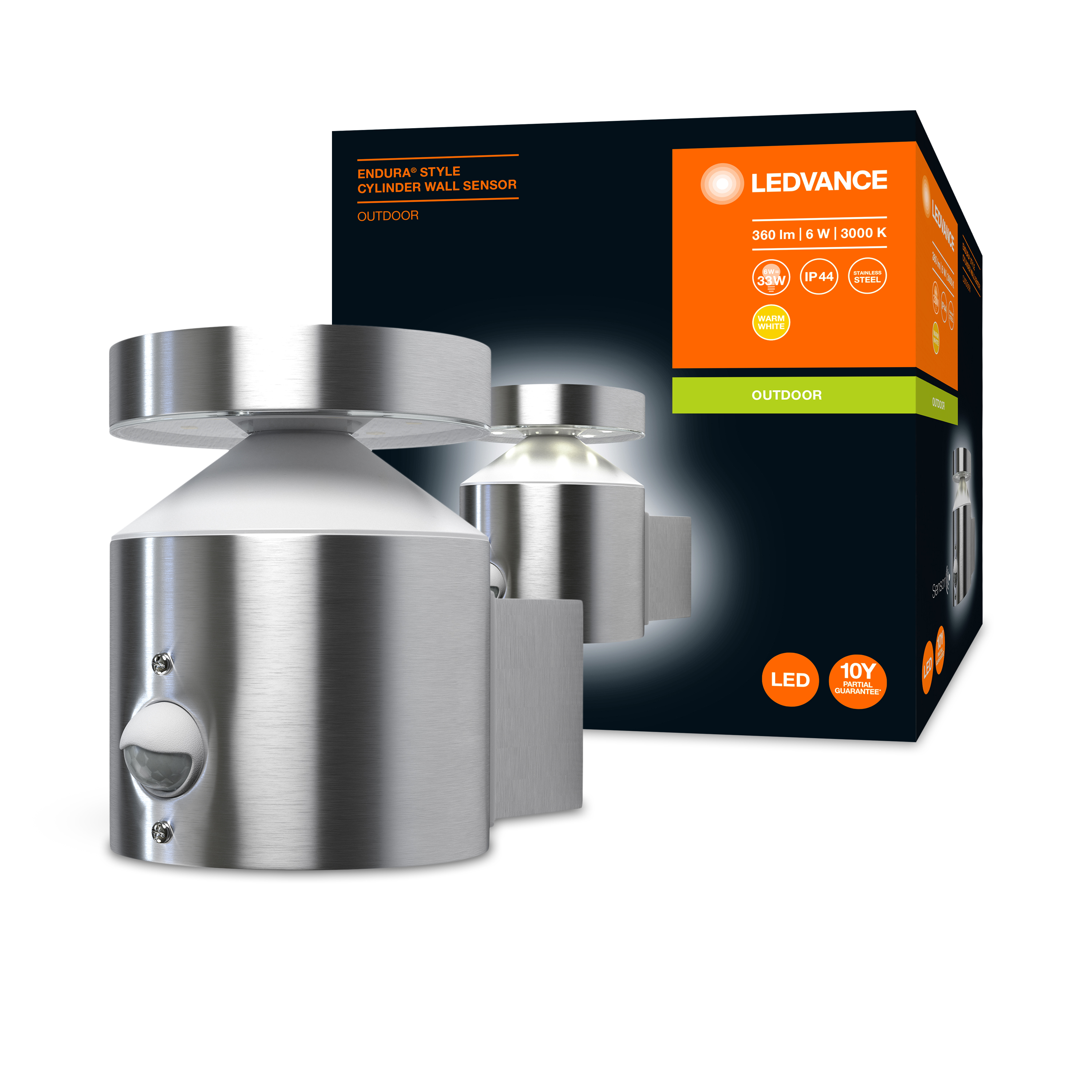

Combo Shot = Product Beauty Shot + Packaging Image
ENDURA STYLE CYLINDER WALLSENS 6WSTLEDV
ENDURA STYLE CYLINDER WALLSENS 6WSTLEDV

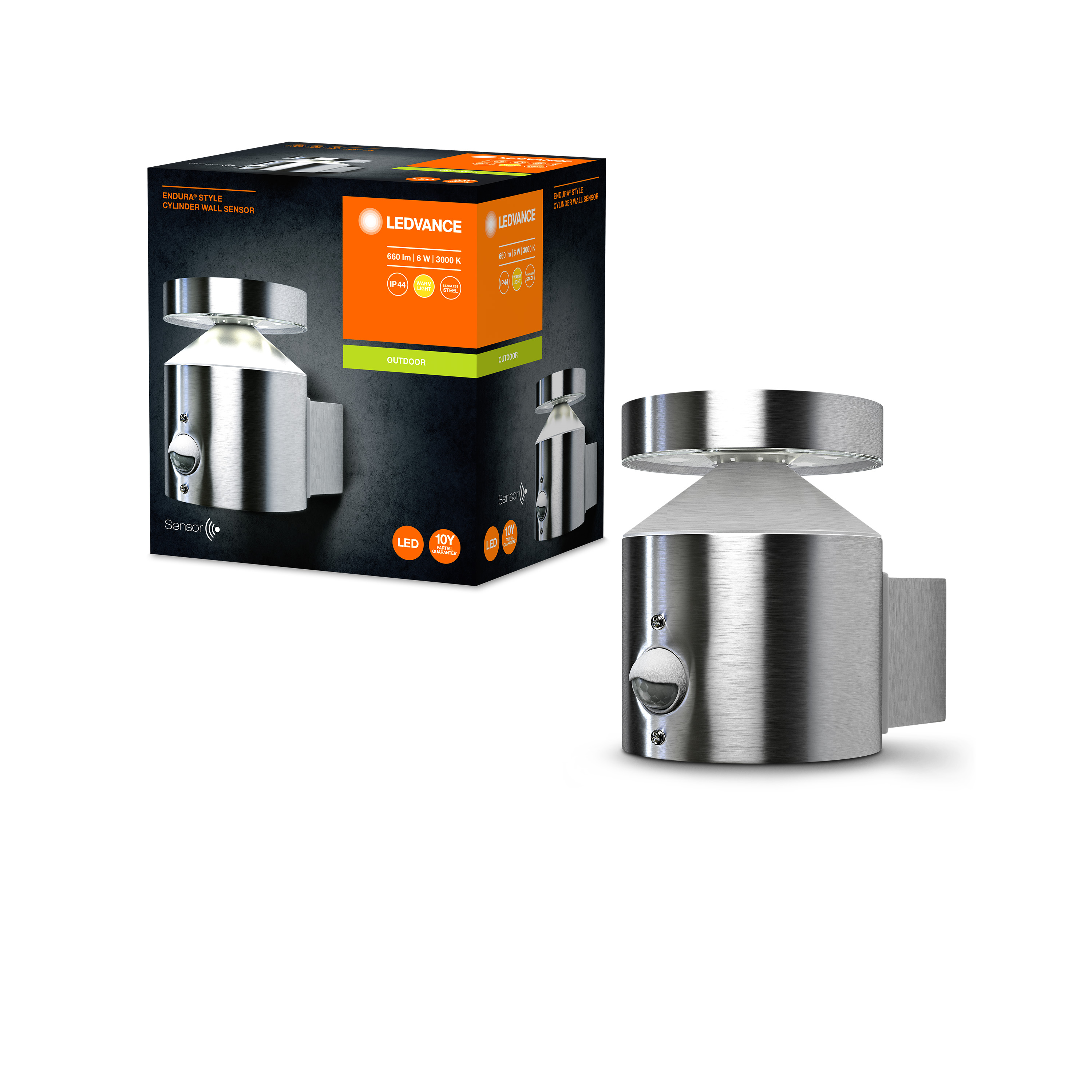

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC ES CYLINDER WALL SEN ST MiPRC
LUM FC ES CYLINDER WALL SEN ST MiPRC

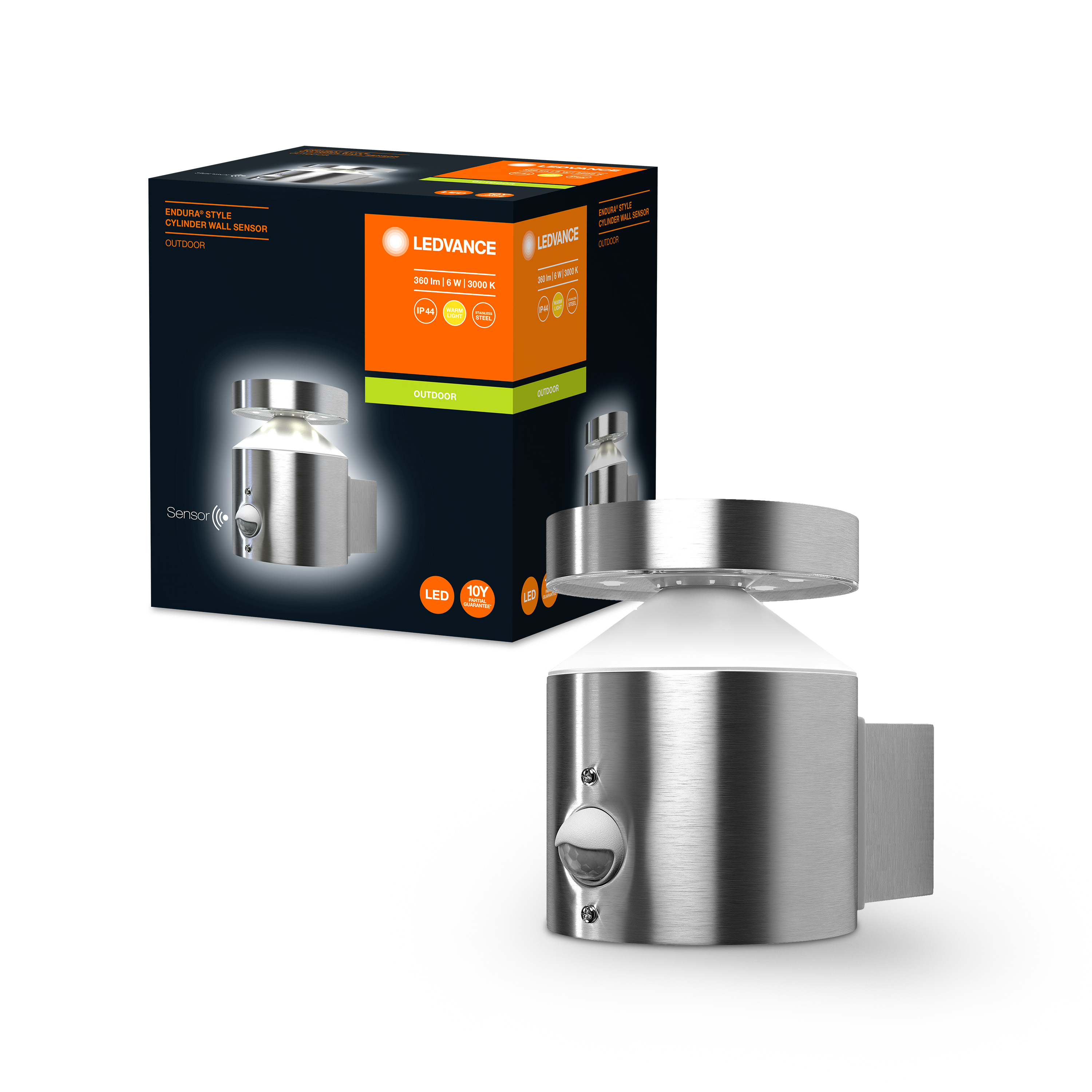

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC ES CYLINDER WALL SEN ST MiPRC
LUM FC ES CYLINDER WALL SEN ST MiPRC
Packaging image, frontal
LUM FC ES Cylinder Wall Sensor ST MiPRC LDV Front
LUM FC ES Cylinder Wall Sensor ST MiPRC LDV Front
Packaging image, spacial
LUM FC ES Cylinder Wall Sensor ST MiPRC LDV Side
LUM FC ES Cylinder Wall Sensor ST MiPRC LDV Side

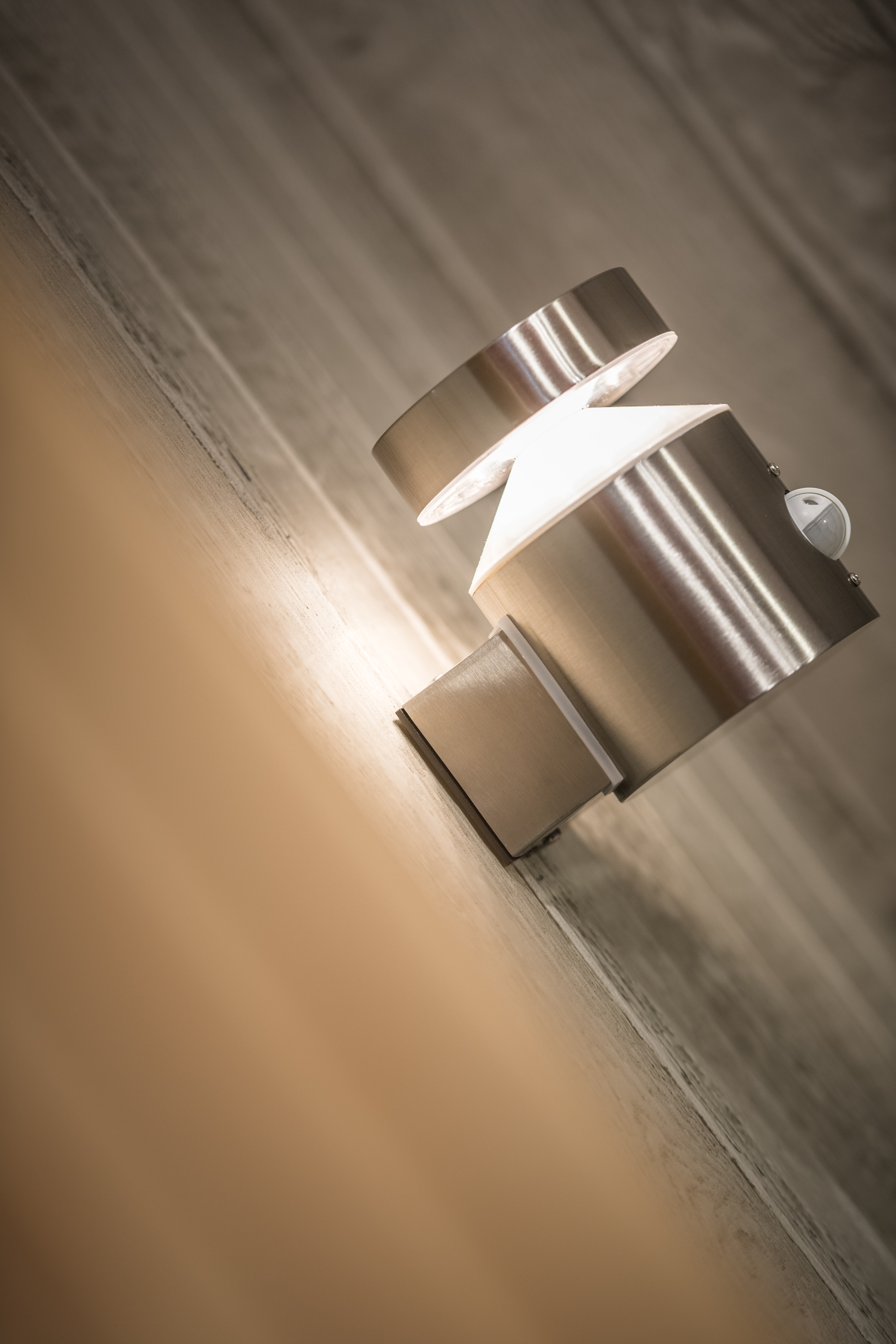

Application pictures
