ENDURA CLASSIC POST
ENDURA Classic Post Up E27
GTIN: 4058075206502
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- High flexibility in the choice of the light source thanks to E27 socket
- Easy and quick installation
Areas of application
- Outdoor use (IP44)
- Building facades
- Entrance lighting
- Patios, balconies
- Pathway lighting
- Driveways
Product features
- Stainless steel housing
- Diffuser made of clear glass with hammer finish
- Available with and without motion sensor
- Available as wall and bollard luminaires
- Suitable for smart applications thanks to compatibility with SMART+ lamps
Equipment / Accessories
- Complete mounting and connecting accessories included
- No light sources included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
Electrical data
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Protection class | I |
| Operating mode | Mains voltage |
Dimensions & Weight
| Diameter | 127.0 mm |
| Length | 212.00 mm |
| Height | 193.00 mm |
| Width | 127.00 mm |
| Product weight | 1065.00 g |
Materials & Colors
| Product color | Steel |
| Housing color | Steel |
| Body material | Stainless steel |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+85 °C |
| Type of connection | Screw terminal |
| Type of protection | IP44 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Wall |
| Application environment | Outdoor |
| With light source | No |
| Replaceable light source | No |
| Holder designation | E27 |
Certificates & Standards
| Standards | CE, EAC, UKCA |
Additional product data
| Product remark | Maximum bulb wattage: 60 W |
| Number of illuminants | 1 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075206502 | Folding box 1 |
141 mm x 239 mm x 242 mm | 1291.00 g | 8.16 dm³ |
| 4058075206519 | Shipping box 4 |
500 mm x 257 mm x 300 mm | 5814.00 g | 38.55 dm³ |
User instruction / safety instructions
ENDURA CLASSIC POST
ENDURA CLASSIC POST
Legal information
Legal insert I-Outdoor
Legal insert I-Outdoor
Declarations of conformity
CE Declaration Endura Classic Post
CE Declaration Endura Classic Post

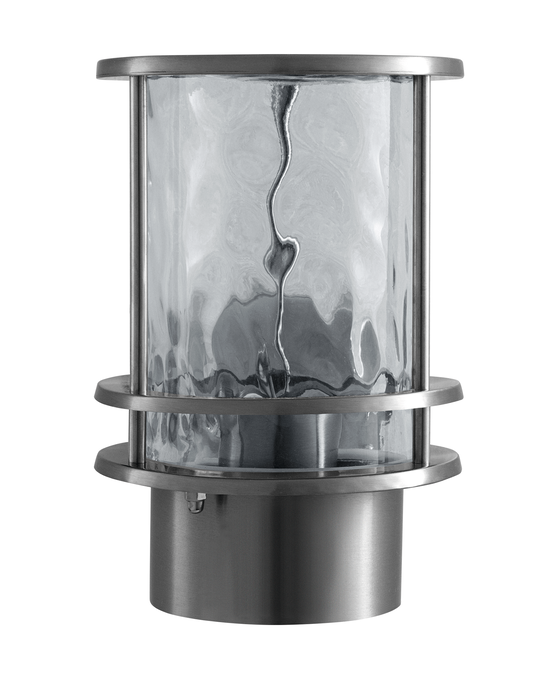

Product image: white background, upright
ENDURA CLASSIC POST UP E27 ST
ENDURA CLASSIC POST UP E27 ST
Product image: white background, upright, alternative image
ENDURA CLASSIC POST UP E27 ST
ENDURA CLASSIC POST UP E27 ST

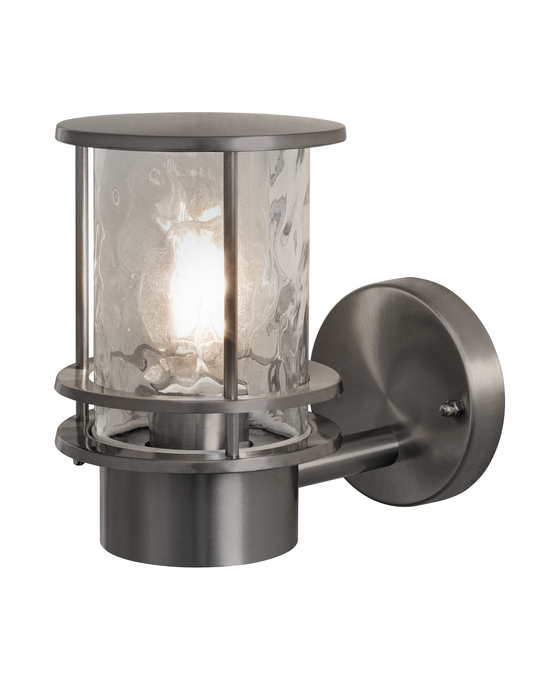

Product image: white background, upright, switched on
ENDURA CLASSIC POST UP E27 ST
ENDURA CLASSIC POST UP E27 ST
Product line drawing with letters
ENDURA CLASSIC POST UP E27 ST
ENDURA CLASSIC POST UP E27 ST
Product line drawing with numbers
ENDURA CLASSIC POST UP E27 ST
ENDURA CLASSIC POST UP E27 ST
Product line drawing, front, no dimensions
ENDURA CLASSIC POST UP E27 ST
ENDURA CLASSIC POST UP E27 ST

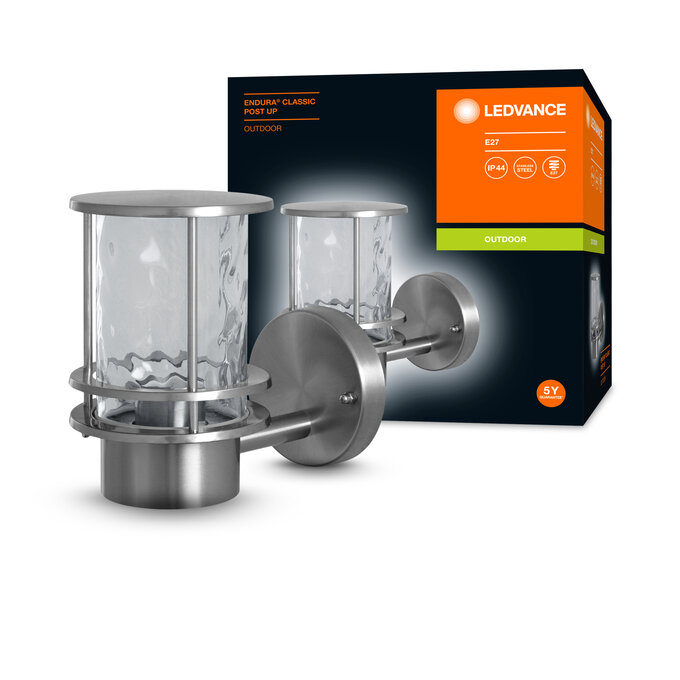

Combo Shot = Product Beauty Shot + Packaging Image
ENDURA CLASSIC POST UP E27 ST
ENDURA CLASSIC POST UP E27 ST

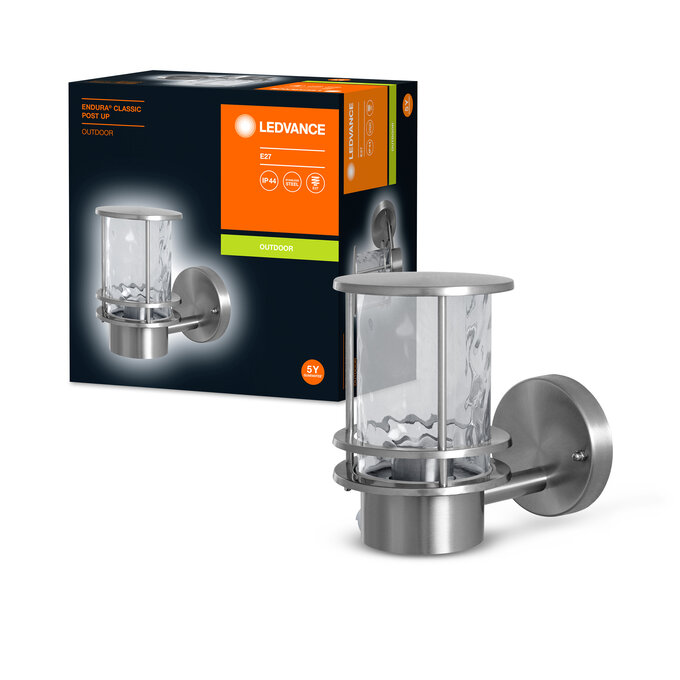

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC EC POST UP MIPRC
LUM FC EC POST UP MIPRC

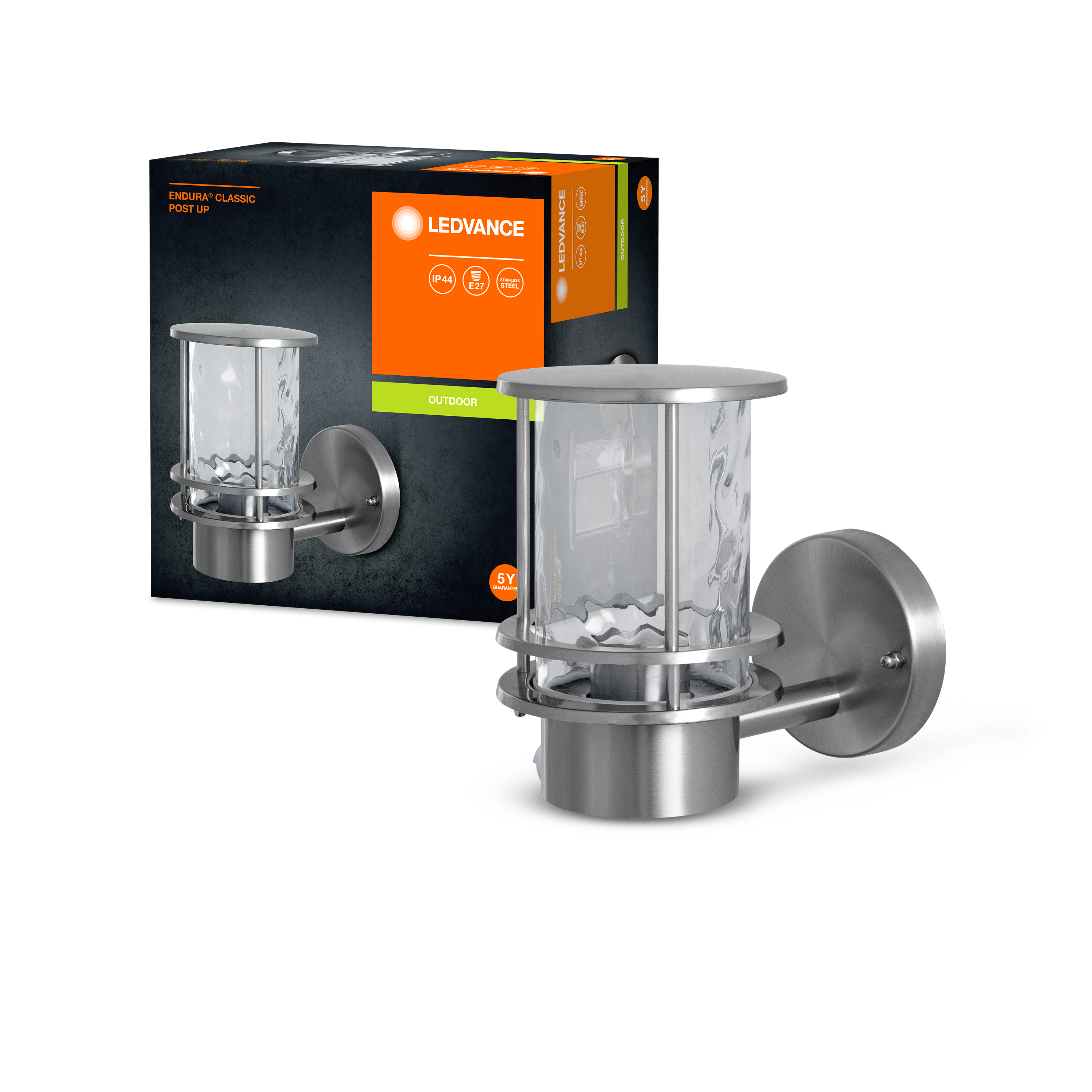

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC EC POST UP E27 ST MiPRC
LUM FC EC POST UP E27 ST MiPRC
Packaging image, frontal
LUM FC EC POST UP E27 ST MIPRC LDV Front
LUM FC EC POST UP E27 ST MIPRC LDV Front
Packaging image, spacial
LUM FC EC POST UP E27 ST MIPRC LDV Side
LUM FC EC POST UP E27 ST MIPRC LDV Side

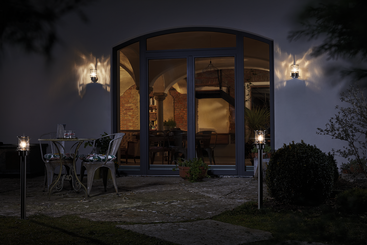

Application pictures
ENDURA CLASSIC POST Up
ENDURA CLASSIC POST Up

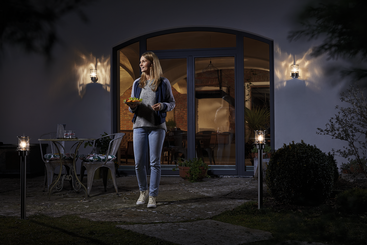

Application pictures
ENDURA CLASSIC POST Up
ENDURA CLASSIC POST Up
| EAN | ELDAS number |
|---|---|
| 4058075206502 | 941797980 |
