ENDURA Classic Square
ENDURA Classic Square Down White
GTIN: 4058075763661
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- High flexibility in the choice of the light source thanks to GU10 socket
- Easy and quick installation
- High-quality materials
Areas of application
- Entrance lighting
- Patios, balconies
- Building facades
Product features
- Die-cast aluminum housing
Equipment / Accessories
- Complete mounting and connecting accessories included
- No light sources included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
Electrical data
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Protection class | I |
Photometrical data
| Flickering metric (Pst LM) | - |
| Stroboscope effect metric (SVM) | - |
Dimensions & Weight
| Length | 68.00 mm |
| Height | 92.00 mm |
| Width | 81.00 mm |
| Product weight | 300.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Aluminum |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Type of connection | Terminal, 3-Pole (L, N, PE) |
| Type of protection | IP44 |
| Protection class IK (shock resistance) | IK04 |
| Dimmable | No |
| Mounting type | Surface |
| Application environment | Outdoor |
| With light source | No |
| Replaceable light source | No |
| Holder designation | GU10 |
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
Additional product data
| Product remark | Maximum bulb wattage: 35 W |
| Number of illuminants | 1 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075763661 | Folding box 1 |
77 mm x 92 mm x 102 mm | 351.00 g | 0.72 dm³ |
| 4058075763678 | Shipping box 6 |
245 mm x 110 mm x 232 mm | 2287.00 g | 6.25 dm³ |
User instruction / safety instructions
ENDURA CLASSIC SQUARE
ENDURA CLASSIC SQUARE
Legal information
Legal insert I-Outdoor
Legal insert I-Outdoor
Declarations of conformity
ENDURA CLASSIC
ENDURA CLASSIC

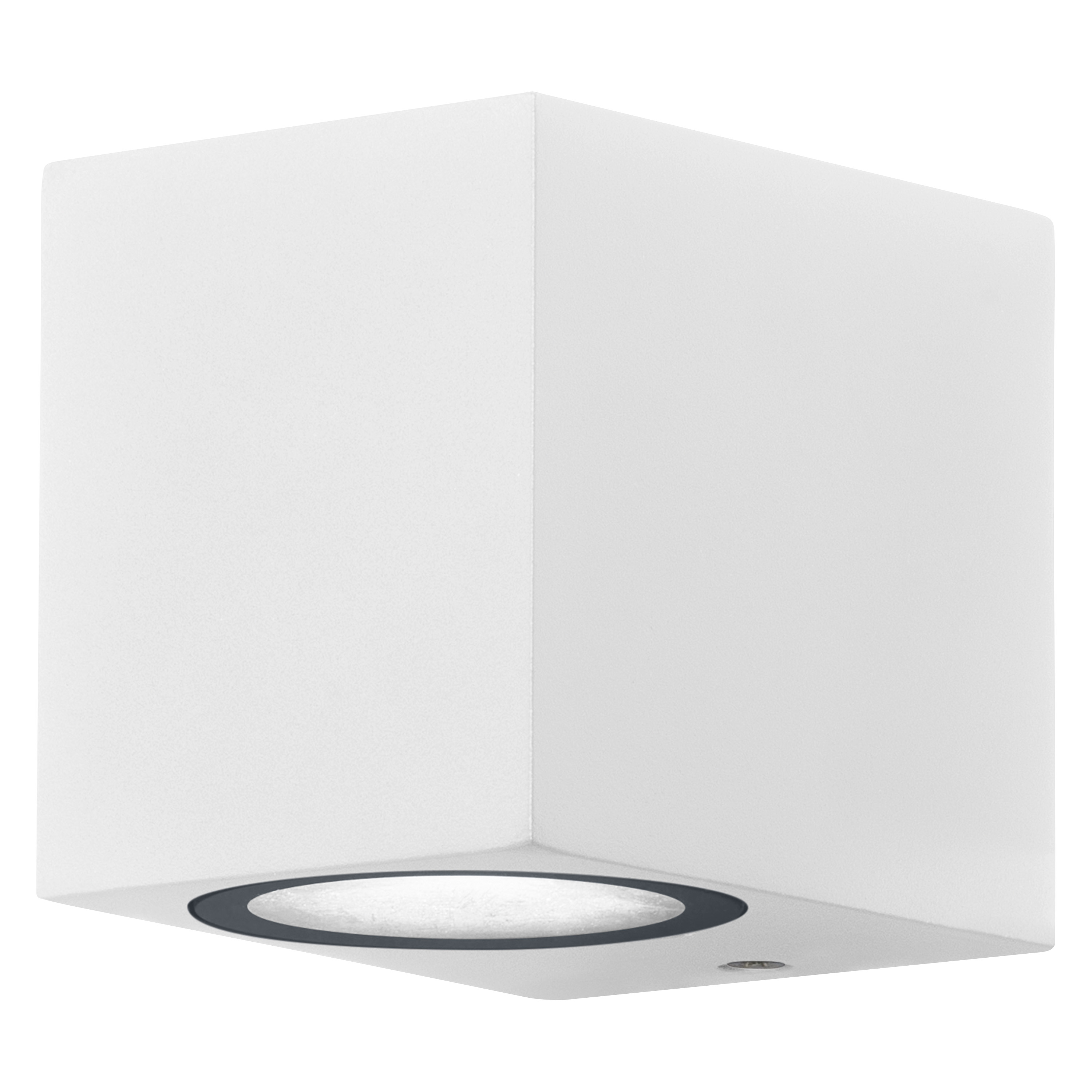

Product image: white background, upright
ENDURA CLASSIC SQUARE DOWN WT GU10
ENDURA CLASSIC SQUARE DOWN WT GU10

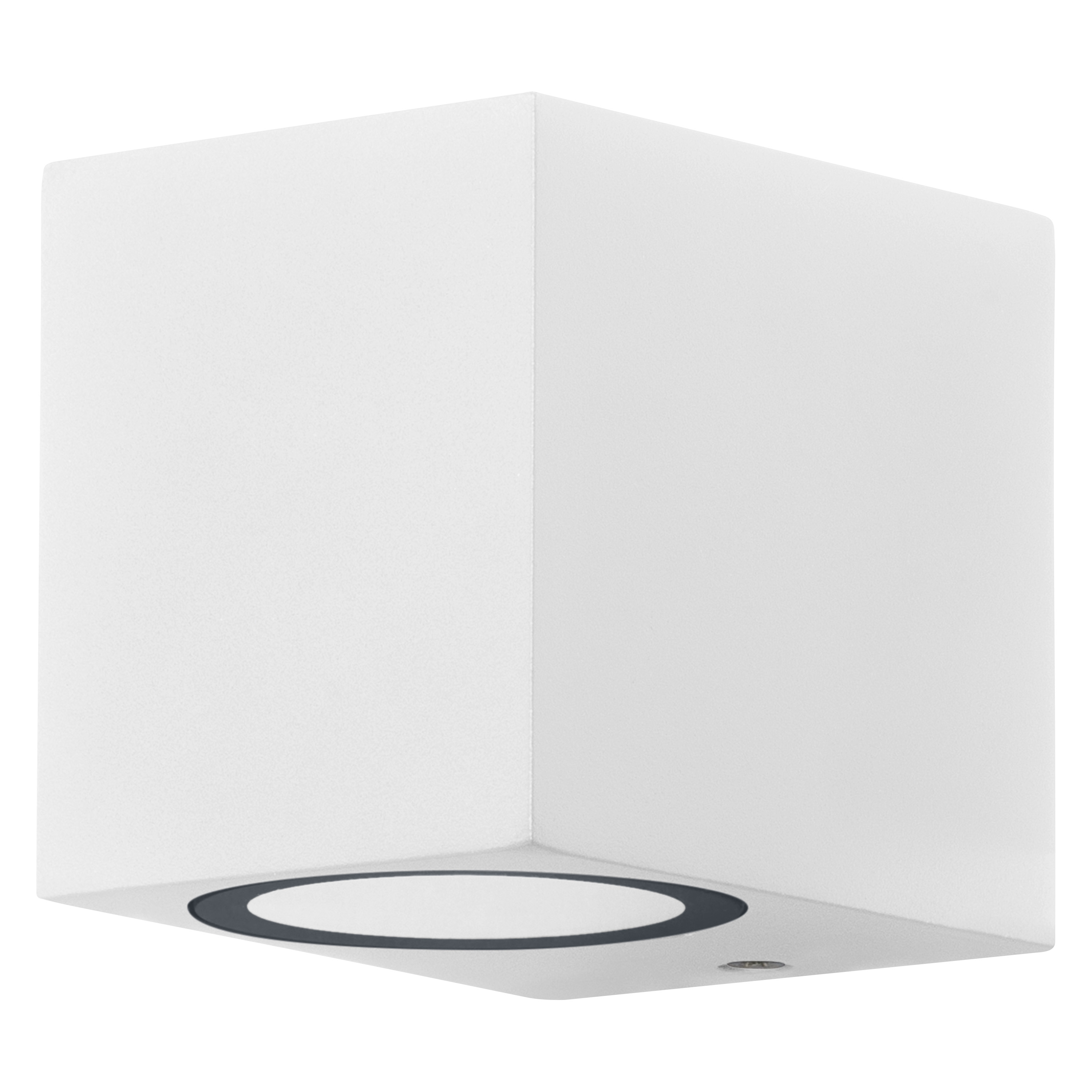

Product image: white background, upright, switched on
ENDURA CLASSIC SQUARE DOWN WT GU10
ENDURA CLASSIC SQUARE DOWN WT GU10

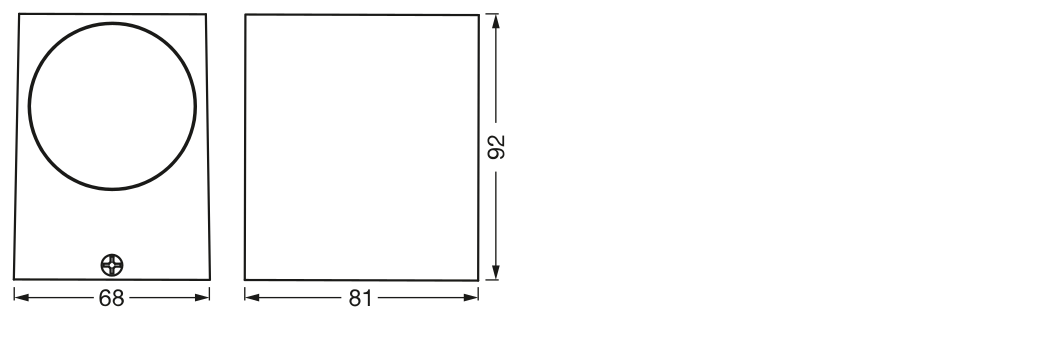

Product line drawing with letters
ENDURA CLASSIC SQUARE DOWN BK GU10
ENDURA CLASSIC SQUARE DOWN BK GU10
Product line drawing with numbers
ENDURA CLASSIC SQUARE DOWN BK GU10
ENDURA CLASSIC SQUARE DOWN BK GU10
Product line drawing, front, no dimensions
ENDURA CLASSIC SQUARE DOWN BK GU10
ENDURA CLASSIC SQUARE DOWN BK GU10
Combo Shot = Product Beauty Shot + Packaging Image
LUM FC ENDURA SQUARE DOWN WT MiPRC
LUM FC ENDURA SQUARE DOWN WT MiPRC
Packaging image, frontal
LUM FC ENDURA SQUARE DOWN WT MiPRC
LUM FC ENDURA SQUARE DOWN WT MiPRC
Packaging image, spacial
LUM FC ENDURA SQUARE DOWN WT MiPRC
LUM FC ENDURA SQUARE DOWN WT MiPRC

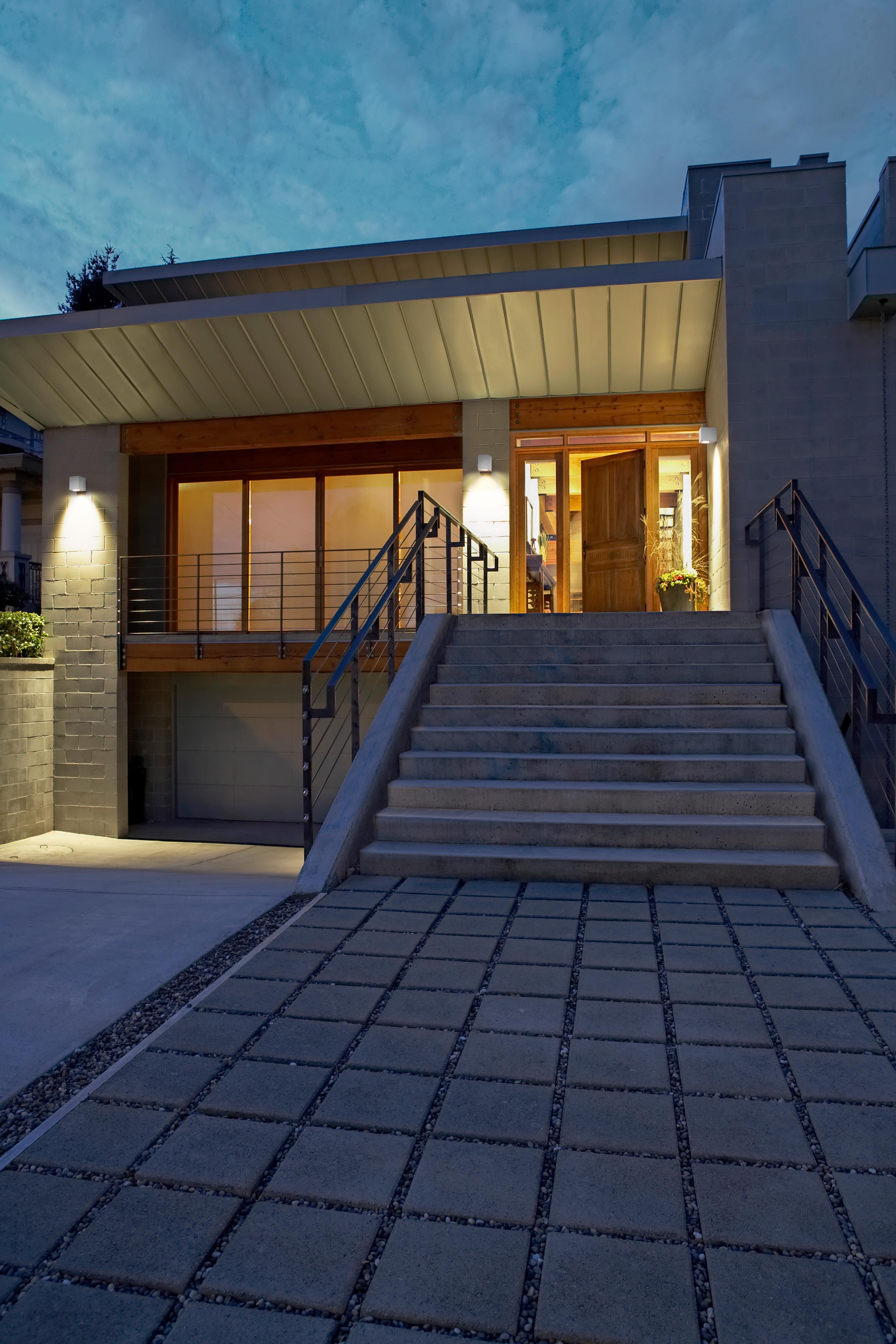

Application pictures Getty
ENDURA CLASSIC DOWN Square GU10 WT
ENDURA CLASSIC DOWN Square GU10 WT
| EAN | ELDAS number |
|---|---|
| 4058075763661 | 941004950 |
