ENDURA GARDEN SPOT

ENDURA Garden Solar Spot Wall + Spike RGB + W

GTIN: 4058075564169 Folding box / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Energy-efficient thanks to LED technology
  • Easy and quick installation
  • Easy adjustment of lightcolor via push switch
  • Demand based lighting and energy saving thanks to daylight sensor
Areas of application
  • Outdoor use (IP44)
  • Areas where no power supply is available
Product features
  • Solar powered outdoor LED luminaire
  • 3 operating modes selectable
  • Battery charging via solar panel
  • Battery technology: NiMH
  • Stainless steel housing
  • Daylight sensor
  • Operating mode 1: On 55 lm warm white continuous light (long press button in back 2 seconds)
  • Operating mode 2: RGB alternating mode (short press button)
  • Operating mode 3: Freeze RGB color mode (double click button when in mode 2 and color of choice is on)
Equipment / Accessories
  • Complete mounting and connecting accessories included
Safety advice
  • If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
  • Please avoid: Maximal ambient temperature: +35 °C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Altitude during operation: 2000 m. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
Electrical data
Nominal wattage 0.50 W
Nominal voltage 3,6 V
Mains frequency 50…60 Hz
Nominal current 120.000 mA
Max. number of luminaires per miniature circuit breaker C16 N/A
Protection class III
Operating mode Battery
Photometrical data
Luminous flux 55 lm
Luminous efficacy 110 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra ≥80
Standard deviation of color matching ≤6 sdcm
Flickering metric (Pst LM) ≤1 %
Stroboscope effect metric (SVM) ≤0.4
Photobiological safety group acc. to EN62778 RG0
Photobiological safety group acc. to EN62471 RG0
Dimensions & Weight
Length 175.00 mm
Height 295.00 mm
Width 92.00 mm
Product weight 377.00 g
Materials & Colors
Product color Dark gray
Housing color Dark gray
Body material Plastic
Cover material Polycarbonate (PC)
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of protection IP44
Protection class IK (shock resistance) IK03
Dimmable No
Mounting type Surface
Mounting location Wall, Ground
Application environment Outdoor
With light source Yes
Replaceable light source No
Lifespan
Lifespan L70/B50 at 25 °C 25000 h 1)
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Sensor
Type of sensor Light
BATTERY
Type of Battery Ni-MH
Battery size [GMS] AA
Number of included batteries 3
Nominal voltage of battery 1.2 V
Battery charging time 7 h
Emergency lighting
Type of emergency light operation Non-maintained
Luminous flux in maintained operation mode -
Luminous flux in emergency operation mode -
Certificates & Standards
Standards CE, UKCA
Luminaire with limited surface temperature, "D sign" No
Replaceable light source (EPREL) Not replaceable
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075564169 Folding box
1
122 mm x 72 mm x 212 mm 505.00 g 1.86 dm³
4058075564176 Shipping box
4
260 mm x 160 mm x 240 mm 2242.00 g 9.98 dm³
User instruction / safety instructions
ENDURA GARDEN
Declarations of conformity
ENDURA GARDEN SOLAR SPOT RGBW DG

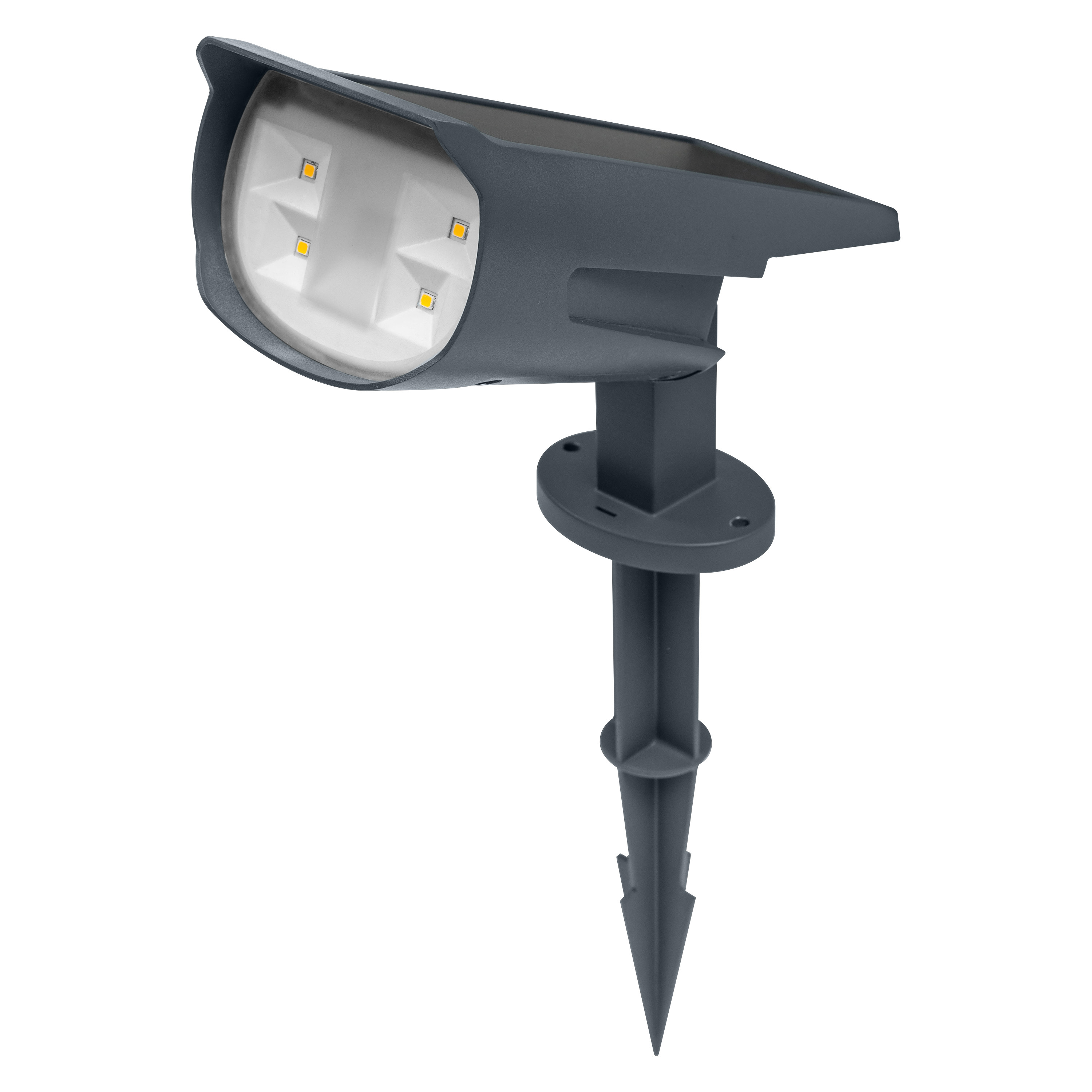

Product image: white background, upright
ENDURA GARDEN SOL SPOT WALLSPIKE DG
Product image: white background, upright, alternative image
ENDURA GARDEN SOL SPOT WALLSPIKE DG
Product infographic (application image with text and graphic)
Solar assortment E-Com-Grafik V1 1200x1200 2023 EN
Product infographic (application image with text and graphic)
Solar E-Com Grafik V1 1200x1200px 2023 EN
Product infographic (application image with text and graphic)
Solar assortment E-Com-Grafik V2 1200x1200 2023 EN
Product line drawing with letters
ENDURA GARDEN SOLAR SPOT RGBW DG
Product line drawing with numbers
ENDURA GARDEN SOLAR SPOT RGBW DG
Product line drawing, front, no dimensions
ENDURA GARDEN SOLAR SPOT RGBW DG

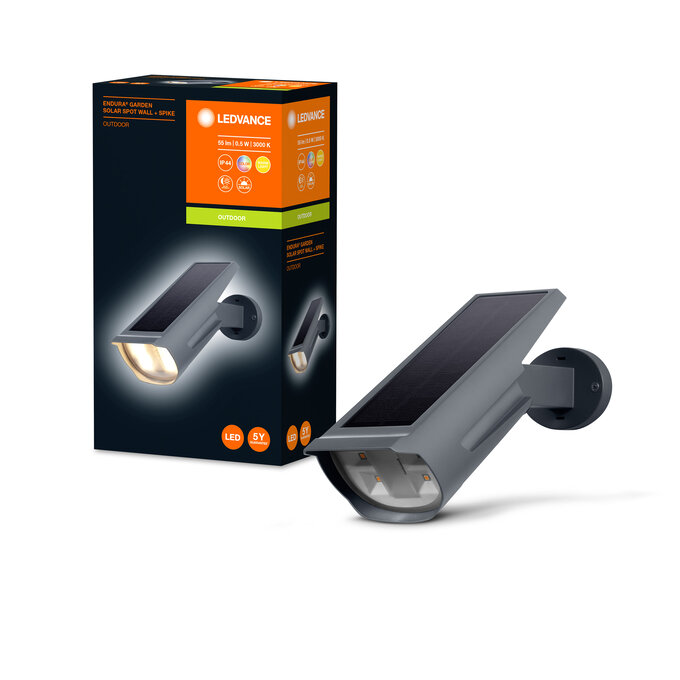

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC EG SPOT WALLSPIKE SOL MiPRC

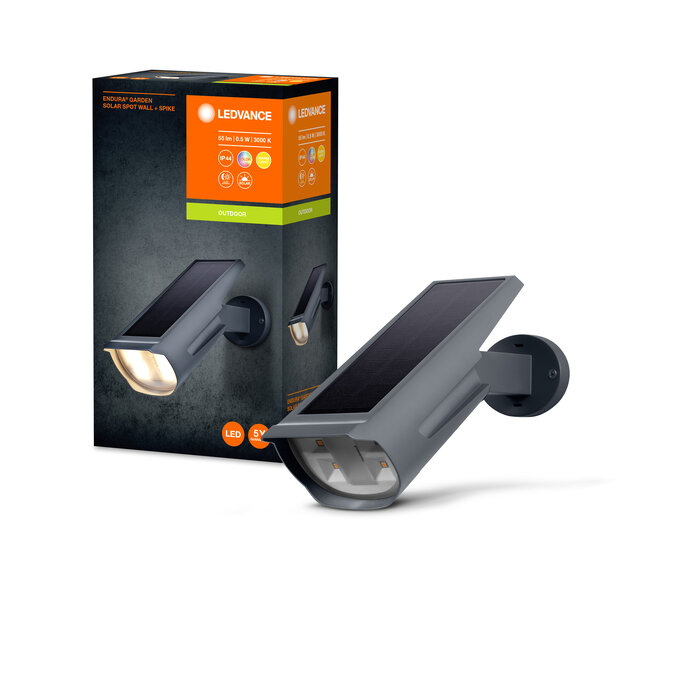

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC EG SOLAR SPOT RGBW DG MiPRC
Packaging image, frontal
LUM FC EG SPOT WALLSPIKE SOL MiPRC
Packaging image, spacial
LUM FC EG SPOT WALLSPIKE SOL MiPRC
Application pictures
Outdoor Solar Composing with luminaire

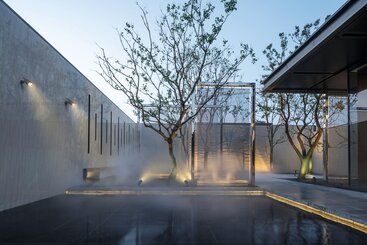

Application pictures Getty
OUTDOOR ENDURA GARDEN SOLAR SPOT WALLSPIKE

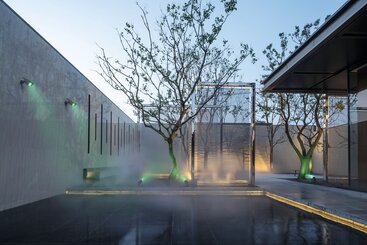

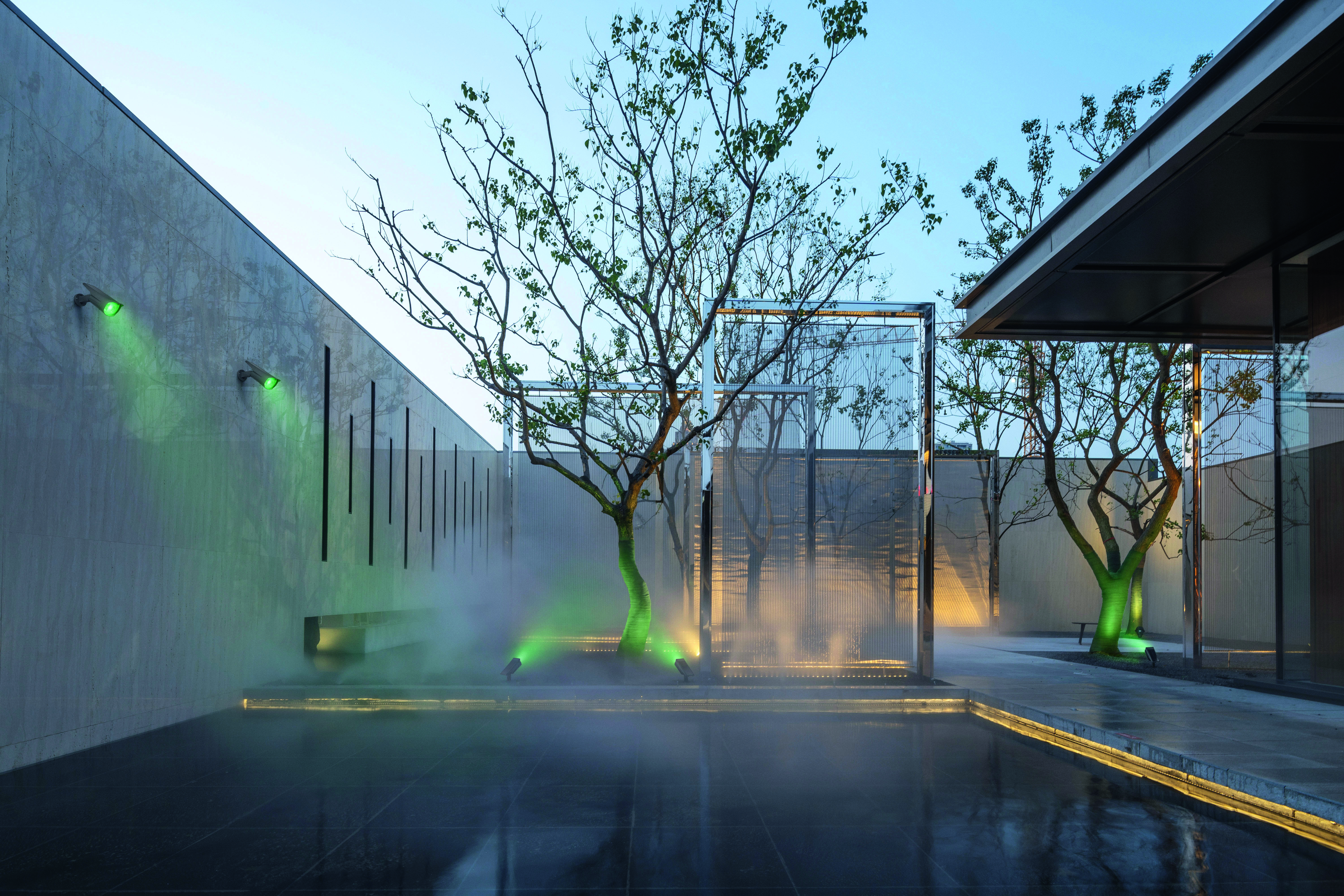

Application pictures Getty
