ENDURA STYLE SOLAR+USB ROBUST SENSOR

Endura Style Solar Robust Sensor Wall IP54 USB Dark Grey

GTIN: 4099854415715 Folding box / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Operating time with fully charged battery: up to 1 month (depending on the work mode and conditions)
  • Solar & battery-powered luminaire
  • Easy and quick installation, independent from connection to power supply
  • Long-term energy and cost savings
Areas of application
  • Outdoor
  • Entrance lighting
  • Patios, balconies
  • General illumination
  • Facade and building illumination
Product features
  • Sustainable energy, low environmental impact
  • Integrated rechargeable lithium battery which can be charged via USB cable
  • Energy-efficient thanks to LED technology
  • Robust technical design
  • Easily detachable from the wall for charging thanks to slide-up mounting plate
  • Highly efficient monocrystalline solar panel
  • Type of protection: IP54
  • Housing material: aluminum
  • Diffuser made of opal polycarbonate
  • PIR motion detection and daylight sensor, matching with housing color
  • 2 different work modes - Mode 1: 100% light for 40 seconds when motion detected (dusk-to-dawn); Mode 2: 20% light permanently on + 100% light for 40 seconds when motion detected (dusk-to-dawn)
  • Lower light smog, on-demand lighting (sensor version)
Equipment / Accessories
  • Mounting accessories included
  • USB-C charging cable (cable length: 1.0 m) included
Safety advice
  • If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
  • Please avoid: Maximal ambient temperature: +35 °C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Altitude during operation: 2000 m. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
Electrical data
Nominal wattage 2.50 W
Nominal voltage 3,7 V
Nominal current 1000.000 mA
Protection class III
Operating mode Battery
Photometrical data
Luminous flux 180 lm
Total luminous flux of contained light sources 280 lm
Luminous efficacy 72 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra > 80
Standard deviation of color matching < 6 sdcm
Flickering metric (Pst LM) ≤1 %
Stroboscope effect metric (SVM) ≤0.4
Photobiological safety group acc. to EN62778 RG0
Beam angle 90 °
Dimensions & Weight
Length 206.00 mm
Height 86.00 mm
Width 88.00 mm
Product weight 550.00 g
Cable length 1000 mm
Materials & Colors
Product color Dark gray
Housing color Dark gray
Body material Aluminum
Cover material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 650 °C
Application & Mounting
Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of protection IP54
Protection class IK (shock resistance) IK06
Dimmable No
Mounting type Surface
Application environment Outdoor
With light source Yes
Replaceable light source No
Lifespan
Lifespan L70/B50 at 25 °C 50000 h 1)
Number of switching cycles 50000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Sensor
Type of sensor Light, Motion
Sensor technology Passive infrared (PIR)
Sensor detection angle 100 °
Sensor controlled switching time 0…40 s
Detection range of motion sensor 4…8 m
Detection threshold of daylight sensor 0…80 lx
BATTERY
Type of Battery Lithium ion
Battery size [GMS] Others
Nominal voltage of battery 3.7 V
Nominal capacity of battery 1800 mAh
Battery charging time 9 h
Certificates & Standards
Standards CE, UKCA
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) Not replaceable
Additional product data
Product remark Available from June 2025
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854415715 Folding box
1
97 mm x 217 mm x 98 mm 618.00 g 2.06 dm³
4099854415722 Shipping box
6
310 mm x 234 mm x 225 mm 4170.00 g 16.32 dm³
User instruction / safety instructions
Endura Style Robus USB IP54
Legal information
Informationstext 18 Abs 4 ElektroG
Legal information
Safety insert G11221892
Declarations of conformity
CE Declaration Endura Style USB

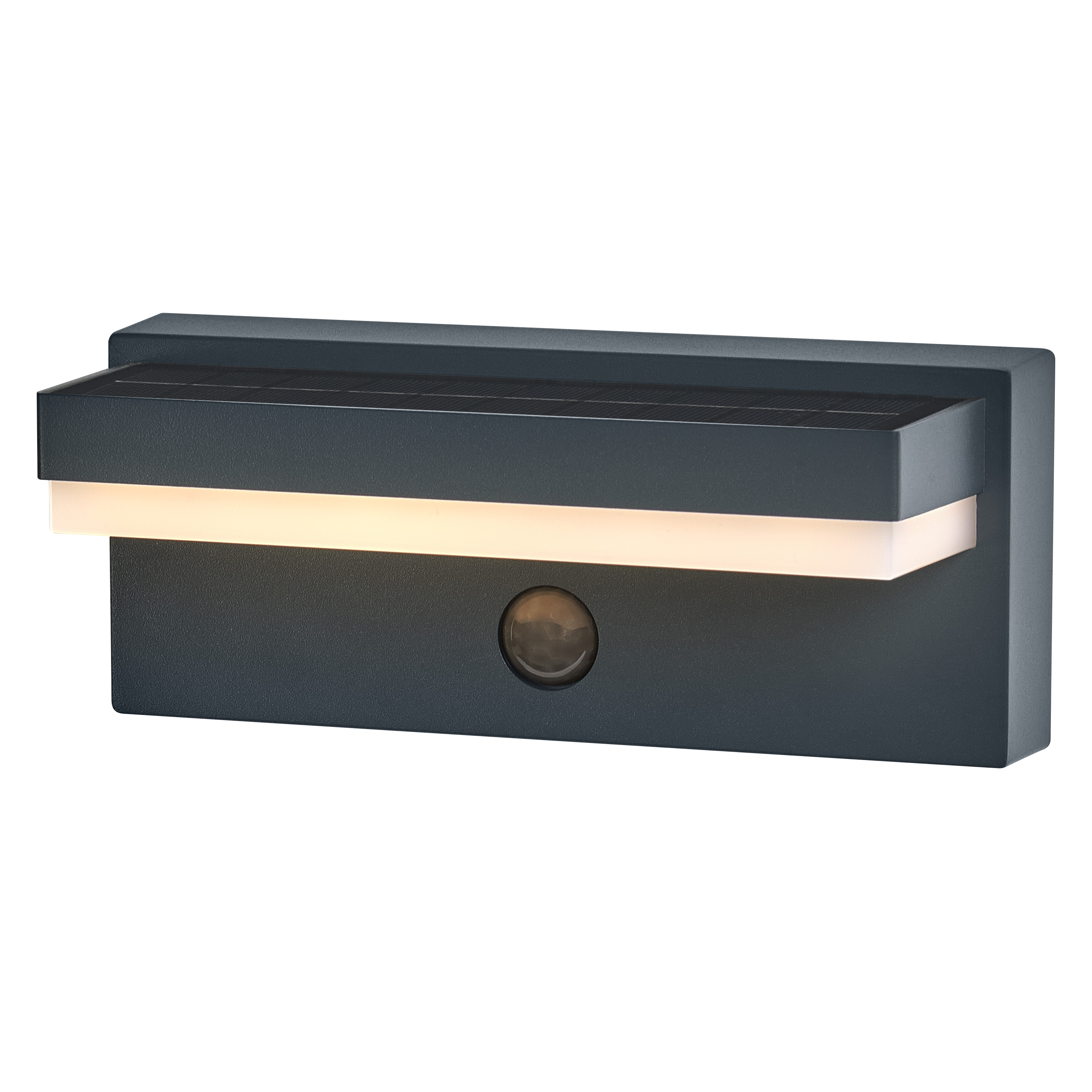

Product image: white background, upright
ENDURA STY SOL ROBUS W S IP54USB DG

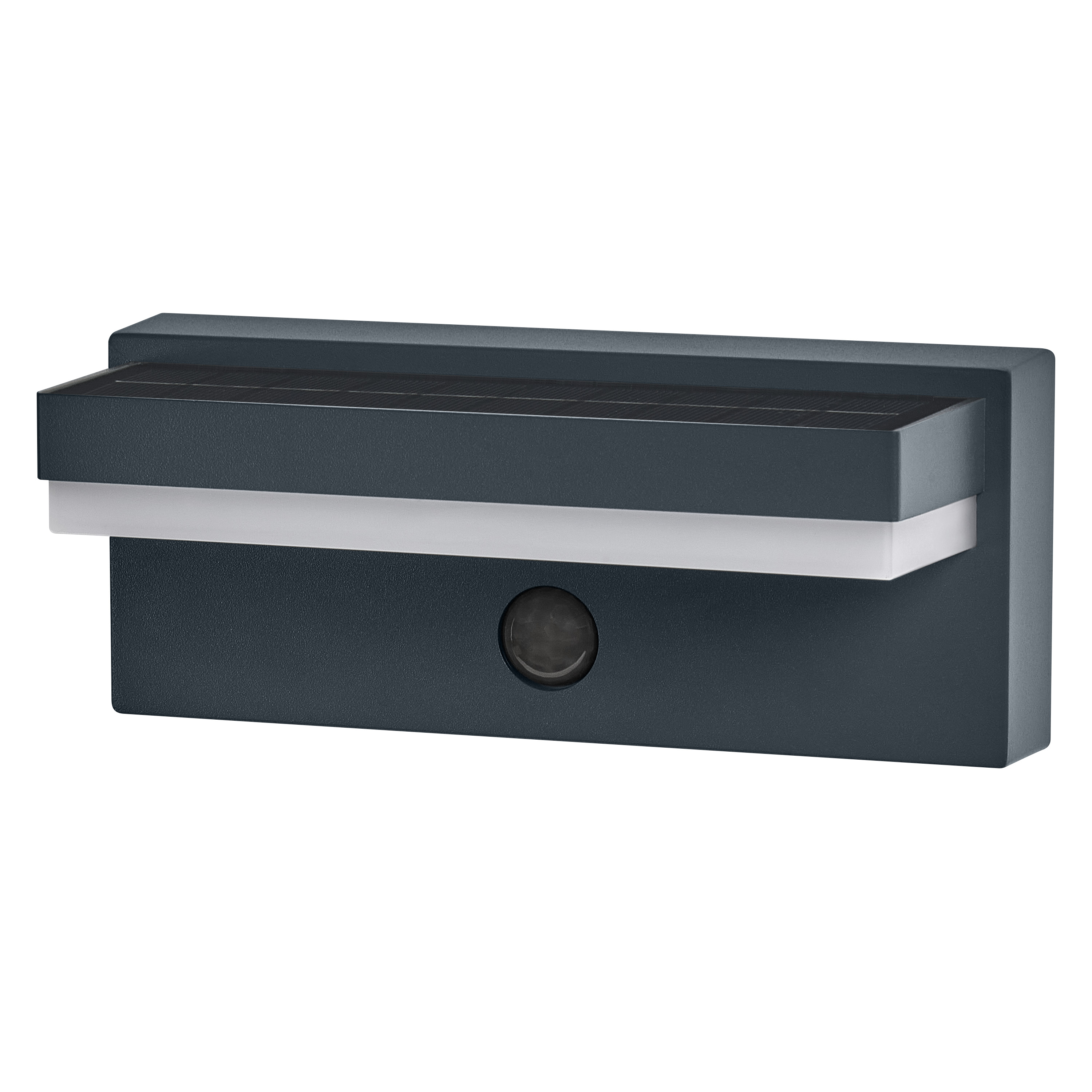

Product image: white background, upright, alternative image
ENDURA STY SOL ROBUS W S IP54USB DG
Product image: white background, upright, switched on
ENDURA STY SOL ROBUS W S IP54USB DG
Product line drawing with letters
ENDURA STY ROBUS W S IP54 USB DG
Product line drawing with numbers
ENDURA STY ROBUS W S IP54 USB DG

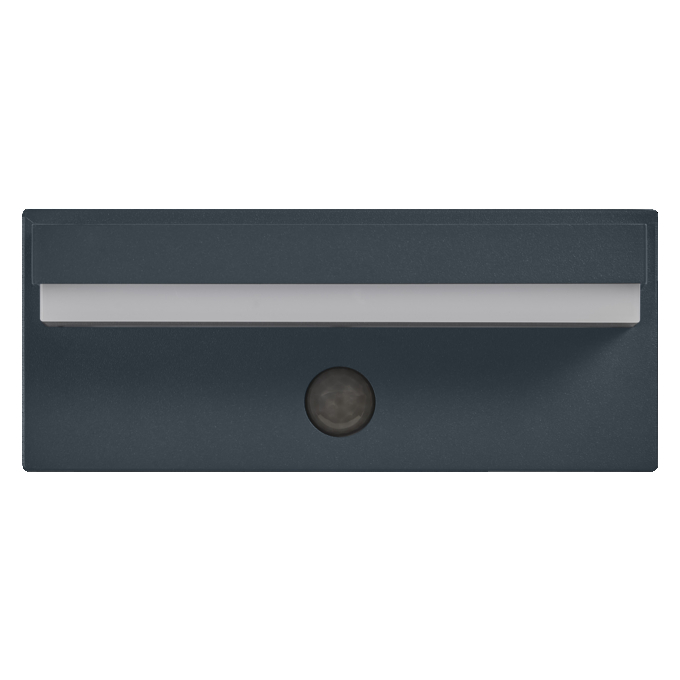

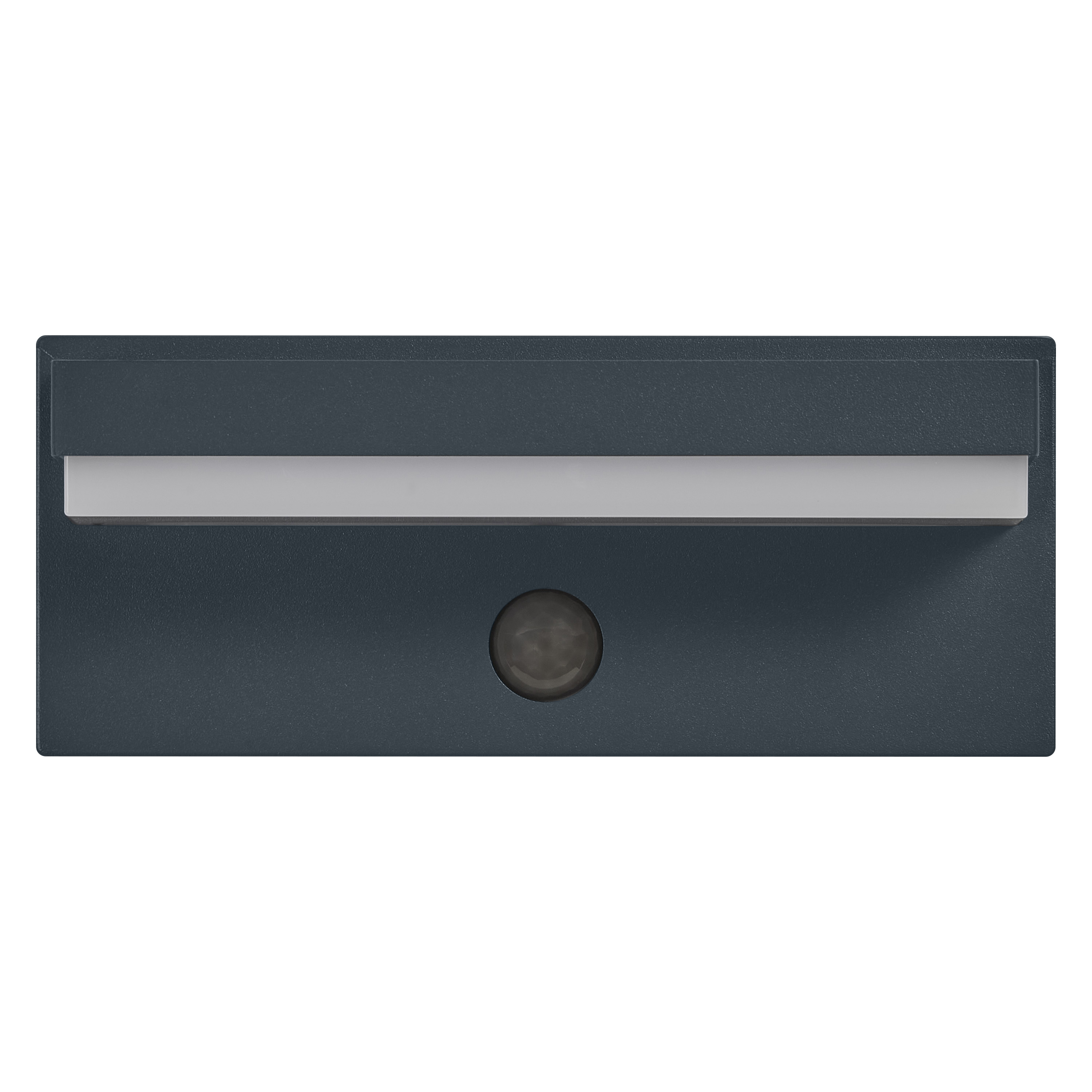

Product line drawing, front, no dimensions
ENDURA STY ROBUS W S IP54 USB DG

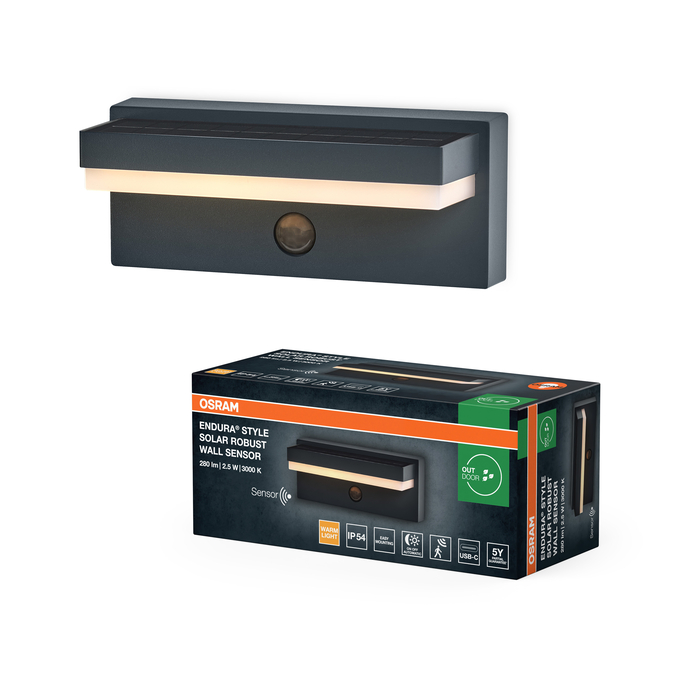

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC ES SOL ROBUST SEN USB OSRAM
Packaging image, frontal
LUM FC ES SOL ROBUST SEN USB OSRAM
Packaging image, spacial
LUM FC ES SOL ROBUST SEN USB OSRAM

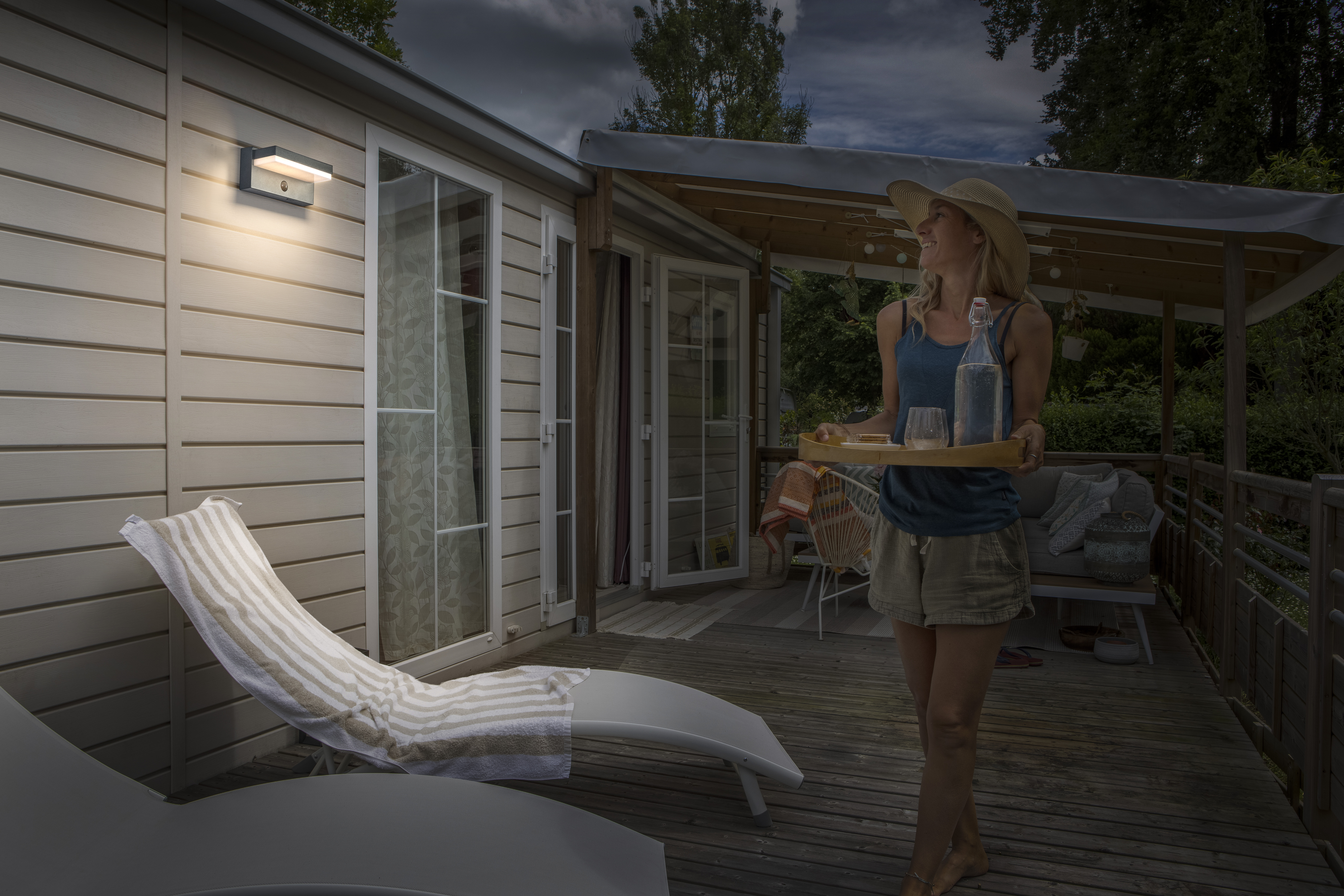

Application pictures Getty
