Endura Style solar WALL Sensor
ENDURA Style Solar Oval Wall Sensor 6W 4000K
GTIN: 4058075766242
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Easy and quick installation
- Demand based lighting and energy saving thanks to motion and daylight sensor
- High-quality materials
Areas of application
- Outdoor use (IP44)
- Garages
- Building facades
Product features
- Solar powered outdoor LED luminaire
- PIR motion detector and daylight sensor
- Available with color temperature 3000 K or 4000 K
- Battery charging via solar panel
Safety advice
- If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
- Please avoid: Maximal ambient temperature: +35 °C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Altitude during operation: 2000 m. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
Electrical data
| Nominal wattage | 6.00 W |
| Nominal voltage | 7,4 V |
| Nominal current | 750.000 mA |
| Protection class | III |
Photometrical data
| Luminous flux | 540 lm |
| Total luminous flux of contained light sources | 550 lm |
| Luminous efficacy | 90 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | 6 sdcm |
| Flickering metric (Pst LM) | - |
| Stroboscope effect metric (SVM) | - |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 120 ° |
Dimensions & Weight
| Length | 340.00 mm |
| Height | 60.00 mm |
| Width | 125.00 mm |
| Product weight | 1655.00 g |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Aluminum |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Type of protection | IP44 |
| Dimmable | No |
| Mounting type | Surface |
| Application environment | Outdoor |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 25000 h 1) |
| Number of switching cycles | 12500 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Sensor
| Type of sensor | Motion, Daylight |
| Sensor detection angle | 100 ° |
| Sensor controlled switching time | 60 s |
| Detection range of motion sensor | 5…8 m |
| Detection threshold of daylight sensor | 0…10 lx |
BATTERY
| Type of Battery | Lithium ion |
| Battery size [GMS] | ICR18650 |
| Number of included batteries | 1 |
| Nominal voltage of battery | 7.4 V |
| Nominal capacity of battery | 2000 mAh |
| Battery charging time | 6 h |
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075766242 | Folding box 1 |
80 mm x 360 mm x 140 mm | 1752.00 g | 4.03 dm³ |
| 4058075766259 | Shipping box 4 |
380 mm x 180 mm x 310 mm | 7428.00 g | 21.20 dm³ |
User instruction / safety instructions
ENDURA STYLE SOLAR OVAL WALL
ENDURA STYLE SOLAR OVAL WALL
Legal information
Legal insert SMART OUTD ENDURA SOLAR WORKLIGHT BAT
Legal insert SMART OUTD ENDURA SOLAR WORKLIGHT BAT
Declarations of conformity
CE Declaration of conformity ENDURA STYLE SOLAR
CE Declaration of conformity ENDURA STYLE SOLAR
Product image: white background, upright
ENDURA STYLE SOLAR OVAL WALL SEN
ENDURA STYLE SOLAR OVAL WALL SEN
Product image: white background, upright, alternative image
ENDURA STYLE SOLAR OVAL WALL SEN
ENDURA STYLE SOLAR OVAL WALL SEN
Product image: white background, upright, switched on
ENDURA STYLE SOLAR OVAL WALL SEN
ENDURA STYLE SOLAR OVAL WALL SEN
Product image: white background, upright, switched on
ENDURA STYLE SOLAR OVAL WALL SEN
ENDURA STYLE SOLAR OVAL WALL SEN
Product infographic (application image with text and graphic)
Solar assortment E-Com-Grafik V1 1200x1200 2023 EN
Solar assortment E-Com-Grafik V1 1200x1200 2023 EN
Product infographic (application image with text and graphic)
Solar assortment E-Com-Grafik V2 1200x1200 2023 EN
Solar assortment E-Com-Grafik V2 1200x1200 2023 EN
Product infographic (application image with text and graphic)
Solar E-Com Grafik V1 1200x1200px 2023 EN
Solar E-Com Grafik V1 1200x1200px 2023 EN
Product line drawing with letters
ENDURA STYLE SOLAR OVAL WALL SEN
ENDURA STYLE SOLAR OVAL WALL SEN
Product line drawing with numbers
ENDURA STYLE SOLAR OVAL WALL SEN
ENDURA STYLE SOLAR OVAL WALL SEN
Product line drawing, front, no dimensions
ENDURA STYLE SOLAR OVAL WALL SEN
ENDURA STYLE SOLAR OVAL WALL SEN

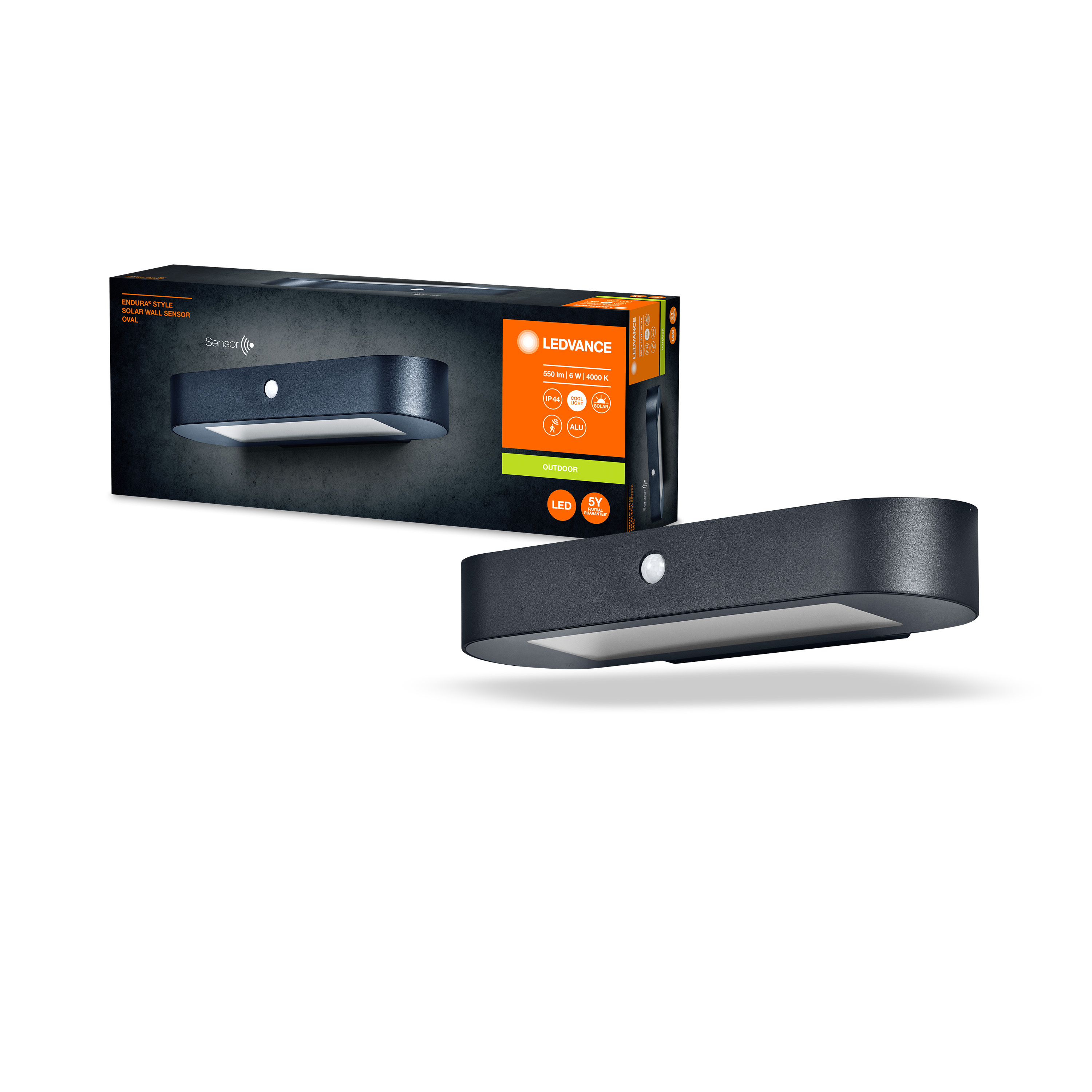

Combo Shot = Product Beauty Shot + Packaging Image
