COB STRIPS
Flex COB IP44 5M 3000K
GTIN: 4099854095320
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Easy and quick installation
- Homogenous light distribution
- Homogenous lighting thanks to COB LED
Areas of application
- Outdoor applications
- Indirect lighting
Product features
- COB technology for homogeneous light distribution
- Light color: Warm White
- Flexible, bendable LED strips
- Type of protection: IP44
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
- Do not connect the rope light to the supply while it is wound onto a reel. Do not use the lightstrip when covered or recessed into a surface. The string of lights may not be operated within the packaging. Do not open the lightstrip.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
| Nominal wattage | 24.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 135.000 mA |
| Inrush current | 32 mA |
| Power factor λ | > 0.5 |
| Total harmonic distortion | < 70 % |
| Protection class | II |
Photometrical data
| Luminous flux | 1900 lm |
| Total luminous flux of contained light sources | 2100 lm |
| Luminous efficacy | 79 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | < 6 sdcm |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | < 0.4 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 170 ° |
Dimensions & Weight
| Length | 5050.00 mm |
| Height | 4.00 mm |
| Width | 12.00 mm |
| Product weight | 360.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Silicone |
| Cover material | Silicone |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…80 °C |
| Type of connection | Plug type C (EU) |
| Type of protection | IP44 |
| Dimmable | No |
| Mounting type | Surface |
| Application environment | Outdoor |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 15000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854095320 | Folding box 1 |
67 mm x 192 mm x 193 mm | 412.00 g | 2.48 dm³ |
| 4099854095337 | Shipping box 8 |
400 mm x 280 mm x 215 mm | 3807.00 g | 24.08 dm³ |
User instruction / safety instructions
UI FLEX COB WHITE OUTDOOR
UI FLEX COB WHITE OUTDOOR
Legal information
Legal Insert FLEX COB OUTDOOR
Legal Insert FLEX COB OUTDOOR
Declarations of conformity
CE Declaration Flex COB and Audio
CE Declaration Flex COB and Audio

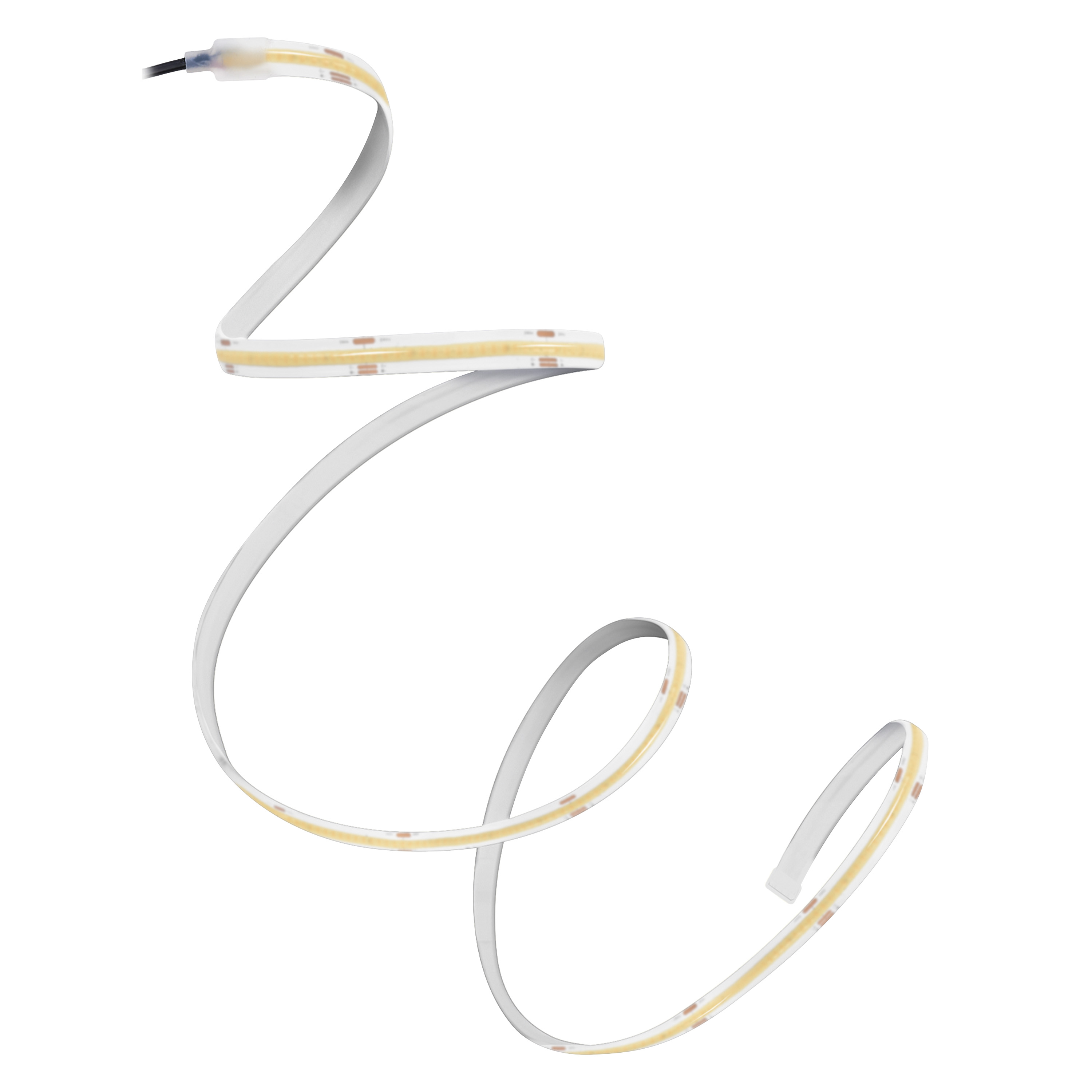

Product image: white background, upright
FLEX COB OUTDOOR 5M
FLEX COB OUTDOOR 5M

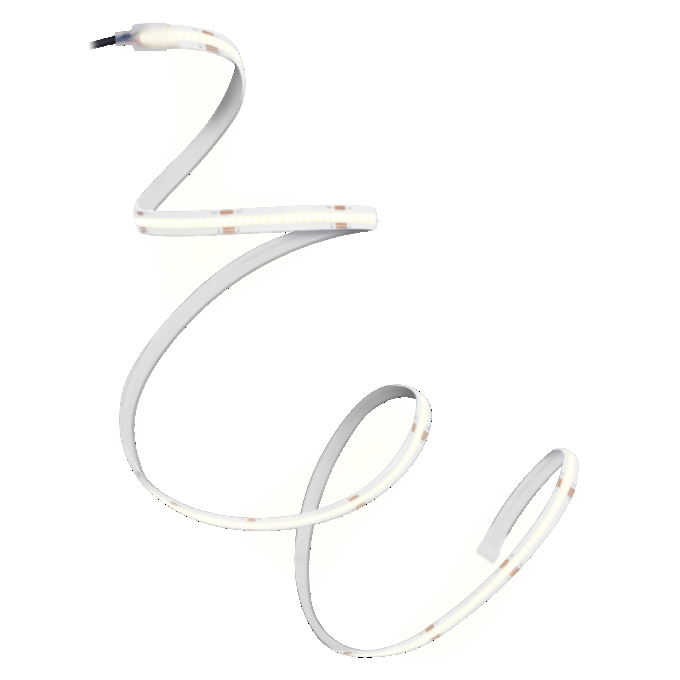

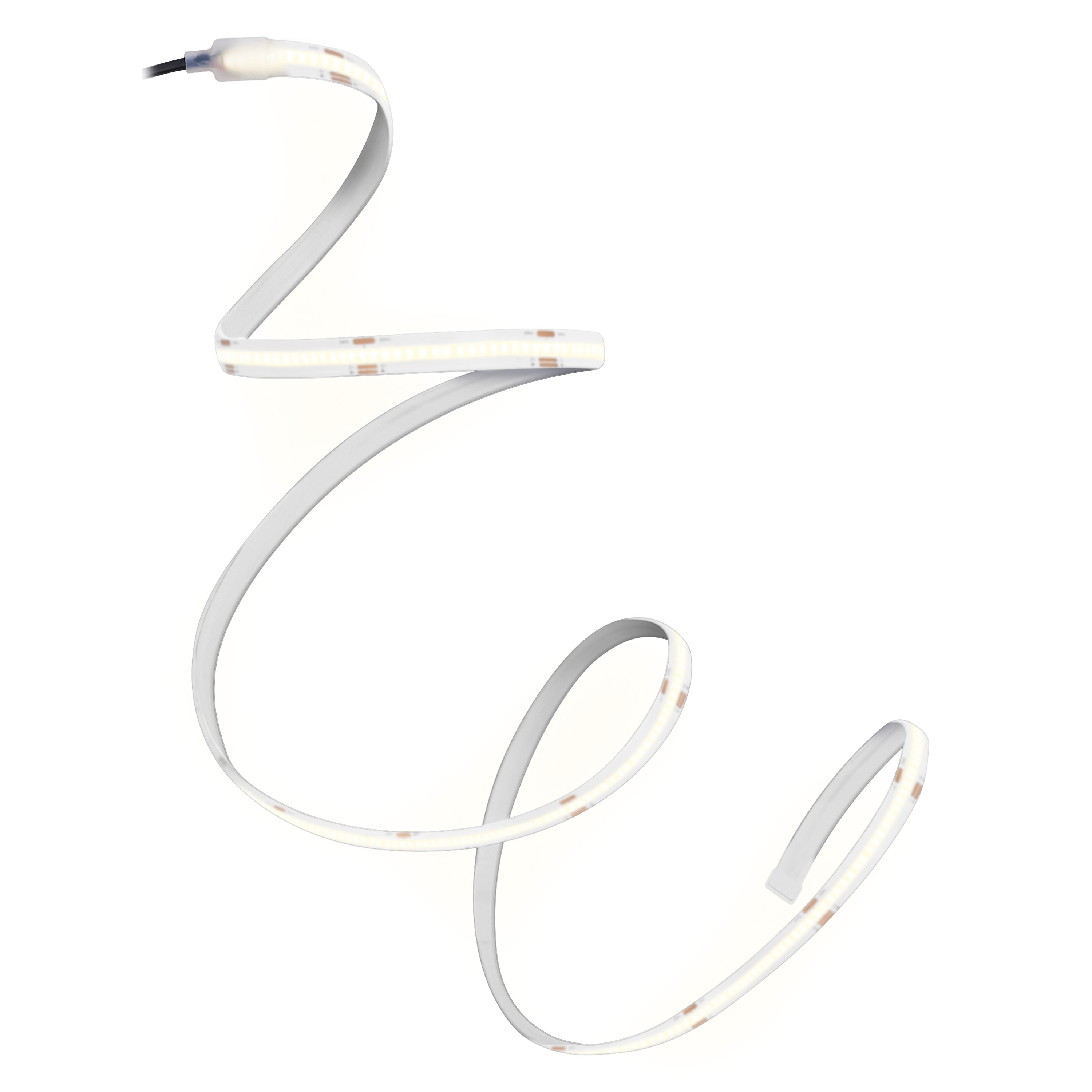

Product image: white background, upright, switched on
FLEX COB OUTDOOR 5M
FLEX COB OUTDOOR 5M
Product infographic (application image with text and graphic)
SmartP Wifi Magic E-Com_Grafik 1200x1200px 2023 EN
SmartP Wifi Magic E-Com_Grafik 1200x1200px 2023 EN
Product line drawing with letters
FLEX COB OUTDOOR 3M
FLEX COB OUTDOOR 3M
Product line drawing with numbers
FLEX COB OUTDOOR 5M
FLEX COB OUTDOOR 5M
Product line drawing, front, no dimensions
FLEX COB OUTDOOR 3M
FLEX COB OUTDOOR 3M

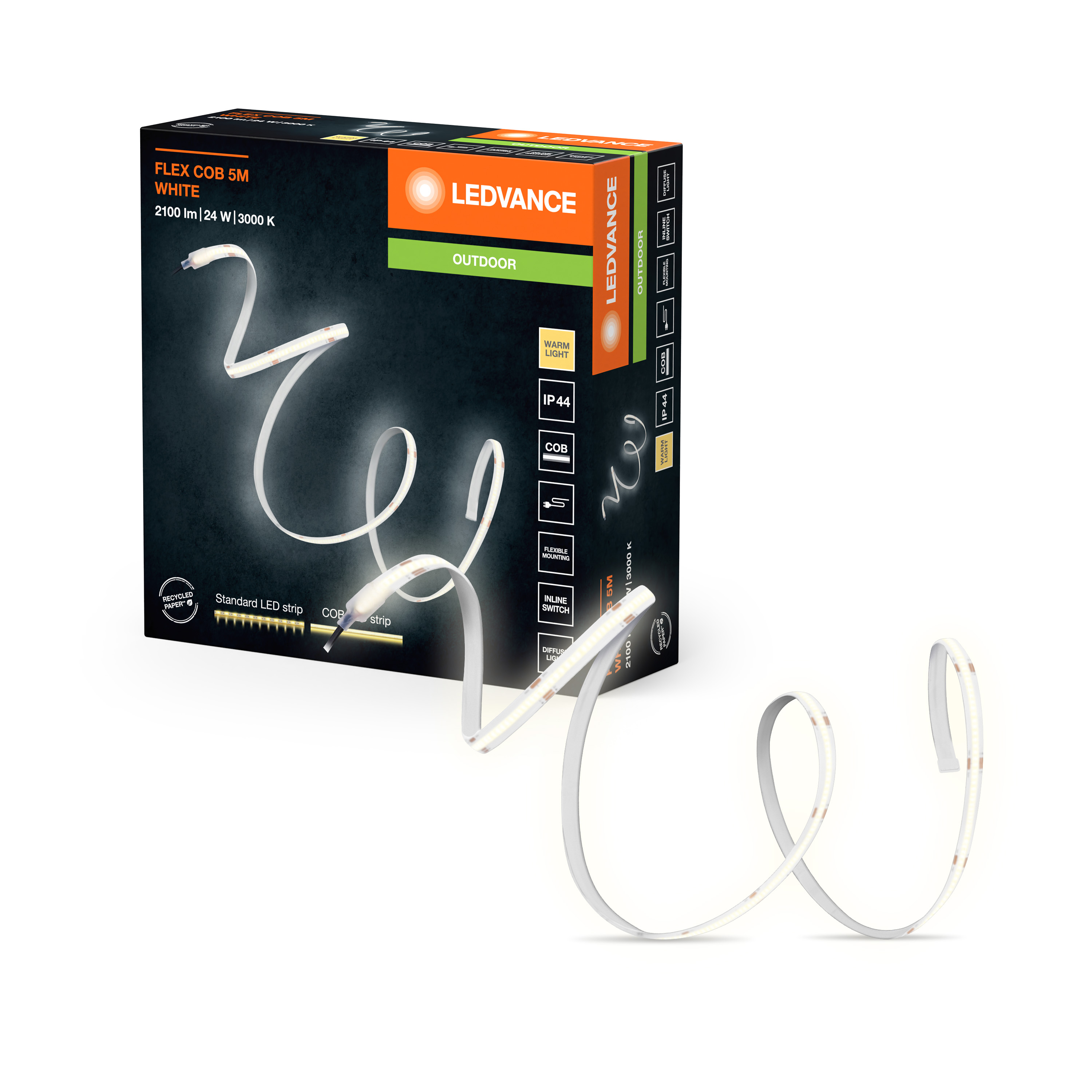

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC OD FLEX COB 5M 830 IP44
LUM FC OD FLEX COB 5M 830 IP44

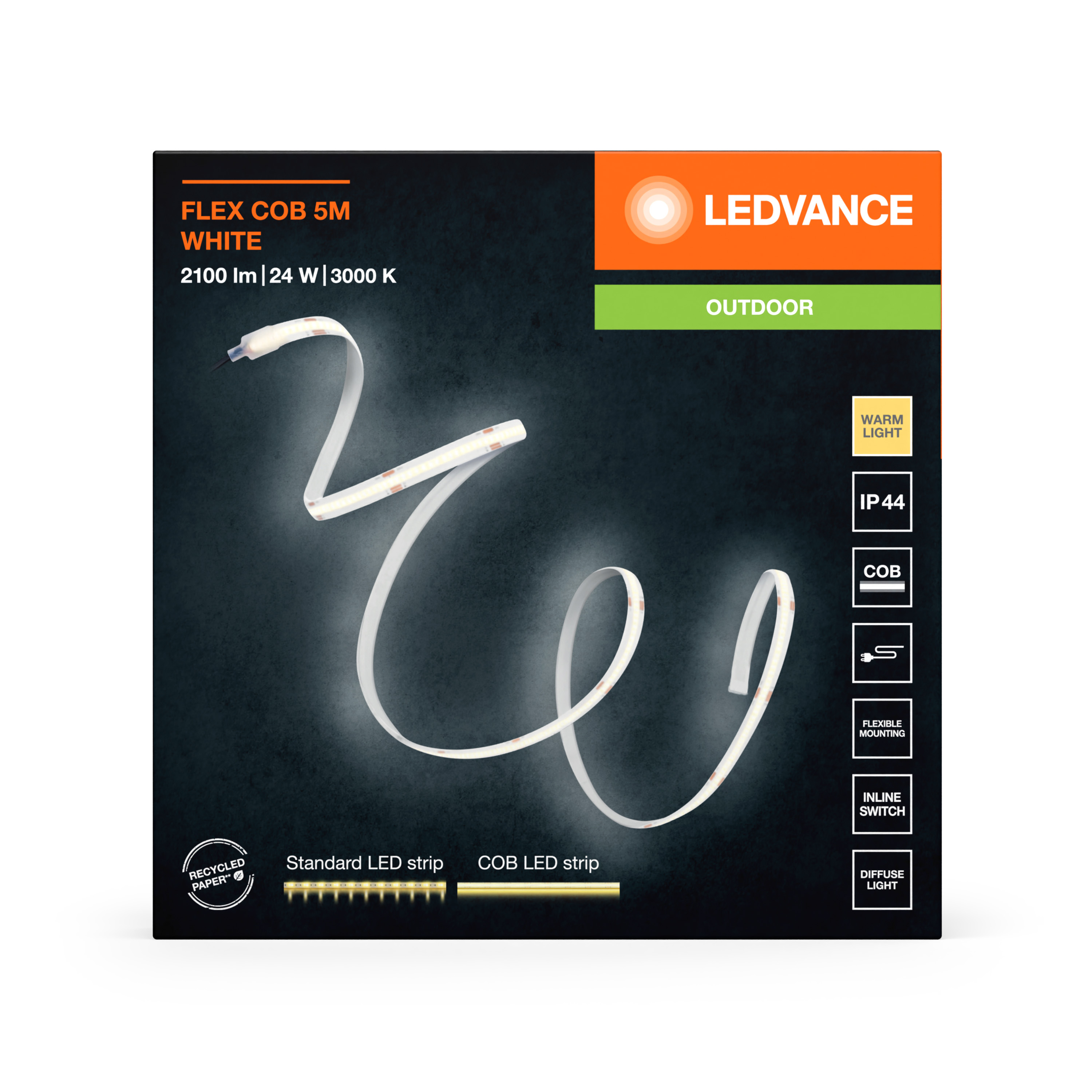

Packaging image, frontal
LUM FC OD FLEX COB 5M 830 IP44
LUM FC OD FLEX COB 5M 830 IP44
Packaging image, spacial
LUM FC OD FLEX COB 5M 830 IP44
LUM FC OD FLEX COB 5M 830 IP44

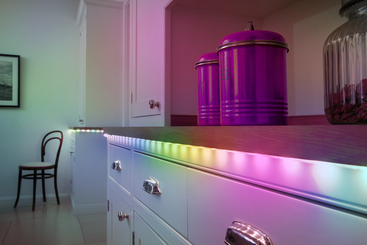

Application pictures
SMART+ Wifi Flexible Light Strips Colored
SMART+ Wifi Flexible Light Strips Colored

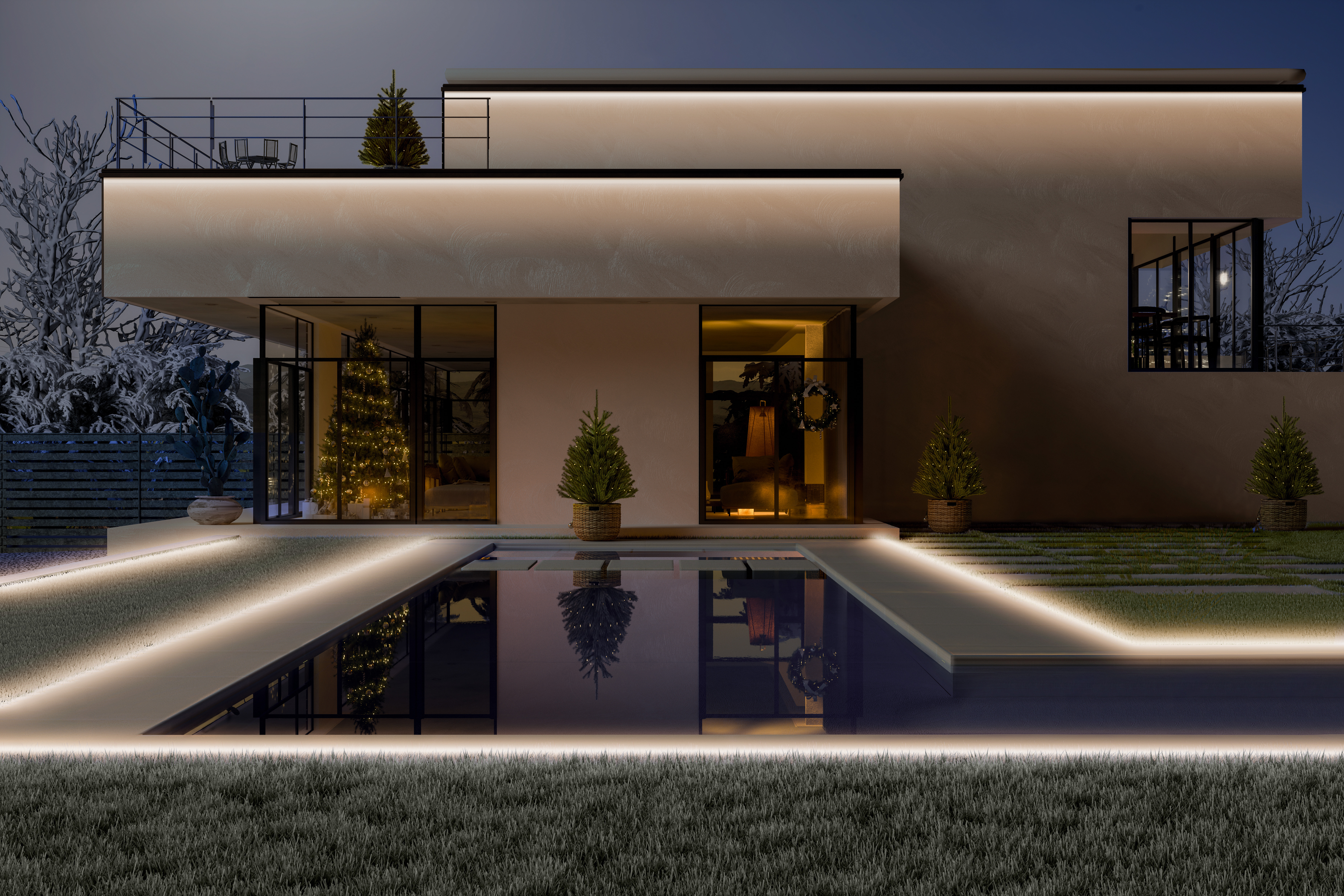

Application pictures Getty
