Endura Hybrid Ground

Endura Hybrid Spike 1W Stainles Steel

GTIN: 4058075834606 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Capable of using both, solar energy and power from electric grid
  • Easy installation and tool-free electrical connection without professional knowledge, independent from power supply
  • 12V direct current voltage for highest safety for human and animal
  • Product types for different usecases available
  • Various types with adjustable luminaire head
  • Surface and ground mounting options with spikes
  • Sustainable energy
Areas of application
  • Gardens and other outdoor areas
  • Patios, balconies
  • Entrance lighting
  • Building facades
Product features
  • Maximum connected load per solar panel = 24W
  • IP67 protection of connection plugs
  • When connected to the power grid, luminaire automatically switches to mains current once solar panel battery runs out of energy
  • IP44 protection of luminaires
  • Durable housing material
Safety advice
  • To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
Electrical data
Nominal wattage 1.00 W
Nominal voltage 12 V
Nominal current 83.000 mA
Protection class III
Operating mode Mains voltage
Photometrical data
Luminous flux 70 lm
Total luminous flux of contained light sources 120 lm
Luminous efficacy 70 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra ≥ 80
Standard deviation of color matching ≤6 sdcm
Flickering metric (Pst LM) <1 %
Stroboscope effect metric (SVM) <0.4
Photobiological safety group acc. to EN62778 RG0
Beam angle 120 °
Dimensions & Weight
Diameter 100.00 mm
Height 114.50 mm
Product weight 250.00 g
Cable length 300 mm
Materials & Colors
Product color Steel
Housing color Steel
Body material Stainless steel
Cover material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 650 °C
Application & Mounting
Ambient temperature range -20…40 °C
Type of connection Fast connector
Type of protection IP44
Protection class IK (shock resistance) IK03
Dimmable No
Mounting type Ground spike
Application environment Outdoor
With light source Yes
Replaceable light source No
Lifespan
Lifespan L70/B50 at 25 °C 25000 h 1)
Number of switching cycles 12500
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
Standards CE, UKCA
Luminaire with limited surface temperature, "D sign" No
Replaceable light source (EPREL) Not replaceable
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075834606 Folding box
1		 112 mm x 112 mm x 73 mm 289.00 g 0.92 dm³
4058075834613 Shipping box
4		 240 mm x 130 mm x 171 mm 1301.00 g 5.34 dm³
User instruction / safety instructions
ENDURA HYBRID INGROUND SPIKE 1W ST
PDF (1.24 MB)
Addon technical information
Hybrid assembly in 3 steps EN
JPG (1.77 MB)
Addon technical information
Hybrid Installation in 3 Schritten DE
JPG (1.88 MB)
Legal information
ENDURA HYBRID
PDF (642.69 KB)
Declarations of conformity
CE Declaration ENDURA HYBRID
PDF (387.39 KB)

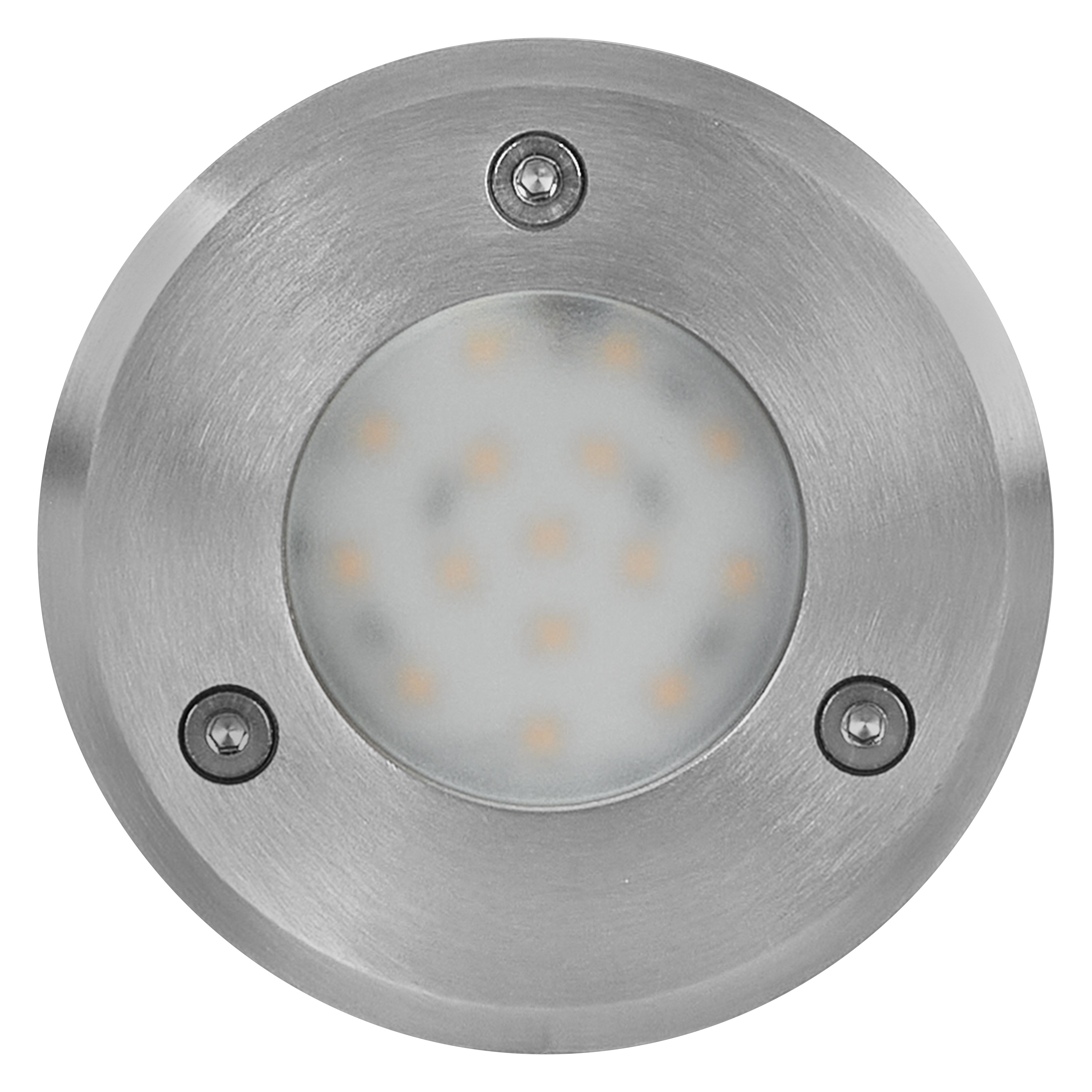

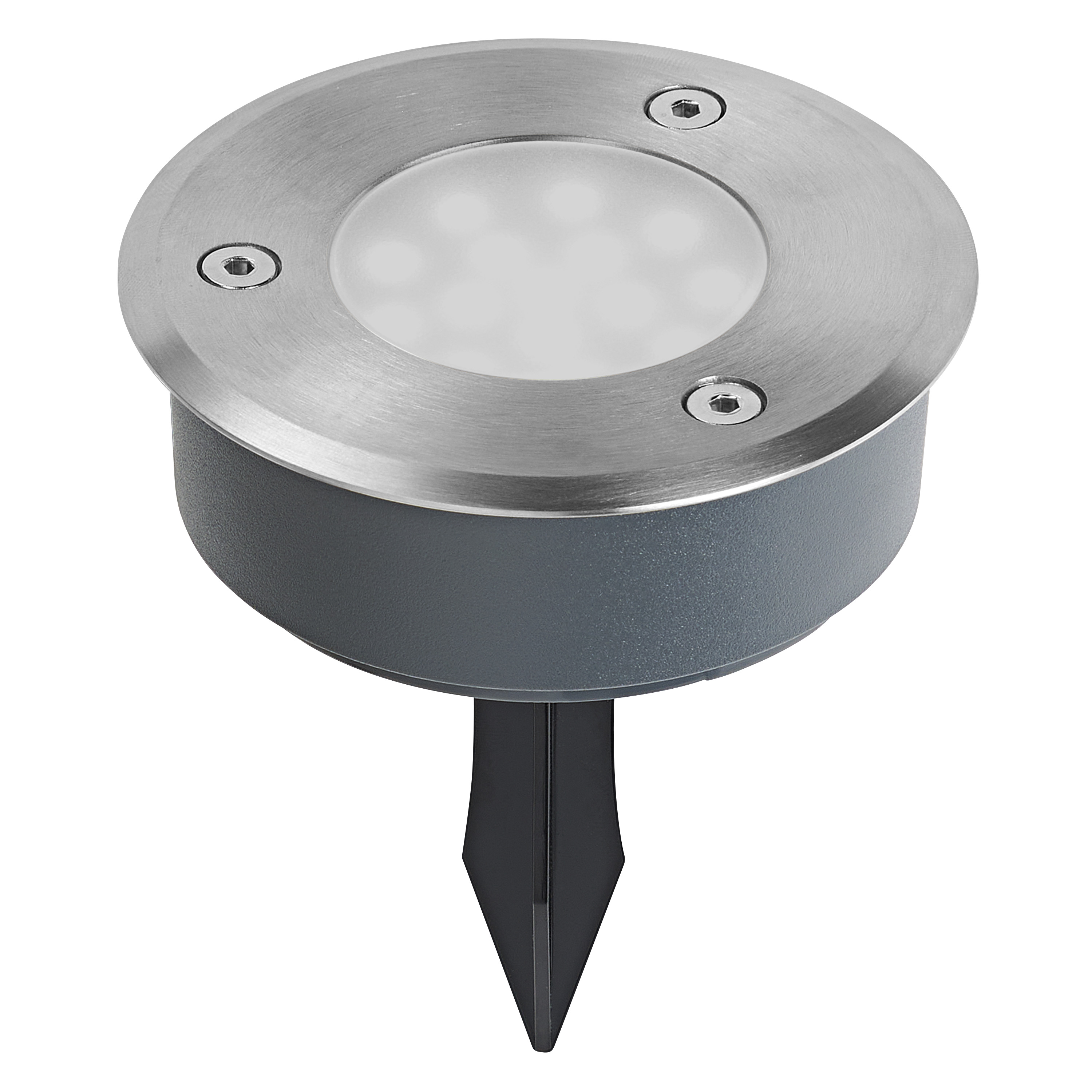

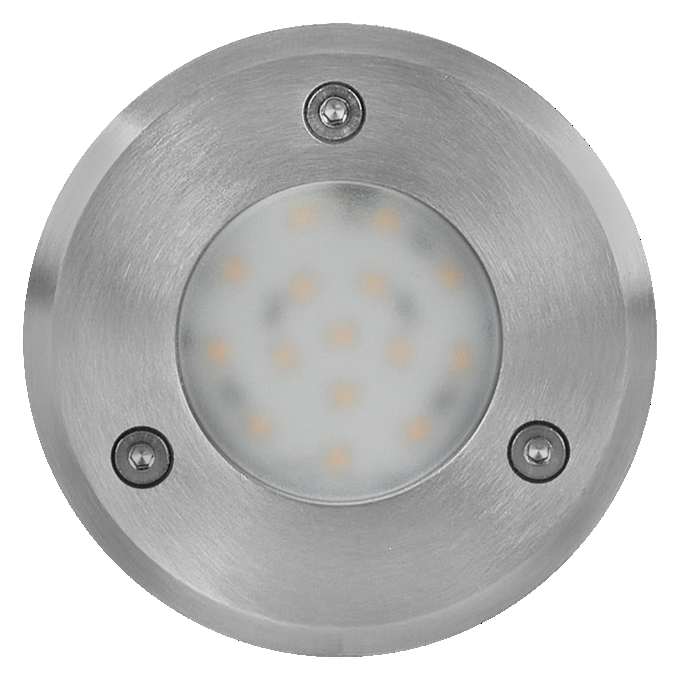

Product image: white background, upright
ENDURA HYBRID INGROUND SPIKE 1W ST
JPG (809.77 KB)
Product image: white background, upright, alternative image
ENDURA HYBRID INGROUND SPIKE 1W ST
JPG (832.3 KB)

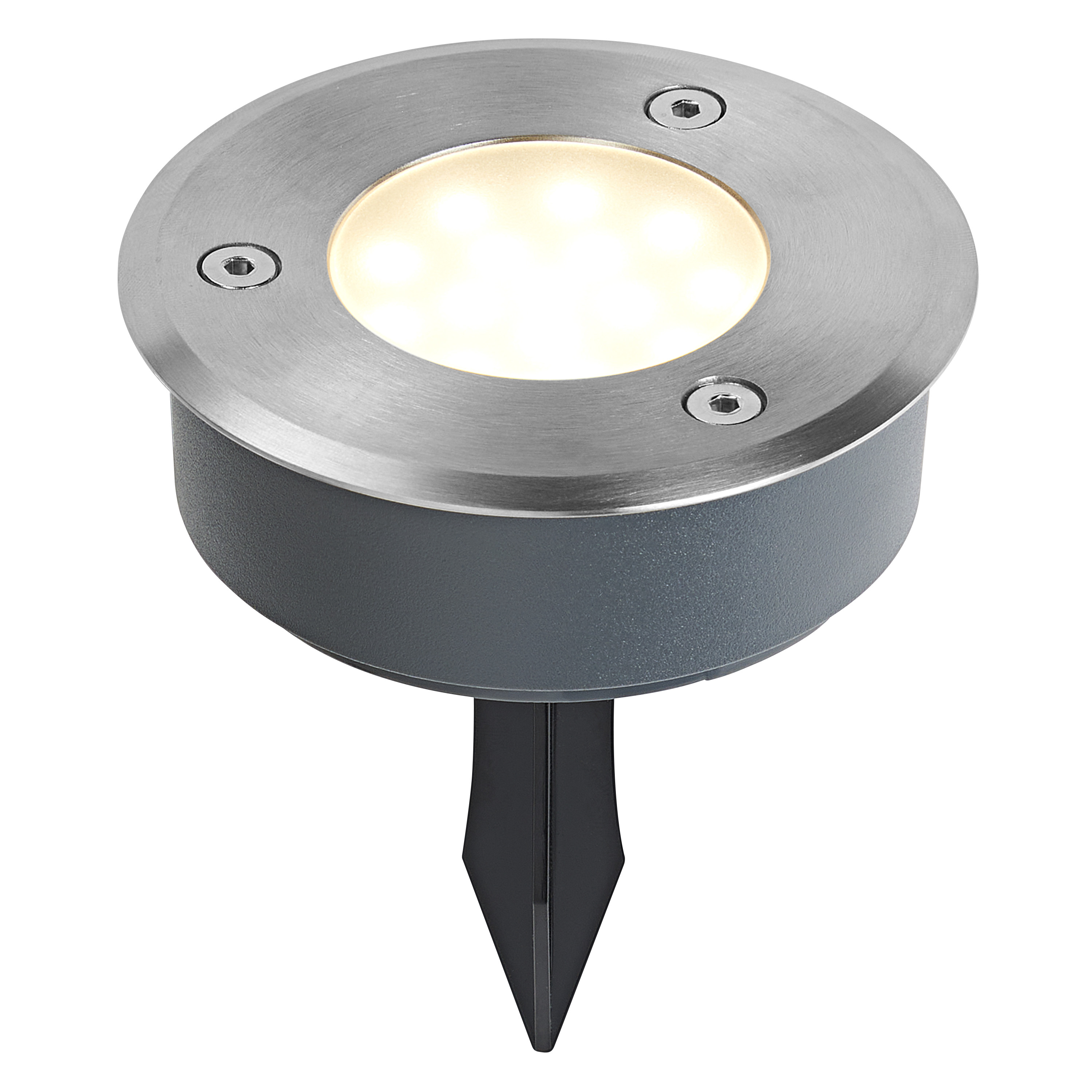

Product image: white background, upright, switched on
ENDURA HYBRID INGROUND SPIKE 1W ST
JPG (824.47 KB)
Product infographic (application image with text and graphic)
LED solar light e-Com graphic 2024 EN
JPG (1.36 MB)
Product infographic (application image with text and graphic)
Modular solar system e-Com graphic 2024 EN
JPG (569.27 KB)
Product line drawing with letters
ENDURA HYBRID INGROUND SPIKE 1W
SVG (116.85 KB)

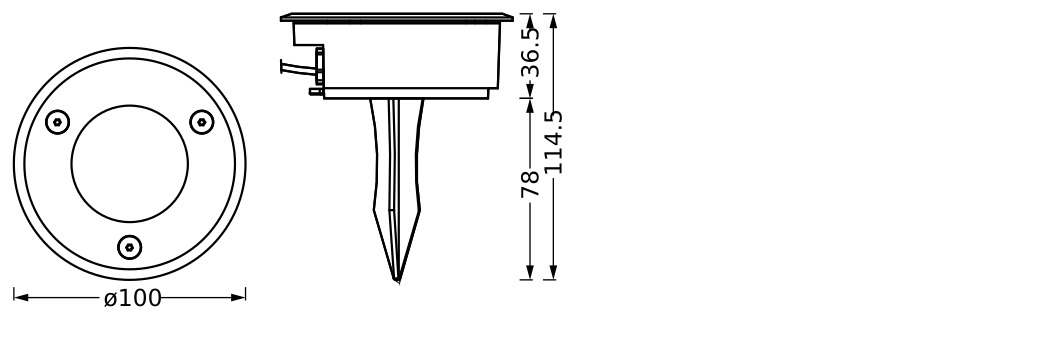

Product line drawing with numbers
ENDURA HYBRID INGROUND SPIKE 1W
JPG (29.33 KB)
Product line drawing, front, no dimensions
ENDURA HYBRID INGROUND SPIKE 1W
SVG (22.18 KB)

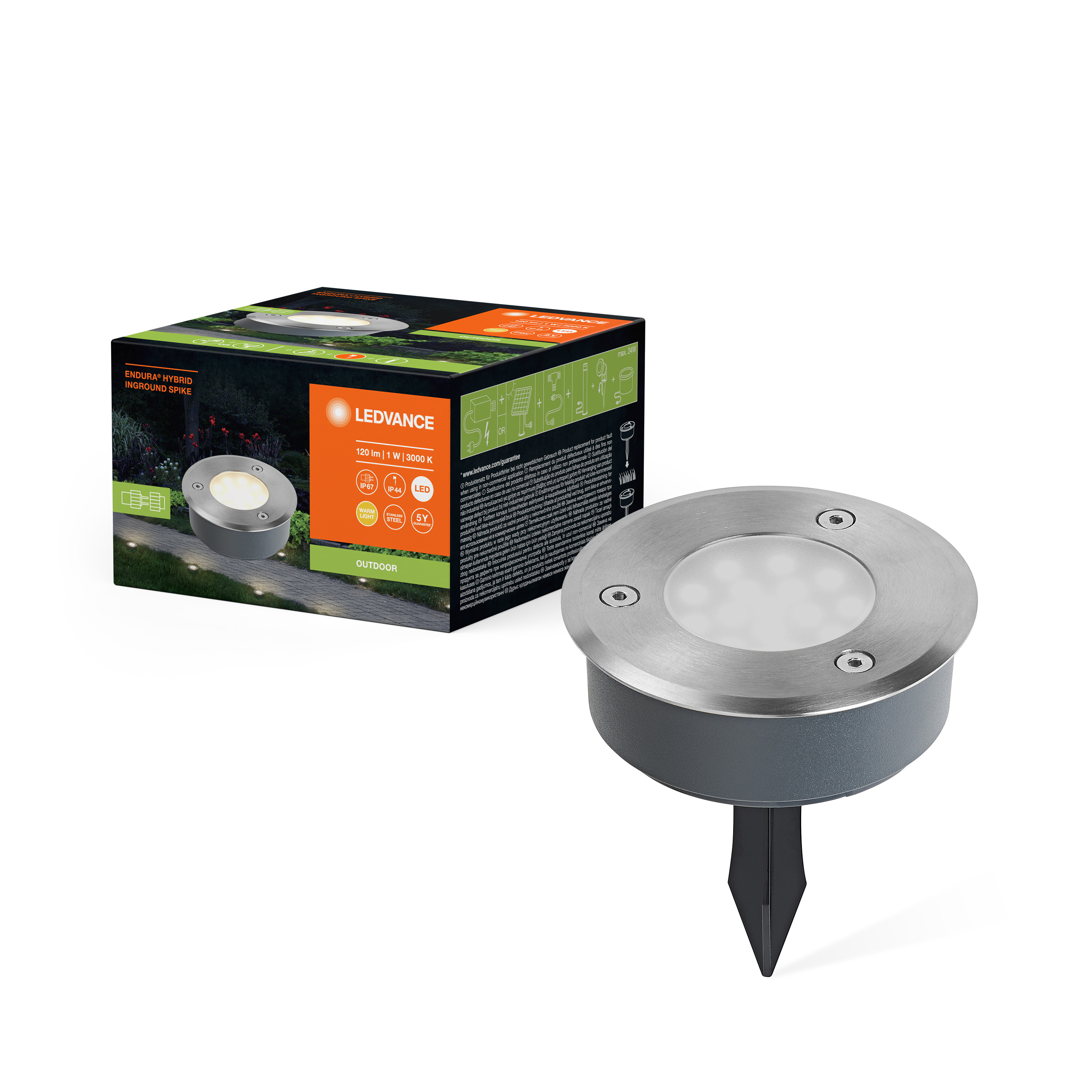

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC EH INGROUND SPIKE 1W ST
JPG (1.39 MB)
Packaging image, frontal
LUM FC EH INGROUND SPIKE 1W ST
JPG (1.29 MB)
Packaging image, spacial
LUM FC EH INGROUND SPIKE 1W ST
JPG (1.6 MB)
Application pictures

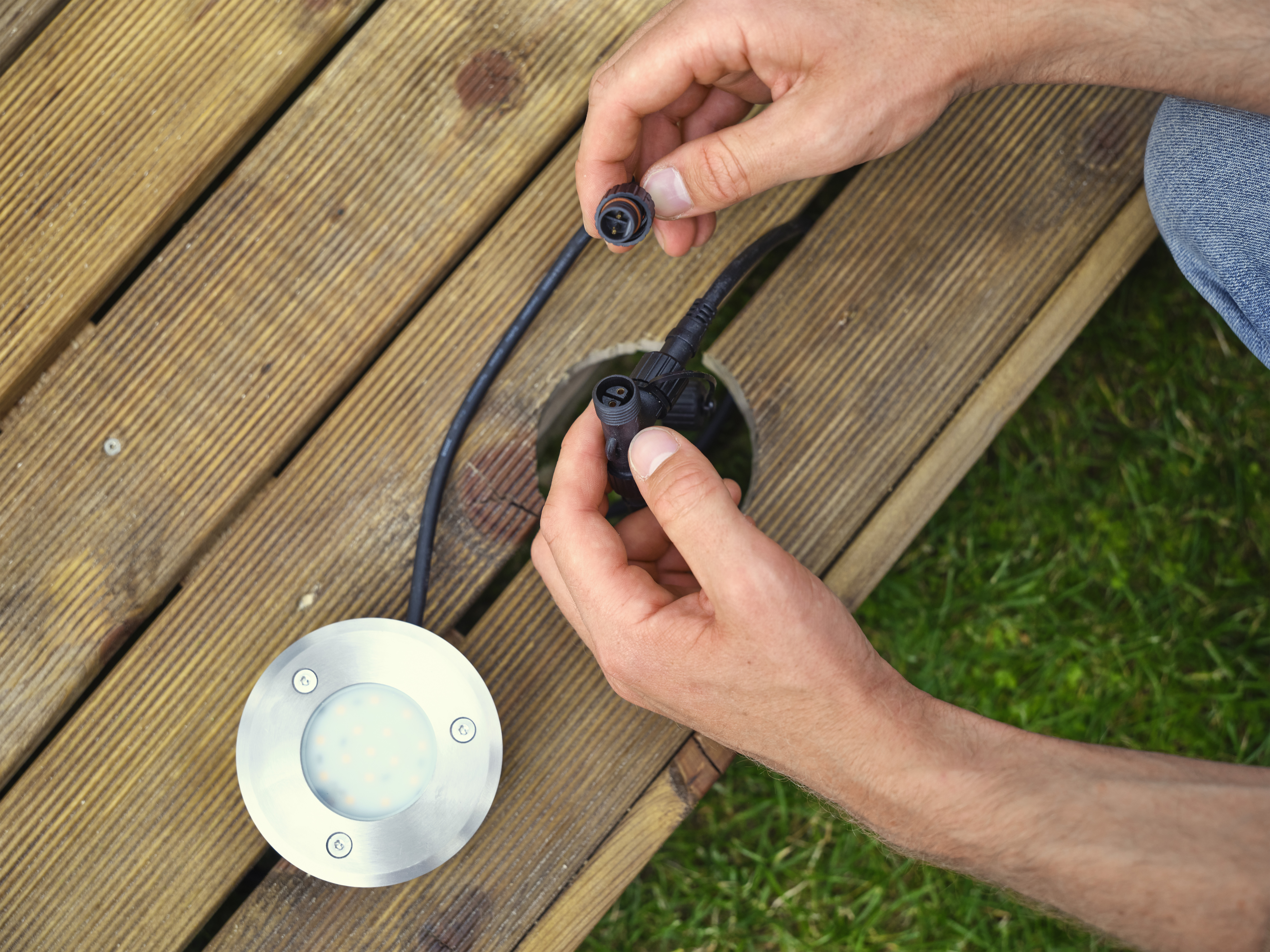

Hybrid Inground Spike installation 1
JPG (9.33 MB)
Application pictures

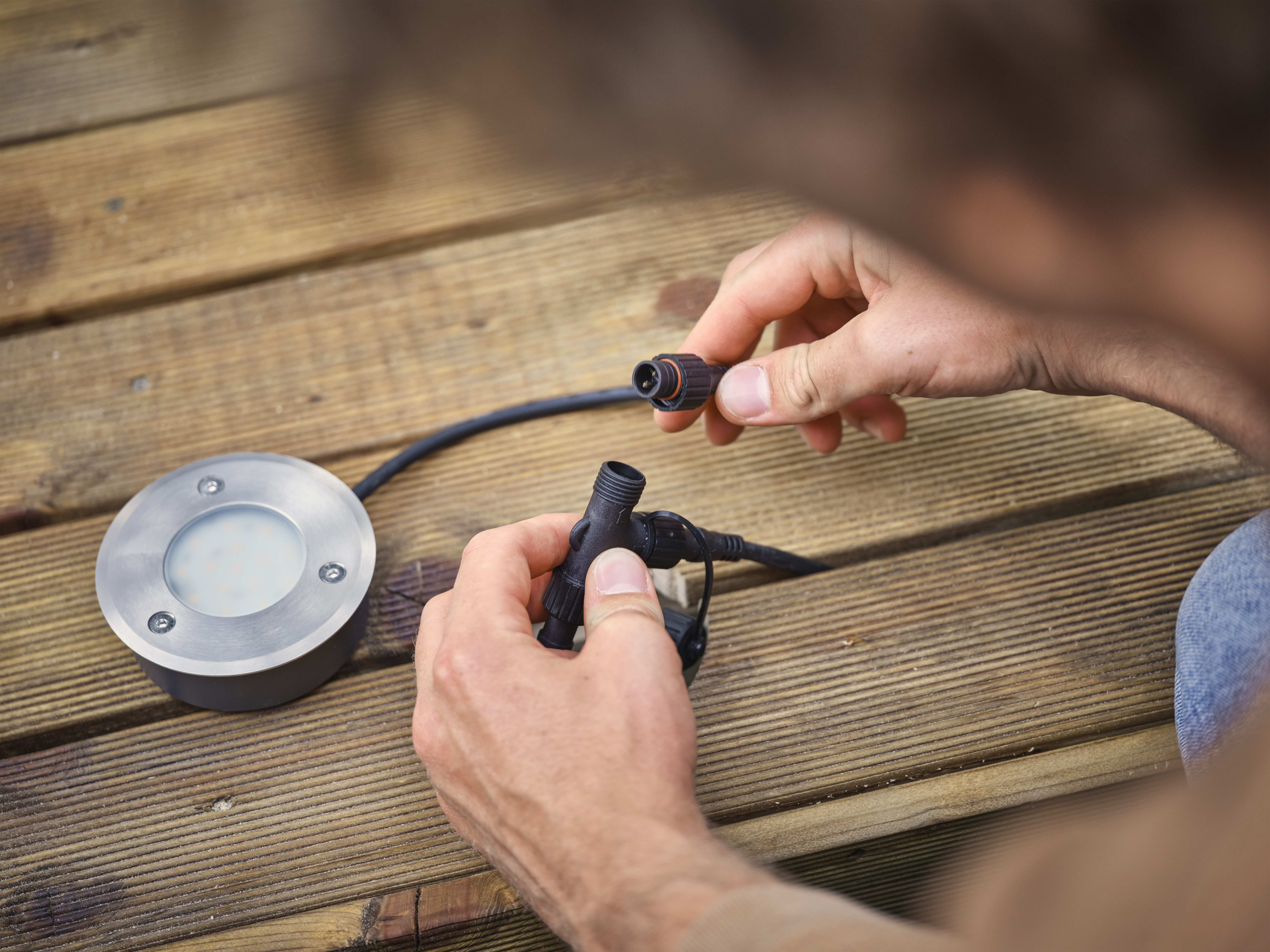

Hybrid Inground Spike installation 2
JPG (8.39 MB)
Application pictures

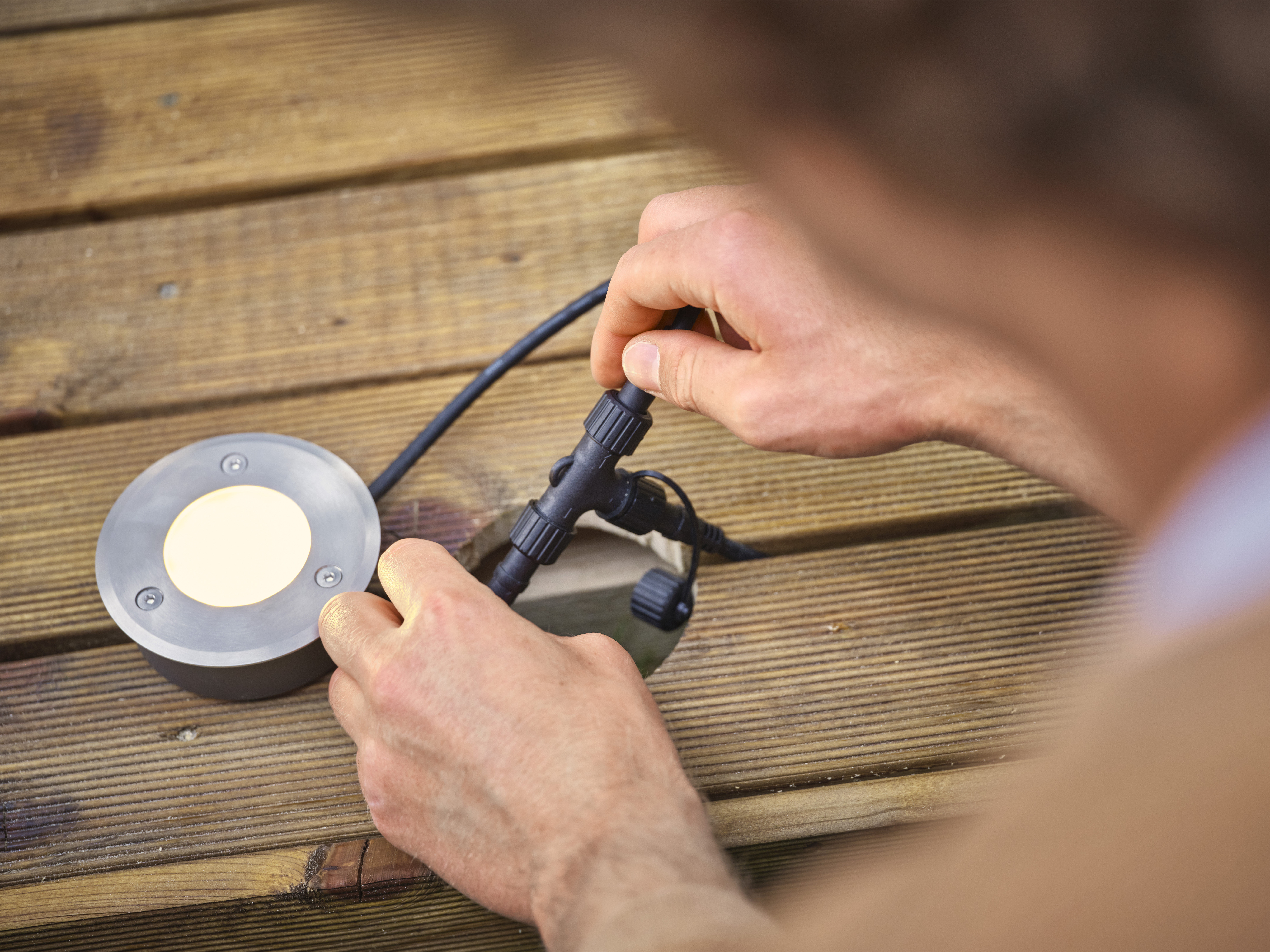

Hybrid Inground Spike installation 3
JPG (7.89 MB)
Application pictures

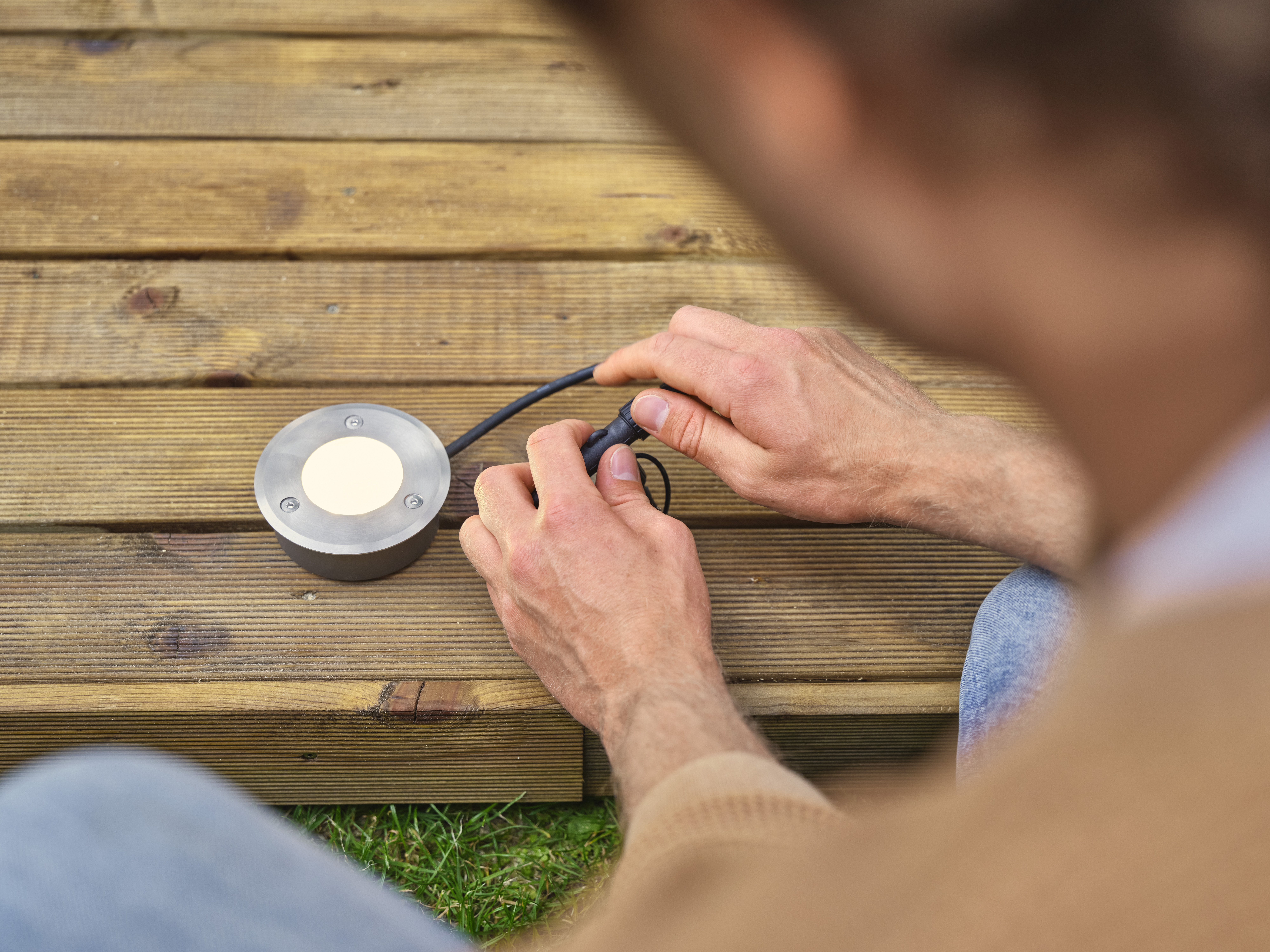

Hybrid Inground Spike installation 4
JPG (9.02 MB)
Application pictures

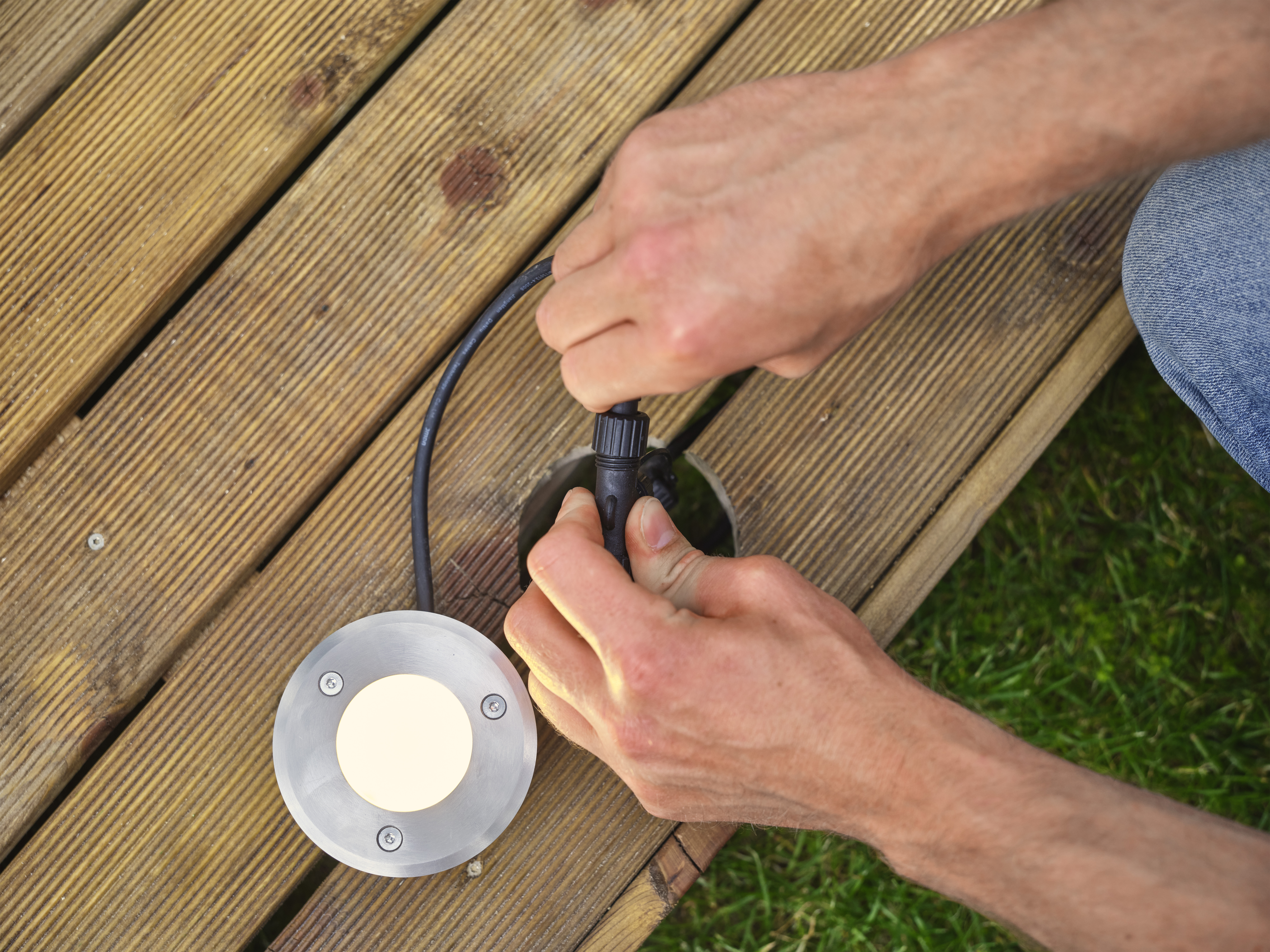

Hybrid Inground Spike installation 5
JPG (9.94 MB)
Application pictures
Hybrid Inground Spike installation with model
JPG (10.14 MB)
Application pictures

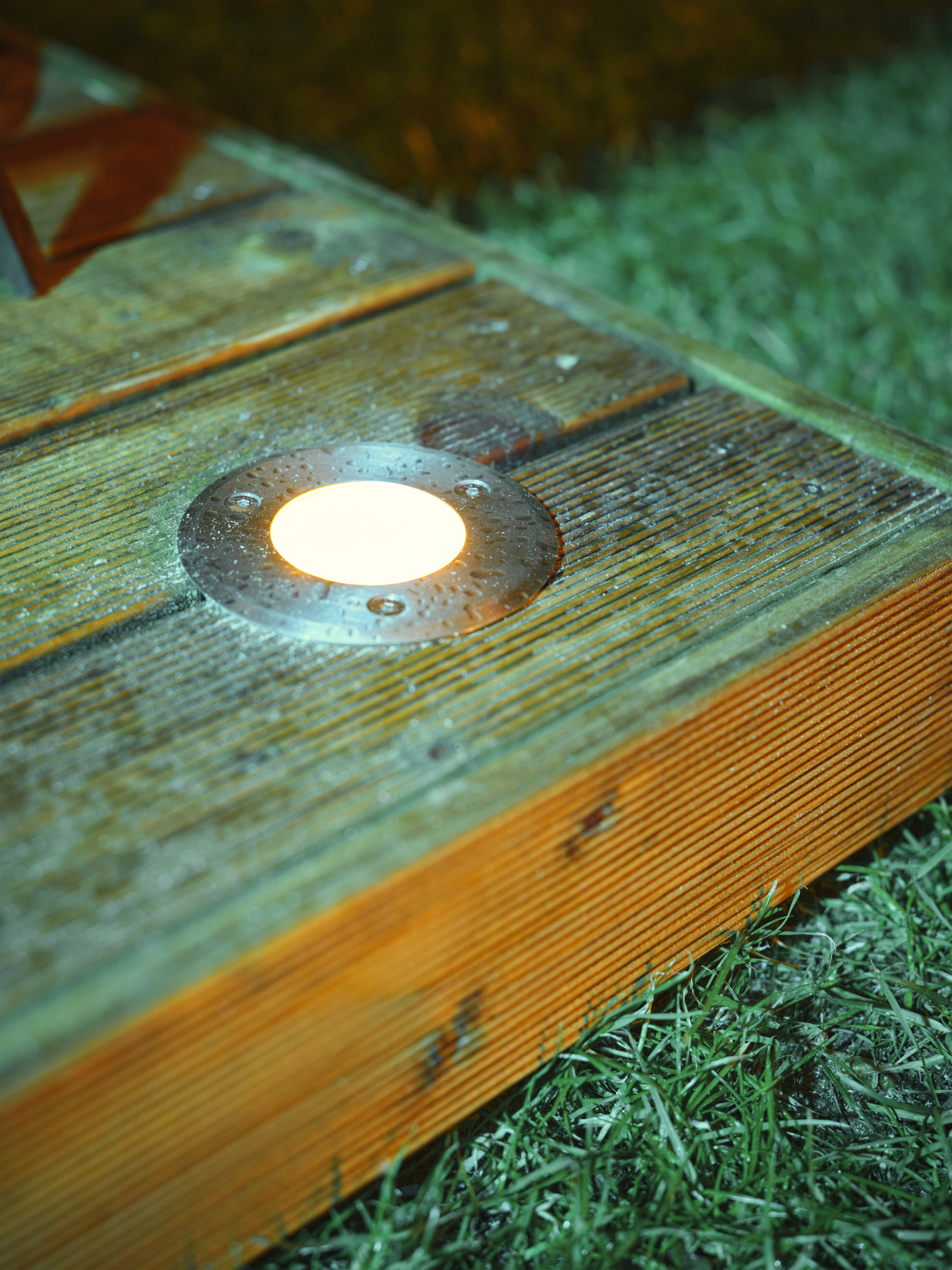

Hybrid Inground Spike close-up wet
JPG (11.45 MB)
Application pictures

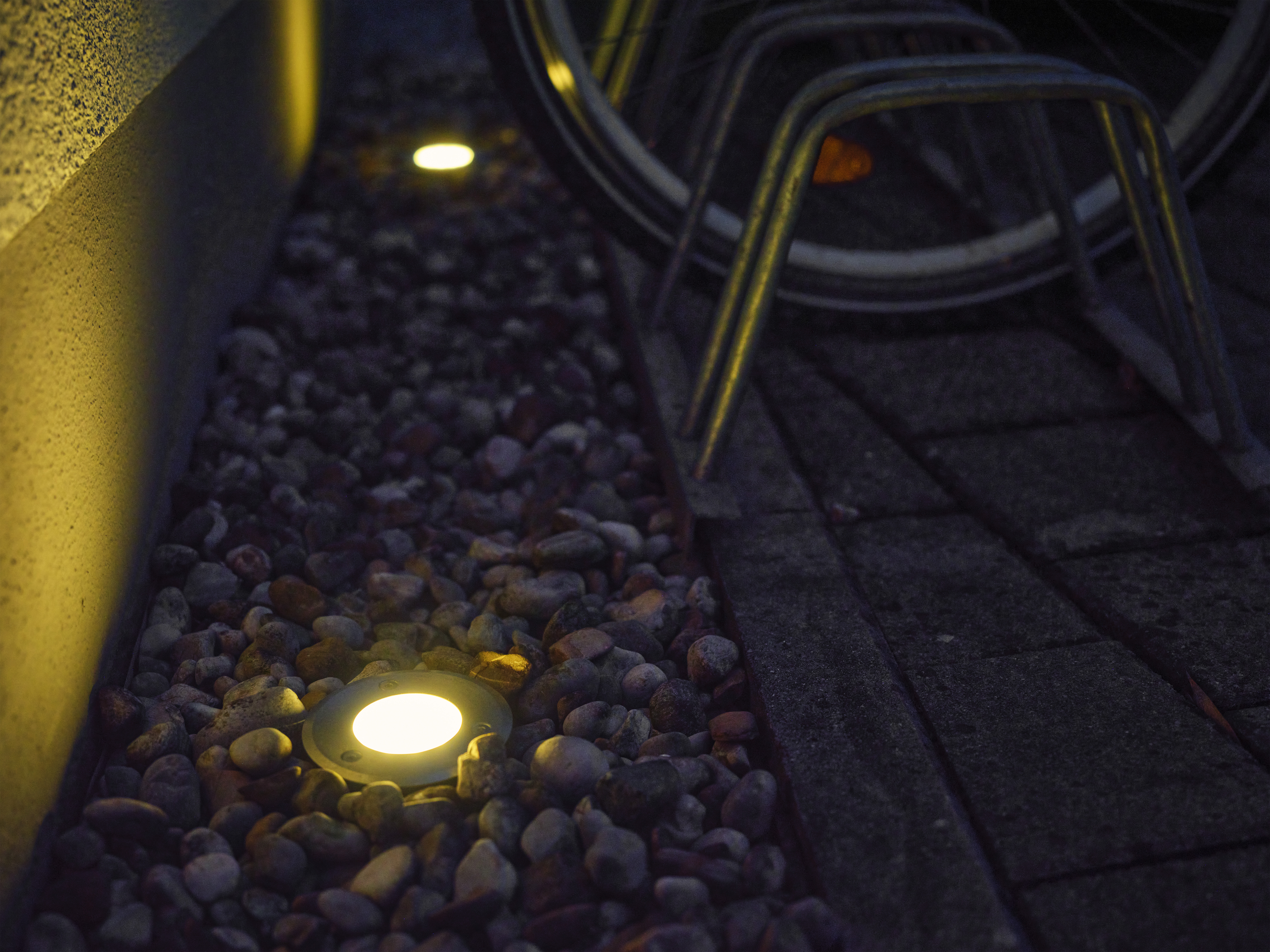

Hybrid Inground Spike close-up in gravel multiple
JPG (15.98 MB)
Application pictures

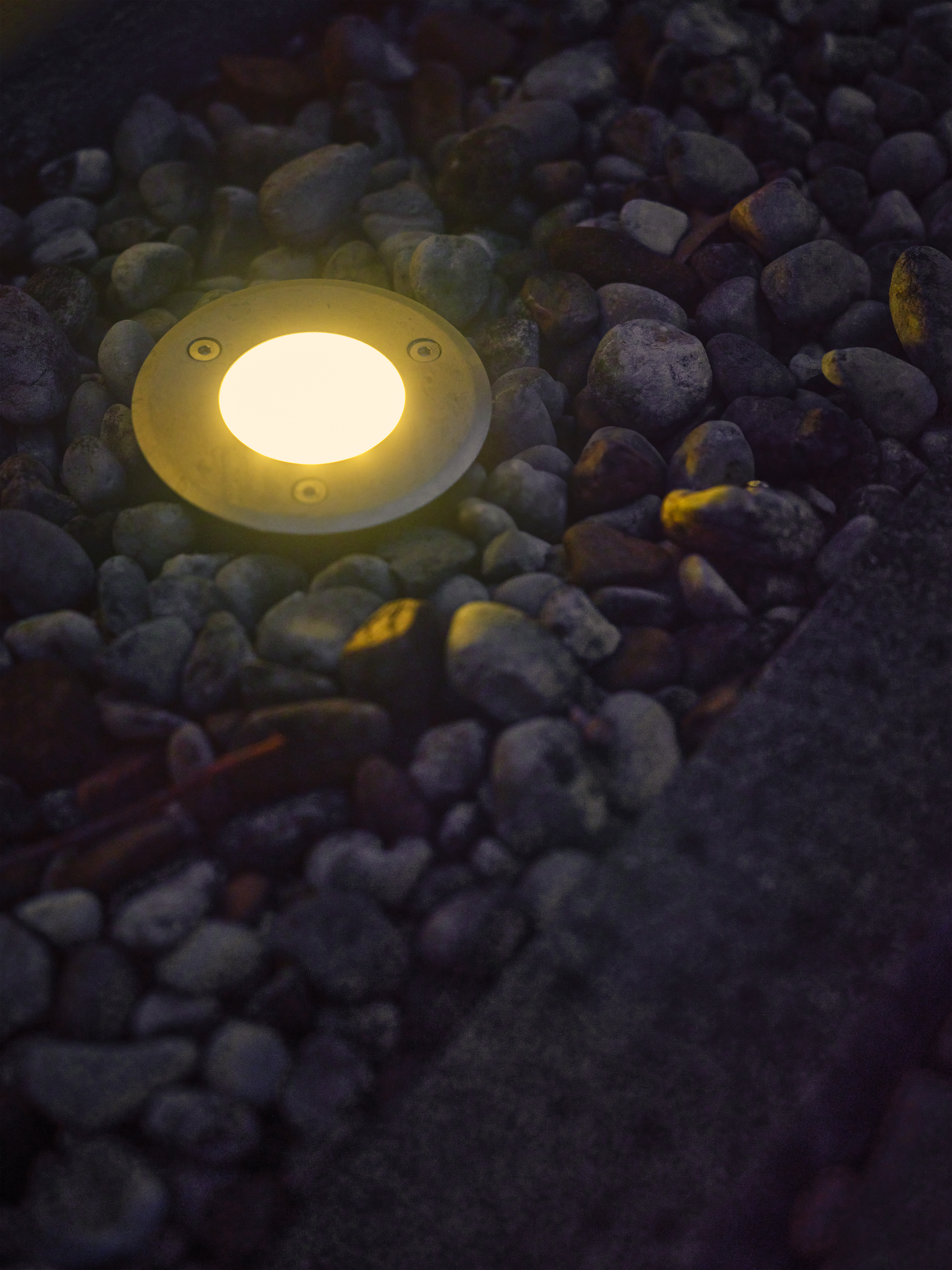

Hybrid Inground Spike close-up in gravel single
JPG (16.26 MB)
Application pictures Getty

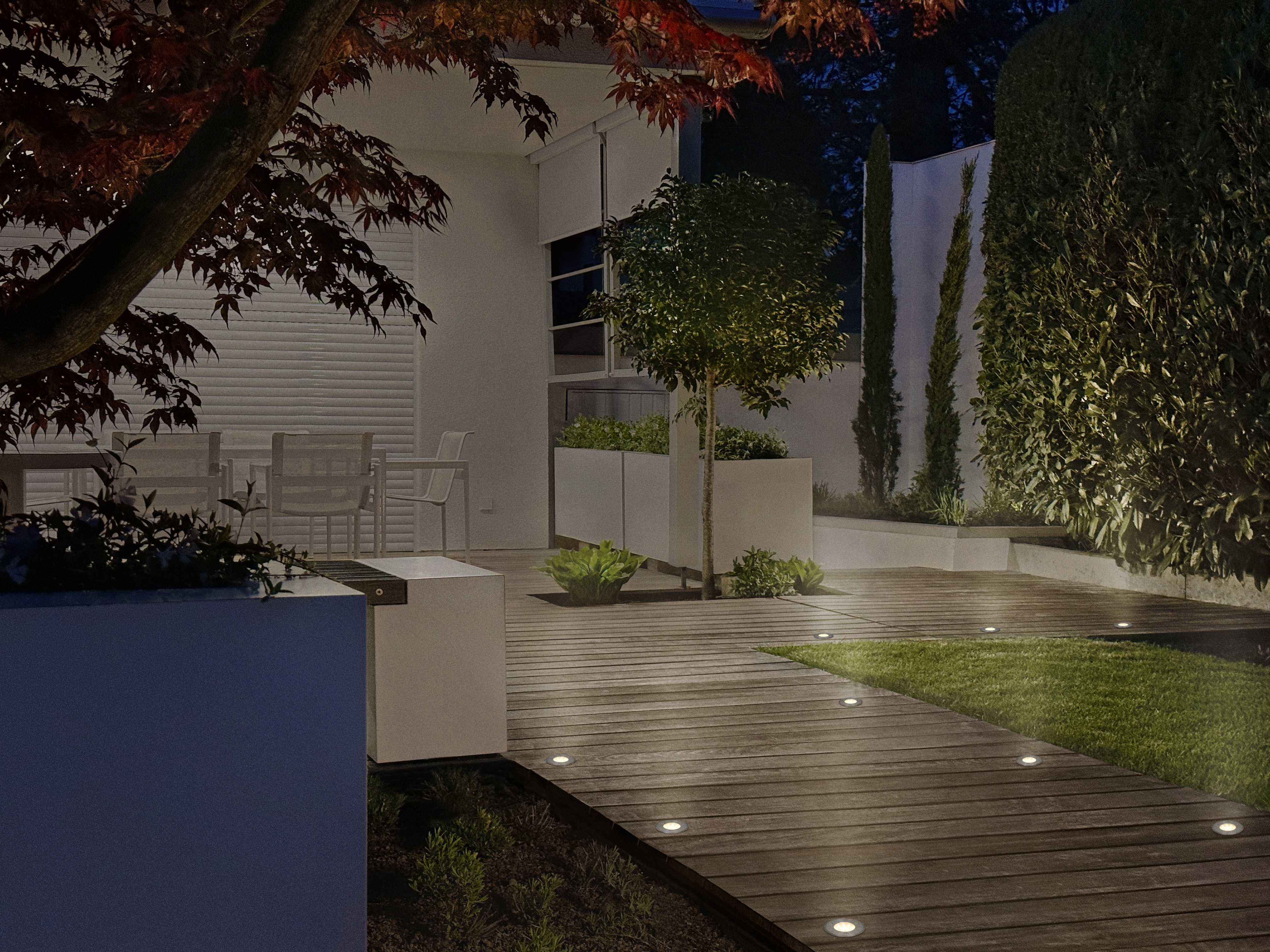

OUTDOOR HYBRID 12V SYSTEM ENDURA GARDEN
JPG (4.64 MB)
Application pictures Getty

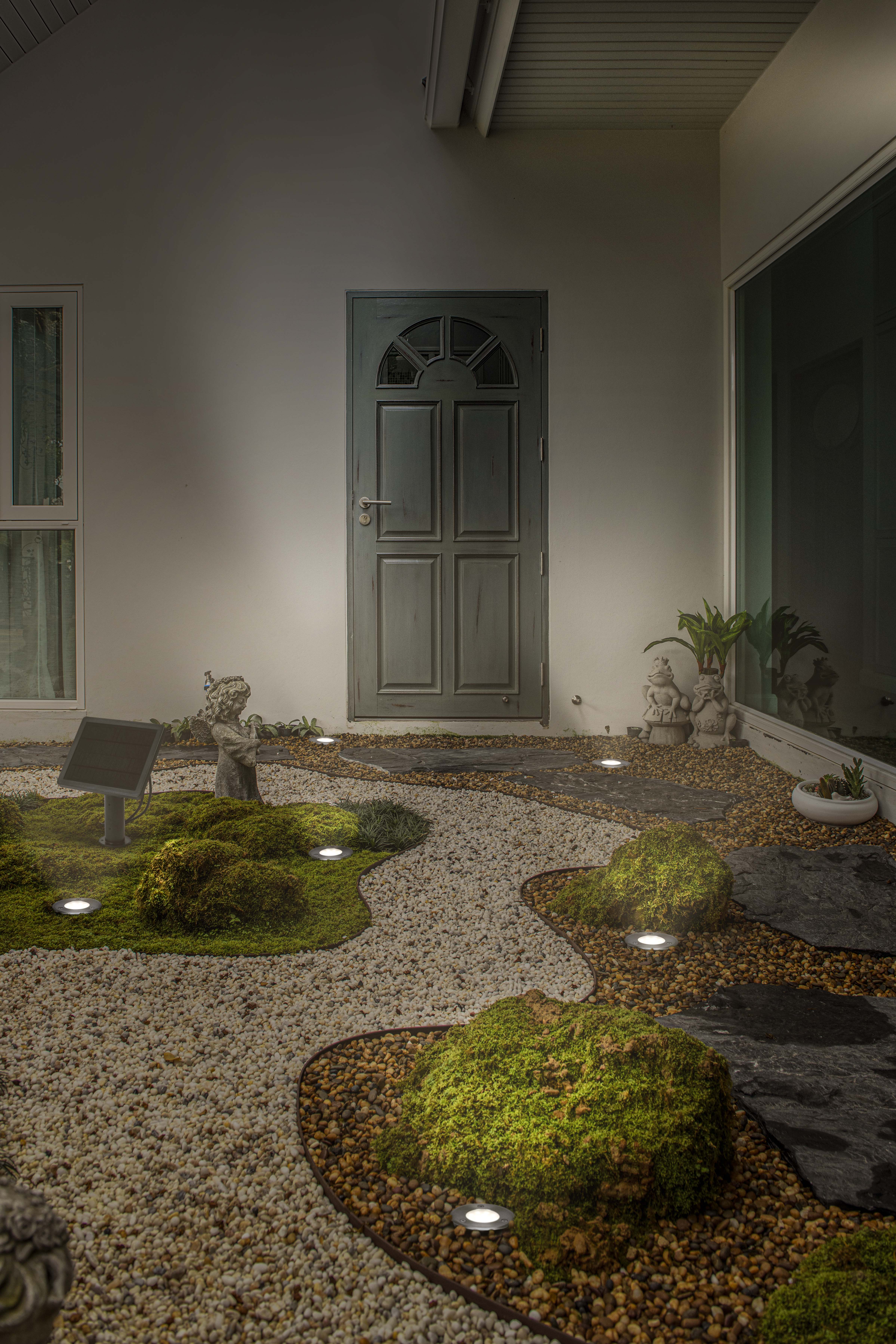

OUTDOOR ENDURA HYBRID INGROUND SPIKE 1W ST
JPG (2.52 MB)
Application pictures Getty

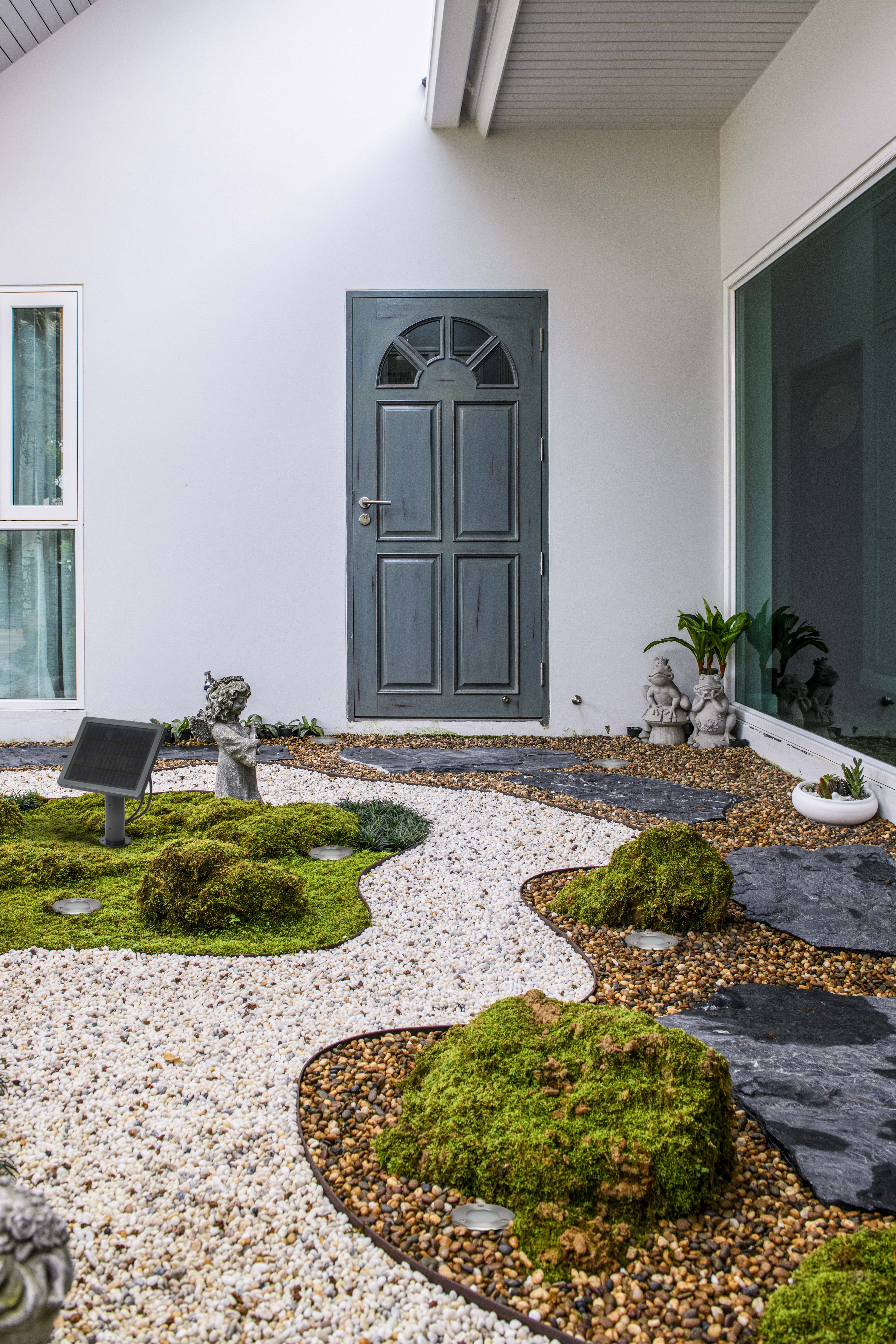

OUTDOOR ENDURA HYBRID INGROUND SPIKE 1W ST OFF
