Endura Hybrid Components

Endura Hybrid Connector Set Black

GTIN: 4058075834422 Folding box / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Capable of using both, solar energy and power from electric grid
  • Easy installation and tool-free electrical connection without professional knowledge, independent from power supply
  • 12V direct current voltage for highest safety for human and animal
  • Product types for different usecases available
Areas of application
  • Gardens and other outdoor areas
  • Patios, balconies
Product features
  • Maximum connected load per solar panel = 24W
  • IP67 protection of connection plugs
  • When connected to the power grid, luminaire automatically switches to mains current once solar panel battery runs out of energy
Safety advice
  • If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
  • Please avoid: Maximal ambient temperature: +35 °C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Altitude during operation: 2000 m. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
Dimensions & Weight
Length 52.0 mm
Height 48 mm
Width 20.0 mm
Product weight 210.00 g
Cable length 2500 mm
Materials & Colors
Product color Black
Body material Plastic/Rubber
Application & Mounting
Type of connection Fast connector
Type of protection IP44
With light source No
Replaceable light source No
Certificates & Standards
Standards CE, UKCA
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075834422 Folding box
1
62 mm x 72 mm x 213 mm 247.00 g 0.95 dm³
4058075834439 Shipping box
8
260 mm x 160 mm x 238 mm 2260.00 g 9.90 dm³
User instruction / safety instructions
ENDURA HYBRID CONNECTOR SET BK
Addon technical information
Hybrid assembly in 3 steps EN
Addon technical information
Hybrid Installation in 3 Schritten DE
Legal information
ENDURA HYBRID COMPONENTS
Declarations of conformity
CE Declaration ENDURA HYBRID

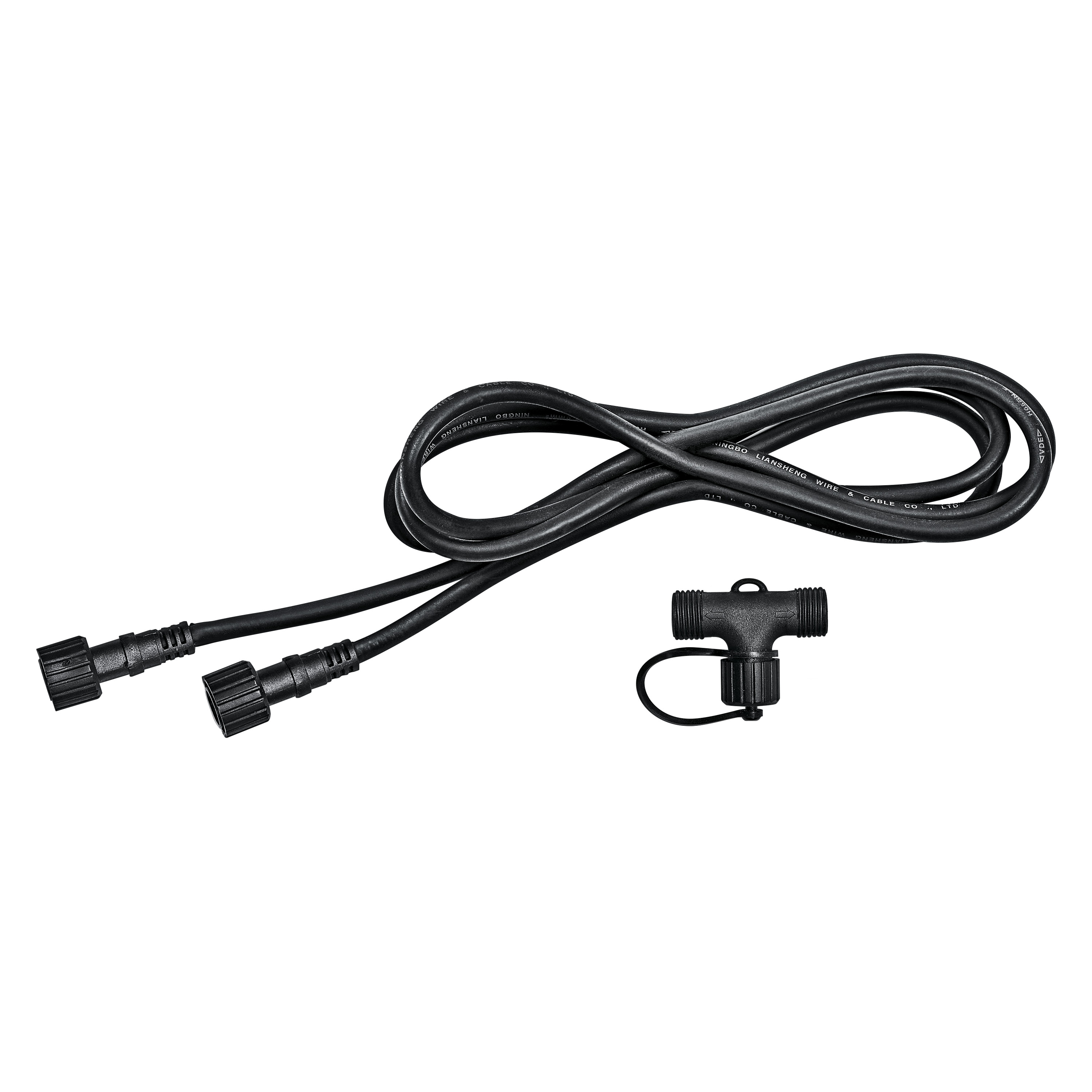

Product image: white background, upright
ENDURA HYBRID CONNECTOR SET BK
Product infographic (application image with text and graphic)
LED solar light e-Com graphic 2024 EN
Product infographic (application image with text and graphic)
Modular solar system e-Com graphic 2024 EN

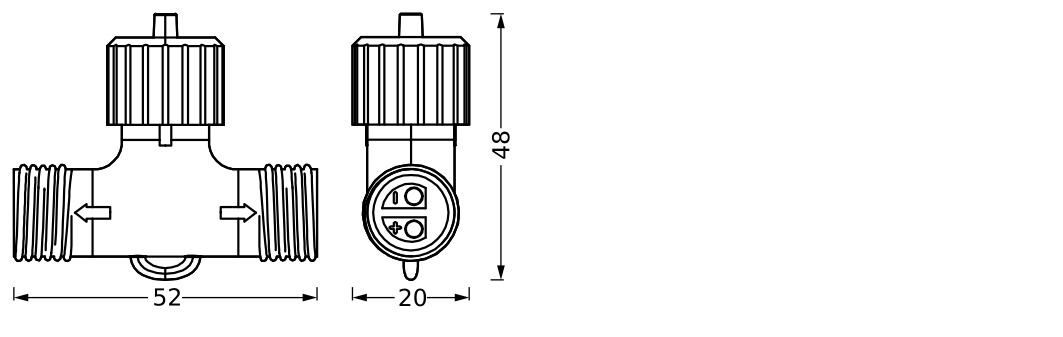

Product line drawing with letters
ENDURA HYBRID CONNECTOR SET
Product line drawing with numbers
ENDURA HYBRID CONNECTOR SET
Product line drawing, front, no dimensions
ENDURA HYBRID CONNECTOR SET
Combo Shot = Product Beauty Shot + Packaging Image
LUM FC EH CONNECTOR SET BK
Packaging image, frontal
LUM FC EH CONNECTOR SET BK
Packaging image, spacial
LUM FC EH CONNECTOR SET BK
Application pictures

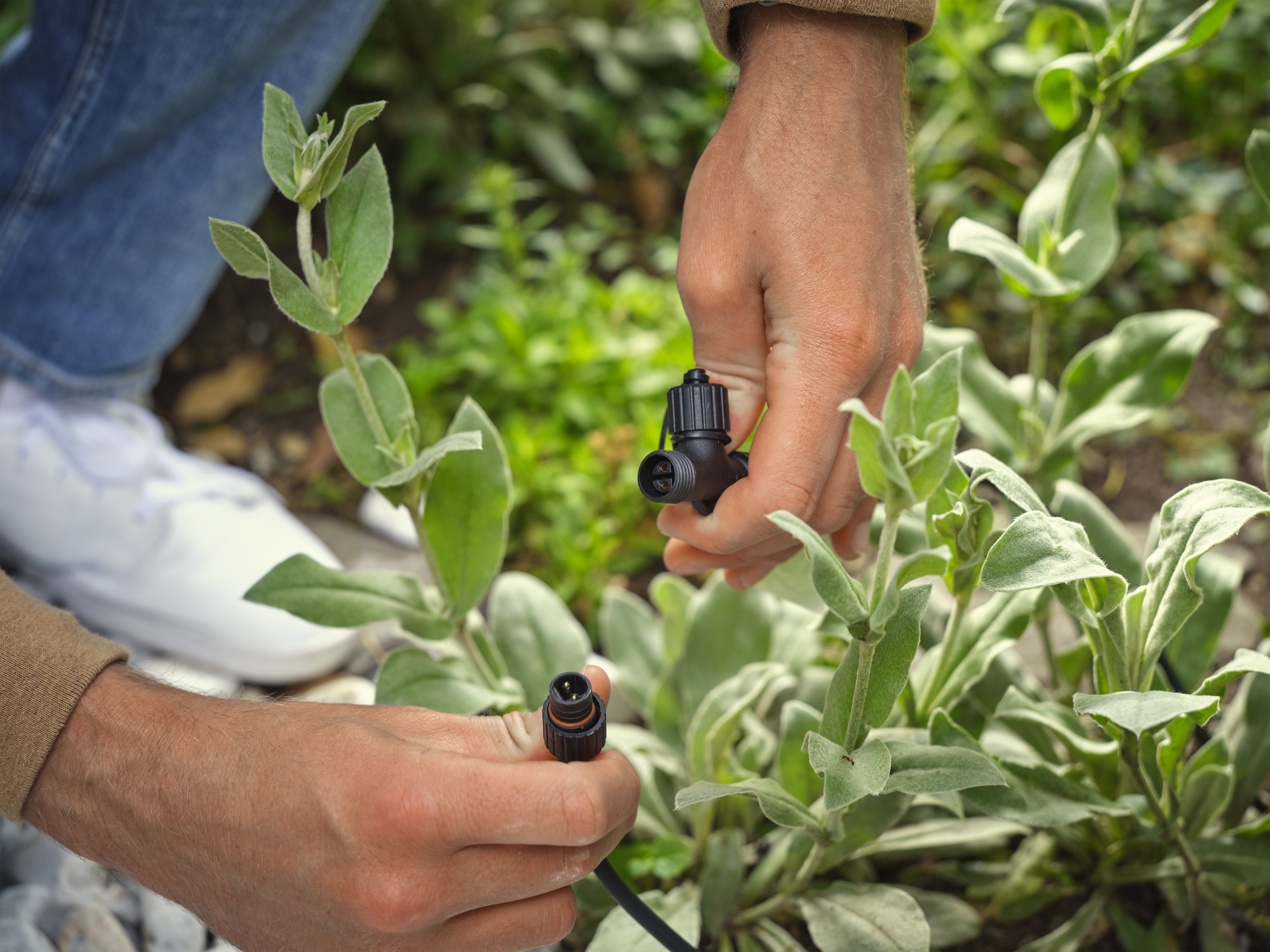

Hybrid Connector cable connection close-up
Application pictures

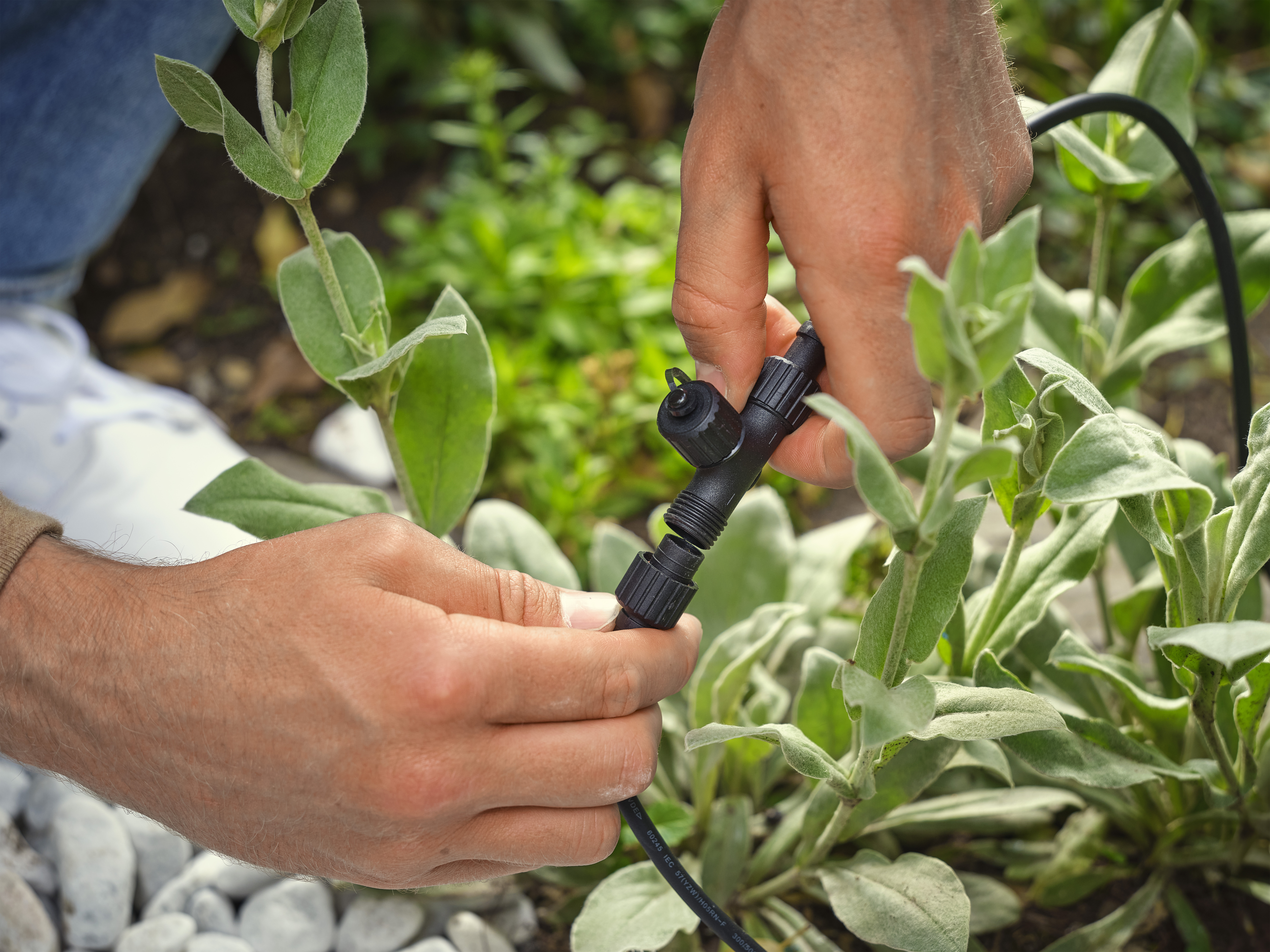

Hybrid Connector cable connection close-up 2
Application pictures
Hybrid Connector Rota Spike cable connection with model
