LINEAR LED FLIP SENSOR

Linear LED Flip 30cm 3000K USB

GTIN: 4099854462832 Folding box / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Suitable for mounting in corners, wall or undercabinet
  • Easy mounting
Areas of application
  • Shelf and undercabinet lighting
Product features
  • 90° Rotating head for versatile use
  • PIR motion and daylight sensor
Equipment / Accessories
  • USB cable, lenght: 1 m
  • 3 AA Battery compartment (Batteries not included)
Safety advice
  • To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
  • Battery Warning: Keep out of reach for children. Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately.
  • If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
  • Please avoid: Maximal ambient temperature: +35 °C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Altitude during operation: 2000 m. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
Electrical data
Nominal wattage 3.80 W
Nominal voltage 5 V
Nominal current 760.000 mA
Protection class III
Photometrical data
Luminous flux 250 lm
Total luminous flux of contained light sources 270 lm
Luminous efficacy 65 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra > 80
Standard deviation of color matching ≤6 sdcm
Photobiological safety group acc. to EN62778 RG0
Beam angle 120 °
Dimensions & Weight
Length 305.00 mm
Height 25.50 mm
Width 49.10 mm
Product weight 150.00 g
Materials & Colors
Product color White
Housing color White
Body material Polycarbonate (PC)
Cover material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg
Application & Mounting
Type of protection IP20
Dimmable Yes
Type of dimming 3 DIM
Mounting type Surface
Mounting location Cabinet undersides
Application environment Indoor
With light source Yes
Replaceable light source No
Lifespan
Lifespan L70/B50 at 25 °C 30000 h 1)
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Sensor
Type of sensor Motion, Light
Sensor technology Passive infrared (PIR)
Sensor detection angle 120 °
Detection range of motion sensor ≥ 3 m
Certificates & Standards
Standards CE, UKCA
Luminaire with limited surface temperature, "D sign" No
Replaceable light source (EPREL) Not replaceable
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854462832 Folding box
1
42 mm x 62 mm x 358 mm 226.00 g 0.93 dm³
4099854462849 Shipping box
8
375 mm x 183 mm x 150 mm 2059.00 g 10.29 dm³
User instruction / safety instructions
LINEAR LED FLIP SEN
Legal information
Informationstext 18 Abs 4 ElektroG
Legal information
LINEAR LED FLIP SEN 30CM 830 USB
Declarations of conformity
CE Declaration Linear LED Flip Sensor

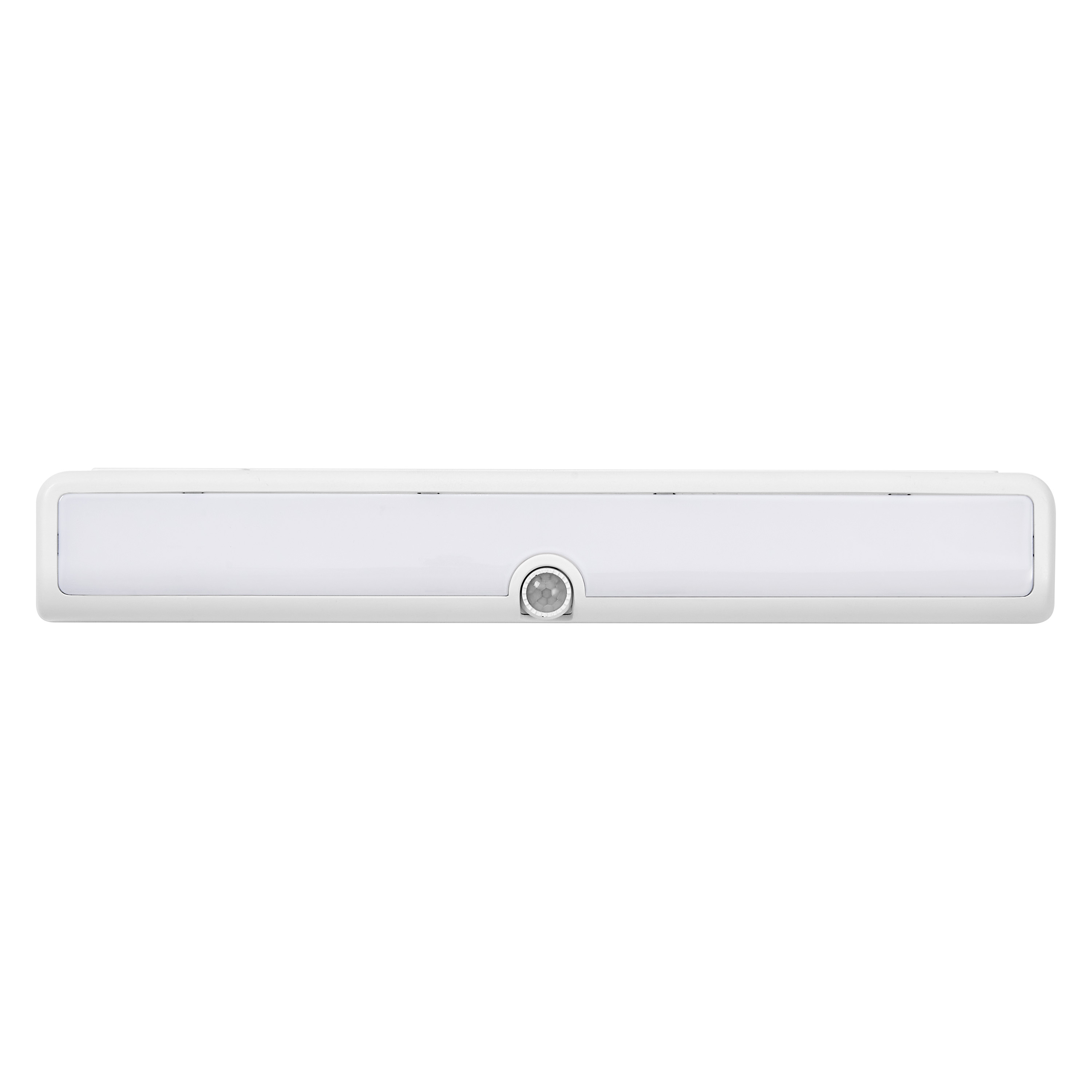

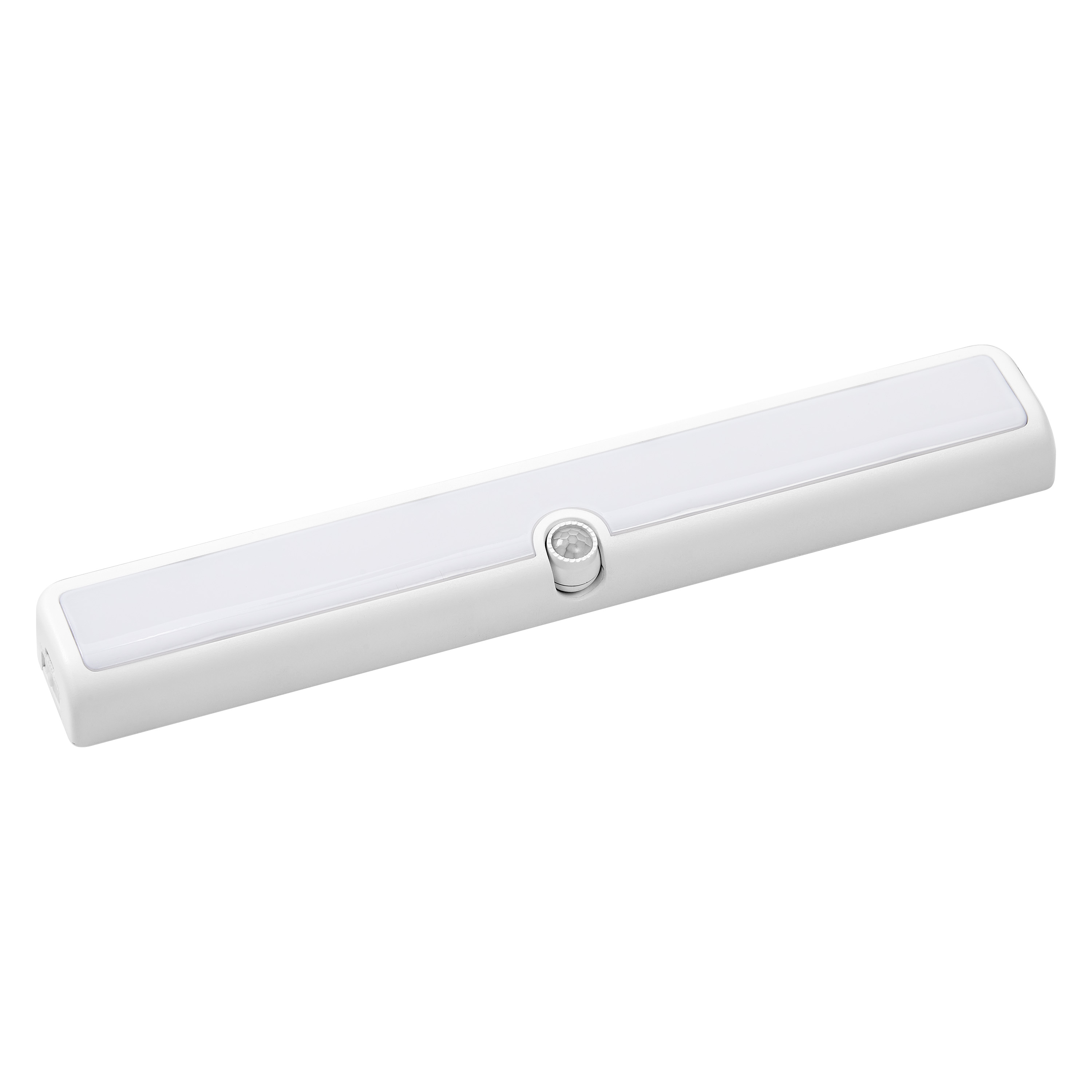

Product image: white background, upright
LINEAR LED FLIP SEN 30CM 830 USB

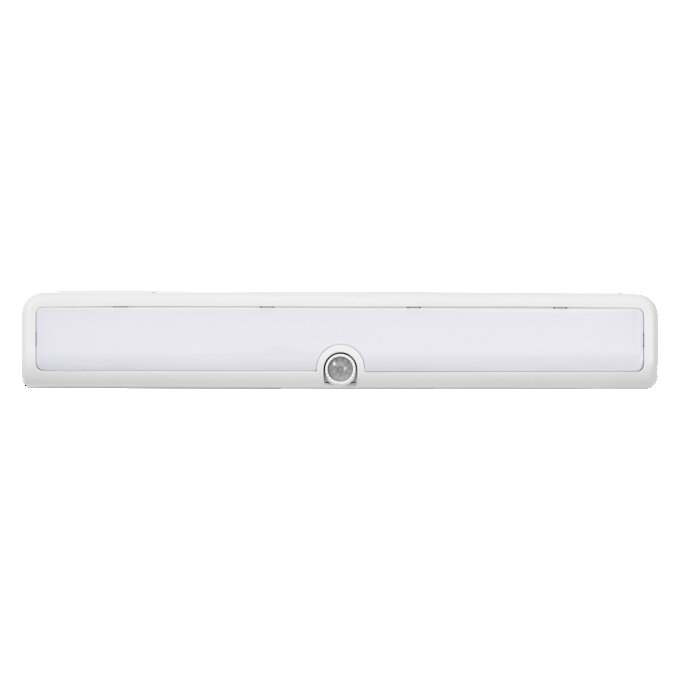

Product image: white background, upright, alternative image
LINEAR LED FLIP SEN 30CM 830 USB

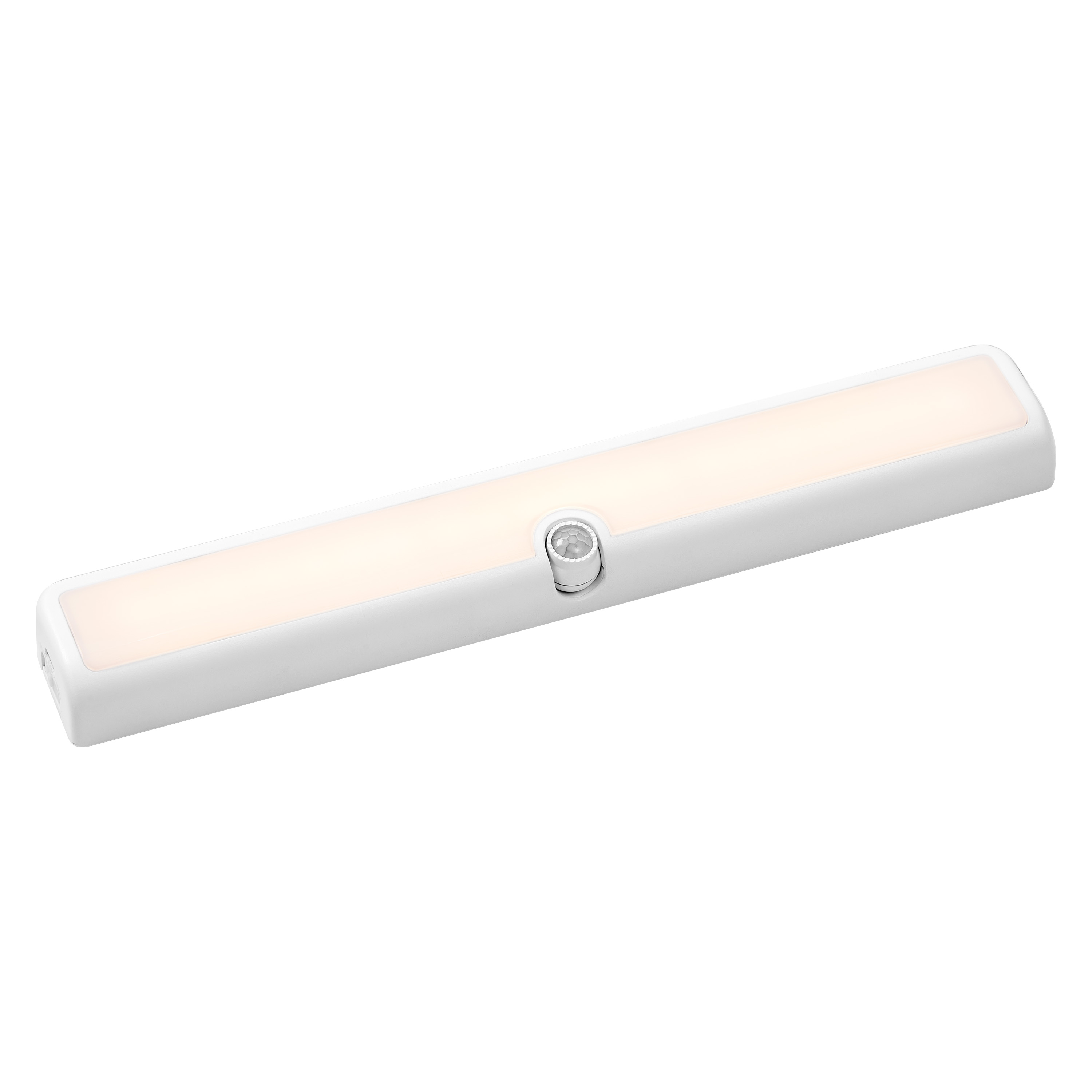

Product image: white background, upright, switched on
LINEAR LED FLIP SEN 30CM 830 USB

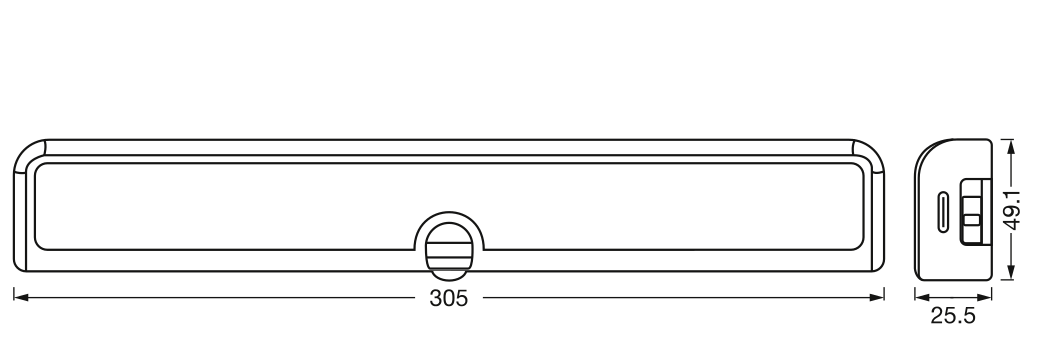

Product line drawing with letters
