LINEAR EDGE SENSOR RGBW

Linear Edge Sensor 30cm RGBW DIM Black Remote Control

GTIN: 4099854463051 Folding box / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Easy and quick series connection thanks to simple plug system
  • Connection of up to 8 luminaires (30cm version) and 3 luminaires (50cm version) in a row either via enclosed connector for seamless connection or by connector cable for greater distances
  • Highly versatile due to selectable CCT
Areas of application
  • Kitchens, Living areas, Shelf and undercabinet lighting
Product features
  • Direct connection to AC power supply thanks to integrated control gear
  • Switch on and off, color changing and dimming via remote control
  • 2 different lengths available
  • Lifetime up to 30,000 h
  • Material: Aluminium (Housing), Polycarbonate (Diffuser)
Equipment / Accessories
  • Complete mounting and connecting accessories included
  • Remote control included
Safety advice
  • To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
  • Battery Warning: Keep out of reach for children. Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately.
  • If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
  • Please avoid: Maximal ambient temperature: +35 °C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Altitude during operation: 2000 m. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
Electrical data
Nominal wattage 8.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 60.000 mA
Inrush current time Th50 47 µs
Max. number of luminaires per miniature circuit breaker B16 26
Max. number of luminaires per miniature circuit breaker C10 20
Max. number of luminaires per miniature circuit breaker C16 33
Power factor λ ≥0.5
Total harmonic distortion 130 %
Protection class II
Operating mode Mains voltage
Photometrical data
Luminous flux 460 lm
Total luminous flux of contained light sources 500 lm
Luminous efficacy 57 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra > 80
Standard deviation of color matching < 6 sdcm
Photobiological safety group acc. to EN62778 RG1
Beam angle 110 °
Dimensions & Weight
Length 500.00 mm
Height 18.00 mm
Width 49.00 mm
Product weight 355.00 g
Cable length 1500 mm
Materials & Colors
Product color Black
Housing color Black
Body material Aluminum
Cover material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Plug type C (EU)
Type of protection IP20
Dimmable Yes
Type of dimming INTERFACE
Mounting type Surface
Application environment Indoor
Adjustable No
With light source Yes
Replaceable light source No
Lifespan
Lifespan L70/B50 at 25 °C 30000 h 1)
Number of switching cycles 15000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
BATTERY
Battery size [GMS] CR2025
Certificates & Standards
Standards CE
Luminaire with limited surface temperature, "D sign" No
Replaceable light source (EPREL) Not replaceable
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854463051 Folding box
1
32 mm x 71 mm x 545 mm 450.00 g 1.24 dm³
4099854463068 Shipping box
8
560 mm x 160 mm x 195 mm 4012.00 g 17.47 dm³
User instruction / safety instructions
LINEAR LED EDGE SEN
Legal information
Safety insert G11220499
Declarations of conformity
LINEAR TURN AND EDGE

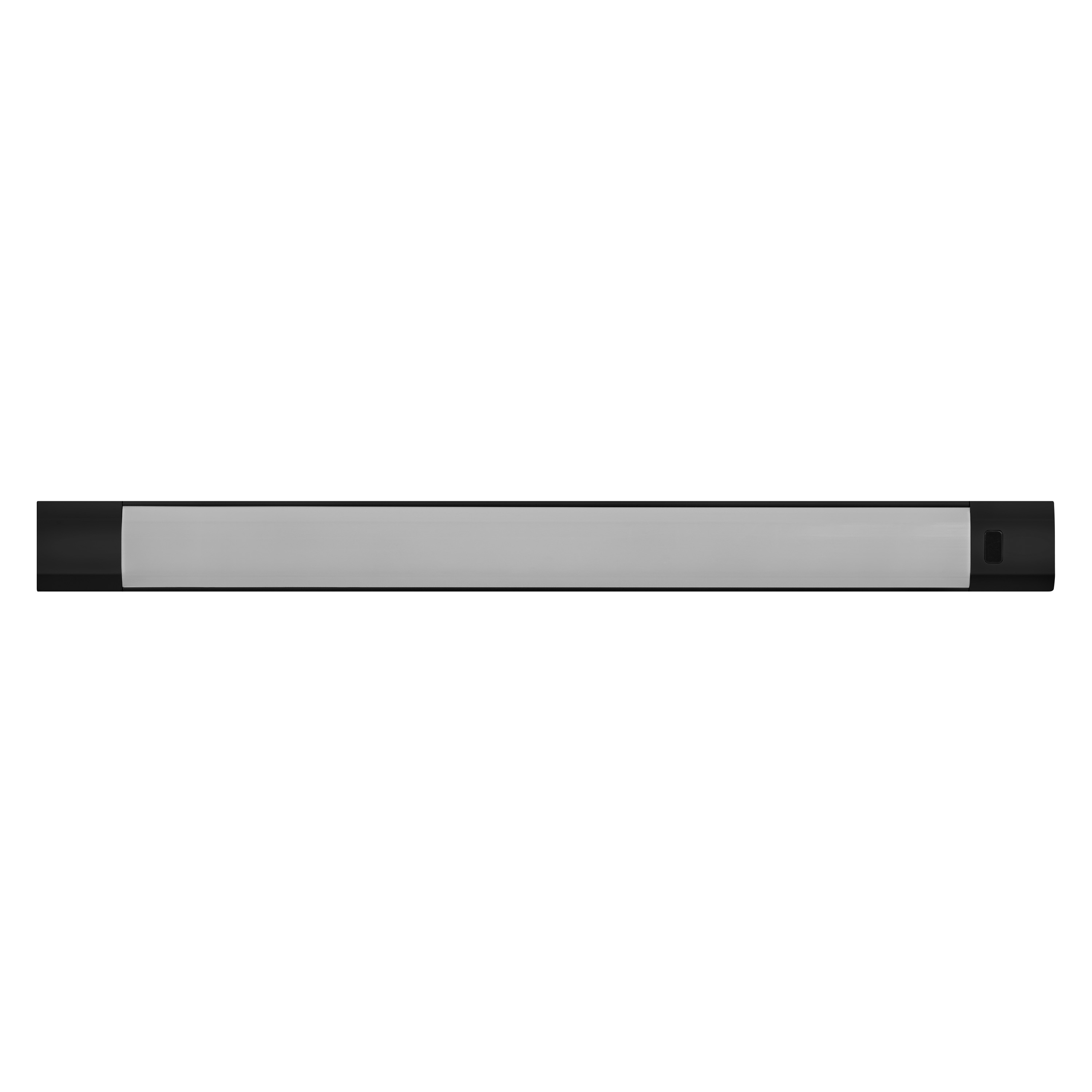

Product image: white background, upright
LINEAR EDGE SEN 50CM RGBW DIM RC BK image

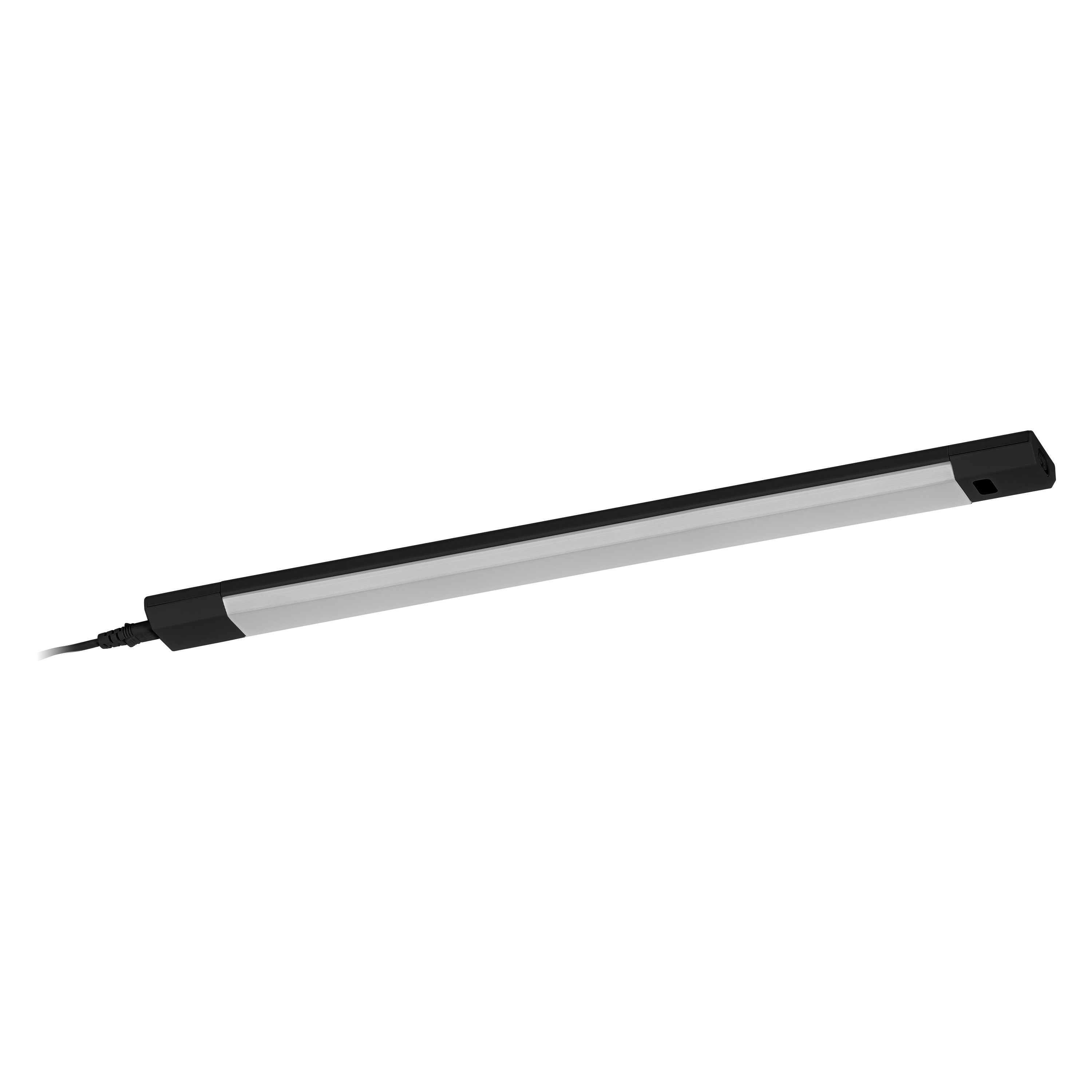

Product image: white background, upright, alternative image
LINEAR EDGE SEN 50CM RGBW DIM RC BK image

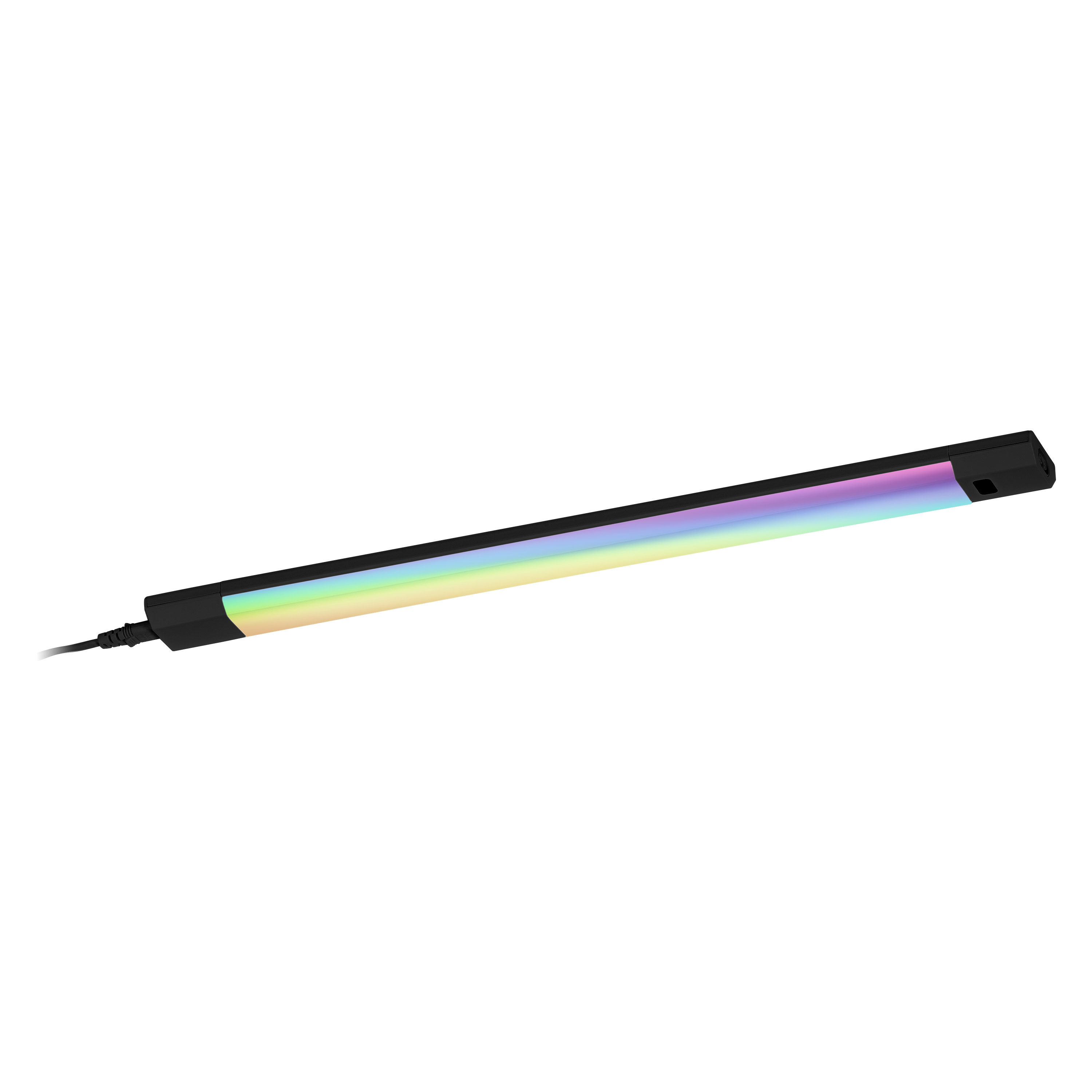

Product image: white background, upright, switched on
LINEAR EDGE SEN 50CM RGBW DIM RC BK image
Product infographic (application image with text and graphic)
Mobile luminaires e-Com graphic 1200x1200px 2024 EN
Product line drawing with letters
LINEAR EDGE SEN 50CM RGBW DIM RC BK line drawing
Product line drawing with numbers
LINEAR EDGE SEN 50CM RGBW DIM RC BK line drawing
Product line drawing, front, no dimensions
LINEAR EDGE SEN 50CM RGBW DIM RC BK line drawing
Combo Shot = Product Beauty Shot + Packaging Image
LUM IN LIN EDGE 50 RGBW RC BK
Packaging image, frontal
LUM IN LIN EDGE 50 RGBW RC BK
Packaging image, spacial
LUM IN LIN EDGE 50 RGBW RC BK

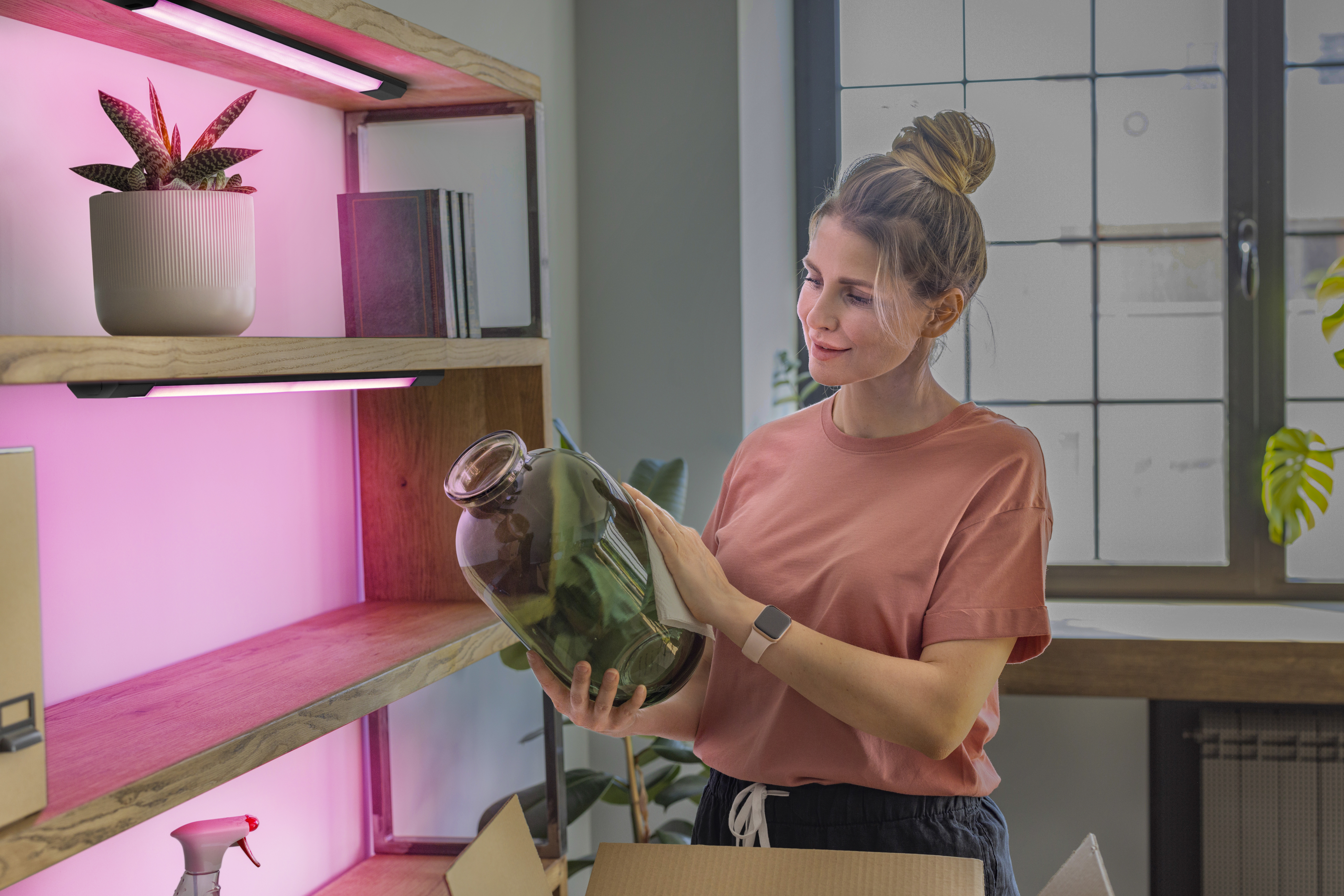

Application pictures Getty
Linear LED Edge 500mm DIM RGBW Black

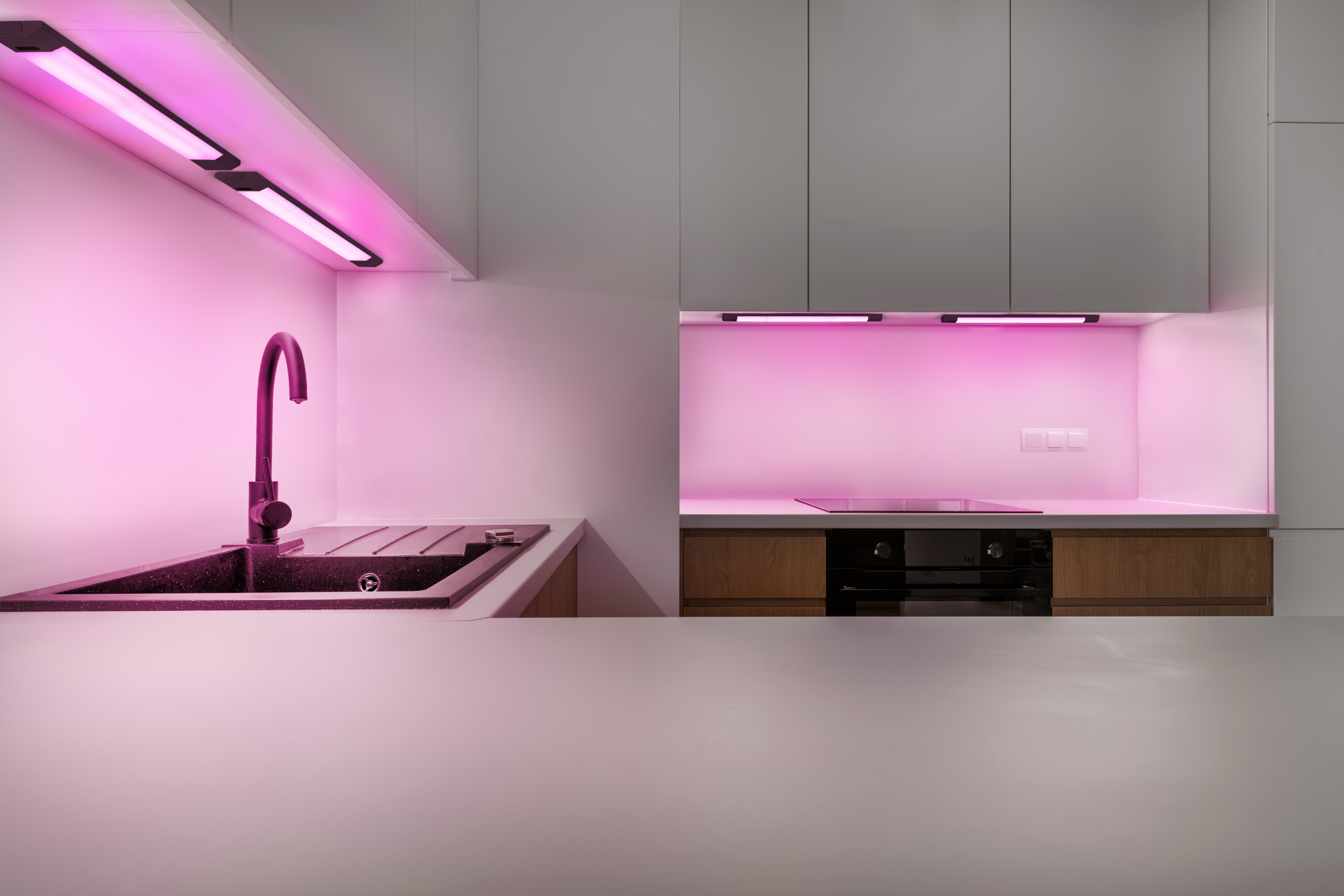

Application pictures Getty
