UNDERCABINET SOCKET FRAMELESS
Undercabinet Socket Flood 830 DIM Black Extension
GTIN: 4058075842786
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Multifunctional Use: Lighting and Power / Charging Function in one Luminaire
- Two power sockets and two USB-C ports to support additional equipment (kitchen devices, mobile devices)
- Individual arrangement of the light modules to the right or left or mixed, depending on your own needs
- Connection of up to 4 light modules via simple click system
Areas of application
- Kitchens, Living areas, Shelf and undercabinet lighting
Product features
- The socket module can supply devices with an output of up to 2400W
- 2x EU sockets (max.10A) and 2x USB C (5V 2.4A)
- Switch on and off by pressing and holding the button 1 second
- Stepless dimming by pressing and holding the button more longer than 3 seconds
- Starter Kit includes one socket module and two light modules
- Extension kit includes one light module
- Lifetime up to 30,000 h
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
Electrical data
| Nominal wattage | 3.85 W |
| Nominal voltage | 36 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 110.000 mA |
| Inrush current time Th50 | 38 µs |
| Protection class | III |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 250 lm |
| Total luminous flux of contained light sources | 300 lm |
| Luminous efficacy | 50 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm white |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | < 6 sdcm |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | <0.4 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 110 ° |
Dimensions & Weight
| Length | 179.00 mm |
| Height | 21.00 mm |
| Width | 81.00 mm |
| Product weight | 140.00 g |
| Cable length | 1500 mm |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Polycarbonate (PC) |
| Cover material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Plug type F |
| Type of protection | IP20 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Wall, Cabinet undersides |
| Application environment | Indoor |
| Adjustable | Yes |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 15000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075842786 | Folding box 1 |
27 mm x 92 mm x 238 mm | 245.00 g | 0.59 dm³ |
| 4058075842793 | Shipping box 8 |
255 mm x 123 mm x 215 mm | 2224.00 g | 6.74 dm³ |
User instruction / safety instructions
Undercabinet Socket
Undercabinet Socket
Legal information
TRACKLIGHT SPOT ZOOM D85
TRACKLIGHT SPOT ZOOM D85
Declarations of conformity
UNDERCABINET SOCKET FL KIT
UNDERCABINET SOCKET FL KIT
Product image: white background, upright
UNDERCABINET SOCKET FL EXT 830 D BK image
UNDERCABINET SOCKET FL EXT 830 D BK image

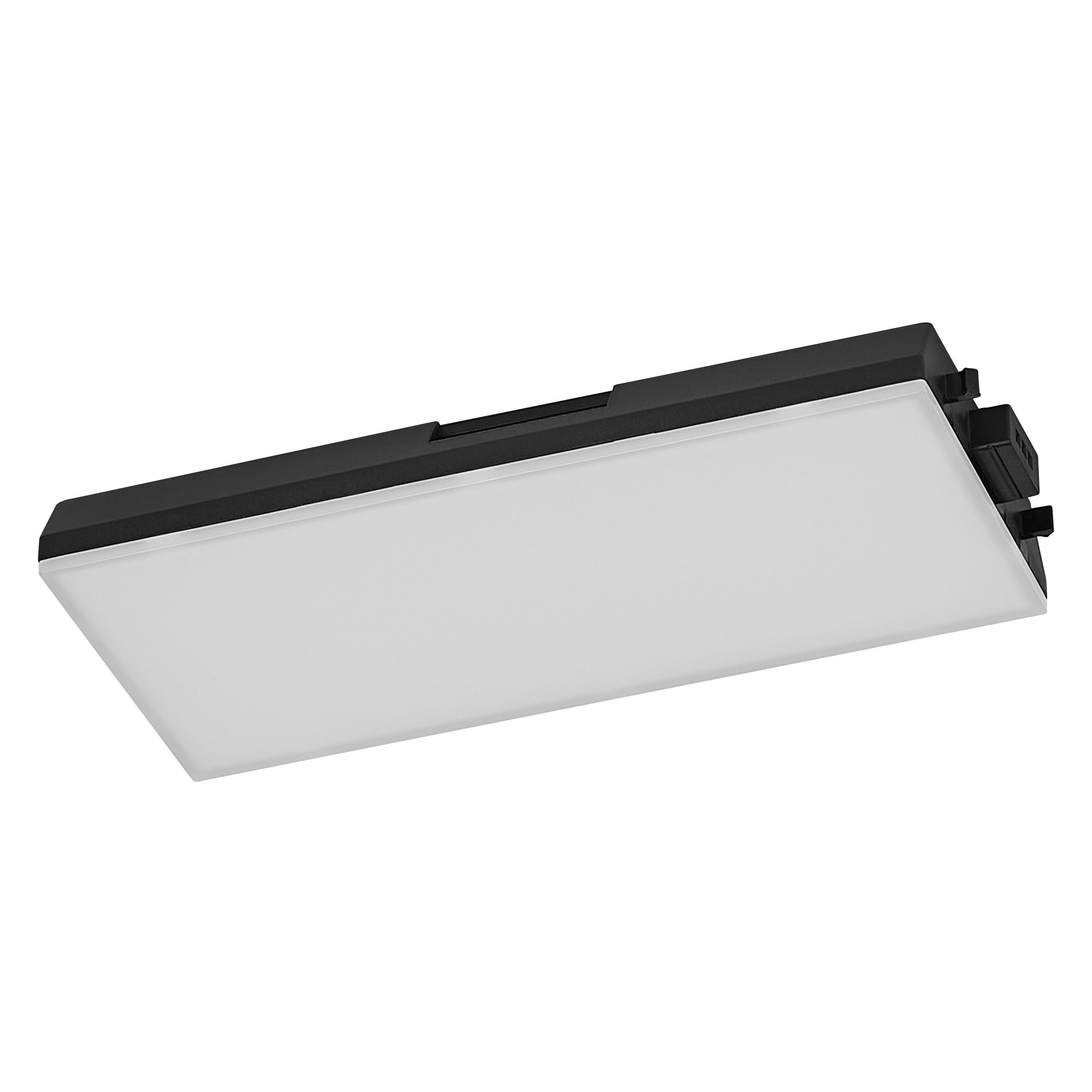

Product image: white background, upright, alternative image
UNDERCABINET SOCKET FL EXT 830 D BK image
UNDERCABINET SOCKET FL EXT 830 D BK image

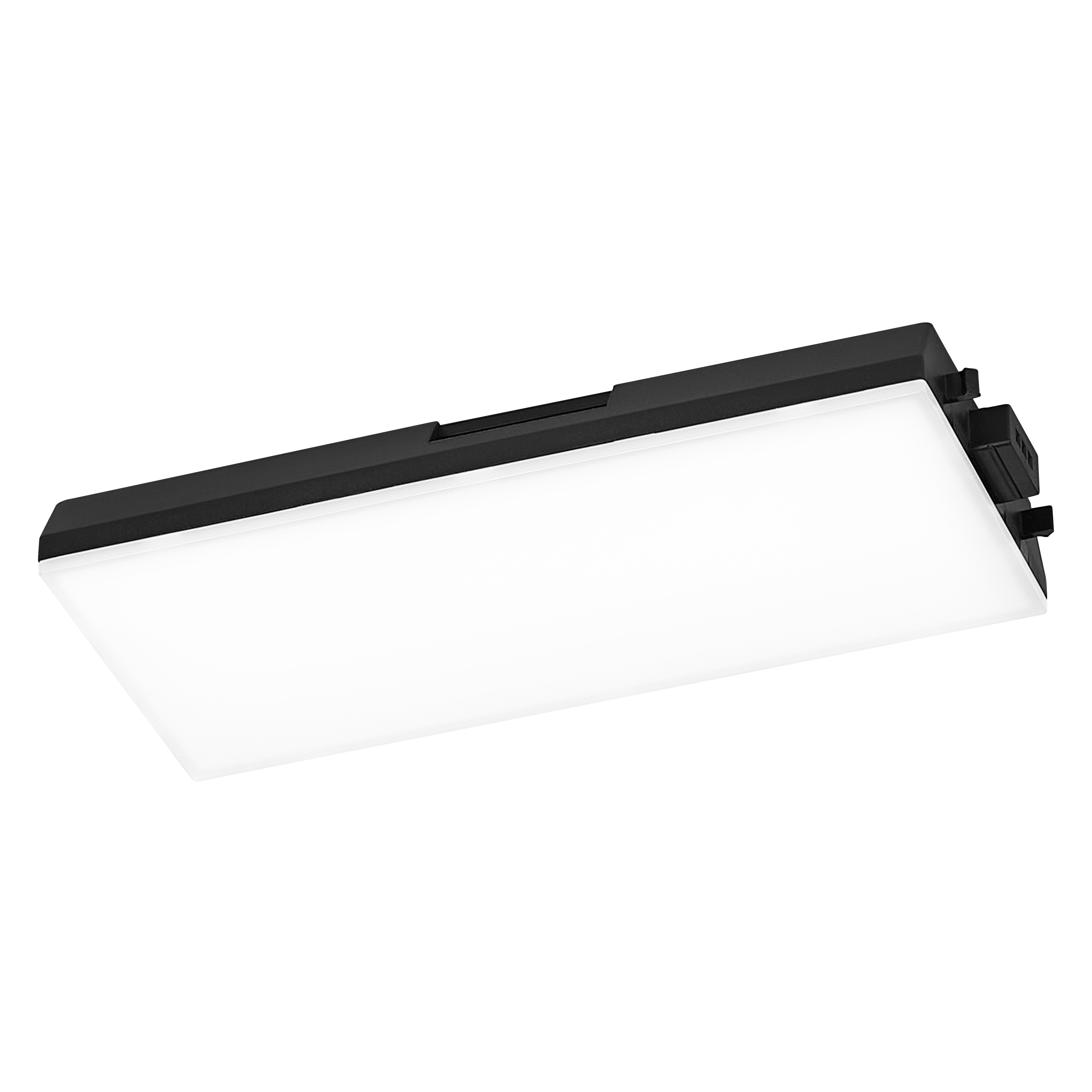

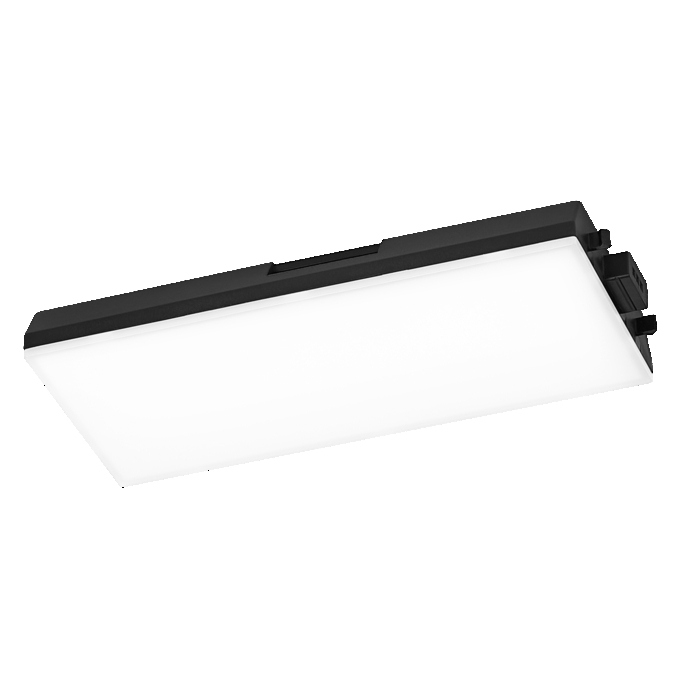

Product image: white background, upright, switched on
UNDERCABINET SOCKET FL EXT 830 D BK image
UNDERCABINET SOCKET FL EXT 830 D BK image
Product infographic (application image with text and graphic)
Mobile luminaires e-Com graphic 1200x1200px 2024 EN
Mobile luminaires e-Com graphic 1200x1200px 2024 EN
Product line drawing with letters
UNDERCABINET SOCKET FL EXT 830 D BK line drawing
UNDERCABINET SOCKET FL EXT 830 D BK line drawing
Product line drawing with numbers
UNDERCABINET SOCKET FL EXT 830 D BK line drawing
UNDERCABINET SOCKET FL EXT 830 D BK line drawing

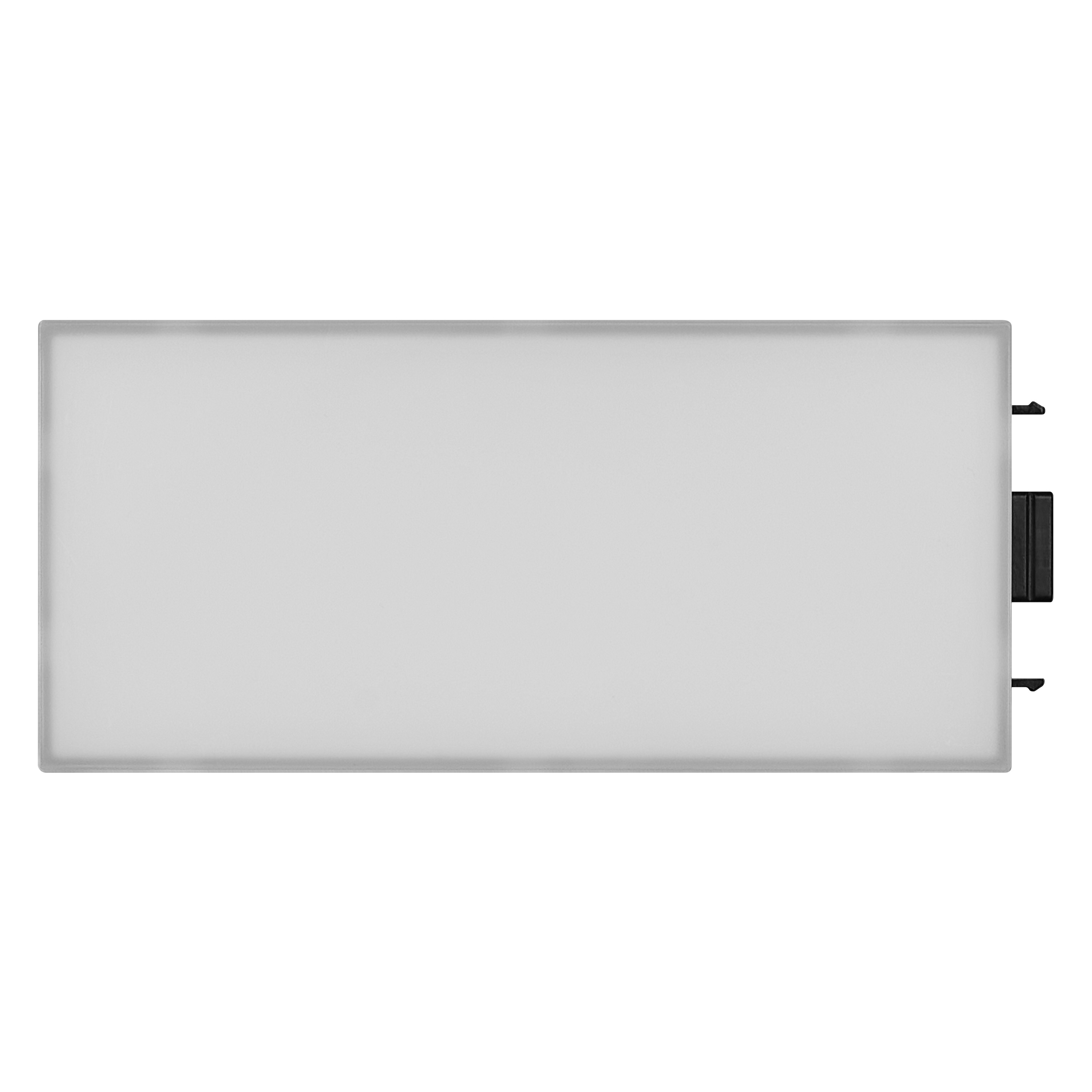

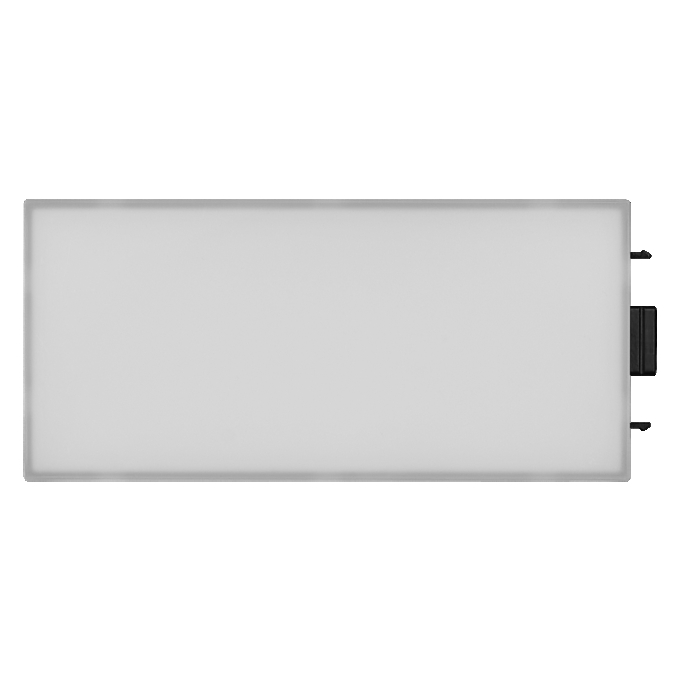

Product line drawing, front, no dimensions
UNDERCABINET SOCKET FL EXT 830 D BK line drawing
UNDERCABINET SOCKET FL EXT 830 D BK line drawing

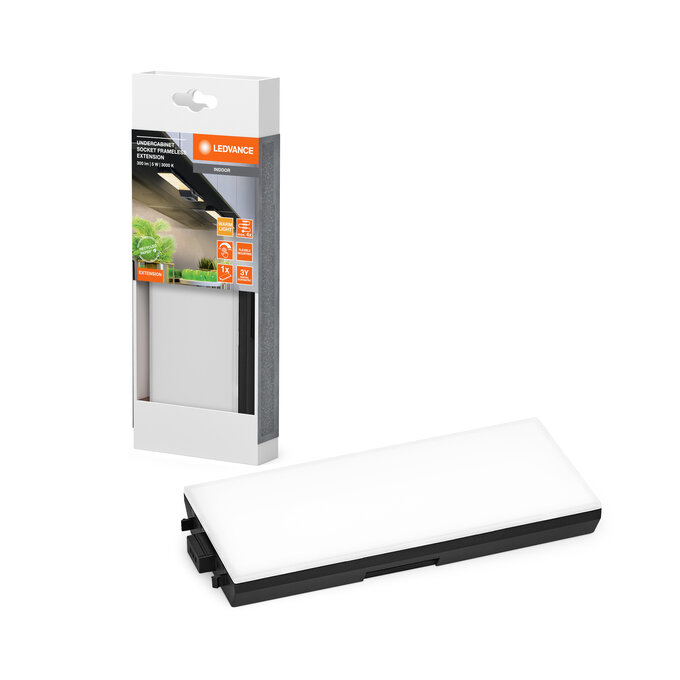

Combo Shot = Product Beauty Shot + Packaging Image
LUM IN UNDER SOCK FL EXT 830 BK
LUM IN UNDER SOCK FL EXT 830 BK
Packaging image, frontal
LUM IN UNDER SOCK FL EXT 830 BK
LUM IN UNDER SOCK FL EXT 830 BK
Packaging image, spacial
LUM IN UNDER SOCK FL EXT 830 BK
LUM IN UNDER SOCK FL EXT 830 BK

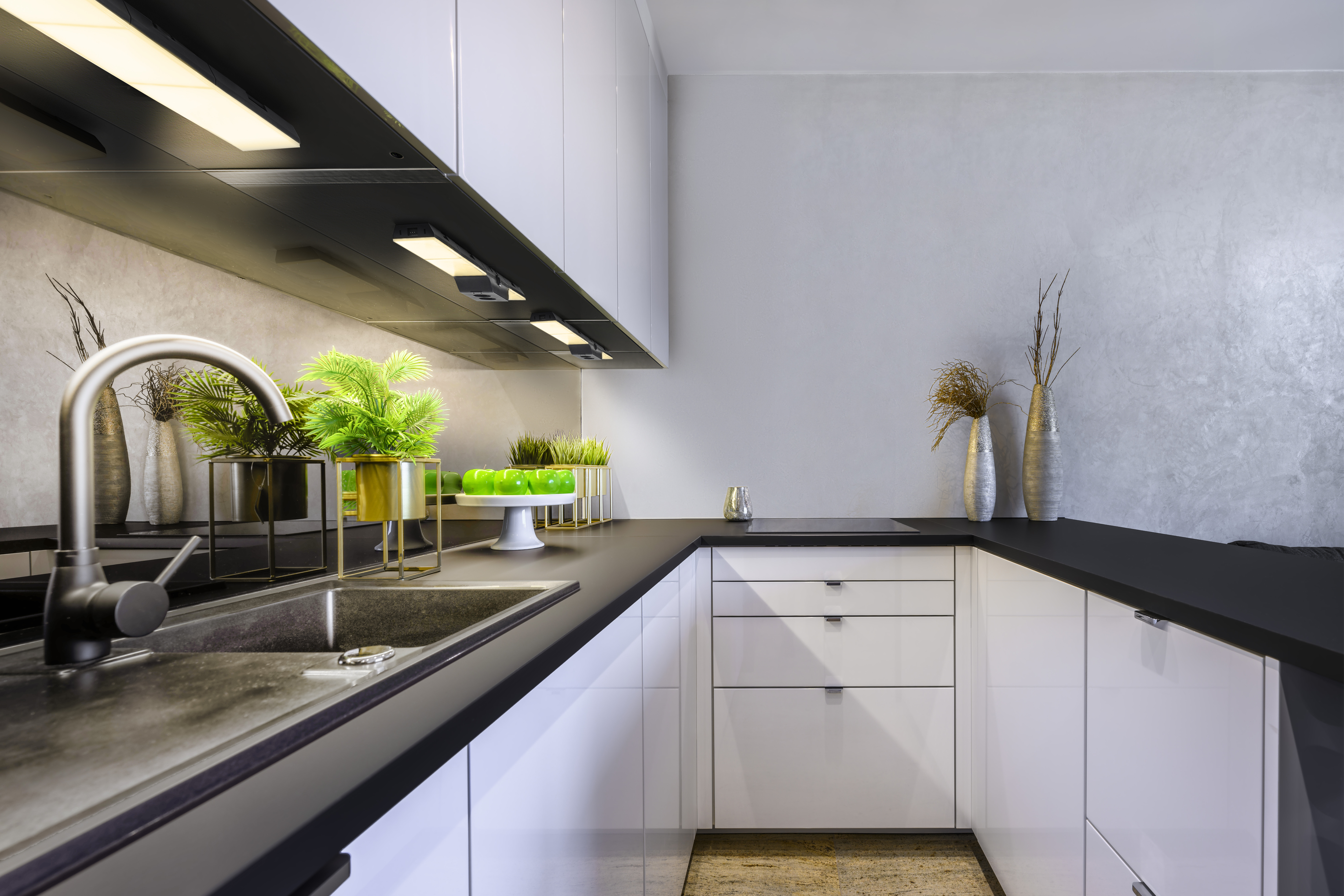

Application pictures Getty
