PANAN Disc Double
Panan Disc Double White
GTIN: 4058075301733
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Can easily be moved to where light is needed thanks to battery operation

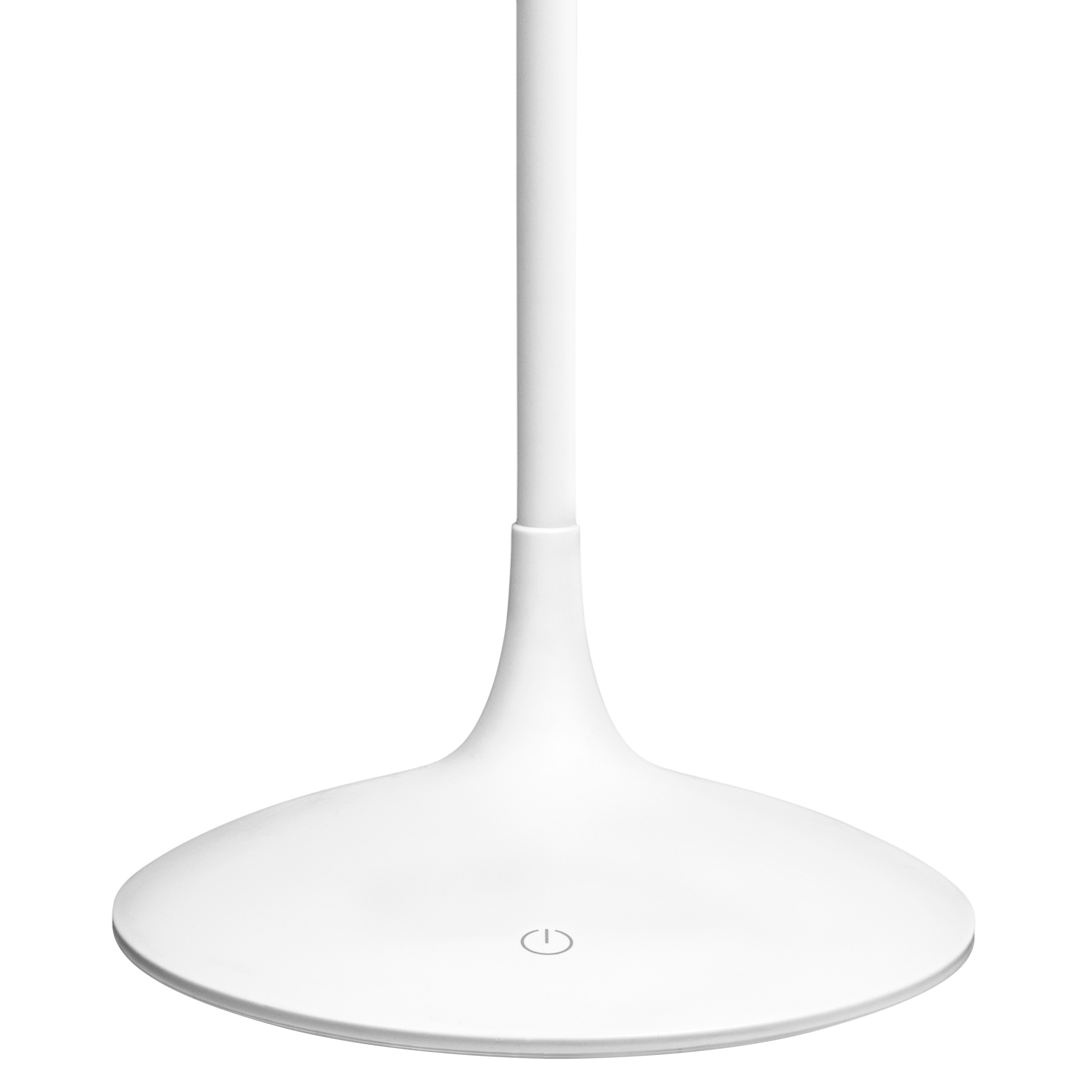

- Switching and stepless dimming via a touch sensitive sensor on the luminaire base
- Bendable luminaire neck for free orientation of light source
Areas of application
- Where light is required but a socket is not available
- Whenever a cableless solution is preferred
- When flexible lighting is required
- Living areas
- Tables, Desks
Product features
- Integrated rechargeable lithium battery which can be charged via USB cable
- Light color: Warm White
- Housing made of plastic, luminare neck made of silicone rubber
- Battery discharge time: up to 4 h
Equipment / Accessories
- USB cable, lenght: 1 m
Electrical data
| Nominal wattage | 5.00 W |
| Nominal voltage | 5 V |
| Nominal current | 1000 mA |
| Protection class | III |
| Operating mode | Battery |
Photometrical data
| Luminous flux | 220 lm |
| Luminous efficacy | 44 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | ≤6 sdcm |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 105 ° |
Dimensions & Weight
| Length | 375.00 mm |
| Height | 400.00 mm |
| Width | 170.00 mm |
| Product weight | 512.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Acrylonitrile butadiene styrene (ABS) |
| Cover material | Plastic |
| Light emitting surface material | Plastic |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | 0…+40 °C |
| Temperature range at storage | -20…+45 °C |
| Type of connection | USB |
| Type of protection | IP20 |
| Dimmable | Yes |
| Dimming range | 10…100 % |
| Mounting type | Surface |
| Mounting location | Table |
| Application environment | Indoor |
| Adjustable | Yes |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Number of switching cycles | 100000 |
BATTERY
| Type of Battery | Lithium ion |
| Battery size [GMS] | 18650 |
| Number of included batteries | 1 |
| Nominal voltage of battery | 3.7 V |
| Nominal capacity of battery | 2200 mAh |
| Battery charging time | 6 h |
Certificates & Standards
| Standards | CE, EAC |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075301733 | Folding box 1 |
176 mm x 176 mm x 366 mm | 684.00 g | 11.34 dm³ |
| 4058075301740 | Shipping box 4 |
364 mm x 364 mm x 381 mm | 3153.00 g | 50.48 dm³ |
User instruction / safety instructions
PANAN DISC DOUBLE
PANAN DISC DOUBLE
Legal information
Legal insert residential luminaire
Legal insert residential luminaire
Declarations of conformity
Table lamp PANAN
Table lamp PANAN

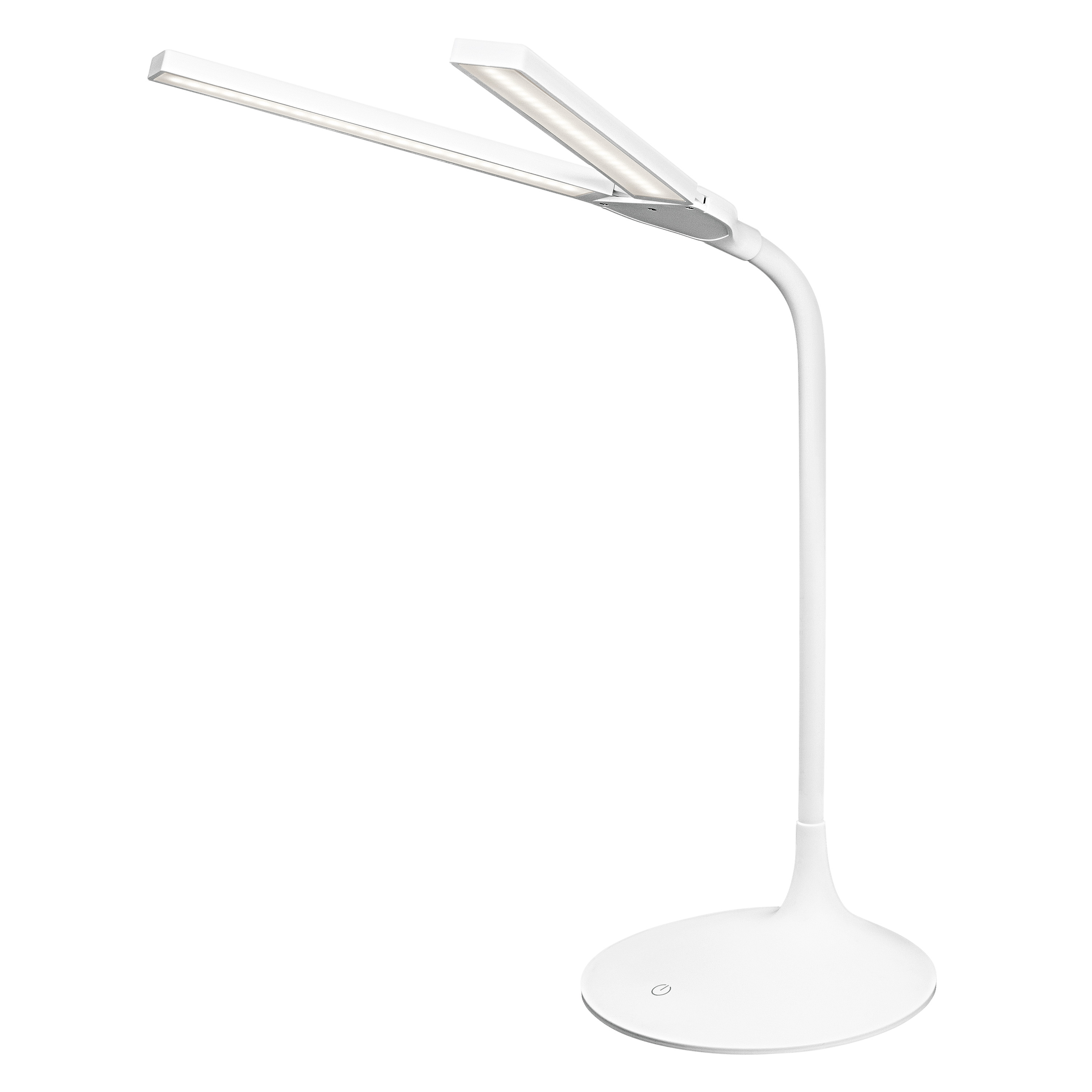

Product image: white background, upright
PANAN DISC DOUBLE WT
PANAN DISC DOUBLE WT
Product image: white background, upright, alternative image
PANAN DISC DOUBLE WT
PANAN DISC DOUBLE WT
Product image: white background, upright, switched on
PANAN DISC DOUBLE WT
PANAN DISC DOUBLE WT
Product line drawing with letters
PANAN DISC DOUBLE WT
PANAN DISC DOUBLE WT
Product line drawing with numbers
PANAN DISC DOUBLE WT
PANAN DISC DOUBLE WT
Product line drawing, front, no dimensions
PANAN DISC DOUBLE WT
PANAN DISC DOUBLE WT

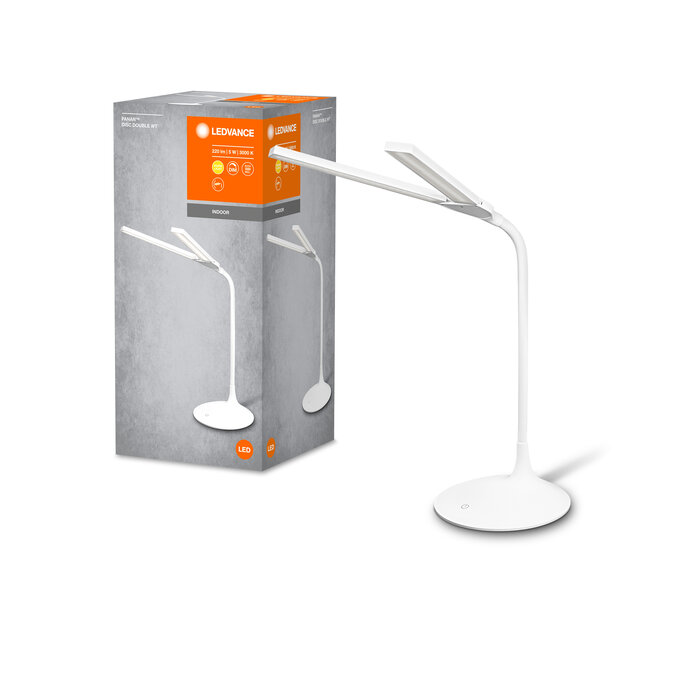

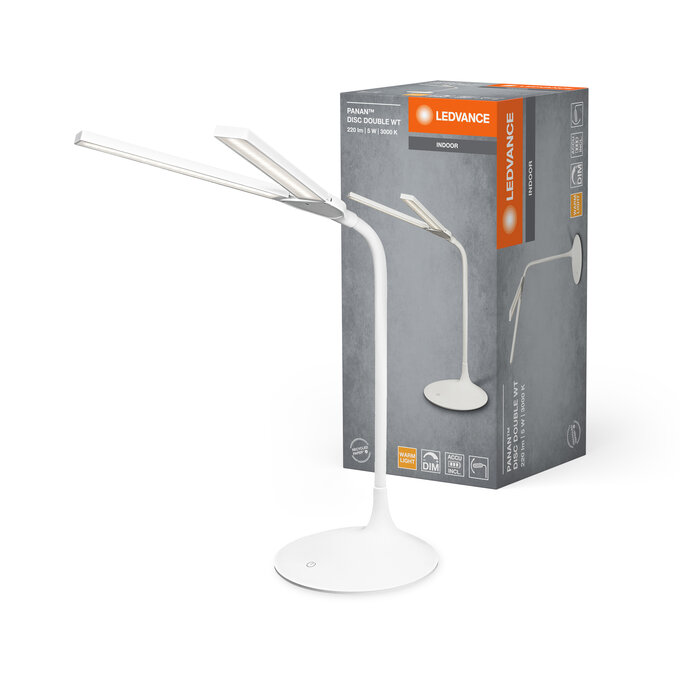

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC PANAN DISC DOUBLE WT MiPRC
LUM FC PANAN DISC DOUBLE WT MiPRC
Combo Shot = Product Beauty Shot + Packaging Image
LUM FC PANAN DISC DOUBLE WT MiPRC
LUM FC PANAN DISC DOUBLE WT MiPRC
Packaging image, frontal
LUM FC PANAN DISC DOUBLE WT MiPRC Front
LUM FC PANAN DISC DOUBLE WT MiPRC Front

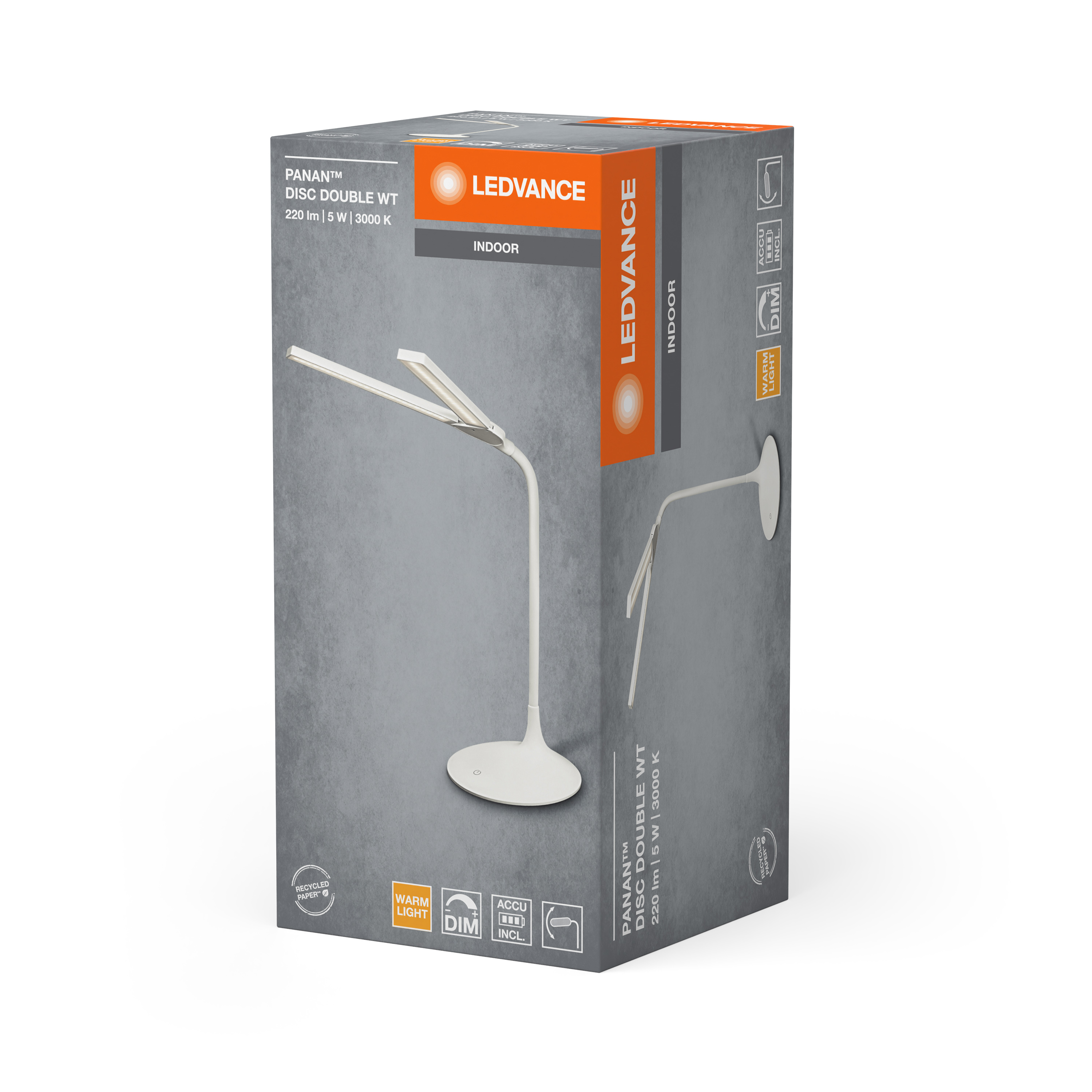

Packaging image, spacial
