DECOR SPOT VENUS BLACK
Decor Spot Venus Black 2 Spot
GTIN: 4099854471414
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- High-quality housing with matt white or matt black surface
- Easy mounting
Areas of application
- Indoor applications
- Corridors, entrance areas, stairwells, living rooms, basements
- Kitchens, workspaces
- Ceiling and wall surface mounting
Product features
- Luminaire family features four versions with up to 4 spot heads
- On/off switch on 1-head version for easy operation
- Adjustable heads
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Electrical data
| Nominal wattage | 10.50 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 80.000 mA |
| Inrush current time Th50 | 280 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 160 |
| Max. number of luminaires per miniature circuit breaker C16 | 160 |
| Power factor λ | > 0.5 |
| Total harmonic distortion | < 70 % |
| Protection class | II |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 450 lm |
| Total luminous flux of contained light sources | 1000 lm |
| Luminous efficacy | 43 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | 80 |
| Standard deviation of color matching | 6 sdcm |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 95 ° |
Dimensions & Weight
| Length | 300.00 mm |
| Height | 105.00 mm |
| Width | 100.00 mm |
| Product weight | 670.00 g |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Steel |
| Cover material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+40 °C |
| Type of connection | Terminal, 2-Pole (L, N) |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | No |
| Mounting type | Surface |
| Adjustable | Yes |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 15000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854471414 | Folding box 1 |
132 mm x 142 mm x 343 mm | 1075.00 g | 6.43 dm³ |
| 4099854471421 | Shipping box 4 |
358 mm x 298 mm x 289 mm | 4300.00 g | 30.83 dm³ |
User instruction / safety instructions
DECOR SPOT VENUS
DECOR SPOT VENUS
Legal information
Safety insert G11219279
Safety insert G11219279
Declarations of conformity
CE Declaration Decor Spot Pluto
CE Declaration Decor Spot Pluto
Product image: white background, upright
DECOR SPOT VENUS 300MM 10.5W 830 BK
DECOR SPOT VENUS 300MM 10.5W 830 BK
Product image: white background, upright, alternative image
DECOR SPOT VENUS 300MM 10.5W 830 BK
DECOR SPOT VENUS 300MM 10.5W 830 BK
Product image: white background, upright, switched on
DECOR SPOT VENUS 300MM 10.5W 830 BK
DECOR SPOT VENUS 300MM 10.5W 830 BK
Product infographic (application image with text and graphic)
Decor Luminaire Spot Venus e-Com graphic 1200x1200px 2024 EN
Decor Luminaire Spot Venus e-Com graphic 1200x1200px 2024 EN
Product line drawing with letters
DECOR SPOT VENUS 300MM 10.5W 830
DECOR SPOT VENUS 300MM 10.5W 830
Product line drawing with numbers
DECOR SPOT VENUS 300MM 10.5W 830
DECOR SPOT VENUS 300MM 10.5W 830
Product line drawing, front, no dimensions
DECOR SPOT VENUS 300MM 10.5W 830
DECOR SPOT VENUS 300MM 10.5W 830
Combo Shot = Product Beauty Shot + Packaging Image
FC LUM DECOR SPOT VENUS 2X BK
FC LUM DECOR SPOT VENUS 2X BK
Packaging image, frontal
FC LUM DECOR SPOT VENUS 2X BK
FC LUM DECOR SPOT VENUS 2X BK
Packaging image, spacial
FC LUM DECOR SPOT VENUS 2X BK
FC LUM DECOR SPOT VENUS 2X BK

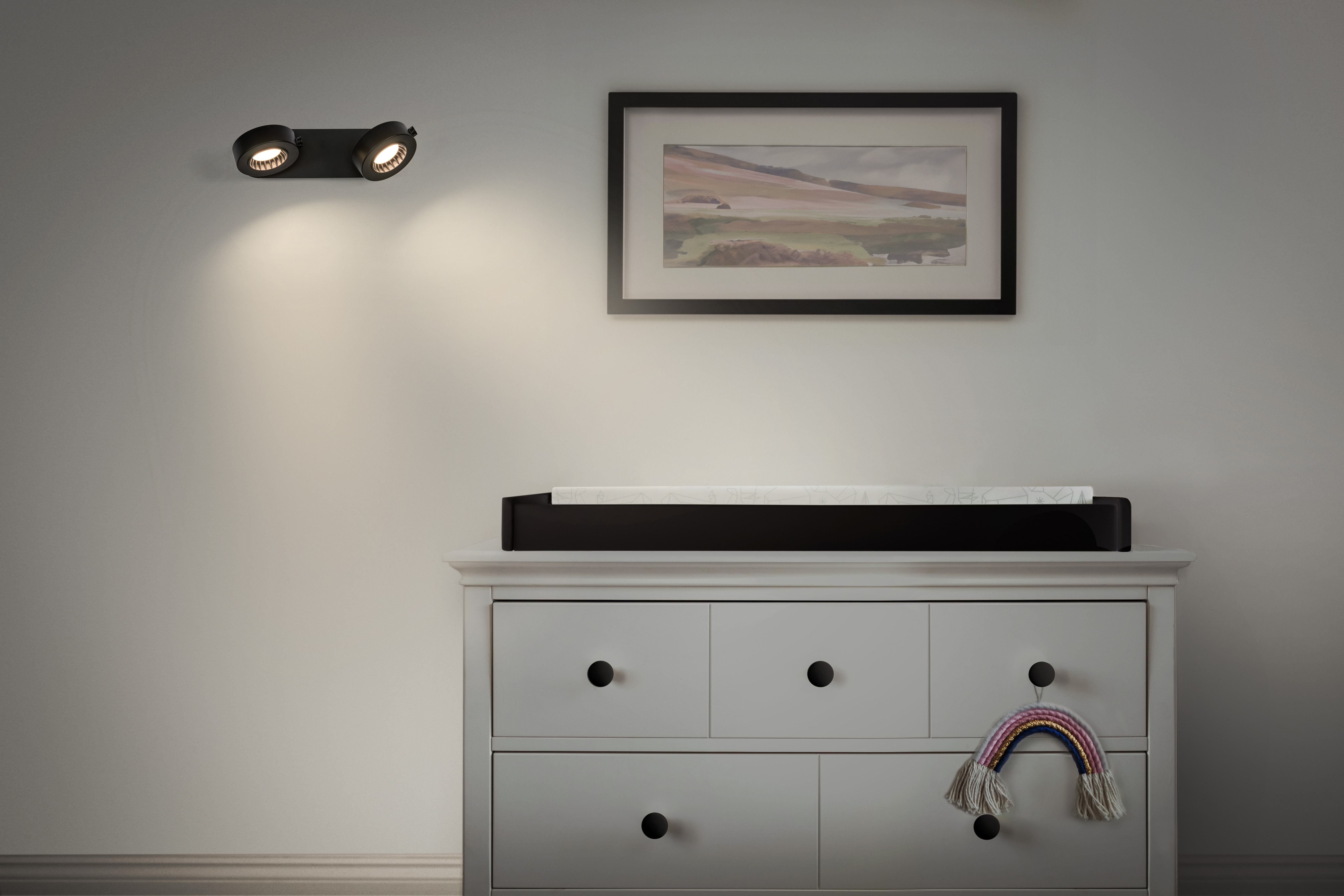

Application pictures Getty
