PRODUCT DETAILS

Product benefits
  • Can be removed from the holder for use as a portable light
Product features
  • Battery operated dustproof and splashproof luminaire
  • Rotating head for versatile use
  • Integrated motion sensor
Equipment / Accessories
  • Can be mounted with screws, adhesive strip or magnet
Safety advice
  • This product is not a toy. It should not be left unattended in the hands of children or operated by children.
  • Not designed as a replacement for conventional lighting in private household.
  • Battery Warning: Keep out of reach for children. Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately.
  • If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
  • Please avoid: Maximal ambient temperature: +35 °C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Altitude during operation: 2000 m. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
Electrical data
Nominal wattage 0.3W
Nominal voltage 4,5 V
Mains frequency 0 Hz
Nominal current 60.000 mA
Max. number of luminaires per miniature circuit breaker C10 -
Protection class III
Operating mode Battery
Photometrical data
Luminous flux 17 lm
Luminous efficacy 57 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra > 85
Standard deviation of color matching ≤6 sdcm
Beam angle 115 °
Dimensions & Weight
Length 68.00 mm
Height 99.00 mm
Width 68.00 mm
Product weight 105.00 g
Materials & Colors
Product color White
Housing color White
Body material Polycarbonate (PC)
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+30 °C
Temperature range at storage -20…+60 °C
Type of protection IP43
Dimmable No
Mounting type Surface
Mounting location Wall
Application environment Indoor
Adjustable Yes
With light source Yes
Replaceable light source No
Lifespan
Lifespan L70/B50 at 25 °C 10000 h 1)
Number of switching cycles 15000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Sensor
Type of sensor Motion
Sensor technology Passive infrared (PIR)
BATTERY
Type of Battery Alkaline
Battery size [GMS] AAA
Number of included batteries 3
Nominal voltage of battery 1.5 V
Certificates & Standards
Standards CE, UKCA
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075227835 Blister
1
68 mm x 140 mm x 195 mm 125.00 g 1.86 dm³
4058075227842 Shipping box
6
421 mm x 154 mm x 210 mm 941.00 g 13.62 dm³
Declarations of conformity
CE Declaration Spylux
Product image: white background, diagonal
SPYLUX WT
Product line drawing with letters
SPYLUX WT
Product line drawing with numbers
SPYLUX WT
Product line drawing, front, no dimensions
SPYLUX WT

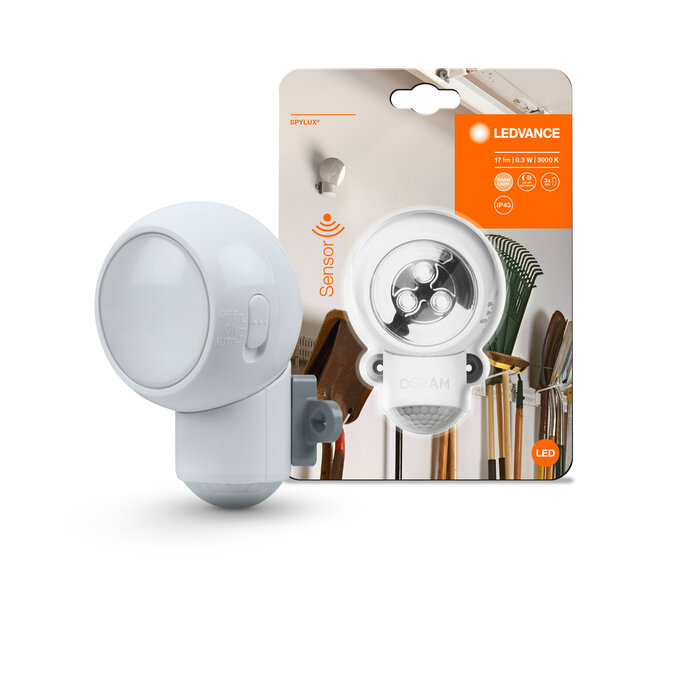

Combo Shot = Product Beauty Shot + Packaging Image
80191 SPYLUX WT 6XBLI1
Packaging image, frontal
Spylux WT BLI1
Application pictures
SPYLUX WT
EAN ELDAS number
4058075227835 941200680
