LEDSTIXX USB

LEDstixx USB Silver

GTIN: 4058075399723 Blister / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Very homogenous light
  • Multiple mounting options
  • Can be removed from the holder for use as a portable light
  • Can be rotated and swiveled for optimum illumination
Areas of application
  • Bathrooms
  • Where light is required but a socket is not available
Product features
  • Integrated rechargeable lithium battery which can be charged via USB cable
  • Dimmable in three steps by repeated switching
Equipment / Accessories
  • Complete mounting and connecting accessories included
Safety advice
  • This product is not a toy. It should not be left unattended in the hands of children or operated by children.
  • Not designed as a replacement for conventional lighting in private household.
  • Battery Warning: Keep out of reach for children. Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately.
  • If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
  • Please avoid: Maximal ambient temperature: +35 °C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Altitude during operation: 2000 m. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
Electrical data
Nominal wattage 2.00 W
Nominal voltage 5 V
Mains frequency 0 Hz
Nominal current 600 mA
Max. number of luminaires per miniature circuit breaker C10 -
Protection class III
Operating mode Battery
Photometrical data
Luminous flux 150 lm
Luminous efficacy 75 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra 90
Standard deviation of color matching 6 sdcm
Photobiological safety group acc. to EN62778 RG1
Photobiological safety group acc. to EN62471 RG1
Beam angle 110 °
Dimensions & Weight
Length 206.00 mm
Height 17.00 mm
Width 17.00 mm
Product weight 85.00 g
Materials & Colors
Product color Silver
Housing color Silver
Body material Aluminum
Cover material Polycarbonate (PC)
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -10…+35 °C
Temperature range at storage -10…+55 °C
Type of connection USB
Type of protection IP44
Dimmable Yes
Type of dimming 3 DIM
Mounting type Surface
Mounting location Wall
Application environment Indoor
Adjustable Yes
With light source Yes
Replaceable light source No
Lifespan
Lifespan L70/B50 at 25 °C 30000 h 1)
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
BATTERY
Type of Battery Lithium ion
Battery size [GMS] Others
Number of included batteries 1
Nominal voltage of battery 3.7 V
Nominal capacity of battery 800 mAh
Certificates & Standards
Standards CE, EAC, UKCA
Replaceable light source (EPREL) Not replaceable
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075399723 Blister
1
140 mm x 32 mm x 400 mm 111.00 g 1.79 dm³
4058075399730 Shipping box
6
408 mm x 206 mm x 152 mm 1027.00 g 12.78 dm³
Declarations of conformity
LEDSTIXX USB SI
Product datasheet -> old version of product
4058075399723 LEDstixx USB Silver en old

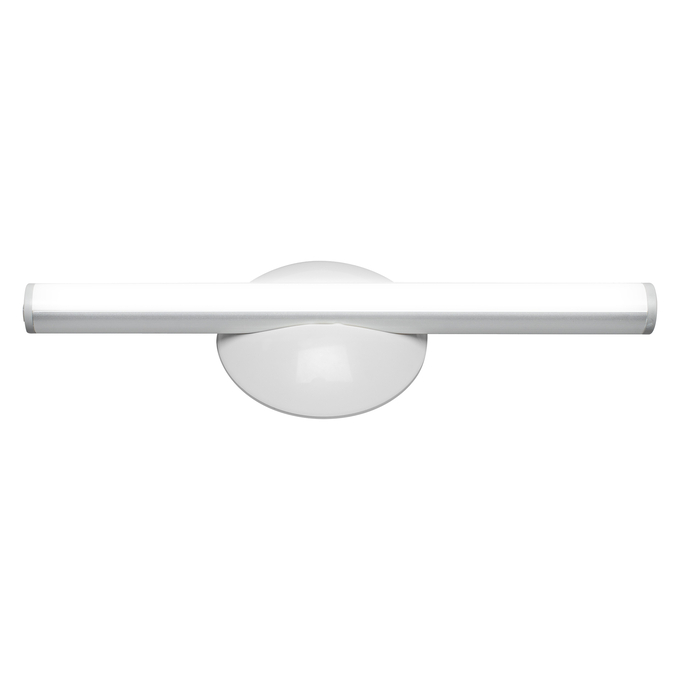

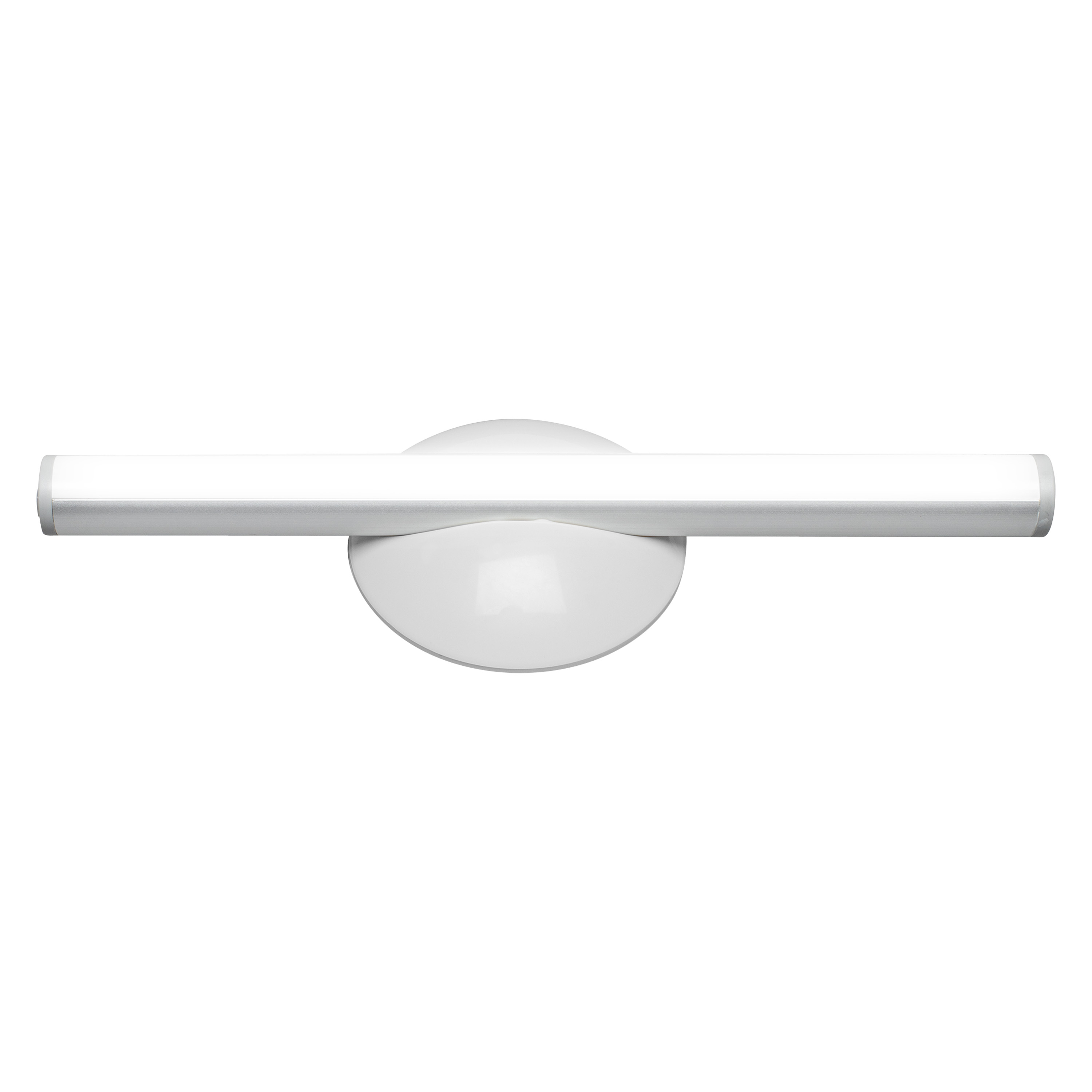

Product image: white background, upright
LEDSTIXX USB SI

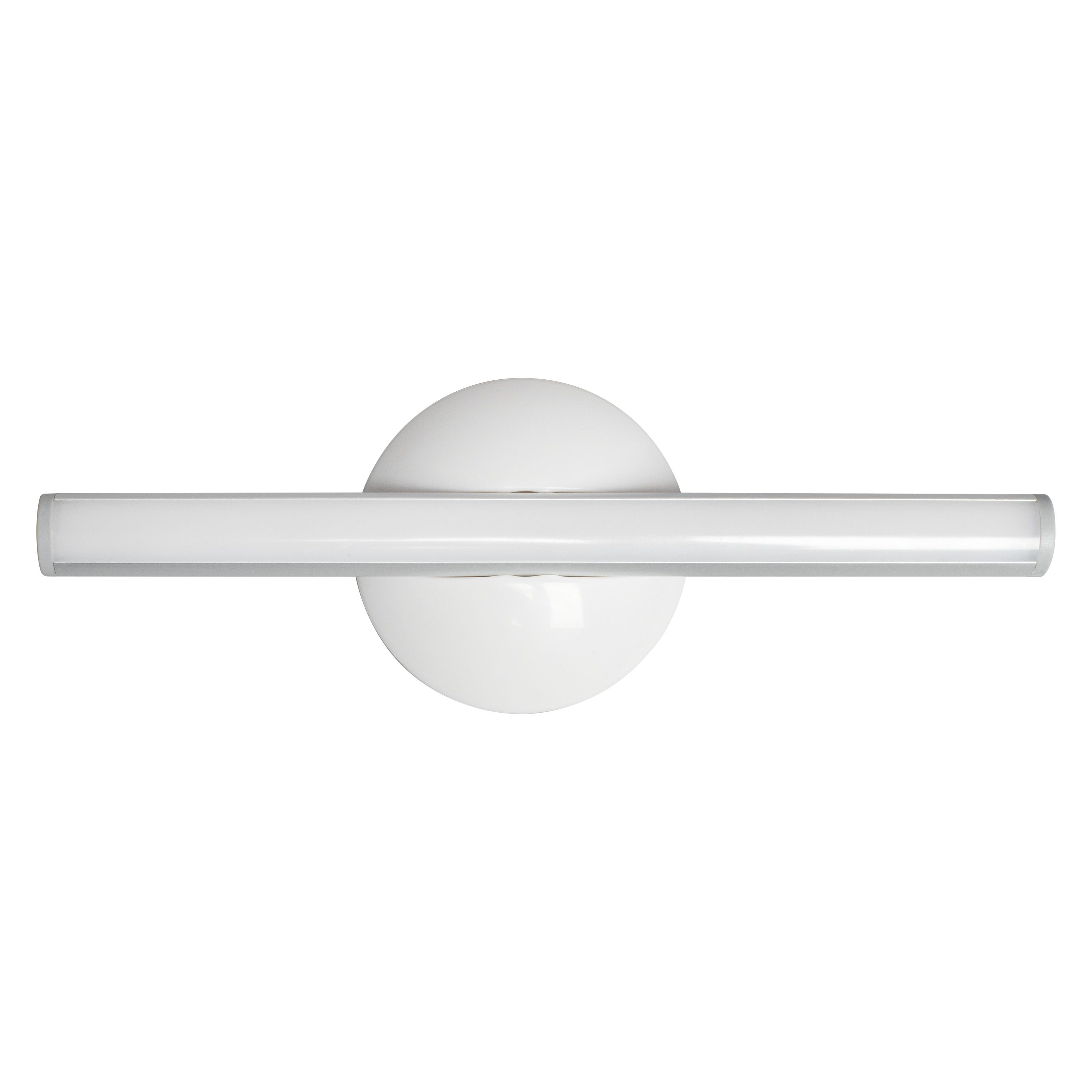

Product image: white background, upright, alternative image
LEDSTIXX USB SI
Product image: white background, upright, switched on
LEDSTIXX USB SI
Product line drawing with letters
LEDSTIXX USB SI
Product line drawing with numbers
LEDSTIXX USB SI
Product line drawing, front, no dimensions
LEDSTIXX USB SI

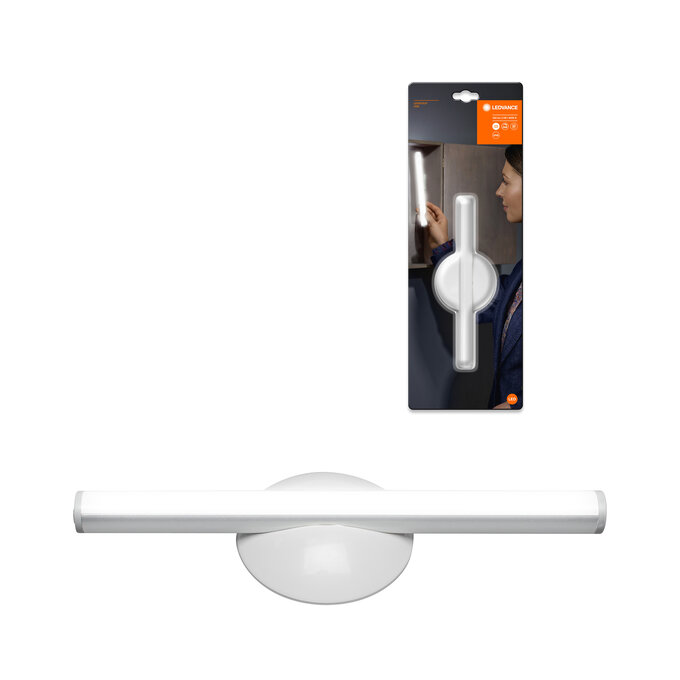

Combo Shot = Product Beauty Shot + Packaging Image
