DECOR SPOT MARS WHITE
Decor Spot Mars CLICK-SELECT White 1 Spot
GTIN: 4058075828384
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- High-quality housing with matt white or matt black surface
- Easy mounting
Areas of application
- Indoor applications
- Corridors, entrance areas, stairwells, living rooms, basements
- Kitchens, workspaces
- Ceiling and wall surface mounting
Product features
- Luminaire family features four versions with up to 4 spot heads
- On/off switch on 1-head version for easy operation
- 3-step switch (click select) to turn on base and head light separately
- Adjustable heads
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
| Nominal wattage | 16.50 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 75.000 mA |
| Inrush current | 0.252 A |
| Inrush current time Th50 | 52 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 166 |
| Max. number of luminaires per miniature circuit breaker C16 | 166 |
| Power factor λ | > 0.5 |
| Total harmonic distortion | < 70 % |
| Protection class | II |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 875 lm |
| Total luminous flux of contained light sources | 1620 lm |
| Luminous efficacy | 53 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | 80 |
| Standard deviation of color matching | 6 sdcm |
| Flickering metric (Pst LM) | <10 % |
| Stroboscope effect metric (SVM) | ≤0.4 |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 290 ° |
Dimensions & Weight
| Length | 120.00 mm |
| Height | 200.00 mm |
| Width | 130.00 mm |
| Product weight | 770.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | STEEL|ACRYLIC |
| Cover material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+40 °C |
| Type of connection | Screwless terminal, 2-Pole (L, N) |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | No |
| Mounting type | Surface |
| Adjustable | Yes |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 15000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075828384 | Folding box 1 |
162 mm x 162 mm x 273 mm | 905.00 g | 7.16 dm³ |
| 4058075828391 | Shipping box 4 |
560 mm x 178 mm x 350 mm | 4171.00 g | 34.89 dm³ |
User instruction / safety instructions
Decor Spot Mars
Decor Spot Mars
Legal information
Decor Spot lights
Decor Spot lights
Declarations of conformity
CE Declaration Decor Spot Pluto
CE Declaration Decor Spot Pluto

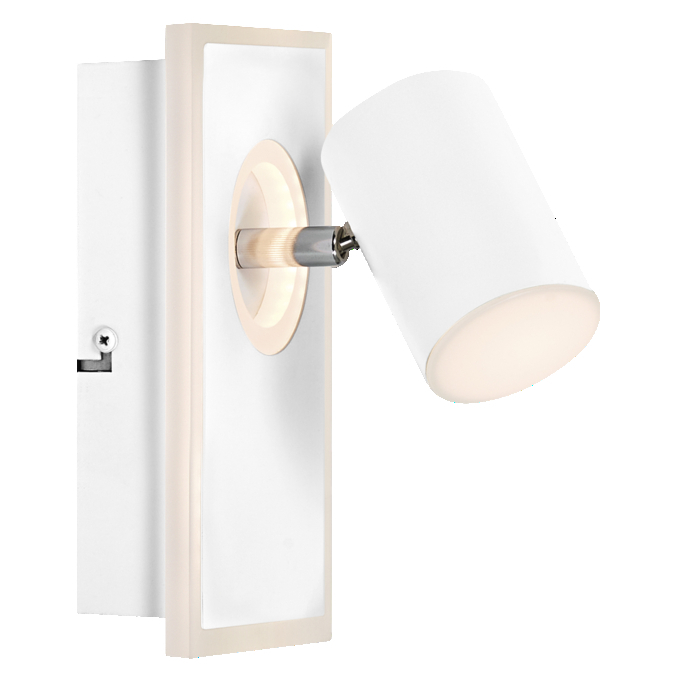

Product image: white background, horizontal, alternative image
DECOR SPOT MARS 200MM 17W SEL WT
DECOR SPOT MARS 200MM 17W SEL WT

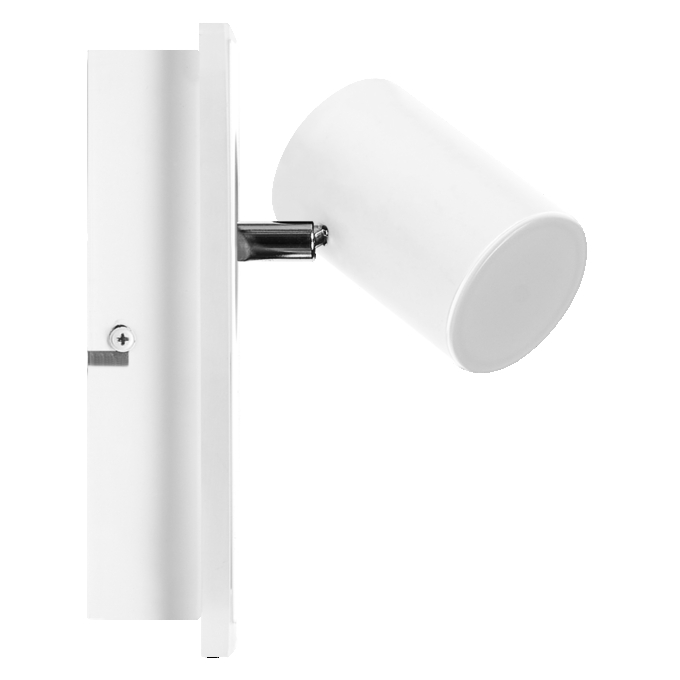

Product image: white background, upright
DECOR SPOT MARS 200MM 17W SEL WT
DECOR SPOT MARS 200MM 17W SEL WT
Product image: white background, upright, alternative image
DECOR SPOT MARS 200MM 17W SEL WT
DECOR SPOT MARS 200MM 17W SEL WT
Product image: white background, upright, switched on
DECOR SPOT MARS 200MM 17W SEL WT
DECOR SPOT MARS 200MM 17W SEL WT
Product infographic (application image with text and graphic)
Decor Luminaire Spot Mars e-Com graphic 1200x1200px 2024 EN
Decor Luminaire Spot Mars e-Com graphic 1200x1200px 2024 EN
Product line drawing with letters
DECOR SPOT MARS 200MM 17W SEL
DECOR SPOT MARS 200MM 17W SEL
Product line drawing with numbers
DECOR SPOT MARS 200MM 17W SEL
DECOR SPOT MARS 200MM 17W SEL
Product line drawing, front, no dimensions
DECOR SPOT MARS 200MM 17W SEL
DECOR SPOT MARS 200MM 17W SEL

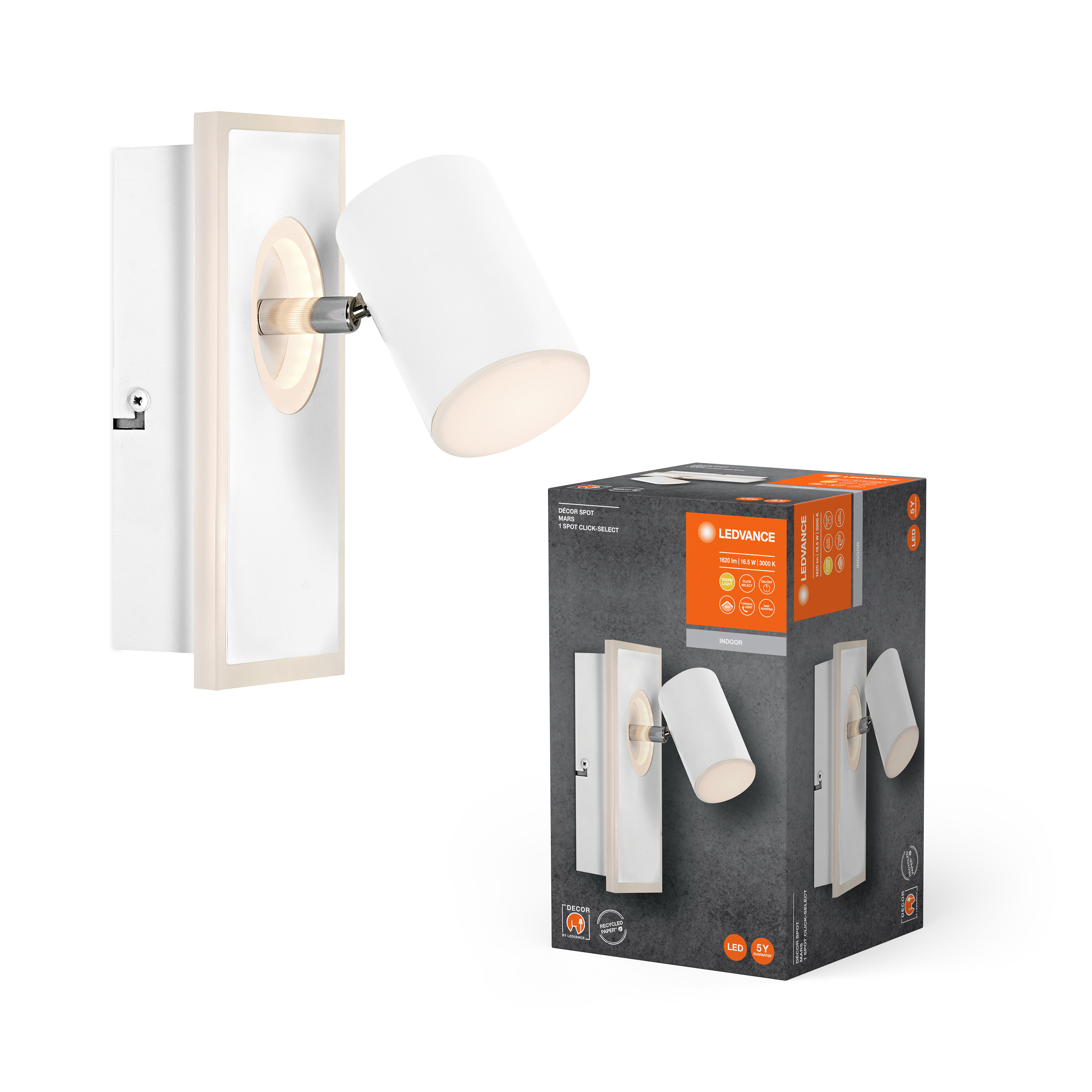

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC DEC SPOT MARS 1X WT
LUM FC DEC SPOT MARS 1X WT

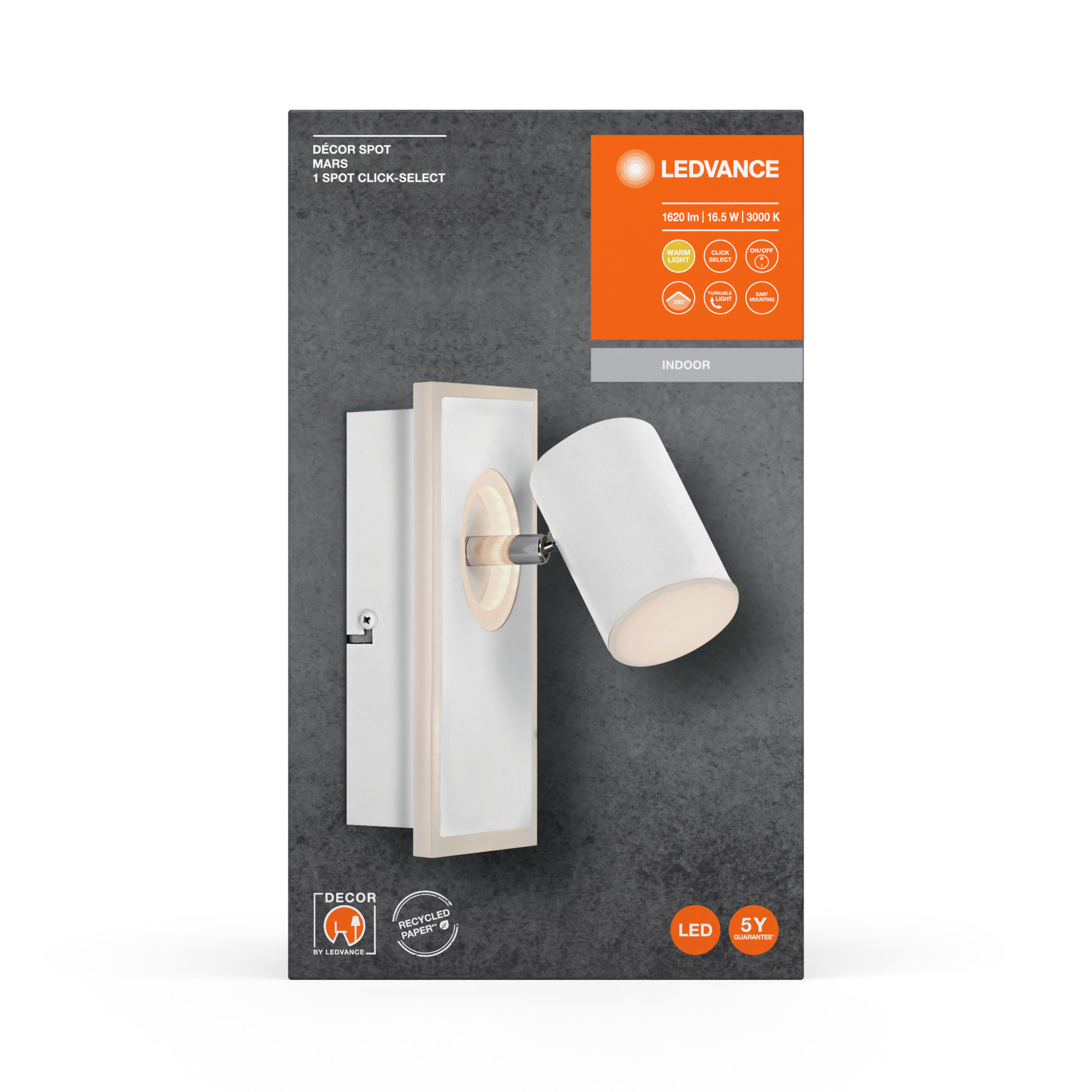

Packaging image, frontal
LUM FC DEC SPOT MARS 1X WT
LUM FC DEC SPOT MARS 1X WT

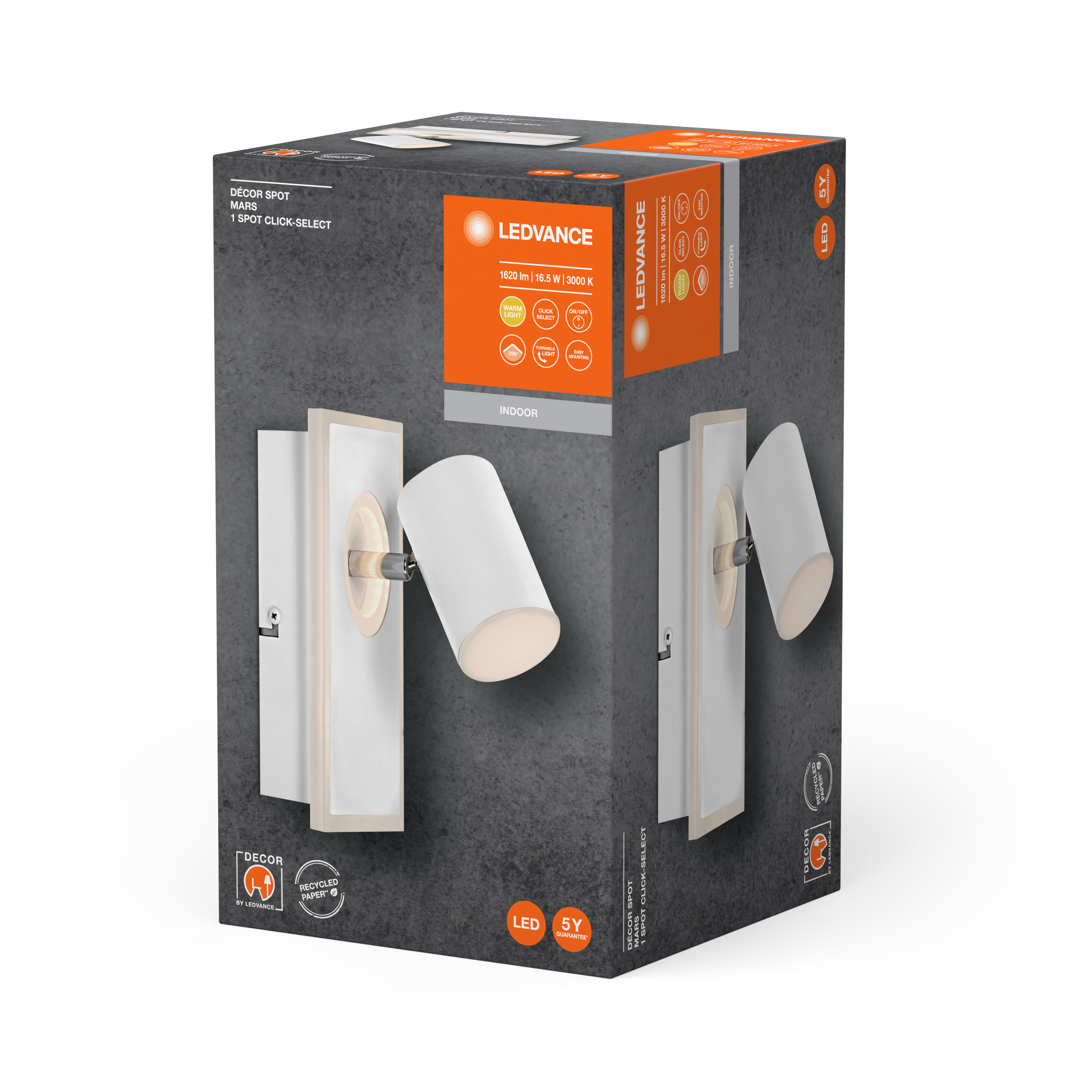

Packaging image, spacial
LUM FC DEC SPOT MARS 1X WT
LUM FC DEC SPOT MARS 1X WT

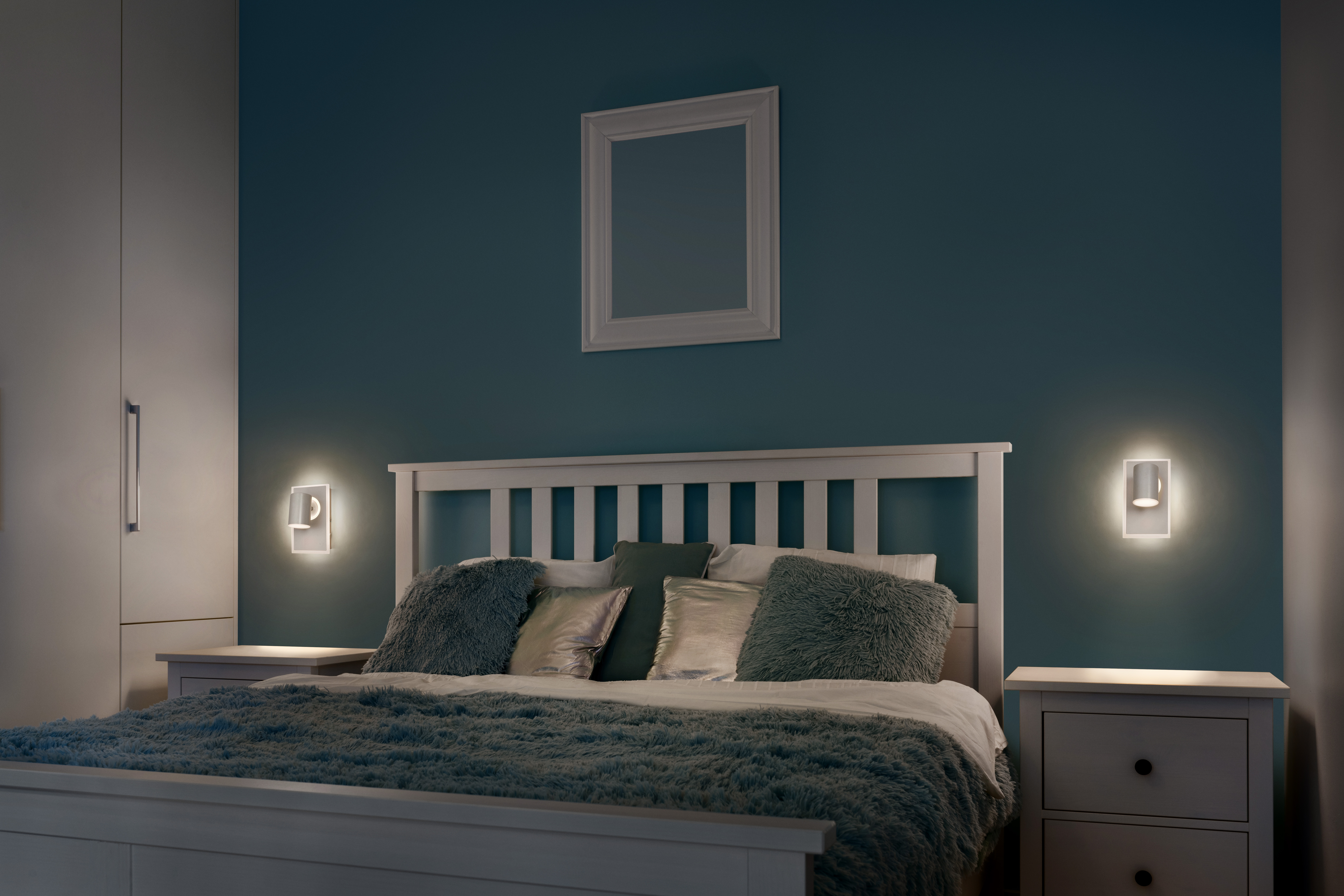

Application pictures Getty
