Decor Spot Jupiter
Decor Spot Jupiter Silver 4 Spot
GTIN: 4099854471490
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- High-quality look and feel
- Easy mounting
Areas of application
- Indoor applications
- Corridors, entrance areas, stairwells, living rooms, basements
- Kitchens, workspaces
- Ceiling and wall surface mounting
Product features
- Luminaire family features five versions with up to 4 spot heads
- On/off switch on 1-head version for easy operation
- Adjustable heads
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Electrical data
| Nominal wattage | 22.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 95.000 mA |
| Inrush current time Th50 | 240 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 128 |
| Max. number of luminaires per miniature circuit breaker C16 | 134 |
| Power factor λ | > 0.5 |
| Total harmonic distortion | < 70 % |
| Protection class | II |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 730 lm |
| Total luminous flux of contained light sources | 2000 lm |
| Luminous efficacy | 33 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | 80 |
| Standard deviation of color matching | 6 sdcm |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 65 ° |
Dimensions & Weight
| Length | 700.00 mm |
| Height | 155.00 mm |
| Width | 83.00 mm |
| Product weight | 1660.00 g |
Materials & Colors
| Product color | Silver |
| Housing color | Silver |
| Body material | Steel |
| Cover material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+40 °C |
| Type of connection | Terminal, 2-Pole (L, N) |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | No |
| Mounting type | Surface |
| Adjustable | Yes |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 15000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854471490 | Folding box 1 |
132 mm x 182 mm x 783 mm | 2445.00 g | 18.81 dm³ |
| 4099854471506 | Shipping box 4 |
797 mm x 378 mm x 289 mm | 9780.00 g | 87.07 dm³ |
User instruction / safety instructions
DECOR SPOT JUPITER
DECOR SPOT JUPITER
Legal information
Safety insert G11219279
Safety insert G11219279
Declarations of conformity
CE Declaration Decor Spot Pluto
CE Declaration Decor Spot Pluto
Product image: white background, upright
DECOR SPOT JUPITER 700MM 22W 830 SI
DECOR SPOT JUPITER 700MM 22W 830 SI
Product image: white background, upright, alternative image
DECOR SPOT JUPITER 700MM 22W 830 SI
DECOR SPOT JUPITER 700MM 22W 830 SI
Product image: white background, upright, switched on
DECOR SPOT JUPITER 700MM 22W 830 SI
DECOR SPOT JUPITER 700MM 22W 830 SI
Product infographic (application image with text and graphic)
Decor Luminaire Spot Jupiter e-Com graphic 1200x1200px 2024 EN
Decor Luminaire Spot Jupiter e-Com graphic 1200x1200px 2024 EN
Product line drawing with letters
DECOR SPOT JUPITER 700MM 22W 830
DECOR SPOT JUPITER 700MM 22W 830
Product line drawing with numbers
DECOR SPOT JUPITER 700MM 22W 830
DECOR SPOT JUPITER 700MM 22W 830
Product line drawing, front, no dimensions
DECOR SPOT JUPITER 700MM 22W 830
DECOR SPOT JUPITER 700MM 22W 830

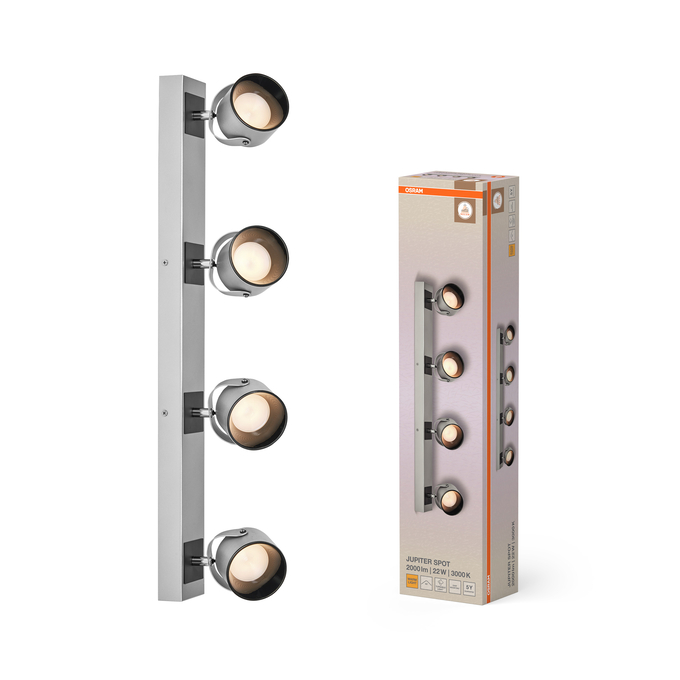

Combo Shot = Product Beauty Shot + Packaging Image
