Bulkhead Essential
Bulkhead Essential Round E27 Black
GTIN: 4058075845626
Bundle / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Sustainable due to E27 base
- High-quality glass housing and integrated protective cage for increased safety
- Thanks to protection class IP44, the luminaire is splash-proof
Areas of application
- Basement
- Garages
- Corridors, stairways, entrance areas
Product features
- Impact resistance: IK06
- Type of protection: IP44
- Easy and quick installation
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
| Nominal voltage | 220…240 V |
| Protection class | II |
Dimensions & Weight
| Length | 190.00 mm |
| Height | 98.00 mm |
| Width | 190.00 mm |
| Product weight | 620.00 g |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Polyprophylene (PP) |
| Cover material | Glass |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -40…+80 °C |
| Type of connection | Terminal, 2-Pole (L, N) |
| Type of protection | IP54 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Wall |
| With light source | No |
| Replaceable light source | No |
| Holder designation | E27 |
Emergency lighting
| Type of emergency operation test | None |
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
Additional product data
| Product remark | Maximum bulb wattage: 10 W LED, Available from July 2025 |
| Number of illuminants | 1 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075845626 | Bundle 1 |
190 mm x 190 mm x 99 mm | 626.00 g | 3.57 dm³ |
| 4058075845633 | Shipping box 10 |
547 mm x 417 mm x 224 mm | 7302.00 g | 51.09 dm³ |
User instruction / safety instructions
BULKHEAD ESSENTIAL
BULKHEAD ESSENTIAL
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Legal information
Safety insert G11219301
Safety insert G11219301
Declarations of conformity
CE declaration Bulkheads Essential E27
CE declaration Bulkheads Essential E27

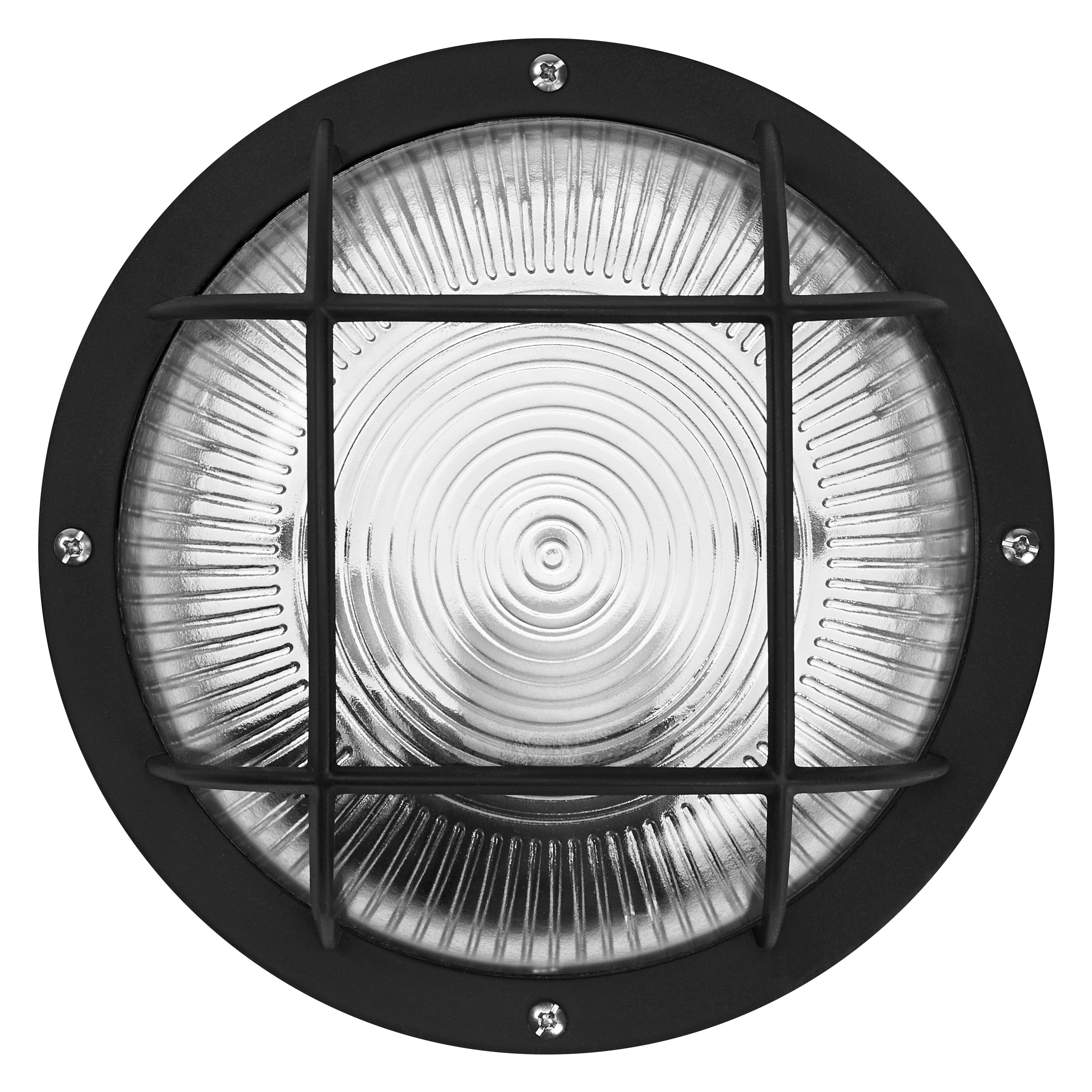

Product image: white background, upright
BULKHEAD ESSENTIAL ROUND E27 BK
BULKHEAD ESSENTIAL ROUND E27 BK

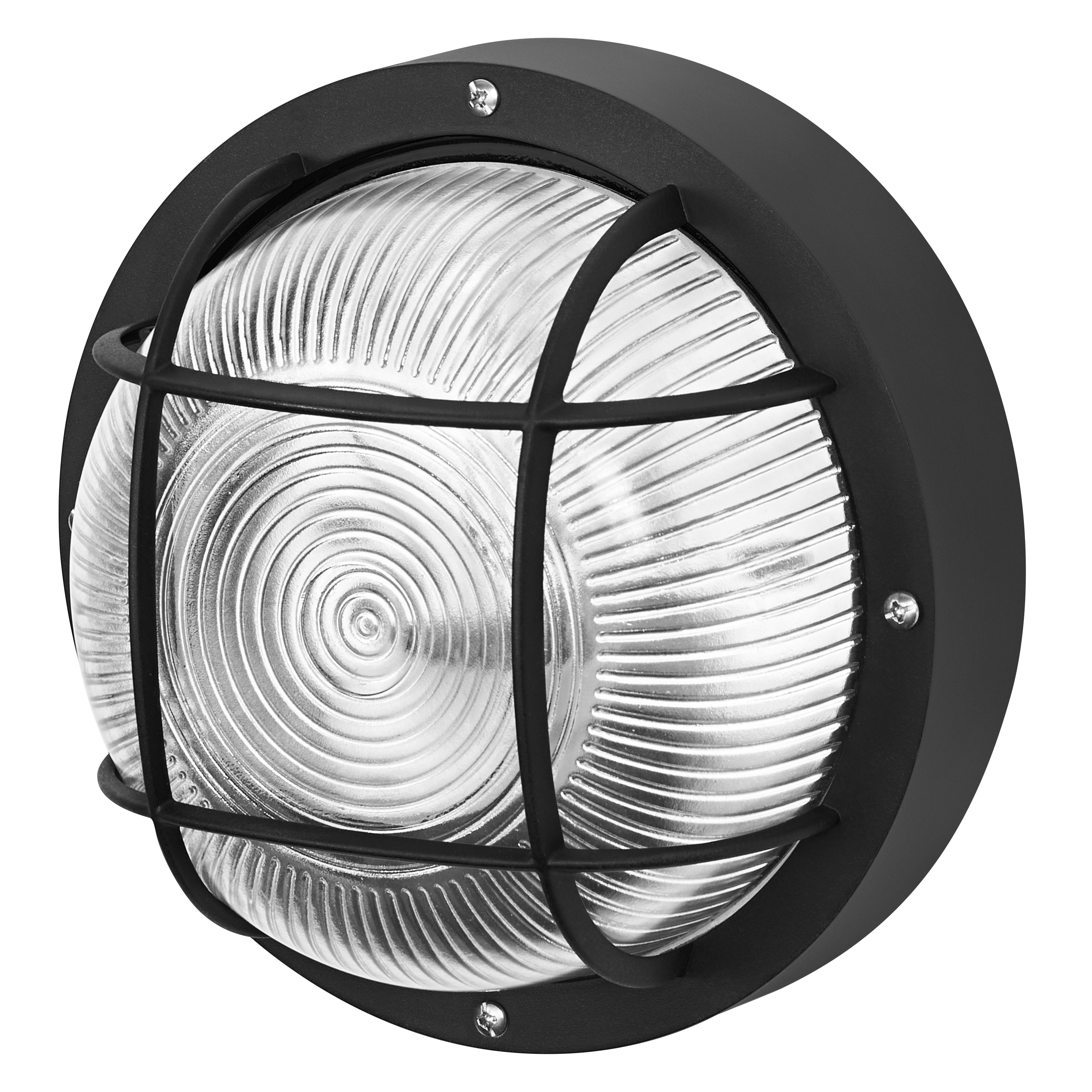

Product image: white background, upright, alternative image
