Office line slab
Office Line Slab 1.2m 40W 840 DIM Black
GTIN: 4099854464836
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Super slim construction
- Suspended mounting to light up the working surface
Areas of application
- Office lighting
- Indoor applications
- Home offices
- General indoor illumination
- Kitchens, workspaces
Product features
- Lifetime up to 50,000 h
- Dimmable
- Color temperature: 4,000 K
- Material: Aluminium (Housing), Polycarbonate (Diffuser)
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
| Nominal wattage | 40.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 180.000 mA |
| Inrush current time Th50 | 34 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 46 |
| Max. number of luminaires per miniature circuit breaker C10 | 29 |
| Max. number of luminaires per miniature circuit breaker C16 | 46 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 30 % |
| Protection class | I |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 4100 lm |
| Total luminous flux of contained light sources | 5750 lm |
| Luminous efficacy | 103 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | 6 sdcm |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 120 ° |
Dimensions & Weight
| Length | 1200.00 mm |
| Height | 28.00 mm |
| Width | 90.00 mm |
| Product weight | 1650.00 g |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Aluminum |
| Cover material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 750 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 3-Pole (L, N, PE) |
| Type of protection | IP20 |
| Dimmable | Yes |
| Type of dimming | PHASE CUT |
| Mounting type | Suspended |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Number of switching cycles | 25000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, UKCA, EAC |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854464836 | Folding box 1 |
66 mm x 131 mm x 1,392 mm | 1924.00 g | 12.04 dm³ |
| 4099854464843 | Shipping box 4 |
1,416 mm x 252 mm x 155 mm | 8918.00 g | 55.31 dm³ |
User instruction / safety instructions
OFFICE LINE SLAB
OFFICE LINE SLAB
Legal information
Safety insert G11219578
Safety insert G11219578
Declarations of conformity
EU-Declaration of Conformity SLAB_1.pdf
EU-Declaration of Conformity SLAB_1.pdf

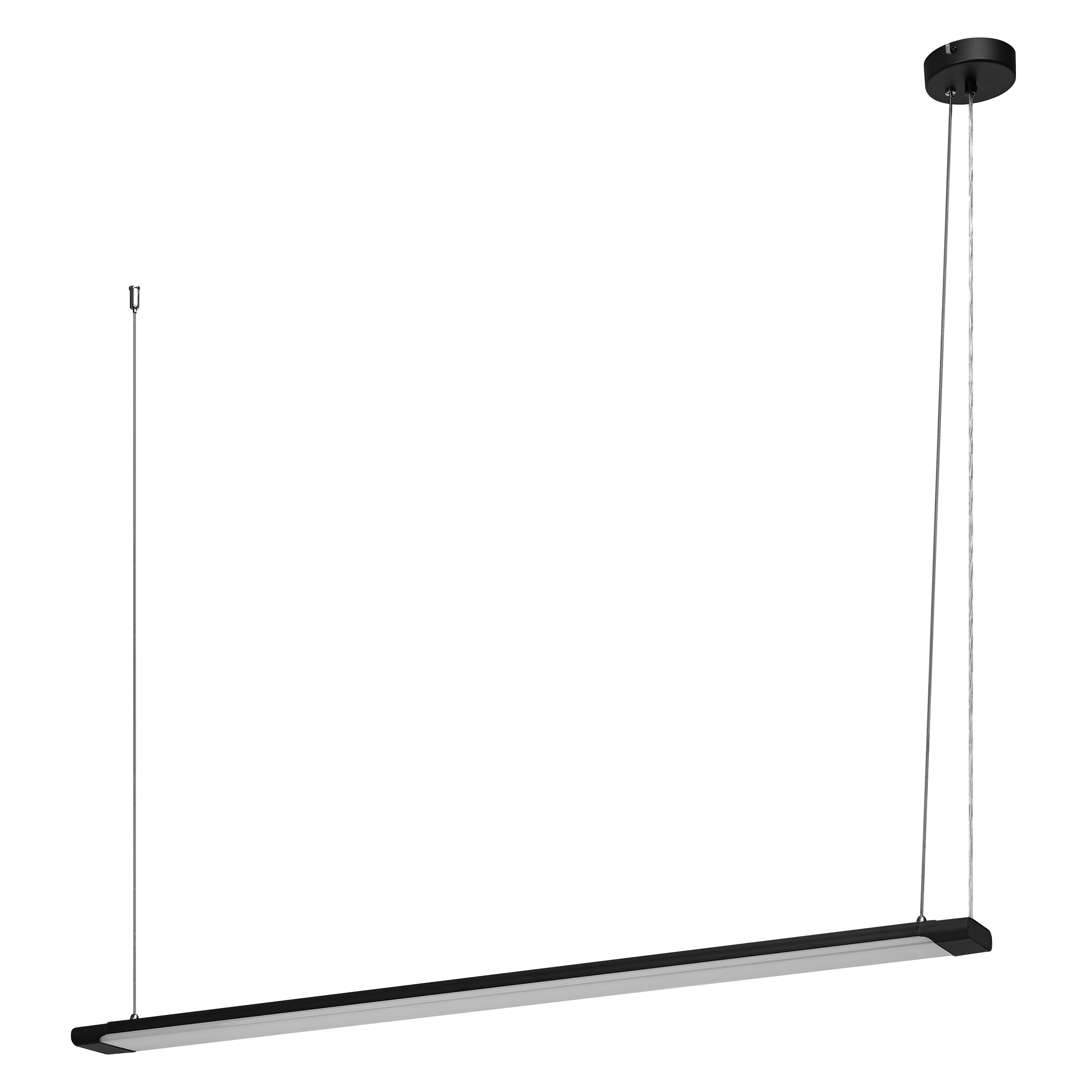

Product image: white background, upright
OFFICE LINE SLAB 1.2M 40W840 DIM BK
OFFICE LINE SLAB 1.2M 40W840 DIM BK

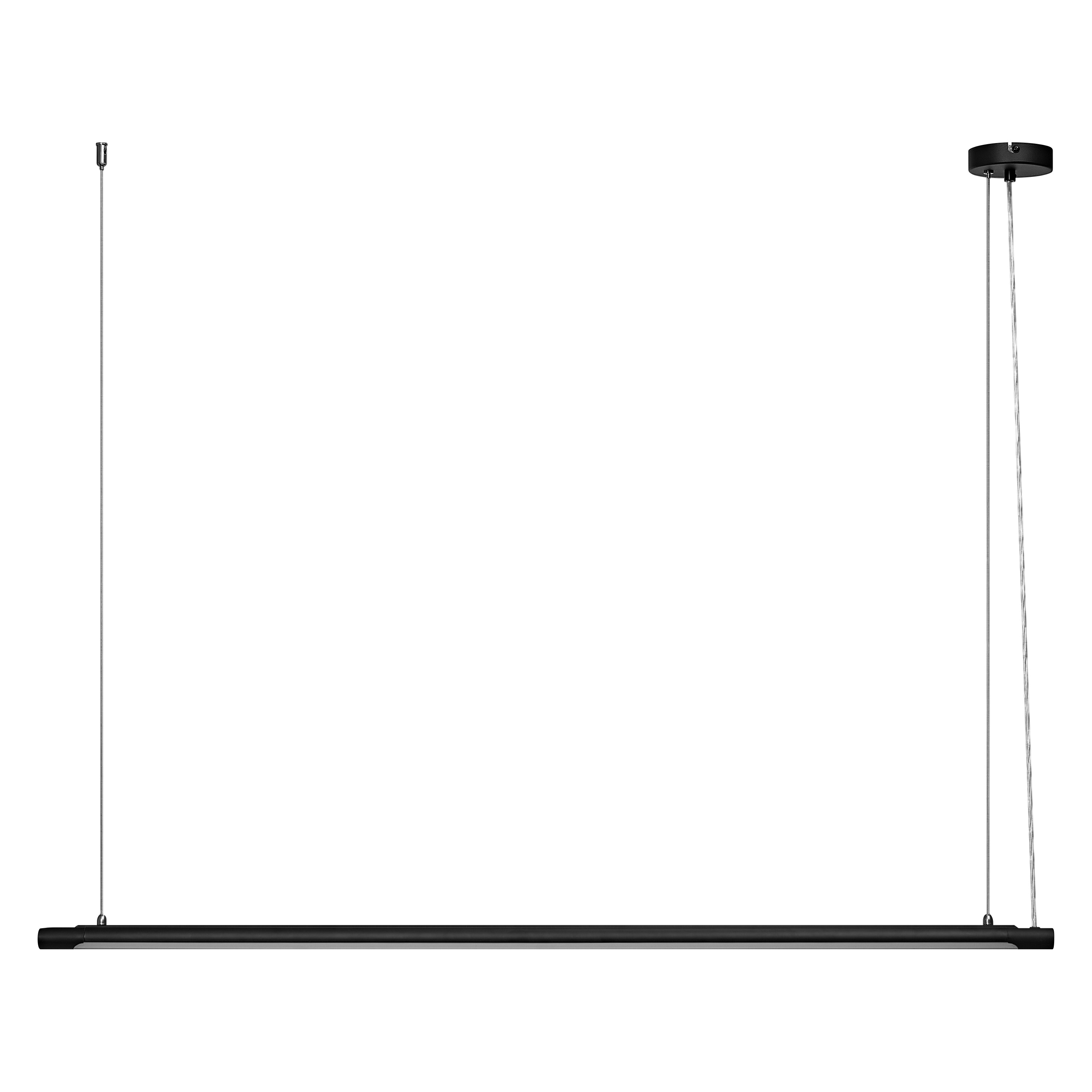

Product image: white background, upright, alternative image
OFFICE LINE SLAB 1.2M 40W840 DIM BK
OFFICE LINE SLAB 1.2M 40W840 DIM BK

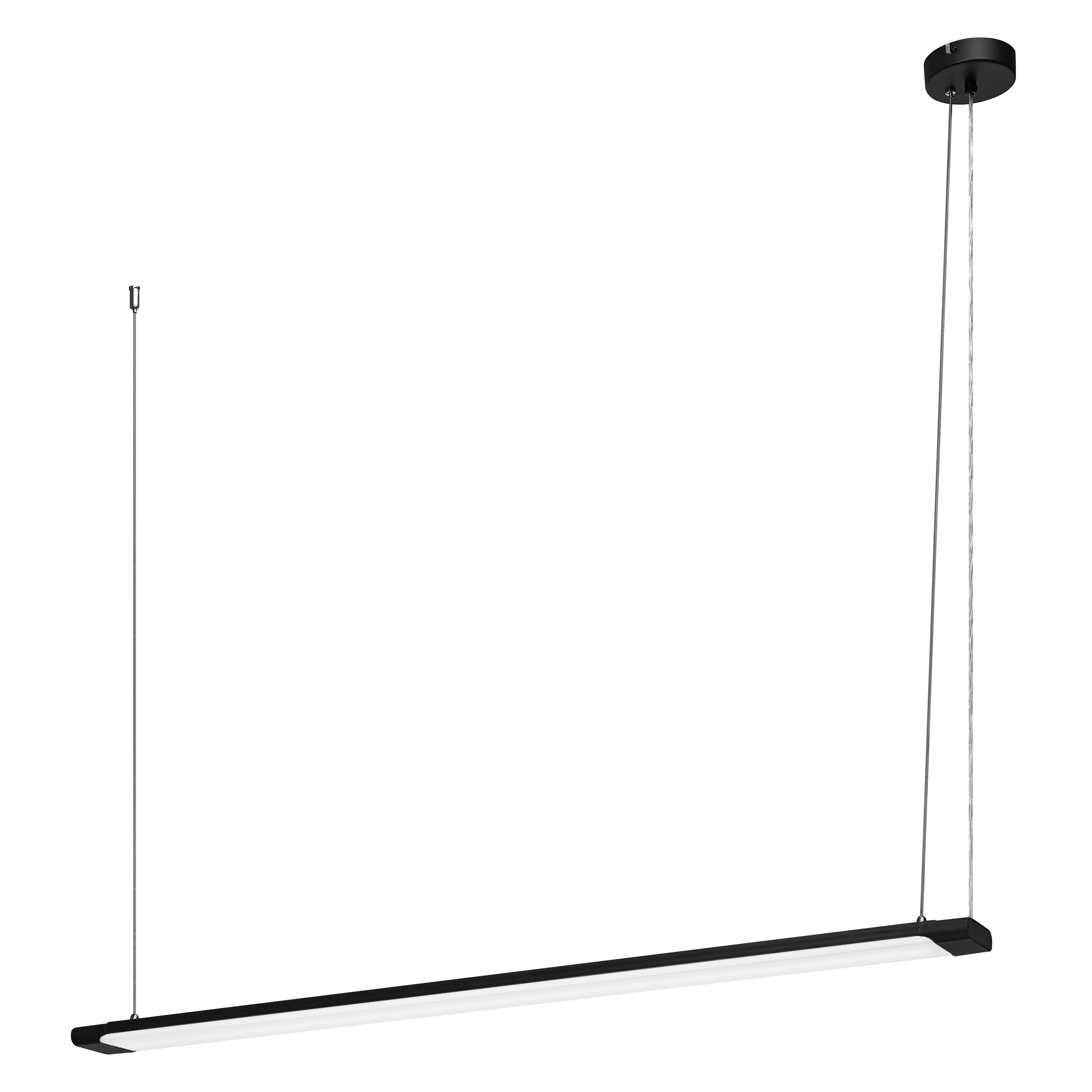

Product image: white background, upright, switched on
OFFICE LINE SLAB 1.2M 40W840 DIM BK
OFFICE LINE SLAB 1.2M 40W840 DIM BK
Product line drawing with letters
OFFICE LINE SLAB 1.2M 40W840 DIM
OFFICE LINE SLAB 1.2M 40W840 DIM
Product line drawing with numbers
OFFICE LINE SLAB 1.2M 40W840 DIM
OFFICE LINE SLAB 1.2M 40W840 DIM
Product line drawing, front, no dimensions
OFFICE LINE SLAB 1.2M 40W840 DIM
OFFICE LINE SLAB 1.2M 40W840 DIM
Combo Shot = Product Beauty Shot + Packaging Image
LUM IN OL SLAB 40W DIM BK OSRAM
LUM IN OL SLAB 40W DIM BK OSRAM
Packaging image, frontal
LUM IN OL SLAB 40W DIM BK OSRAM
LUM IN OL SLAB 40W DIM BK OSRAM
Packaging image, spacial
LUM IN OL SLAB 40W DIM BK OSRAM
LUM IN OL SLAB 40W DIM BK OSRAM

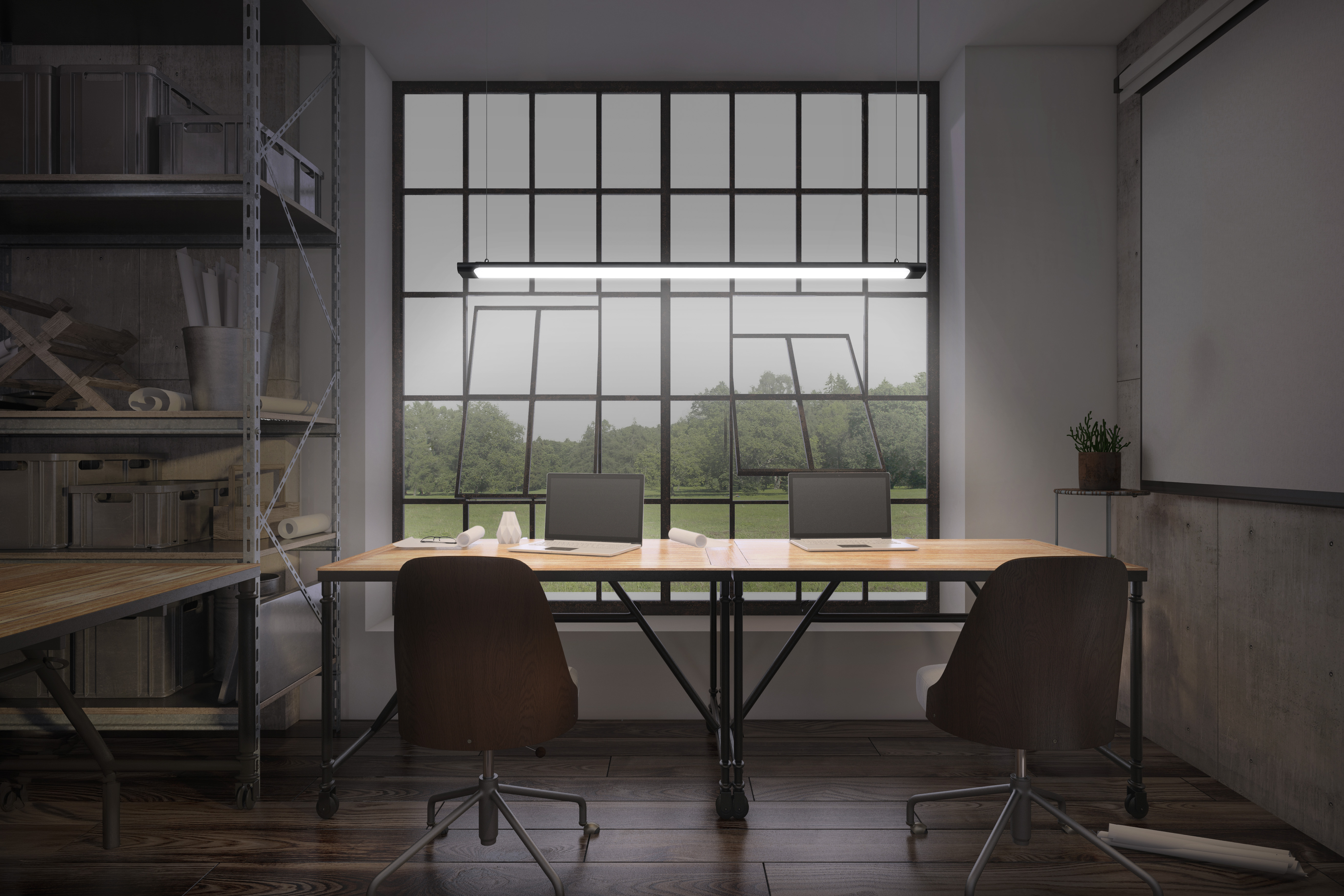

Application pictures Getty
