MINI BATTEN
MINI BATTEN 600 10-15W 840-865 IP44
GTIN: 4099854201806
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Dual colour in 4000K and 6500K
Areas of application
- Kitchens
- Bathrooms
- Bedrooms
- Reception areas and foyers
- Corridors, stairways, entrance areas
Product features
- Available in two wattage options: 10-15W and 15-20W
- Available in 600mm and 900mm
- High luminous efficacy: up to 110 lm/W
- Beam angle: 120°
- Type of protection: IP44
- Impact resistance: IK05
- Lifetime up to 25,000 h
Electrical data
| Nominal wattage | 15.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Power factor λ | ≥ 0.07 |
Photometrical data
| Luminous flux | 1500 lm |
| Total luminous flux of contained light sources | 1500 lm |
| Luminous efficacy | 100 lm/W |
| Color temperature | 4000…6500 K |
| Light color (designation) | Cool White, Cool Daylight |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | < 6 sdcm |
| Beam angle | 120 ° |
Dimensions & Weight
| Length | 596.00 mm |
| Height | 71.00 mm |
| Width | 61.00 mm |
| Product weight | 398.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Polycarbonate (PC) |
| Cover material | Polycarbonate (PC) |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Type of protection | IP44 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Ceiling, Wall |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 25000 h 1) |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854201806 | Folding box 1 |
606 mm x 66 mm x 81 mm | 489.00 g | 3.24 dm³ |
| 4099854201813 | Shipping box 15 |
630 mm x 355 mm x 275 mm | 8129.00 g | 61.50 dm³ |

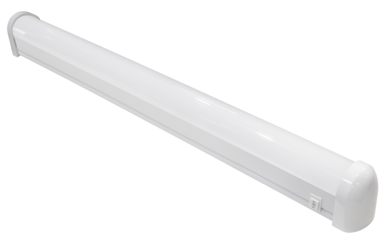

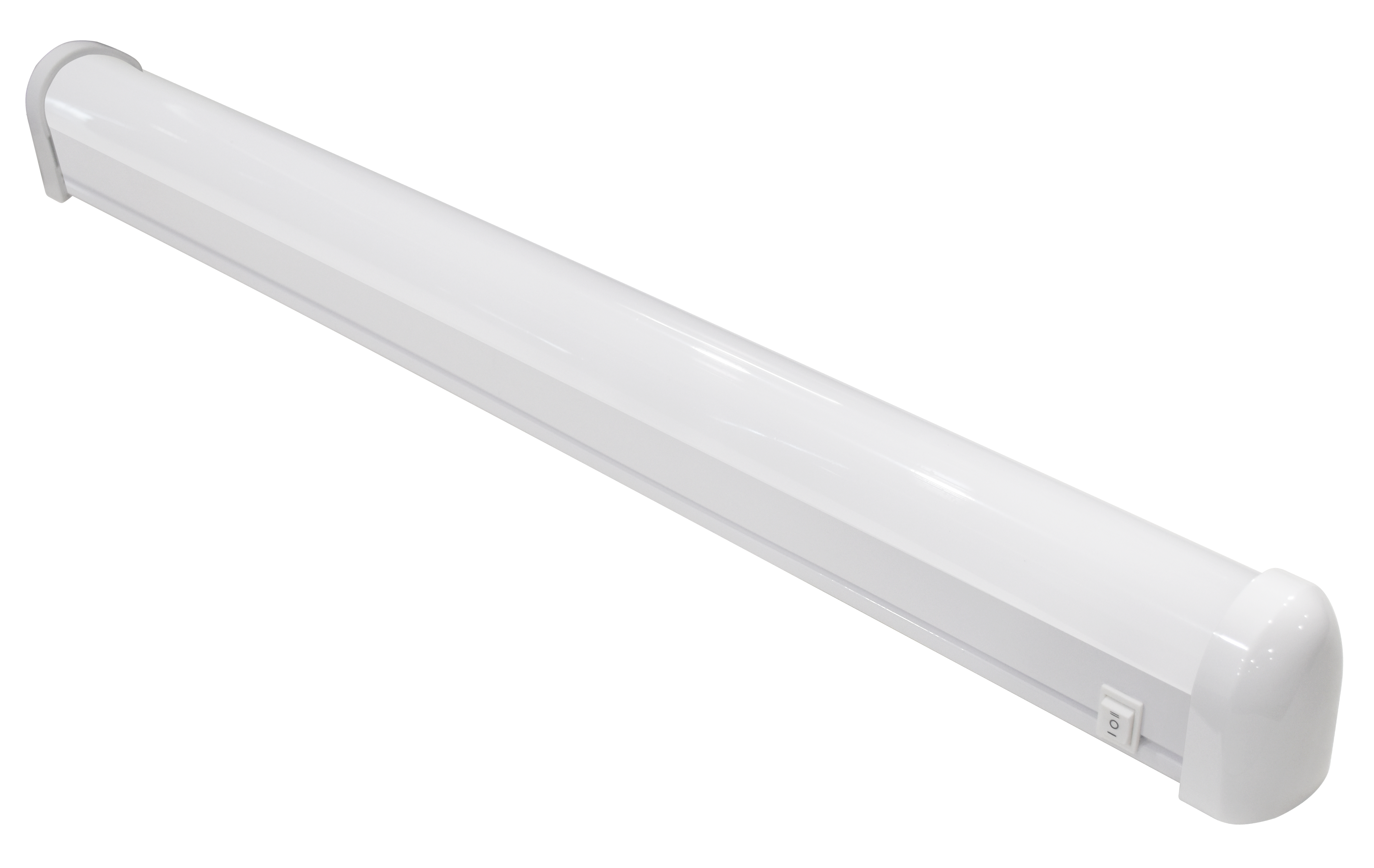

Product image: white background, diagonal
Mini Batten 600
Mini Batten 600
| EAN | AU model number |
|---|---|
| 4099854201806 | LDVBAT615W840/65 |
