Wattage Switch Tri Colour Batten

LDV BAT 600 12-20W TRI

GTIN: 4058075603233 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Available in 4 housing sizes with TRI CCT
  • Easy installation
Areas of application
  • Reception areas and foyers
  • Garages
  • Corridors, stairways, entrance areas
  • Entrances / Hallways
  • Retail
  • Hospitality
Product features
  • Beam angle: 120°
  • Type of protection: IP20
  • Polycarbonate housing
  • Lifetime up to 50,000 h
  • High luminous efficacy: up to 110 lm/W
  • DALI version and self-contained emergency versions are available within the same family
Electrical data
Nominal wattage 20.00 W
Photometrical data
Luminous flux 2000 lm
Luminous efficacy 100 lm/W
Dimensions & Weight
Length 600.00 mm
Height 73.00 mm
Width 75.00 mm
Product weight 880.00 g
Materials & Colors
Product color White
Housing color White
Body material Polycarbonate (PC)
Application & Mounting
Dimmable No
Mounting type Surface
Replaceable light source No
Certificates & Standards
Replaceable light source (EPREL) Not replaceable
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075603233 Folding box
1		 607 mm x 90 mm x 90 mm 995.00 g 4.92 dm³
4058075603240 Shipping box
6		 645 mm x 260 mm x 180 mm 6380.00 g 30.19 dm³

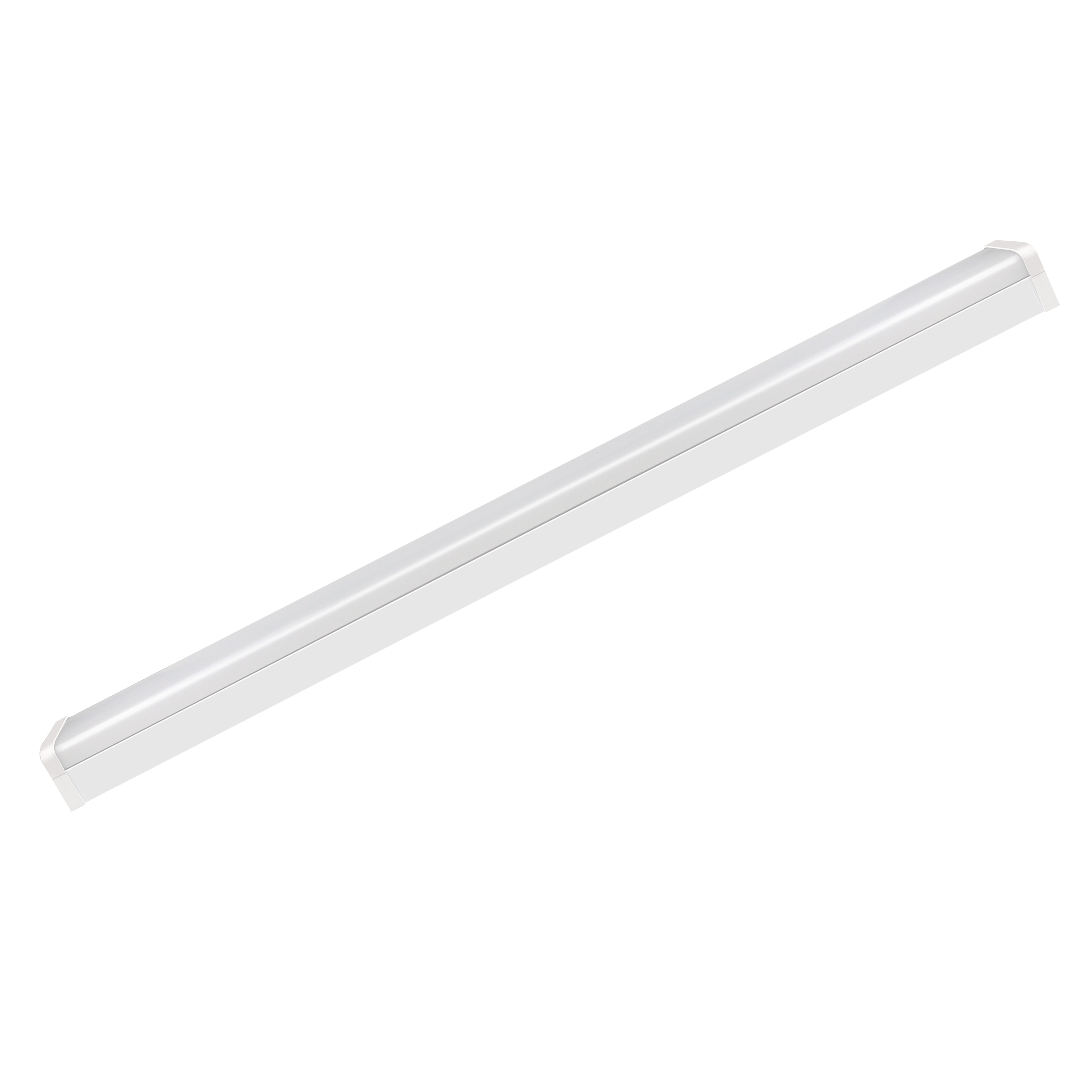

Product image: white background, diagonal
LDV BAT 600 TRI
JPG (768.6 KB)
EAN AU model number
4058075603233 LDVBAT6001220WTRI
