LED VALUE SECURITY FLOODLIGHT
LDVAL SECURITY FLOOD 2X10W TRI MS
GTIN: 4058075542303
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Available in TRI CCT as a single or double adjustable head
- Motion sensor versions available, providing additional security and safety
- Large terminal block for simple installation
Areas of application
- Outdoor use (IP65)
- Building facades
Product features
- Type of protection: IP65
- TRI colour 3000K, 4000K and 6500K via dip switch
- High luminous efficacy: up to 100 lm/W
- Ambient temperature in operation: -20…+50 °C
- Long lifetime: up to 30,000 h
- 5 years warranty
Electrical data
| Nominal wattage | 2x10 W |
| Nominal voltage | 220…240 V |
| Power factor λ | > 0.5 |
Photometrical data
| Luminous flux | 1800 … 2000 lm |
| Luminous efficacy | 900 lm/W |
| Color temperature | 3000 K / 4000 K / 6500 K |
| Light color (designation) | Warm White, Cool White, Cool Daylight |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | < 6 sdcm |
| Beam angle | 100 ° |
Dimensions & Weight
| Length | 290.00 mm |
| Height | 170.00 mm |
| Width | 132.00 mm |
| Product weight | 700.00 g |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Aluminum |
| Cover material | Polycarbonate (PC) |
Application & Mounting
| Ambient temperature range | -20…+50 °C |
| Type of connection | Screw terminal, 3-Pole |
| Type of protection | IP54 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Ceiling, Wall |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Lifespan L80/B10 at 25 °C | 30000 h 1) |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Sensor
| Type of sensor | PIR |
Certificates & Standards
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Number of illuminants | 2 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075542303 | Folding box 1 |
|||
| 4058075542310 | Shipping box 12 |
470 mm x 315 mm x 275 mm | 9000.00 g | 40.71 dm³ |

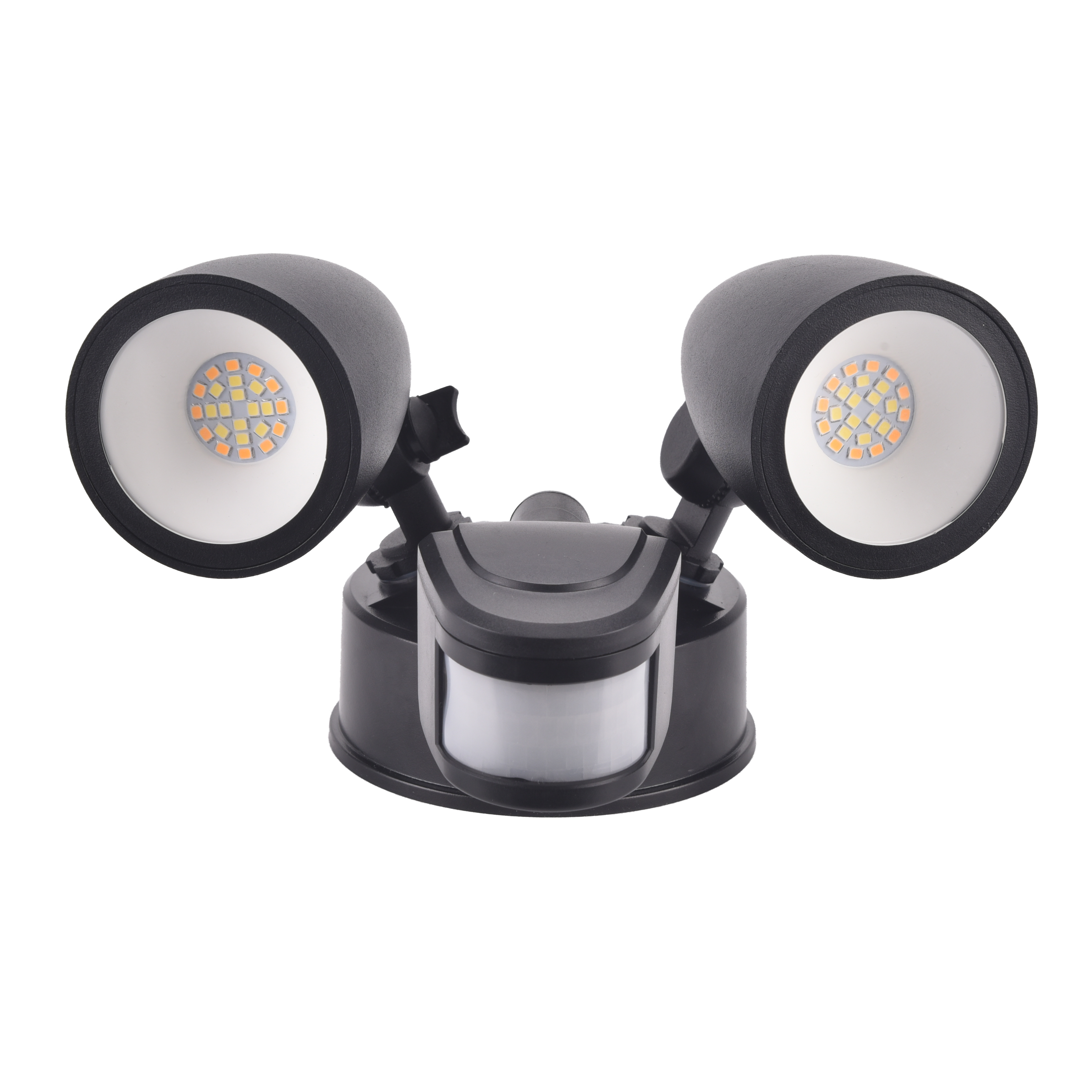

Product image: white background, spacial
LDVAL SECURITY FLOOD 2X10WTRIMS
LDVAL SECURITY FLOOD 2X10WTRIMS
| EAN | AU model number |
|---|---|
| 4058075542303 | LDVSFL2X10WTRIMS |
