FLOODLIGHT MAX
FL MAX LUM P 600W 757 SYM 10
GTIN: 4099854202865
Shipping box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Available in standard version and remote driver version
Areas of application
- Public areas
- Construction areas
- Car parks
- Sports facilities
- Commercial lighting
Product features
- Available with wattage: 600W, 900W, 1200W
- Color temperature: 5700 K
- 1…10 V dimming control
- Available with 10°, 30° and 60° symmetric beam angles, as well as 50°x110° asymmetric light distribution
- Type of protection: IP66
- Impact resistance: IK08
- Die-cast aluminum housing
- Lifetime: up to 100,000 h
Electrical data
| Nominal wattage | 600.00 W |
| Nominal voltage | 180 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 2600.000 mA |
| Protection class | I |
| Operating mode | External LED driver |
Photometrical data
| Luminous flux | 78000 lm |
| Luminous efficacy | 130 lm/W |
| Color temperature | 5700 K |
| Light color (designation) | Daylight |
| Color rendering index Ra | ≥70 |
| Beam angle | 10 ° |
Dimensions & Weight
| Length | 472.00 mm |
| Height | 279.00 mm |
| Width | 591.00 mm |
| Product weight | 15800.00 g |
Materials & Colors
| Product color | Gray |
| Housing color | Gray |
| Body material | Aluminum |
| Cover material | Glass |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -30…+50 °C |
| Temperature range at storage | -40…+70 °C |
| Type of connection | Terminal, 3-Pole (L, N, PE) |
| Type of protection | IP66 |
| Protection class IK (shock resistance) | IK08 |
| Dimmable | Yes |
| Mounting type | Surface |
| Application environment | Outdoor |
| Replaceable light source | No |
Certificates & Standards
| Standards | CB, EMC, ROHS |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854202865 | Shipping box 1 |
619 mm x 619 mm x 238 mm | 18650.00 g | 91.19 dm³ |

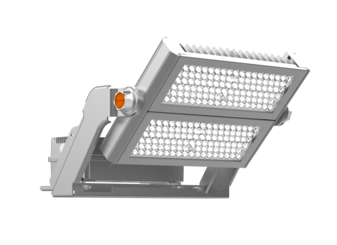

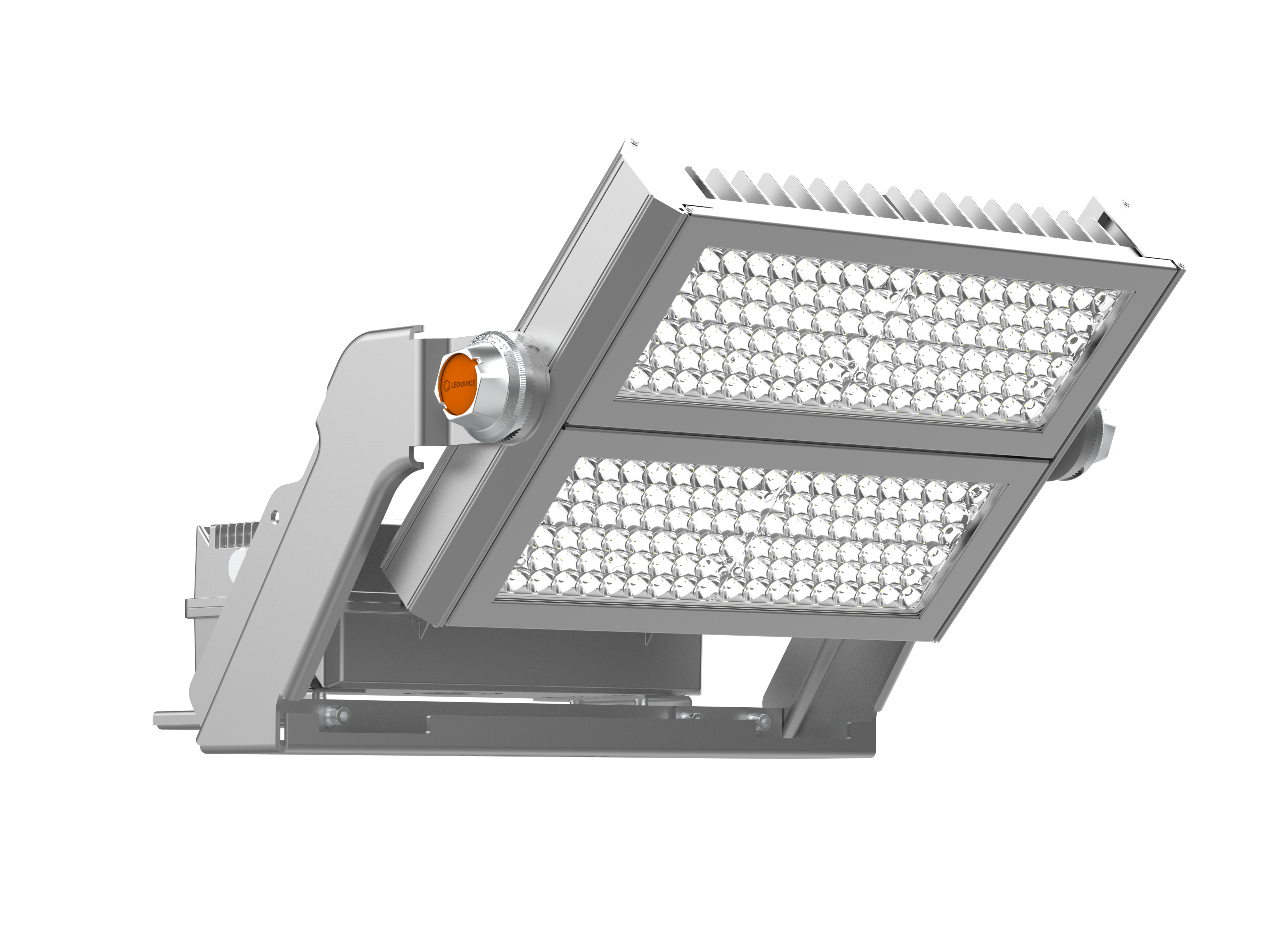

Product image: white background, diagonal
FL MAX LUM P 600W
FL MAX LUM P 600W
Product line drawing with numbers
FL MAX P 600W
FL MAX P 600W
| EAN | AU model number |
|---|---|
| 4099854202865 | LDVFL600W10D757 |
