SUPERSTAR TRI COLOUR GIMBLE DOWNLIGHT
SUPERSTAR GIMBLE DOWNLIGHT 7W 90MM BK TRI
GTIN: 4099854315503
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Trailing edge universal dimmer compatible
Areas of application
- Public areas
- Living areas (living rooms, dining rooms, bedrooms etc.)
- Reception areas and foyers
- Entrances / Hallways
- Retail
- Hospitality
Product features
- TRI colour in 3000K, 4000K and 5700K
- Cut out size: 70mm and 90mm
- Beam angle: 60°
- Type of protection: IP54
- Pre-wired with flex and plug
- Lifetime up to 50,000 h
Electrical data
| Nominal wattage | 7.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Power factor λ | > 0.80 |
Photometrical data
| Luminous flux | 720 lm |
| Luminous efficacy | 115 lm/W |
| Color temperature | 3000 K / 4000 K / 5700 K |
| Light color (designation) | Warm White, Cool White, Cool Daylight |
| Color rendering index Ra | 80 |
| Standard deviation of color matching | < 6 sdcm |
| Beam angle | 60 ° |
Dimensions & Weight
| Diameter | 105.00 mm |
| Height | 55.00 mm |
| Product weight | 223.00 g |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Polycarbonate (PC) |
| Cover material | Polycarbonate (PC) |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Type of connection | Plug type I |
| Type of protection | IP54/IP20 |
| Dimmable | Yes |
| Mounting type | Recessed |
| Application environment | Indoor |
| Mounting diameter | 90,0 mm |
| Mounting depth | 55,0 mm |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854315503 | Folding box 1 |
122 mm x 122 mm x 77 mm | 265.00 g | 1.15 dm³ |
| 4099854315510 | Shipping box 16 |
510 mm x 266 mm x 181 mm | 5181.00 g | 24.55 dm³ |

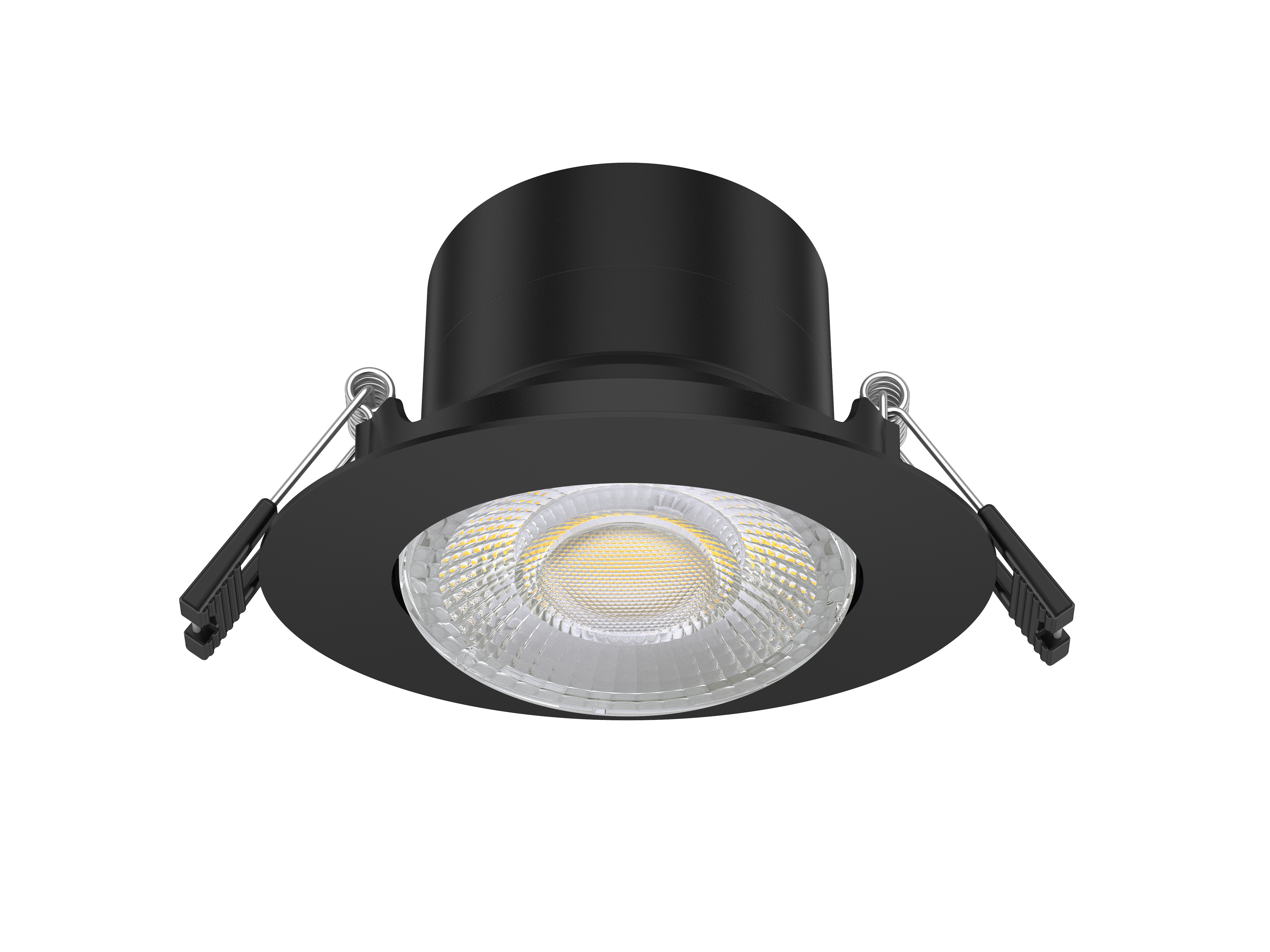

Product image: white background, diagonal
LDVAL DL GIM 7W 90MM BK
LDVAL DL GIM 7W 90MM BK
| EAN | AU model number |
|---|---|
| 4099854315503 | LDVDLGIM7WTRIBK |
