LED VALUE PIR Motion Sensor

MS-SV INF-CR-A 360 220-240 V IP20

GTIN: 4058075373013 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • Suitable for indoor applications.
  • Offices
  • Corridors
  • Stairways
  • Residential interiors
  • Commercial buildings
Product features
  • 360° motion sensor (passive infrared technology)
  • Ceiling surface and recessed mounting
  • Timer function
  • Adjustable illuminance from 3 or 10 lx to 2000 lx via knob switch (model dependent)
  • Photocell detector available for daylight detection
  • Input voltage: 220…240 VAC
  • Operating frequency: 50/60 Hz
  • Ambient temperature in operation: -20…+40 °C
  • Type of protection: IP20
Electrical data
Nominal voltage 220…240 V
Type of current AC
Mains frequency 50…60 Hz
Surge capability (L-N) 1 kV
Dimensions & Weight
Length 70.00 mm
Width 80.00 mm
Height 62.00 mm
Product weight 69.3 g
Colors & materials
Product color White
Temperatures & operating conditions
Ambient temperature range -20…+45 °C
Capabilities
Dimmable No
Maximum installation height 2.2…4 m
Detection area 8 m 1)
Detection angle 360 °
1) Maximum diameter
Certificates & Standards
Protection class II
Type of protection IP20
LOGISTICAL DATA
Temperature range at storage -35…+55 °C
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075373013 Folding box
1		 85 mm x 64 mm x 96 mm 93.00 g 0.52 dm³
4058075373020 Shipping box
10		 332 mm x 182 mm x 116 mm 1105.00 g 7.01 dm³

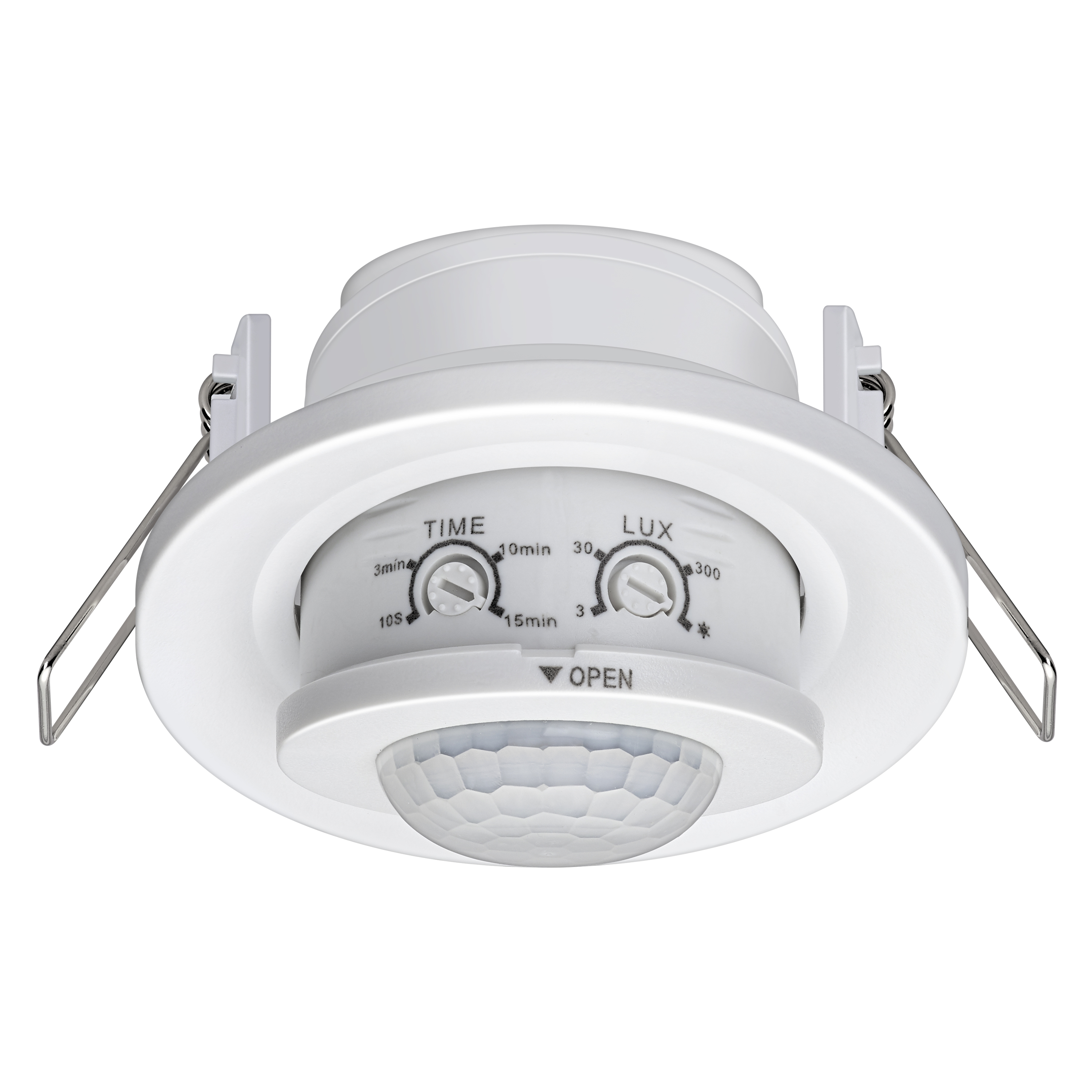

Product image: white background, upright
MS-SV-INF-CR-A-360-230 V-IP20
JPG (1.61 MB)
EAN AU model number
4058075373013 LDVSENSORPIRCRA360
