LED SUPERSTAR PIN G9 DIM
SST PIN 32 3.5 W/2700 K G9 CL
GTIN: 4058075811935
Blister / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Very long lifetime of up to 25,000 h
- Very low energy consumption
- Ideal for decorative and free-burning applications
Areas of application
- Atmospheric accent lighting throughout the home
- Outdoor applications only in suitable luminaires
Product features
- LED alternative to high voltage halogen lamps
- Dimmable (with many common dimmers, see also www.ledvance.com/dim)
- Mercury-free lamps
References / Links
- For further products and actual information concerning LED lamps see www.osram-lamps.com/led-lamps
- For Guarantee see www.osram-lamps.com/guarantee
Electrical data
| Nominal wattage | 3.5 W |
| Construction wattage | 3.50 W |
| Nominal voltage | 220…240 V |
| Claimed equiv. conventional lamp power | 32 W |
| Nominal current | 16 mA |
| Type of current | AC |
| Inrush current | 0.016 A |
| Operating frequency | 50 Hz |
| Mains frequency | 50 Hz |
| Power factor λ | 0.90 |
Photometrical data
| Luminous flux | 350 lm |
| Nominal useful luminous flux 90° | 350 lm |
| Luminous efficacy | 100 lm/W |
| Lumen main.fact.at end of nom.life time | 0.70 |
| Light color (designation) | Warm White |
| Color temperature | 2700 K |
| Color rendering index Ra | ≥80 |
| Light color | 827 |
| Standard deviation of color matching | ≤6 sdcm |
| Rated LLMF at 6,000 h | 0.80 |
Light technical data
| Beam angle | 300 ° |
| Warm-up time (60 %) | ‹ 0.50 s |
| Starting time | < 0.5 s |
Dimensions & Weight
| Overall length | 58.00 mm |
| Diameter | 20,0 mm |
| Maximum diameter | 20 mm |
| Product weight | 10.00 g |
Temperatures & operating conditions
| Ambient temperature range | -20…+40 °C |
| Maximum temperature at tc test point | 88 °C |
Lifespan
| Number of switching cycles | 100000 |
| Lumen maintenance at end of service lifetime | 0.70 |
| Rated lamp survival factor at 6,000 h | ≥ 0.90 |
Additional product data
| Base (standard designation) | G9 |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Design / version | Clear |
Capabilities
| Dimmable | Yes |
Certificates & Standards
| Energy efficiency class | A++ 1) |
| Energy consumption | 4.00 kWh/1000h |
| Type of protection | IP20 |
| Standards | CE, CB, EAC |
| Photobiological safety group acc. to EN62778 | RG0 |
1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)
Country-specific categorizations
| ILCOS | DRT/C-3,5/827-220-240-G9-20/58 |
| Order reference | LEDSPIN32D CL 3 |
Energy labelling regulation data acc EU 2019/2015
| Light source cap-type (or other electric interface) | G9 |
| Length | 58.00 mm |
| Height | 20,0 mm |
| Width | 20,0 mm |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075811935 | Blister 1 |
37 mm x 140 mm x 120 mm | 25.00 g | 0.62 dm³ |
| 4058075811942 | Shipping box 9 |
345 mm x 153 mm x 136 mm | 375.00 g | 7.18 dm³ |
Declarations of conformity
EC declaration G9 20, G9 30, G9 40, G9 32DIM
EC declaration G9 20, G9 30, G9 40, G9 32DIM

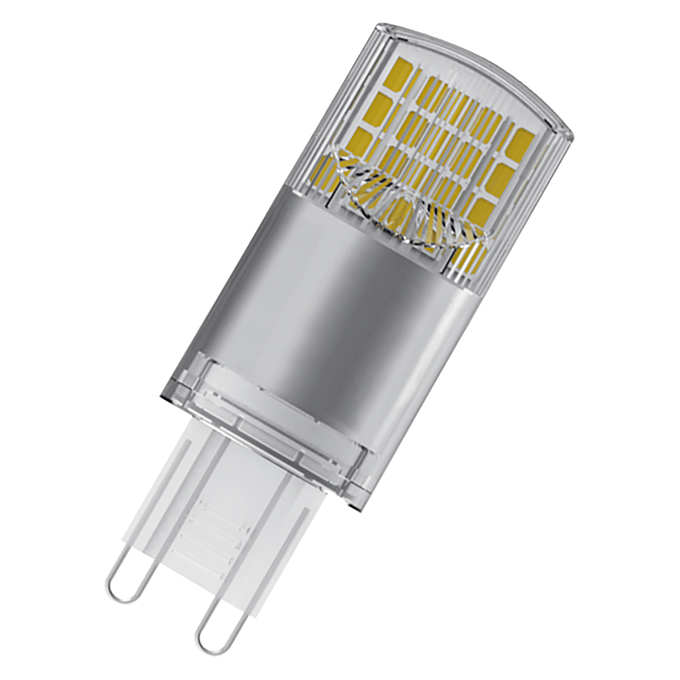

Product image: white background, diagonal with OSRAM logo
LED PIN 40 32 DIM G9 CL
LED PIN 40 32 DIM G9 CL
Product image: white background, diagonal
LED PIN 40 32 DIM G9 CL
LED PIN 40 32 DIM G9 CL

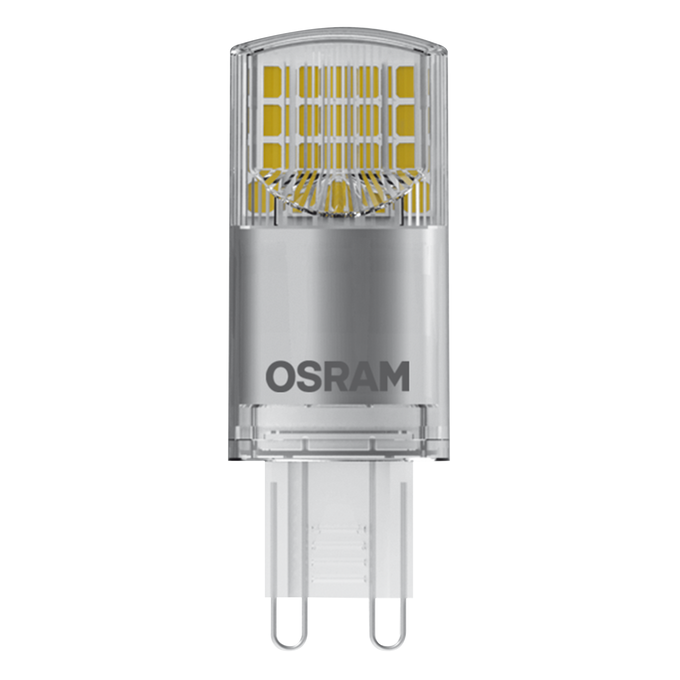

Product image: white background, upright, OSRAM logo
LED PIN 40 + 32 DIM G9 clear
LED PIN 40 + 32 DIM G9 clear

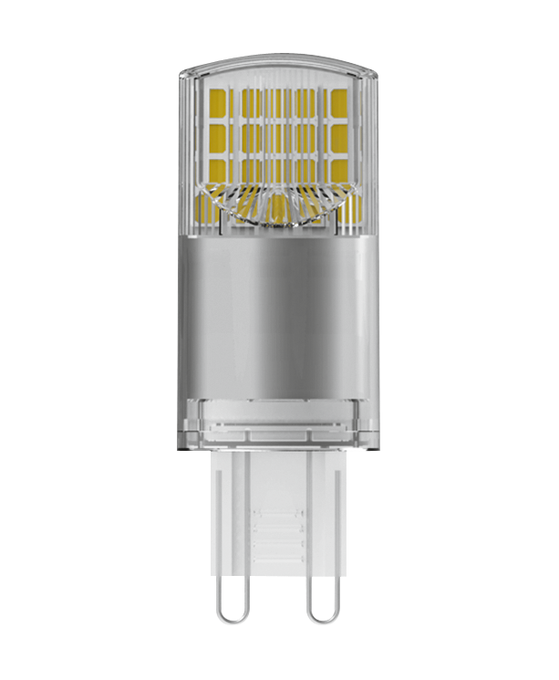

Product image: white background, upright
LED PIN 40 + 32 DIM G9 clear
LED PIN 40 + 32 DIM G9 clear

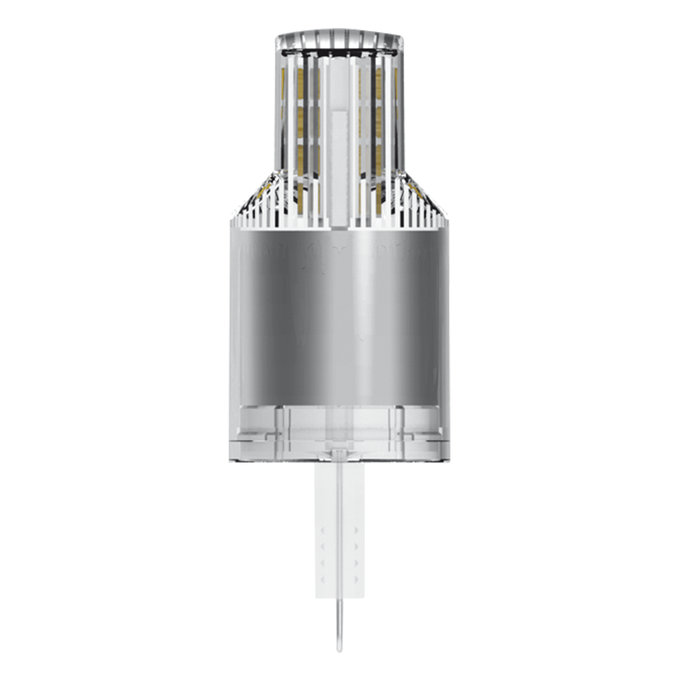

Product image: white background, upright, alternative image
LED PIN 40 + 32 DIM G9 clear
LED PIN 40 + 32 DIM G9 clear
Product line drawing with letters
LED PIN 40 + 32 DIM G9 clear
LED PIN 40 + 32 DIM G9 clear

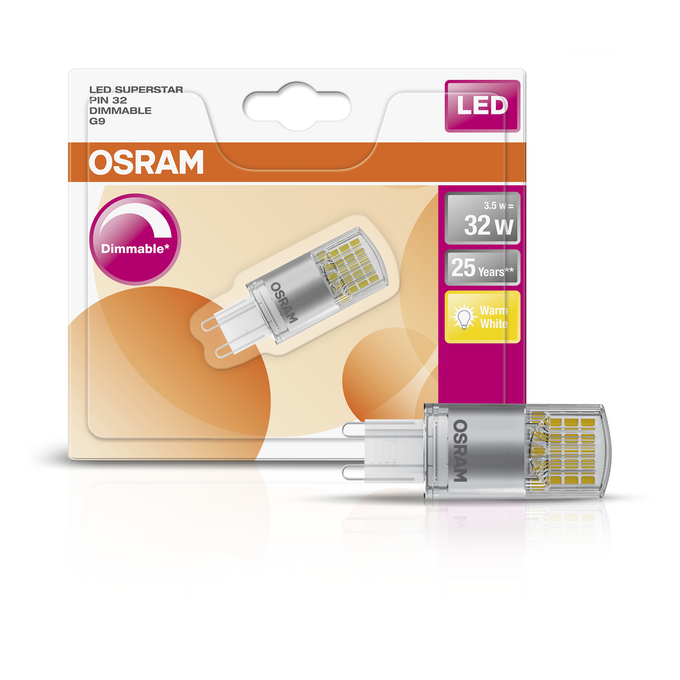

Combo Shot = Product Beauty Shot + Packaging Image
LEDSPIN32D CL 3,5W827 230V G9 BLI1 Combo Shot
LEDSPIN32D CL 3,5W827 230V G9 BLI1 Combo Shot
Packaging image, frontal
LED SST PIN 32 DIM 3.5W 827 CL G9 MiCh Front
LED SST PIN 32 DIM 3.5W 827 CL G9 MiCh Front
| EAN | EFO number | AU model number |
|---|---|---|
| 4058075811935 | 3758014 | OSRLEDG93.5W827D |
