LED VALUE CLASSIC A

LED VALUE CLAS A 10 W/2700 K B22d

GTIN: 4058075412699 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • No "Blue Light" Hazard (according to IEC62778)
  • Photobiological safety according to IEC 62778, risk group RG0
  • Energy savings of up to 85 % (compared to traditional incandescent lamps)
  • Instant 100 % light, no warm-up time
  • No UV and near-IR radiation in the light beam
  • Reliable operation thanks to brand quality
Areas of application
  • Domestic applications
  • General illumination
  • Outdoor applications only in suitable luminaires
Product features
  • Color rendering index Ra: ≥ 80
  • Not dimmable
  • Mercury-free lamps
Electrical data
Nominal wattage 10 W
Construction wattage 10.00 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 75 W
Nominal current 84 mA
Type of current AC
Operating frequency 50…60 Hz
Mains frequency 50…60 Hz
Power factor λ > 0.50
Photometrical data
Luminous flux 1055 lm
Nominal useful luminous flux 90° 1055 lm
Luminous efficacy 105 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra 80
Light color 827
Standard deviation of color matching ≤6 sdcm
Light technical data
Beam angle 200 °
Dimensions & Weight
Overall length 117.00 mm
Diameter 60.00 mm
Maximum diameter 60 mm
Product weight 32.00 g
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Lifespan
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Additional product data
Base (standard designation) B22d
Mercury content 0.0 mg
Mercury-free Yes
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
Capabilities
Dimmable No
Certificates & Standards
Energy efficiency class A+ 1)
Energy consumption 10.00 kWh/1000h
Type of protection IP20
Photobiological safety group acc. to EN62778 RG0
1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)
Country-specific categorizations
Order reference LVCLA7510W/8272
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) B22d
Length 117.00 mm
Height 60.00 mm
Width 60.00 mm
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075412699 Folding box
1		 64 mm x 64 mm x 131 mm 76.00 g 0.54 dm³
4058075412705 Shipping box
10		 332 mm x 138 mm x 147 mm 914.00 g 6.73 dm³
4099854256004 Shipping box
10		 332 mm x 138 mm x 147 mm 812.00 g 6.73 dm³

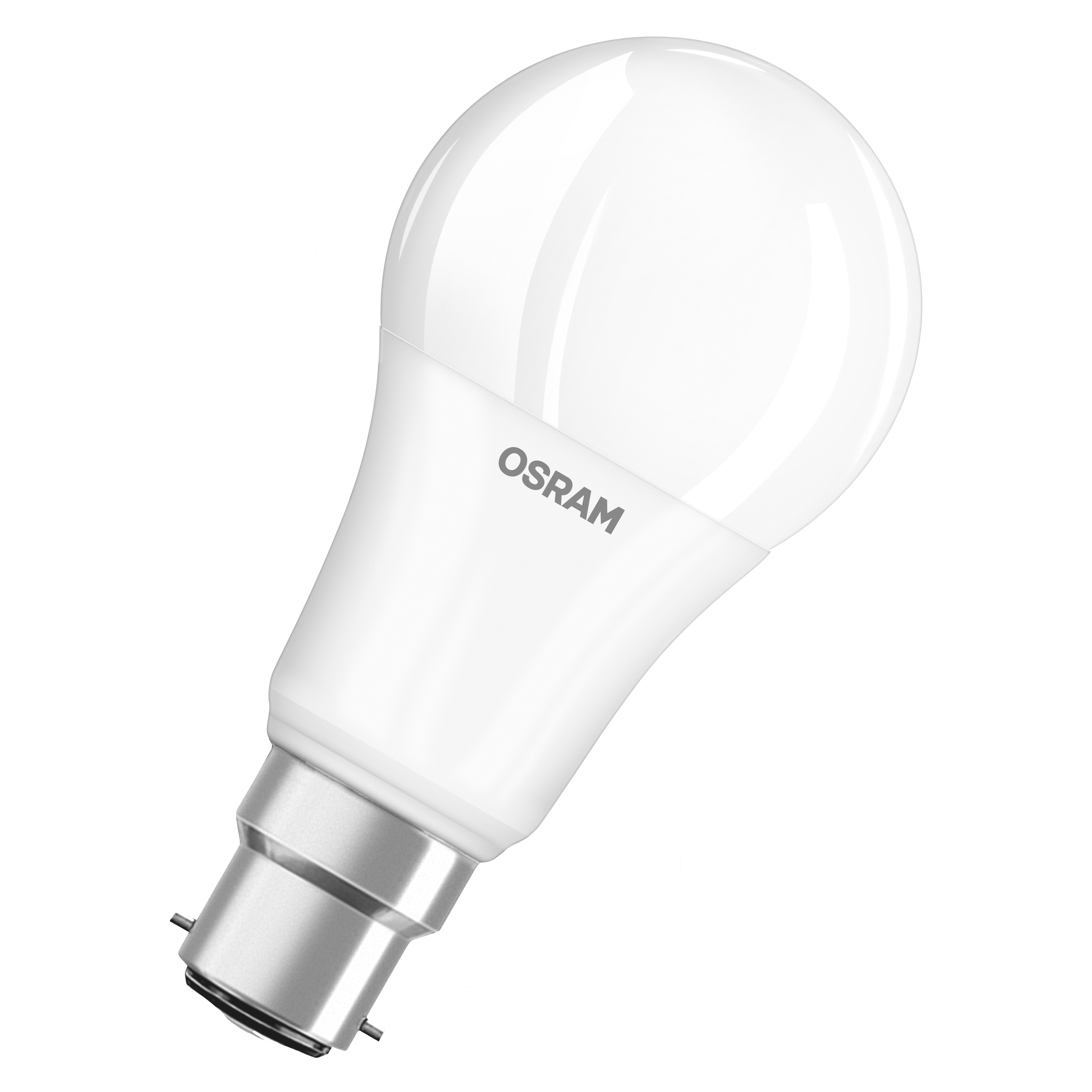

Product image: white background, diagonal with OSRAM logo
LED VALUE CLAS A100 A75 E27 FR B22d
JPG (1.19 MB)

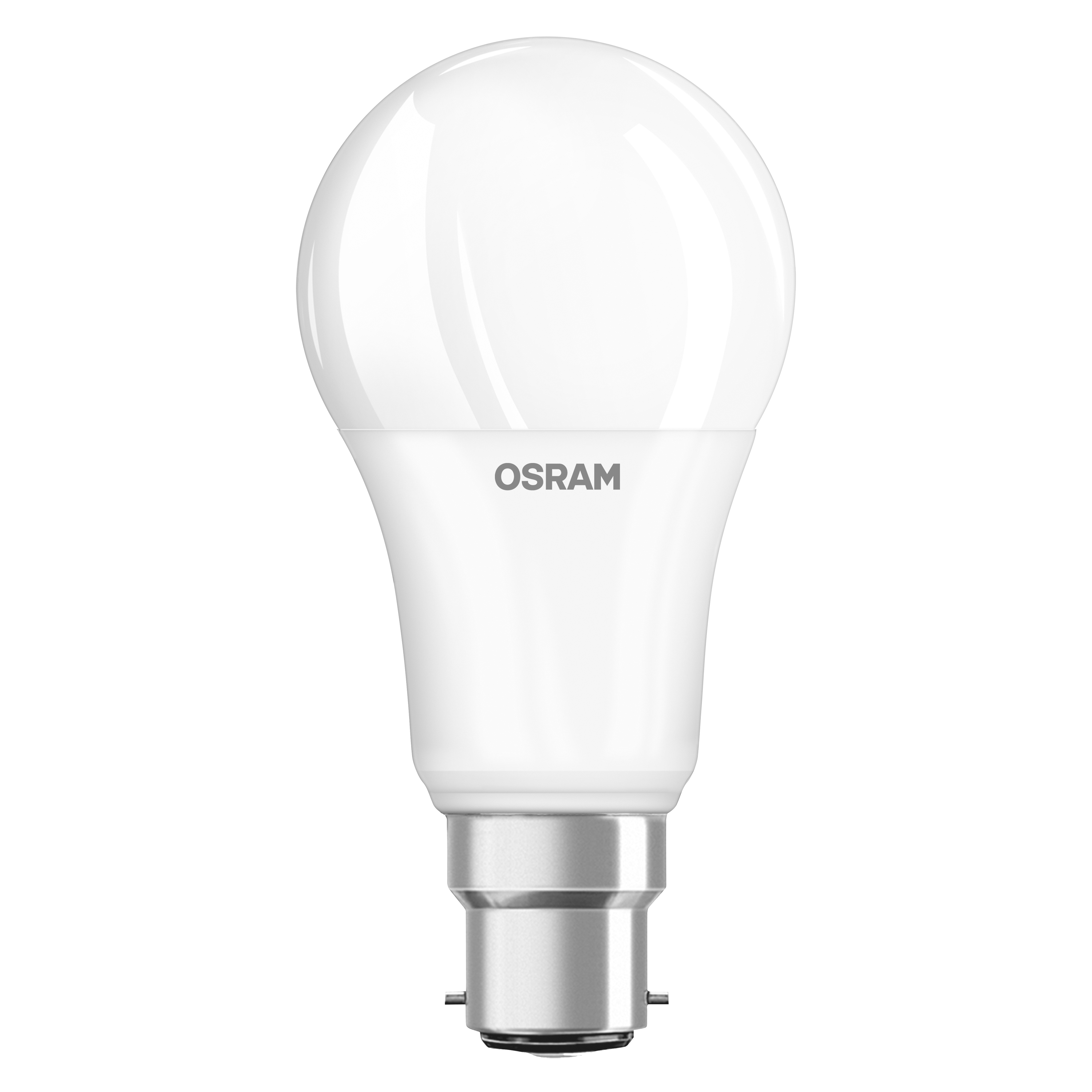

Product image: white background, upright, OSRAM logo
LED VALUE CLAS A100 A75 E27 FR B22d
JPG (1.08 MB)
Product line drawing, front, no dimensions
345348_Classic A60 frosted advanced B22d
SVG (5.17 KB)
EAN AU model number
4058075412699 OSRLVCLA7510W827B22G5
